Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67

Your rating:
Average rating
Rating for Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67
( 4.8 / 5 ) 4 ratings
BALS 110413

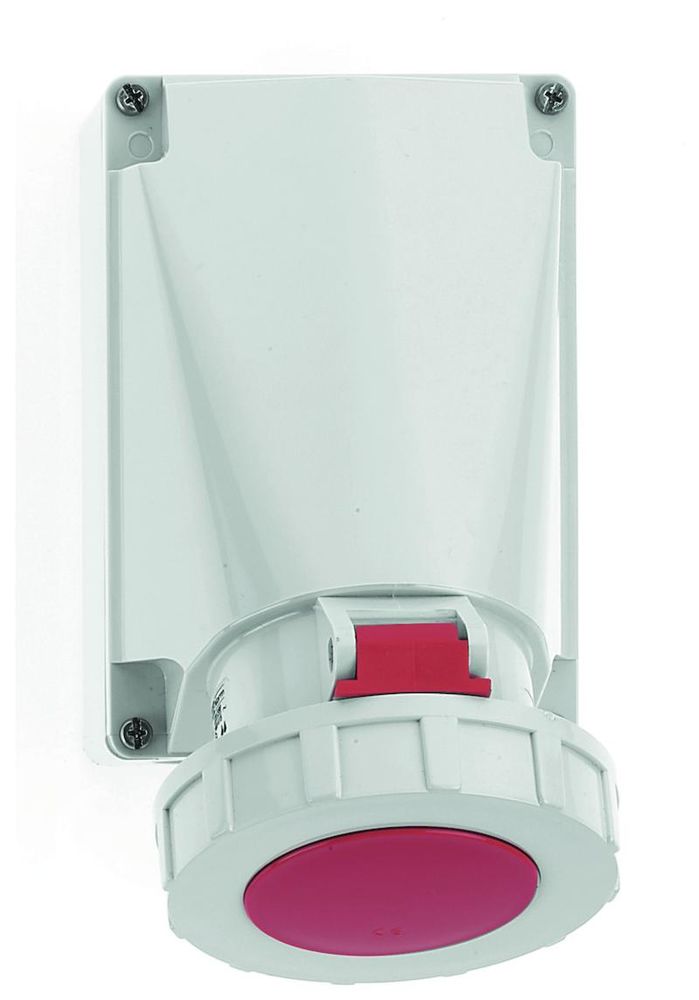

This image may differ from the desired article.
421,05 EUR
( 501,05 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67
Lieske Part No.:828428
Mfg Part No: 110413
UPC/EAN: 4024941146395
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
5376,84 EUR
10332,63 EUR
15288,42 EUR
20244,21 EUR

Product information for BALS 110413:

Wall socket QUICK-CONNECT TE
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 170x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology with box terminals and Kontex contact
Cable entry: 1xM40 top, 2xM32 bottom
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 228 mm, device width: 118 mm, device depth: 176 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, the housing base can be rotated by 180°


Questions & answers

What is the delivery time of Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67?

The article Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 110413 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67 always at the best possible price. We can give you a discount of 2% on Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67 we can offer you a price of 376,84 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals wall outlet 170x118mm 110413, Quick-Connect TE 63A 5p 6h 50/60Hz IP67 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
