Balluff BTL5-H1E2-M1016-B-C001 Magnetostrictive system BTL2HE6

Your rating:
Average rating
product review for Balluff BTL5-H1E2-M1016-B-C001 Magnetostrictive system BTL2HE6
( 0 / 5 ) 0 ratings
Balluff BTL2HE6

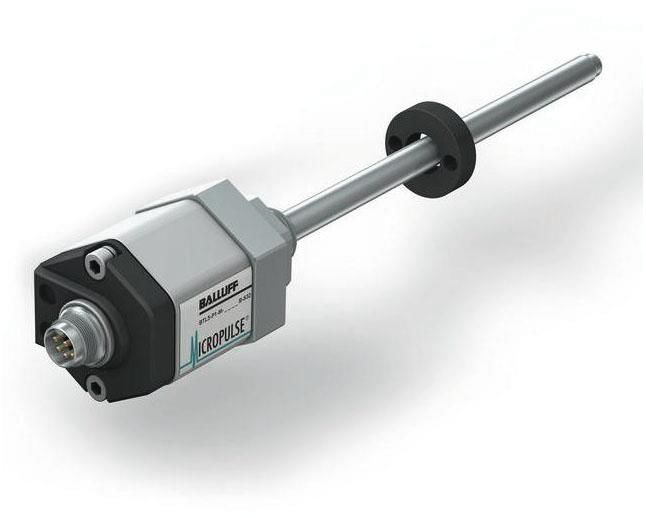

This image may differ from the desired article.
2.016,50 EUR
( 2.399,63 EUR incl. VAT )
≈ £1,732.17  |  ≈ $2,343.17
plus delivery charges: 53,00 €
Delivery time on requestinfo_outline
1x Balluff BTL5-H1E2-M1016-B-C001 Magnetostrictive system BTL2HE6
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:1908314
Mfg Part No: BTL2HE6
Weight:0.12 kg
All products of Balluff

Product information for Balluff BTL2HE6:

Position measuring systems in rod design are most commonly used in hydraulic drives. They are ideal for use in hydraulic cylinders for position feedback, for forming and rolling systems or for lift and hoisting technology. The sensors are installed in the pressure area of the hydraulic cylinder and have the same pressure resistance as the cylinder itself. Shape = rod series, fastening = threaded flange M18x1.5, housing material = aluminum, anodized, position sensor, max. number = 4, connection = plug connector, M8x1, 5-pin, connection 1 = M8x1, 5-pin, connection 2 = M12x1, 4-pin, connection 3 = M12x1, interface = CANopen DS301, measuring range = 1016 mm, resolution = = 5 µm, linearity deviation max. = ±30 µm, repeatability = ± 1 LSB, operating voltage Ub = 20...28 VDC, ambient temperature = -40...85 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
Type: BTL5-H1E2-M1016-B-C001


Questions & answers

What is the delivery time of Balluff BTL5-H1E2-M1016-B-C001 Magnetostrictive system BTL2HE6?

The article Balluff BTL5-H1E2-M1016-B-C001 Magnetostrictive system BTL2HE6 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Balluff BTL2HE6 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Balluff BTL5-H1E2-M1016-B-C001 Magnetostrictive system BTL2HE6 always at the best possible price. We can give you a discount of 2% on Balluff BTL5-H1E2-M1016-B-C001 Magnetostrictive system BTL2HE6 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
