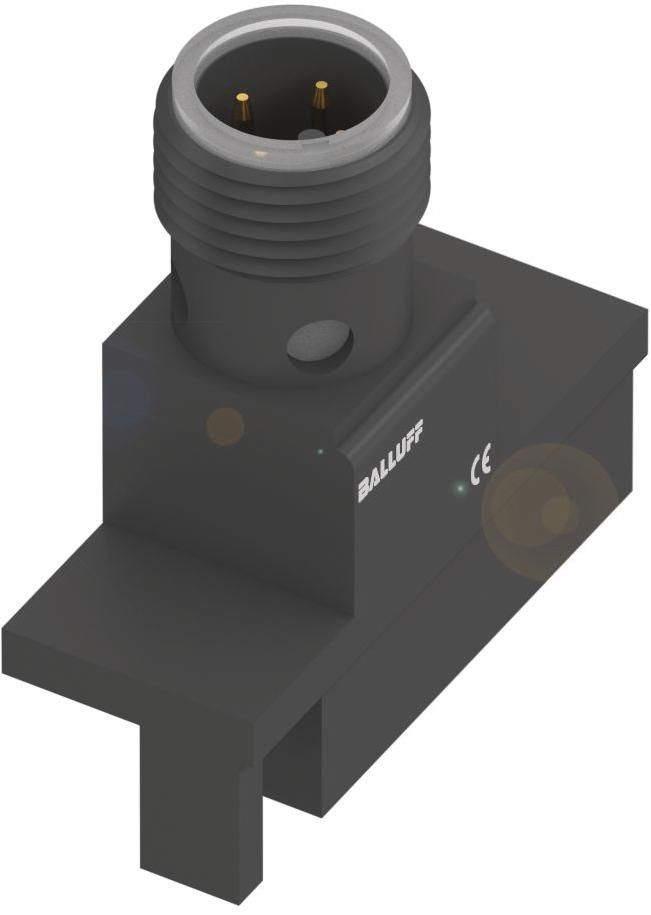

Balluff BMF 305M-PS-W-2-S4 magnetic field sensors BMF0067

Our magnetic field sensors with a flexible fastening system are suitable for all groove shapes, such as T, C, round or trapezoidal grooves. They can be adapted to almost all cylinder types from any manufacturer using special mounting brackets. This means you always have a reliable tool at your disposal for position detection on grippers and pneumatic cylinders. And you are very flexible. In addition, the switching point is only adjusted once and remains the same when the sensor is replaced. In this way, you increase the functional reliability of your system. And replacing the sensor is safer and easier, even in hard-to-reach places. A welcome side effect: Our universally applicable sensor types save you storage space and can reduce your costs. Dimensions = 33.5 x 5 x 33.5 mm, Functional principle = magnetic field sensor, Connection = M12x1 connector, 4-pin, A-coded, Application = larger actuators, welding area, Fastening = BMF 305-HW* bracket, Housing material = aluminum, Switching output = PNP normally open (NO), Switching frequency = 10 Hz, Operating voltage Ub = 10...30 VDC, Ambient temperature = -25...70 °C, Magnetic field resistant = weld-proof (AC), Protection class = IP67, Approval/Conformity = cULus, CE, WEEE
Type: BMF 305M-PS-W-2-S4
