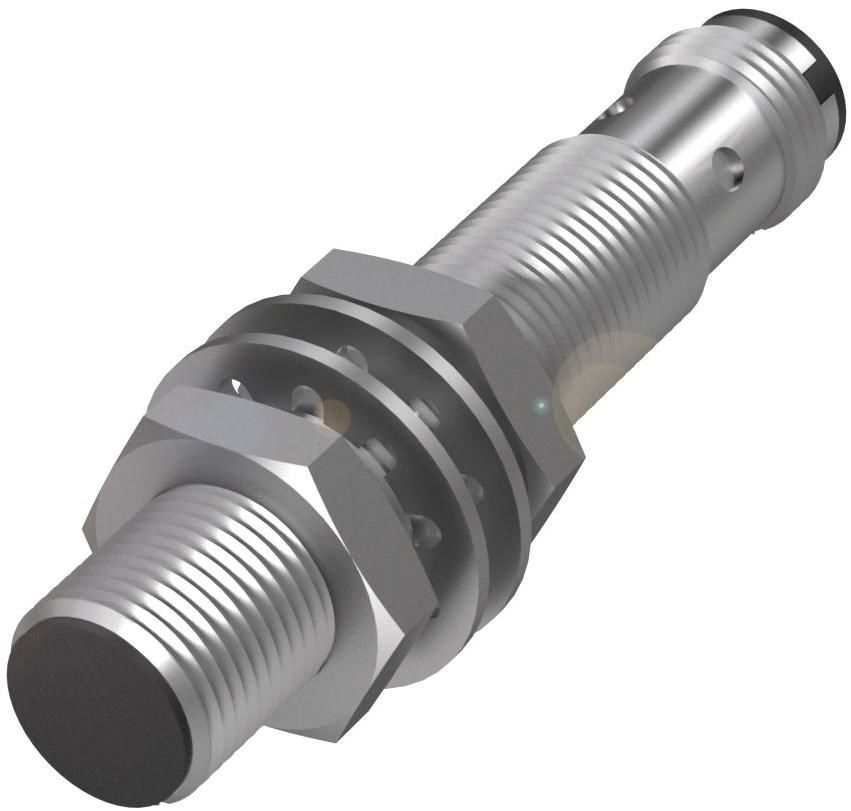

Balluff BES0068 BALL PSC40B-S04G BES-M12MI industrial sensors, content_copy

Our standard inductive sensors are ideal for object detection in the metal sector. They are short-circuit proof and work without contact, which means they are wear-free and very resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm cuboid dimensions. The robust and reliable inductive global sensors enable you to create particularly economical solutions. We can deliver the wide range of these over 500 preferred variants worldwide, even in large quantities, at short notice. Dimensions=Ø 12 x 65 mm, design=M12x1, installation=flush, range=4 mm, switching output=PNP normally open (NO), switching frequency=2500 Hz, housing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=plug connector, M12x1 plug, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP68, approval/conformity=CEcULusEACWEEE
Type: BES M12MI-PSC40B-S04
