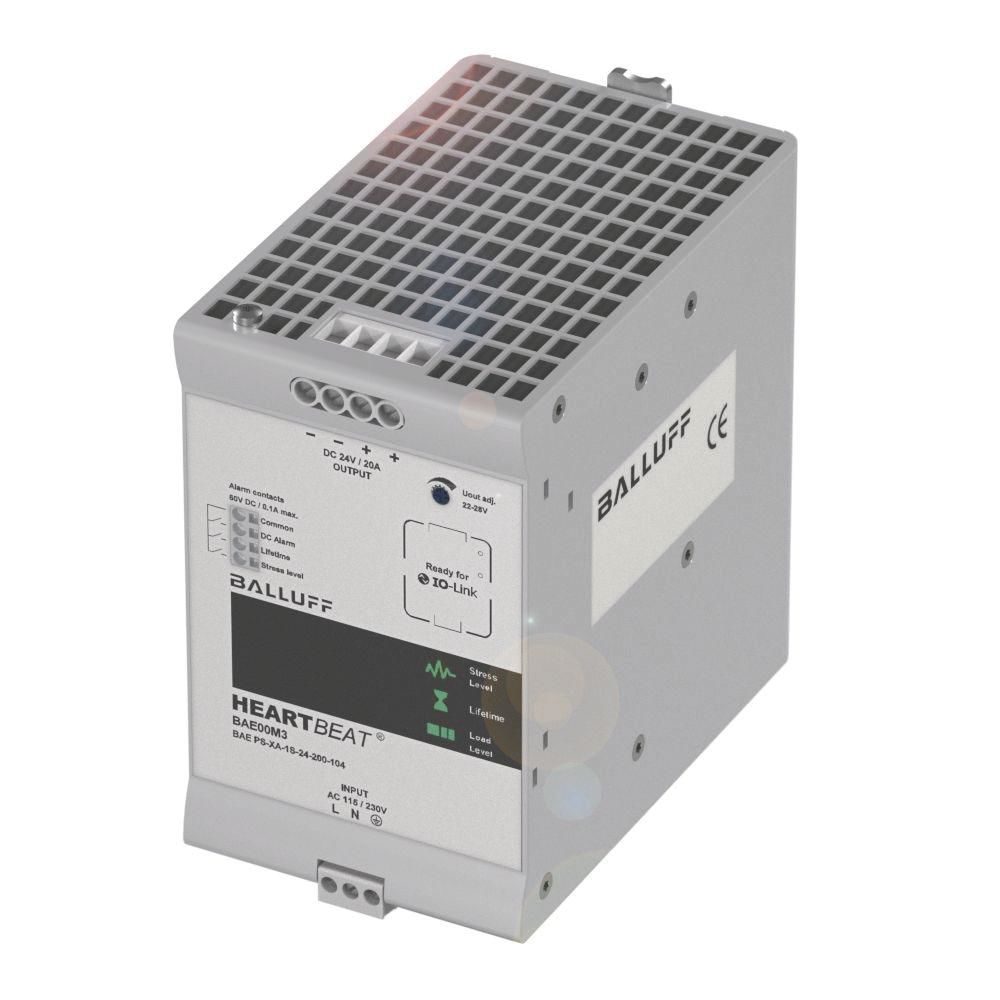

Our Heartbeat® power supplies with IO-Link interface ensure a reliable and efficient power supply for sensors, actuators, controllers and HMIs. They were specially developed for critical applications with high demands on quality, durability and diagnostic capability. Their most important features are particularly high-quality components, a long service life and integrated monitoring. The Heartbeat® status display LED provides local and three-color information about the current load situation, the degree of device wear and the remaining service life of the power supply. Alarm, stress level and lifetime are output via the digital outputs. You can access detailed diagnostic and status information about the respective device, its operating parameters and its history via IO-Link. The extra-slim design of the Heartbeat® power supplies with IO-Link interface enables resource-optimized control cabinet construction
(IP20 housing).
(IP20 variants for supplying modules in decentralized structures directly at the consumer are also available. Dimensions = 79 x 127 x 139 mm, Design = DIN rail, Fastening = Top hat rail mounting, Housing material = Aluminum, Connection (power supply IN) = Terminal block, Connection (power supply OUT) = Terminal block, Input voltage = 115/230 V AC automatic selection, Single phase, Rated output voltage DC = 24 V, Rated output current = 20 A, Output power max. = 720 W, Output current max. = 30 A for max. 4 s, 1x/min., Protection class =
(IP20, Approval/Conformity = CE, WEEE, cULus, Ambient temperature = -25...60 °C
Type:
BAE PS-XA-1S-24-200-104
Questions & answers
What is the delivery time of Balluff BAE PS-XA-1S-24-200-104 power supplies BAE00M3?
The article Balluff BAE PS-XA-1S-24-200-104 power supplies BAE00M3 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Balluff BAE00M3 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Balluff BAE PS-XA-1S-24-200-104 power supplies BAE00M3 always at the best possible price. We can give you a discount of 2% on
Balluff BAE PS-XA-1S-24-200-104 power supplies BAE00M3 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
