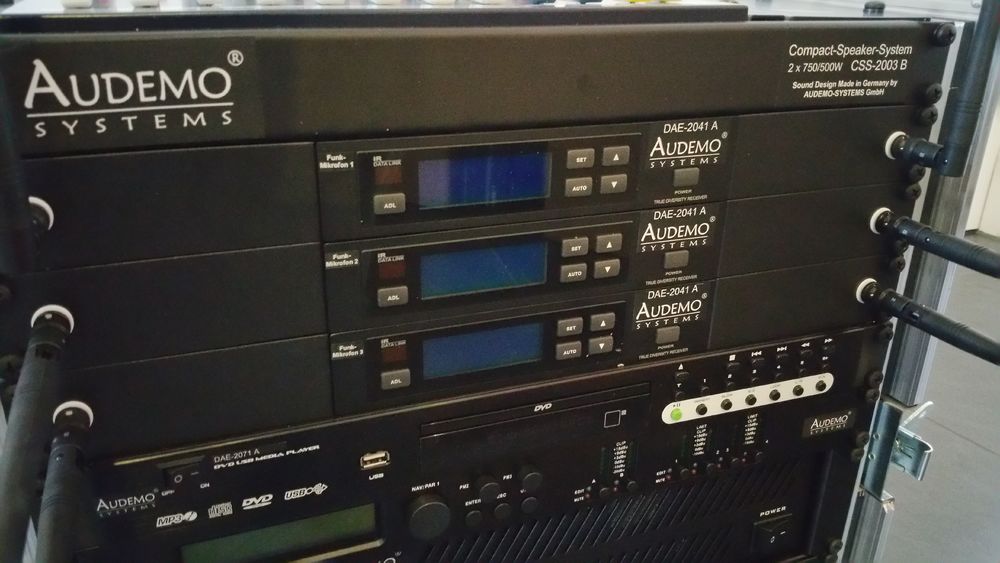

AUDEMO-SYSTEMS CSS-2003B Compact speaker system 2x750 / 500W

Compact sound system CSS-2003 2x 750 / 500W

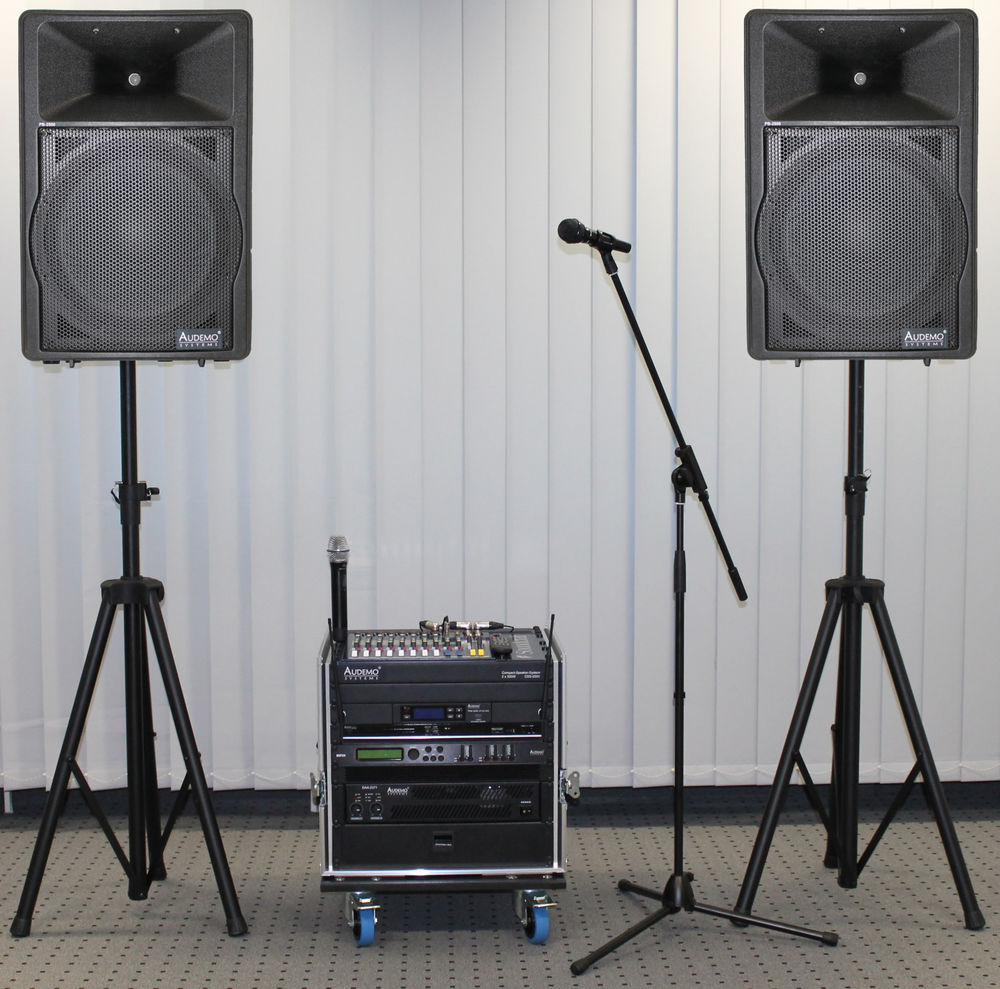

Compact Speaker System CSS-2003 2x 750 / 500W

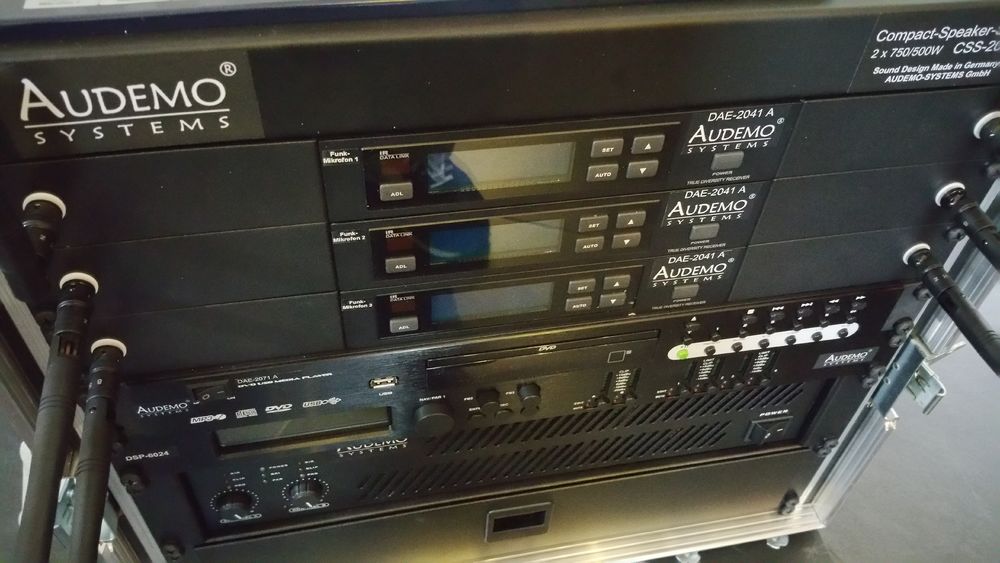

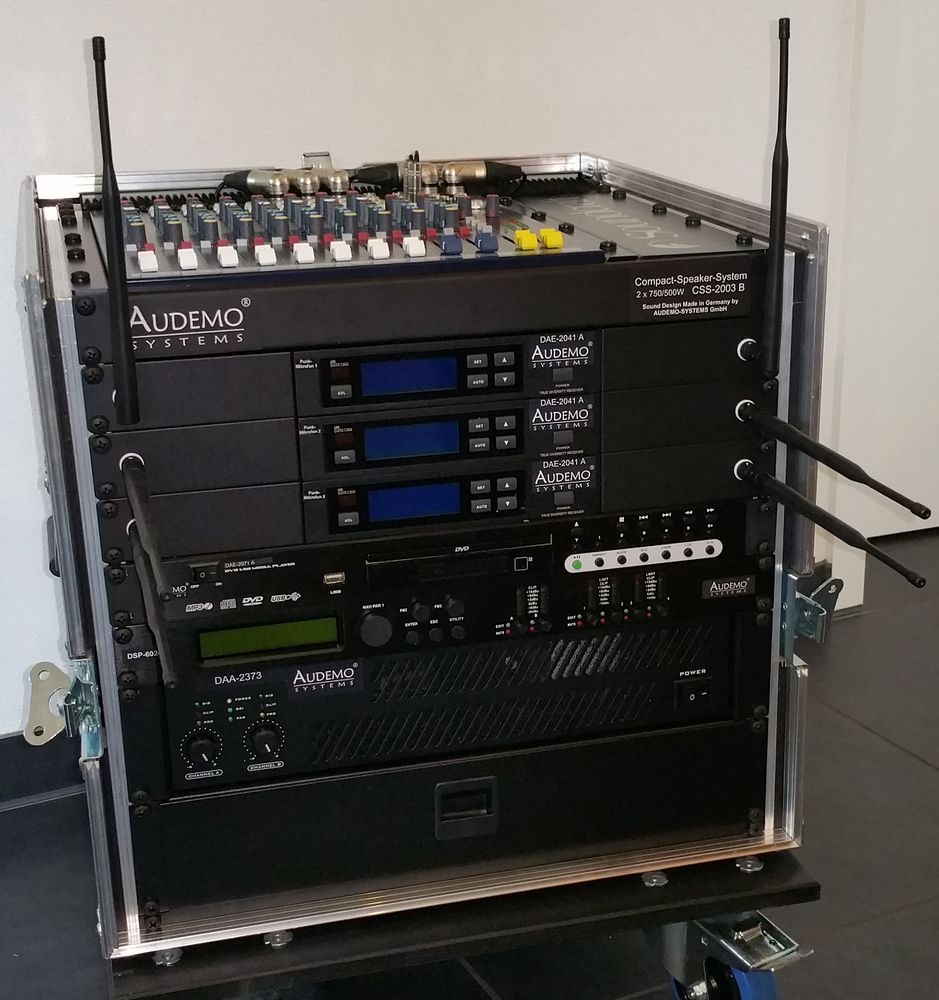

2 years warranty , quality product Made in Germany Mobile use up to 1200 (1600 *) listeners complete system for convenient Plug & Play high transmission quality and feedback-free Reproduction of microphones even at high volume levels - without additional operation by the factory-configured AUDEMO-SYSTEMS ® sound design. Especially suitable for public buildings, schools, government agencies and associations. Ideal for applications such as: - lectures and presentations - school events, open days - Fairs and Exhibitions - sports and charity events - advertising presentations - marquees, celebrations and anniversaries - Mobile stage and event technology The mobile, compact sound system CSS-2003 provides 2 x 500W RMS and is suitable for the professional sonication of up to 1200 (1600 *) persons. The optimal selection of high quality components precisely coordinated a highest transmission quality of music and speech playback is achieved. The system itself is built and ready for plug and play in a few minutes. The technique itself is completely housed in a flight case with skateboard and easy to transport. The compact sound system CSS-2003 is delivered ready for use and is suitable for both mobile as well as fixed locations. This complete system includes the following components: 1x professional mixing console with 14 input channels, including 8 x microphone mono, 3x Stereo Line 1x Professional amplifier with 2x 750 / 500W output power into 4 ohms 1x Professional digital sound processor, already optimized at the factory by AUDEMO-SYSTEMS ® Sound Design 1x DVD / CD / MP-3, USB - SD card player with infrared remote control 1x Professional UHF wireless microphone system in diversity technology for interference-free transmission 1x Professional dynamic handheld microphone with on / off switch 1x Professional angle Flight Case 19 inch, 10U, skateboard with 4x 100mm blue wheels , 2 with brakes 2x Professional 2-way speaker with 38,1 cm ( 15 inch ) / 3,6 cm ( 1,4 inch ) - equipping, large handles, tweeter 2x aluminum speaker stand, 1300 - 2000mm extendable 1x microphone stand with pivoting arm 1x Professional system documentation Quick start guide, technical notes, factory setting Help the mixer, and detailed manuals of all components Wide range of accessories such as rack drawers, protective case for tripods, 2x speaker cable 10m, power cable 10m (Schuko), microphone cable, each a microphone clamp for the hand-held microphone and the radio remote control, power distribution, etc. requests for changes concerning the Compilation of the plant or extensions are naturally possible on request! * Optionally available: - Expansion Set LSE-1000 for the sonication of up to 1600 listeners consisting of 2x Professional speaker PB-1500, 2x aluminum Lausprecherstativ ST-200 with protective case, and 2x Speaker Cable 10m. - Complementary Set DHS-1000. An additional UHF wireless microphone system with handheld transmitter. - Extension kit DTS-1000. An additional UHF wireless microphone system with bodypack transmitter and headset. A maximum of 2 UHF wireless microphone systems per PA system possible. 2 years warranty on the PA system. This does not include items which a use-related or otherwise subject to wear (eg potentiometers, faders, moving parts, laser , connectors, cables, bags, etc.), as well as damage and product defects that have been caused by the use of non-original parts, unauthorized attempts to repair or improper use / lack of care.
Technical specifications:

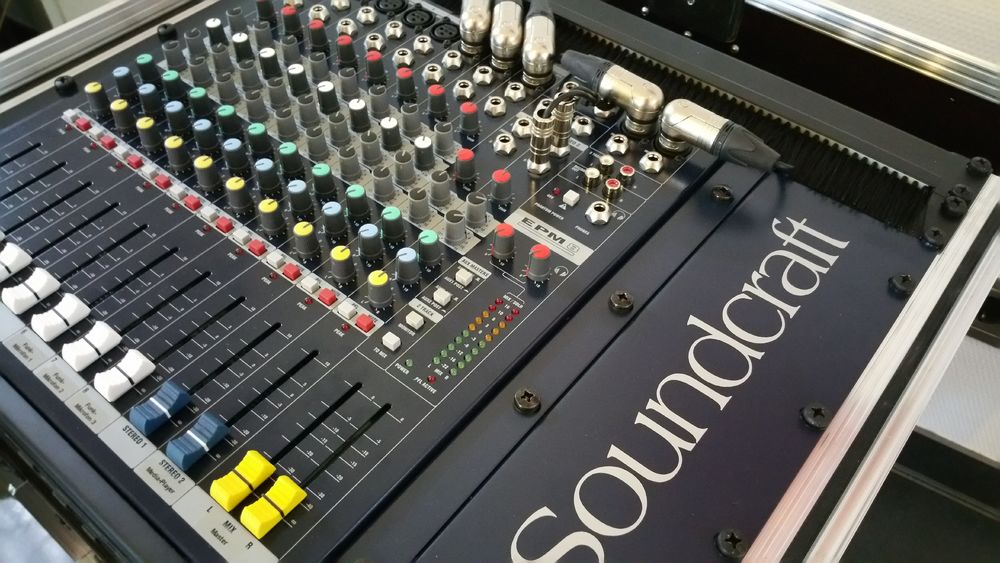

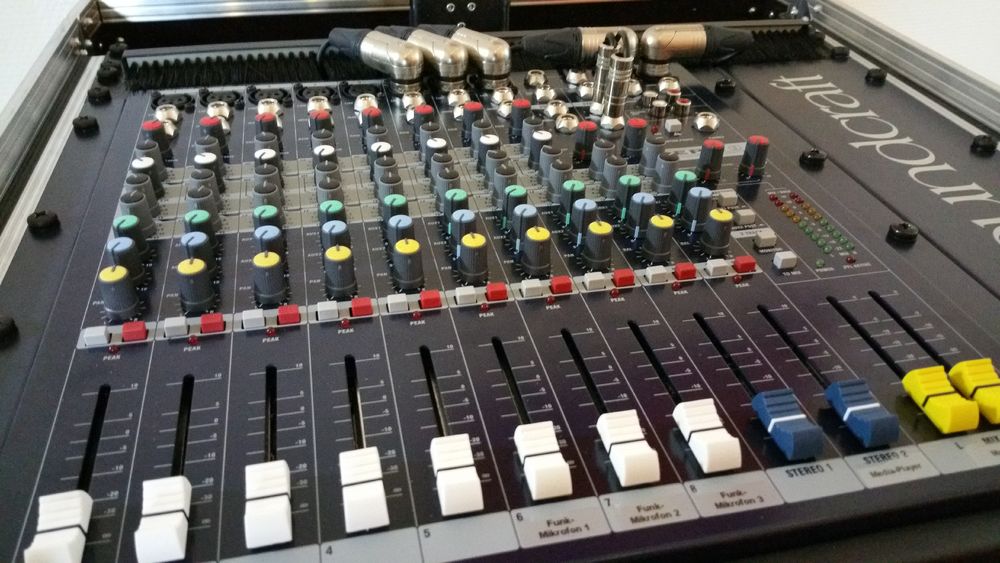

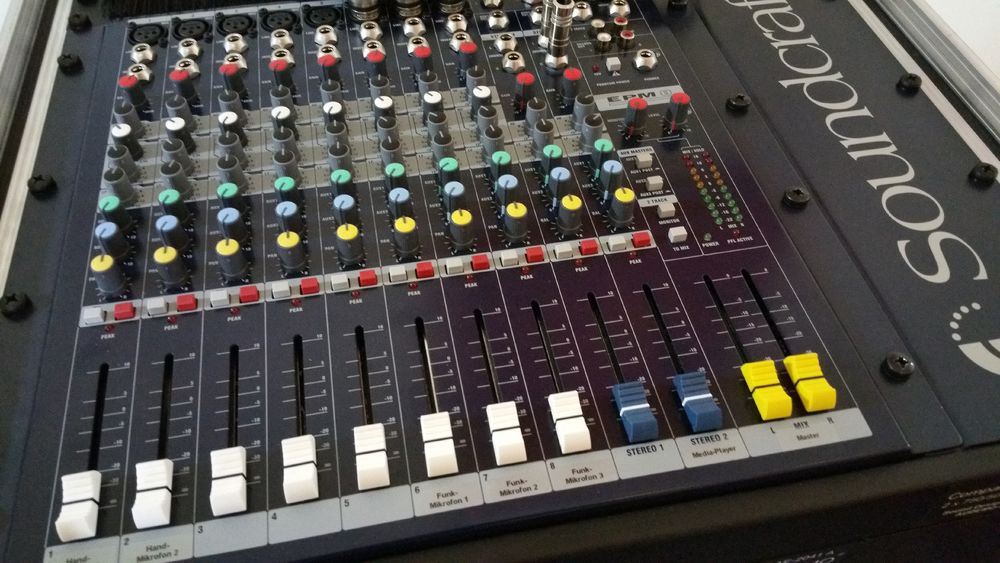

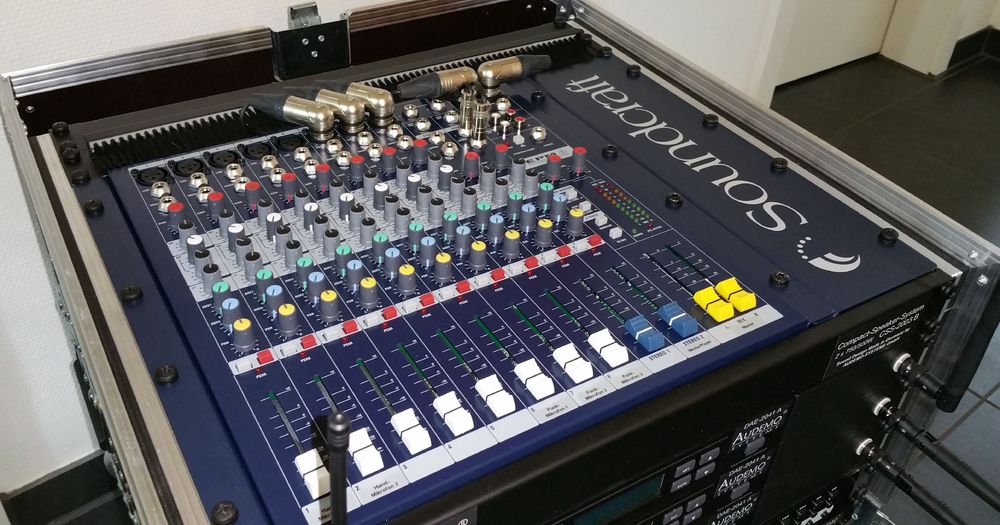

Professional mixing console EPM8:
noise (22Hz-22kHz measured bandwidth):
Mic EIN @ max. Gain, 150 O source impedance -128
dBu. MixMax, fader pulled down <-85 dBu Crosstalk (1kHz typ @.): Channel mute> 96 dB fader Cut-Off (rel +10 trademark.)> 96 dB Aux Send Regulators attenuation:

86dB

Frequency response:
Mic / Line input to any output +/- 0.5dB 20Hz - 20 kHz THD + N Noise: Mic Gain 30dB, -30 dBu Input Mix Out, Fader max. @ 1kHz <0.007% input & output impedances: Mic input 2.4 kO line input 11 KO's stereo input 100 kO outputs 75 O input & output level: Mic input max. +17 DBu level Line Input max. +30 DBu level stereo input max. +30 DBu level Mix Output max. +20 DBu level headphones (@ 200o) 300 mW EQ: EQ bands (mono input) +/- 15 dB Lo 80Hz Mid (Sweep) 140 Hz - 3 kHz Hi 12 kHz Q 1.5 EQ bands (Stereo Input) + / - 15 dB Lo 80Hz Hi 12 kHz Dimensions (W x H x D): 483 x 91 x 363 mm
Weight: 4.6 kg

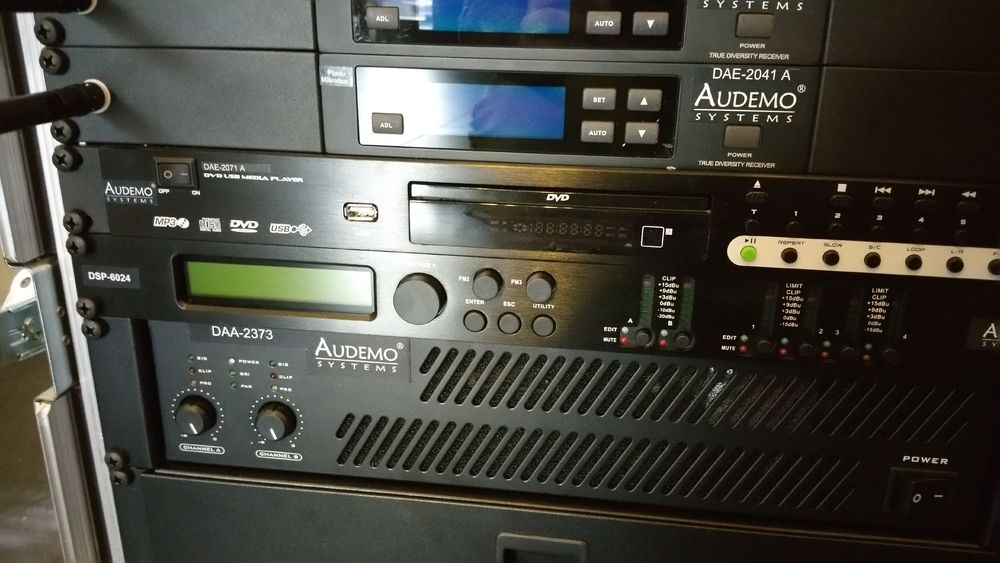

Professional power amplifiers DAA-2371:
Output power (peak / RMS): Stereo, 8 Ohm: 2 x 525/350 W
Stereo, 4 Ohm: 2 x 750/500 W
Frequency response, ± 1 dB: 20 Hz ... 20 kHz
Input sensitivity: 0, 77 V / 26 dB / 1.4 dB
class: H, 2 steps
Noise Ratio:

100 dB (A-weighted)

THD, at 50% of the maximum output power: <0.03%
Inputs: XLR, 6,35- TRS
Input Impedance: 20 ohms (balanced) 10 kOhm (unbalanced)
outputs: speakON panel connectors, screw terminals
Power consumption: 1500 W
Dimensions (W × H × D): 482 × 88 × 375 mm
Weight: 11.3 kg Professional digital Sound Processor DSP-24 Analog Input: ChA / ChB, sym XLR connectors. Maximum input level: +20 dBu Analog Output: CH1 / CH2 / CH3 / Ch4 sym XLR connector. Maximum output level: +20 dBu Digital Signal Processing (DSP): SAM3716 , 24-bit (data) x 96 bits (coeff.) A / D converter: AKM5392, 24-bit D / A converter: AKM4396, 24-bit sampling rate: 48 kHz S / PDIF digital stereo input: 32 kHz, 44.1 kHz and 48 kHz sources usable S / N ratio: 110 dBA THD + N: 0.005% Frequency Response (Bypass): 20 Hz - 20 kHz (+/- 1 dB) Remote control: USB, RS485 Dimensions (W × H × D): 437 x 44 x 300 mm
Weight: 3.7 kg
DVD / CD / MP3, USB, SD card player DMP-1001 A with IR Remote DMP-1002 A
Standby power consumption: <1 W
USB input: max. 100 mA
Batteries for remote control: 2 x 1.5V AAA / LR03
color TV system: PAL / NTSC
Laser power: Laser Class 1
Compatible disk formats: DVD (Digital Versatile Disk), DVD + R, DVD + RW,
DVD-R, DVD-RW , VCD, SVCD, CD-Audio, CD-R,
CD-RW, JPEG CD, MP3-CD, WMA, XviD, DivX
Compatible memory cards: SD cards, multimedia cards, Memory Sticks, Memory Stick PRO
Video: Video formats 4: 3/16: 9
Decoder MPEG 2
Audio: MPEG decoder; Dolby Digital (AC-3)
dts only possible with additional external decoder
Digital analogue converter: 24 Bit / 96 kHz
Dimensions (W × H × D): 437 x 44 x 215 mm
Weight: 2.3 kg
Professional UHF wireless microphone system with handheld transmitter DHS-1000
output: XLR connectors, balanced
6.35-mm jack, unbalanced
Carrier frequency: UHF band (600 MHz ... 900 MHz)
Number of channels: 208
Switching bandwidth: 25 MHz
Modulation type: Frequency Modulation (FM )
Sensitivity: -102 dBm
AF frequency response: 50 Hz ... 15 kHz (± 3 dB)
Distortion: <0.8%
Signal to Noise Ratio:

105 dB (A)

Power supply: 12 V (DC)
Dimensions (W × H × D, without antenna): 212 × 44 × 160 mm
Weight: 0.9 kg
Professional dynamic handheld microphone DM-2000X
Connection: XLR
Transducer principle: dynamic
Polar pattern: supercardioid
Field Sensitivity [mV / Pa]: 0.9
Field Sensitivity [dB re 1V / Pa] -61.3
Equivalent noise level [dB (A)]: 36.0
noise ratio [dB (A)]: 58.0
maximum sound pressure [dB SPL @ 1 % THD]: 136
Impedance [Ohm @ 1 kHz]: 585

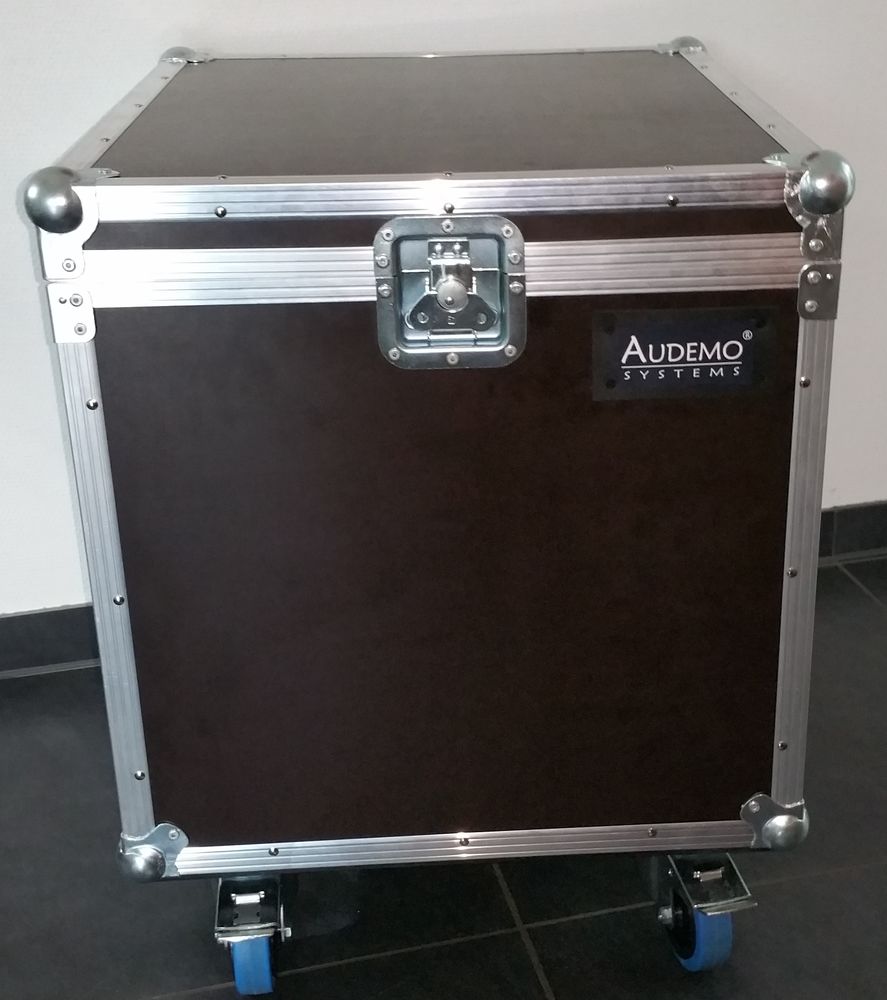

Frequency response 0.1m -10dB: 30-15000 Hz Professional angle Flightcase FL-1010A 19-inch, 10U, with skateboard
Features:
Bonnet, front, top and rear
variable rack strip system with rubber front and rear 10U
stepless Rackschiene with rubber strip above 10U (45cm)
from 7mm birch multiplex
25 x 25mm aluminum angle
4x folding handle
6x sprung butterfly locks
medium steel corners
Mounting depth: 45cm
4x 100mm blue wheels castors, 2x braked
Dimensions (WxHxD): 550 x 705 x 635 mm
Weight: 24.3 kg Professional 2-way speaker PB-1500 with 38,1 cm ( 15 inch )/ 3,6 cm ( 1,4 inch ) -Bestückung capacity 300 W RMS, 600 W PEAK
Impedance: 8 ohms
Frequency response: 47 Hz - 19 kHz
Sensitivity: 96 dB SPL @ 1W / 1m
SPL (max.): 124dB
Woofer: 15-inch heavy-duty chassis
means HF Driver: 1-inch, 34mm titanium compression driver
overload protection: Internal high frequency driver
Tripod Mount: tripod base 36 mm
Dimensions (W x H x D): 453 x 728 x 374 mm
Weight: 22.5 kg
Aluminium Speaker Stand ST-200
Permissible centric load capacity: 30 kg
Minimum Support Height: 1300 mm
Maximum support height: 2000 mm
pole mount: 35mm diameter
Weight: 2.16 kg
Transport length when folded: 112 cm
Color: Black
