AUDEMO-SYSTEMS CSS-2001B Compact Speaker System CSS-2001 4x 1200/800W
9.299,00 EUR |
|
( 11.065,81 EUR incl. VAT ) plus delivery charges |
|
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
Datasheet: | file_download Download |
---|---|
Lieske Part No.: | 288580 |
Mfg Part No: | CSS-2001B |
Weight: | 157 kg |
Product information for AUDEMO-SYSTEMS CSS-2001B:
Compact Speaker System CSS-2001 B 4x 1200/800W
2-year warranty , quality product “Made in Germany”
Mobile use for up to 5000 listeners
Complete system suitable for concerts for the simplest “ Plug & Play”
High transmission quality and feedback-free reproduction of the microphones even at high volumes - and without additional operation thanks to the AUDEMO-SYSTEMS® sound design that is already configured at the factory.
Particularly suitable for high-quality sound systems for the highest musical requirements.
Ideal for applications such as:
- DJ parties
- Mobile PA for live music bands
- Open air events
- Lectures and presentations
- School events, open days - Trade fairs and exhibitions
- Sports and charity events
- Advertising presentations
- Festival tents , celebrations and anniversaries
- mobile stage and event technology The mobile, compact 2-way active sound system CSS-2001 B delivers 4x 800W RMS and is suitable for professional sound reinforcement for up to 5000 people. Through the optimal selection of precisely coordinated high-quality components, the highest transmission quality of music and voice playback is achieved. The system itself can be set up and ready for use in just a few minutes thanks to “Plug & Play”. The technology itself is completely housed in a flight case with a roller board and is easy to transport.
The compact sound system CSS-2001 B is delivered ready for use and is suitable for both mobile and stationary use.

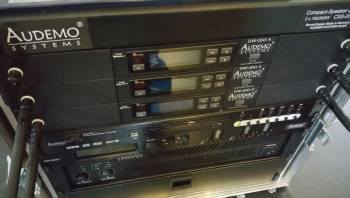

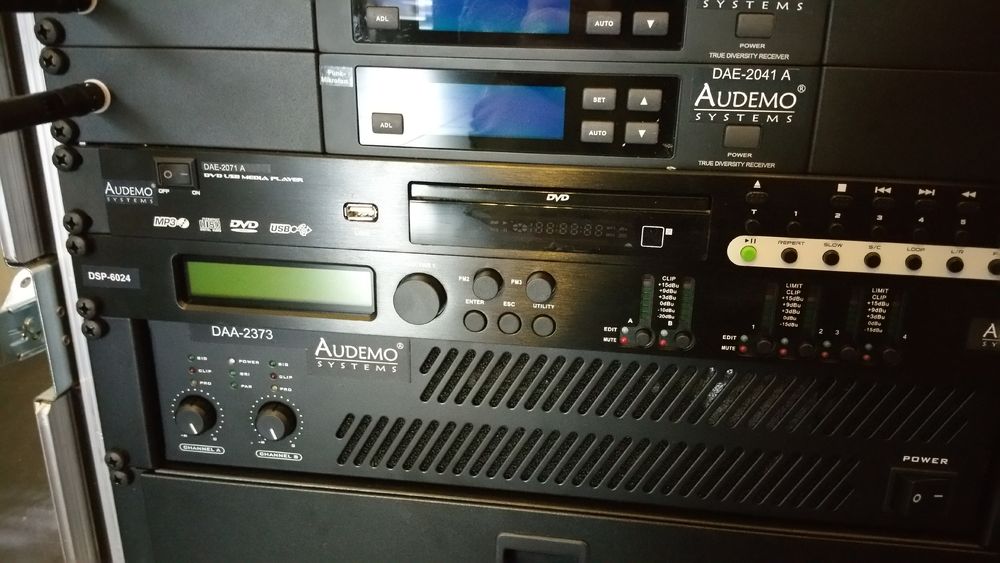

This complete system includes the following components:

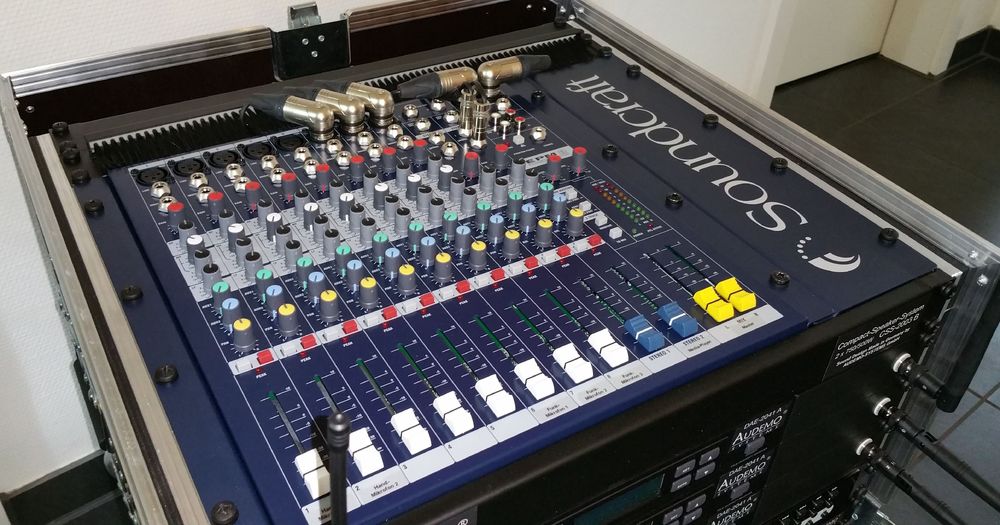

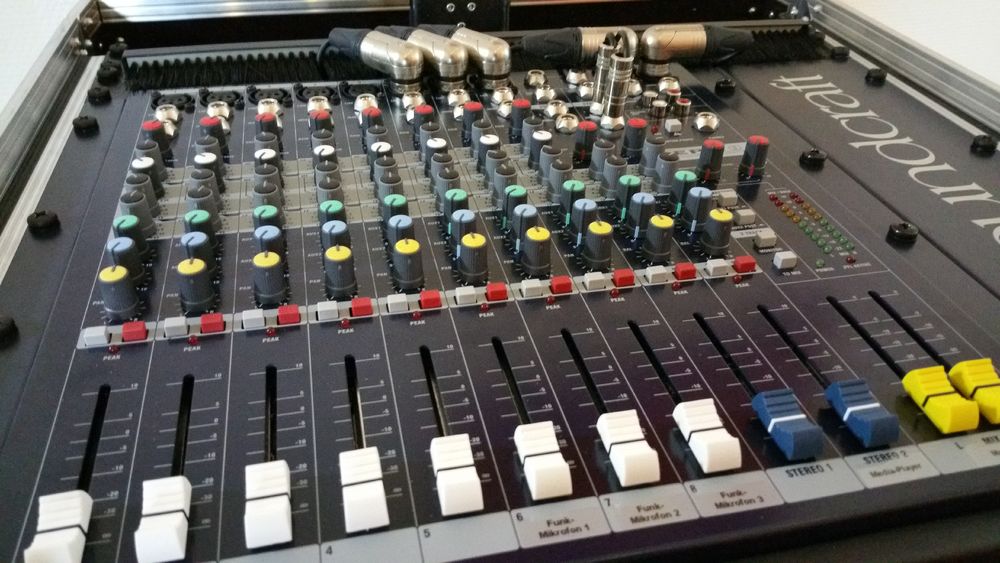

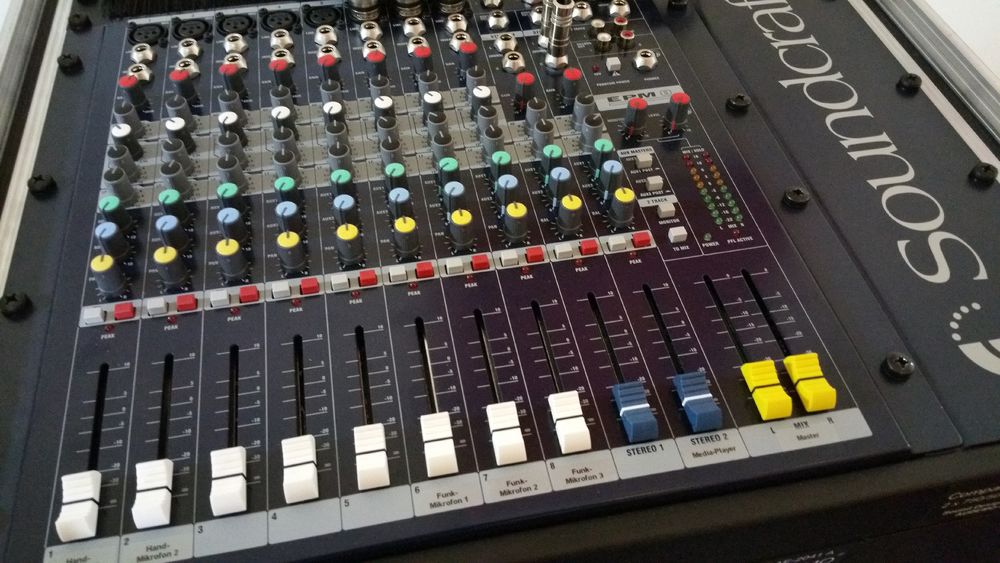

1x professional mixing console with 14 input channels, of which 8 x mono microphone, 3x stereo line
1x professional 4-channel power amplifier with 4x 1200/800W output power at 4 ohms
1x professional digital sound processor, already optimized at the factory by AUDEMO-SYSTEMS® Sound design
1x DVD/CD/MP-3, USB, SD card player with infrared remote control

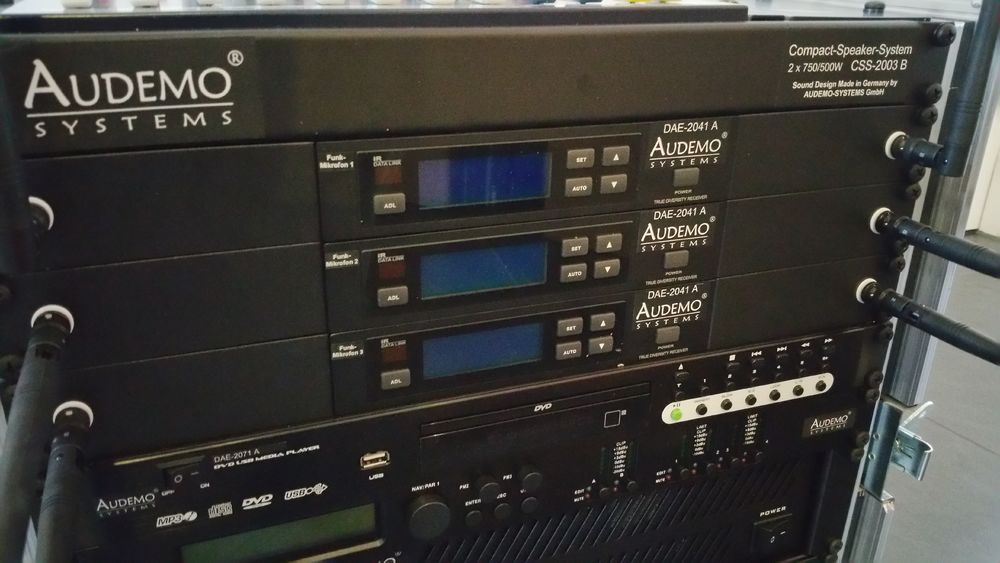

1x Professional UHF radio microphone system in diversity technology for interference-free transmission
1x Professional dynamic handheld microphone with on/off switch

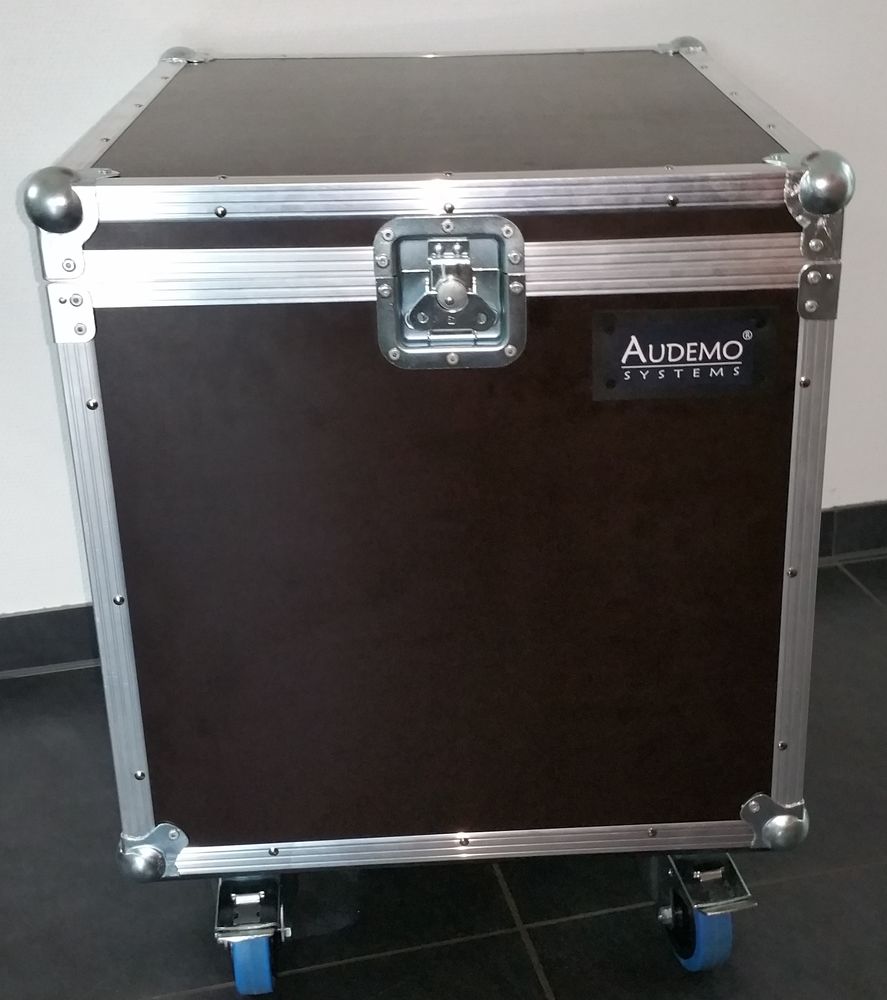

1x Professional angle microphone Flight case 19 inches, 10U, roller board with 4x 100mm blue wheels, 2 of which have brakes,
4x professional 2-way speaker boxes with 38,1 cm ( 15 inch )/4,4 cm ( 1,8 inch ) equipment, large carrying handles, tweeter protection,
4x professional subwoofers with 45,7 cm ( 18 inch ) equipment
4x speaker distance rods, 745mm long
1x microphone stand with swivel arm
1x professional system documentation with short operating instructions, technical information, factory setting aid for the mixer, as well as detailed operating instructions for all components
Extensive accessories such as rack drawer, transport cover for the speaker distance rods, 8x speaker cables 10m, power connection cable (Schuko) , microphone cable 10m, a microphone clip each for the handheld microphone and the radio handheld transmitter, power distributor, etc.
Requests for changes regarding the configuration of the system or extensions are of course possible on request!
* Optionally available:
• Surcharge for professional mixing console with 18 inputs & Lexicon® digital effects processor
• DHS-1000 expansion set. An additional UHF radio microphone system with hand transmitter.
• DTS-1000 expansion set. An additional UHF radio microphone system with pocket transmitter and headset.
A total of a maximum of 2 UHF radio microphone systems per sound system is possible for feedback-free operation.
2 year warranty on the sound system.
Excluded from this are products that are subject to use-related or other wear and tear (e.g. potentiometers, faders, moving parts, lasers, plugs, cables, bags, etc.), as well as damage and defects to the product caused by the use of third-party parts, unauthorized repair attempts or improper use /lack of care were caused.
Technical data:
Professional mixer EPM8:
Noise (22Hz-22kHz measured bandwidth):
Mic ON @ max. Gain, 150 O Source impedance -128 dBu
Mix @max., fader pulled down <-85 dBu
Crosstalk (typ. @ 1kHz):
Channel- Mute >96 dB
Fader Cut-Off (relative +10 mark) >96 dB
Aux Send Control Attenuation: >86 dB
Frequency Response:
Mic/Line input to any output +/- 0.5dB 20 Hz - 20 kHz
THD+N Noise :
Mic gain 30dB, -30 dBu input
mix out, fader max. @ 1kHz <0.007%
Input & output impedances:
Mic input 2.4 kO
Line input 11 kO
Stereo input 100 kO
Outputs 75 O
Input & output level:
Mic -Input max. level +17 dBu
Line input max. level +30 dBu
Stereo input max. level +30 dBu
Mix output max. level +20 dBu
Headphones (@ 200O) 300 mW
EQ:
EQ bands (mono input) + /- 15dB
Lo 80 Hz
Mid (Sweep) 140 Hz – 3 kHz
Hi 12 kHz
Q 1.5
EQ bands (stereo input) +/- 15 dB
Lo 80 Hz
Hi 12 kHz
Dimensions (W x H x D): 483 x 91 x 363 mm
Weight: 4.6 kg
Professional power amplifier DAA-2361:
Output power (peak/RMS): 4 × 1200/800 W at 4 ?
Frequency response, ±1 dB: 20 Hz…20 kHz
Input sensitivity: 0.77 V / 26 dB / 1.4 dB
Class: H, 2 levels
Signal-to-noise ratio:
100 dB (A-weighted)
THD, at 50% of maximum output power: < 0.03%Inputs: XLR sockets, 6.35 mm jack sockets
Input impedance: 20 k? (symmetrical), 10 k? (unbalanced)
Outputs: Speaker built-in connector, screw terminals
Power consumption: 4800 W
Dimensions (W × H × D): 482 × 88 × 370 mm
Weight: 11.5 kg
Professional digital sound processor DSP-6024
Analog input: ChA/ChB, balanced. XLR sockets Maximum input level: +20
dBu
Analogue output: Ch1/Ch2/Ch3/Ch4 balanced A/D converter: AKM5392, 24 bit D/A converter: AKM4396, 24 bit Sampling frequency: 48 kHz S/PDIF Digital stereo input: 32 kHz, 44.1 kHz and 48 kHz sources usable Signal-to-noise ratio: 110 dBA THD +N: 0.005% Frequency range (bypass): 20 Hz – 20 kHz (+/- 1 dB) Remote control: USB, RS485 Dimensions (W × H × D): 437 x 44 x 300 mm Weight: 3.7 kg DVD /CD/MP3, USB, SD card player DAE-2074 A with infrared remote control DAE-2078 A Power consumption: 15 W Batteries for remote control: 2 x 1.5 V AAA/LR03 Color television system: PAL/NTSC Laser power : Laser Class 1 Compatible disk formats: DVD, VCD, SVCD, CD, CDR, Photo-CD, WAV, MP3, MPEG4, AVI, RMVB, JPG, VOB Xvid USB A port for digital media: Memory Sticks, Memory Stick PRO, multimedia cards with SD card adapter DPA-2296 A Video: MPEG 1, MPEG 2 Audio: MPEG 1, MPEG 2, Dolby Digital, DTS, analog Digital-to-analog converter: 24 bit / 96 kHz
Connections: Component -RCA (Cinch) video output, RCA (Cinch) audio outputs stereo, coaxial RCA (Cinch) output, composite RCA (Cinch) video output, balanced XLR audio outputs stereo
Dimensions (W × H × D): 437 x 44 x 240 mm
Weight: 2.3 kg Overload protection: Internal tweeter protection circuit
Professional UHF radio microphone system with hand-held transmitter DHS-1000
Output: XLR built-in plug, balanced
6.35 mm jack socket, unbalanced
Carrier frequency: UHF band (600 MHz…900 MHz)
Number of channels: 208
Switching bandwidth: 25 MHz
Modulation type: Frequency modulation (FM)
Sensitivity: -102 dBm
NF- Frequency response: 50 Hz…15 kHz (±3 dB)
THD: < 0.8%
Signal-to-noise ratio:
105 dB (A)
Power supply: 12 V (DC)Dimensions (W × H × D, without antennas): 212 × 44 × 160 mm Weight : 0.9
kg Professional dynamic handheld
microphone DM-2000X
Connection : )]: 36.0 S/N ratio [dB(A)]: 58.0 Limit sound pressure [dB SPL @ 1% THD]: 136 Electrical impedance [Ohm @ 1 kHz]: 585 Frequency response 0.1 m -10 dB: 30 - 15,000 Hz Professional angle flight case WFC-2010 A 19 inches, 10 HU, with roller board Equipment: Lid at the front, top and back stepless rack rail with rubber piping at the front and back 10U stepless rack rail with rubber piping at the top 10U (45cm) made of 7mm birch plywood 25 x 25mm aluminum angle 4x Folding handle 6x spring-loaded butterfly locks medium steel ball corners Installation depth: 45cm 4x 100mm Blue Wheels swivel castors, 2x with brakes Dimensions (WxHxD): 550 x 705 x 635 mm Weight: 24.3 kg Professional 2-way speaker box PB-2500 with 38,1 cm ( 15 inch )/1 .190,5 cm ( 75 inch ) equipment Power rating: 500 W RMS, 750 W PEAK Impedance: 8 ohms Frequency response: 35 - 20,000 Hz Sensitivity: 99 dB SPL @ 1W/1m Sound pressure (max.): 124dB Bass speaker: 15-inch heavy-duty chassis medium -Tweeter driver: 1.75 inch titanium compression driver Tripod attachment: pole flange 36 mm Dimensions (W x H x D): 440 x 685 x 350 mm Weight: 24 kg Professional subwoofer SW-1800 (45,7 cm ( 18 inch )equipment) load capacity 400 W RMS, 1600 W PEAK Impedance: 8 ohms Frequency response: 40 Hz - 200 Hz Sensitivity: 100 dB SPL @ 1W/1m Sound pressure (max.): 132 dB
Bass loudspeaker: 18-inch heavy-duty chassis
Tripod attachment: pole flange 36 mm
Dimensions (W x H x D): 530 x 650 x 615 mm
Weight: 41.4 kg
Speaker stand - distance rod DS-200
Permissible centric load capacity: 30 kg
Maximum Support height: 745 mm
Tripod flange: 35 mm diameter
Weight: 0.8 kg
Color: Black
