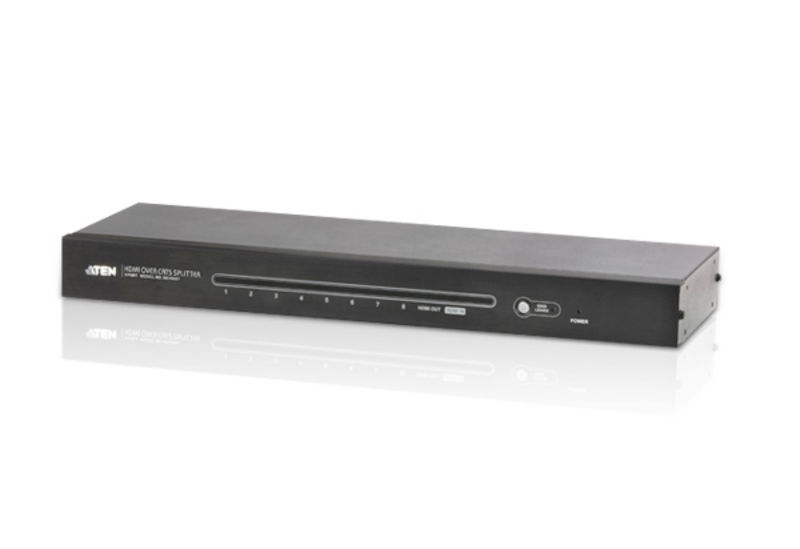

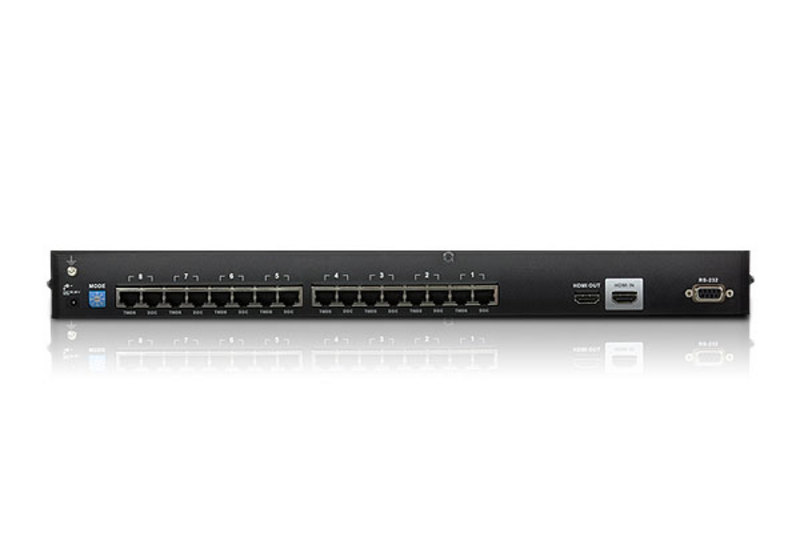

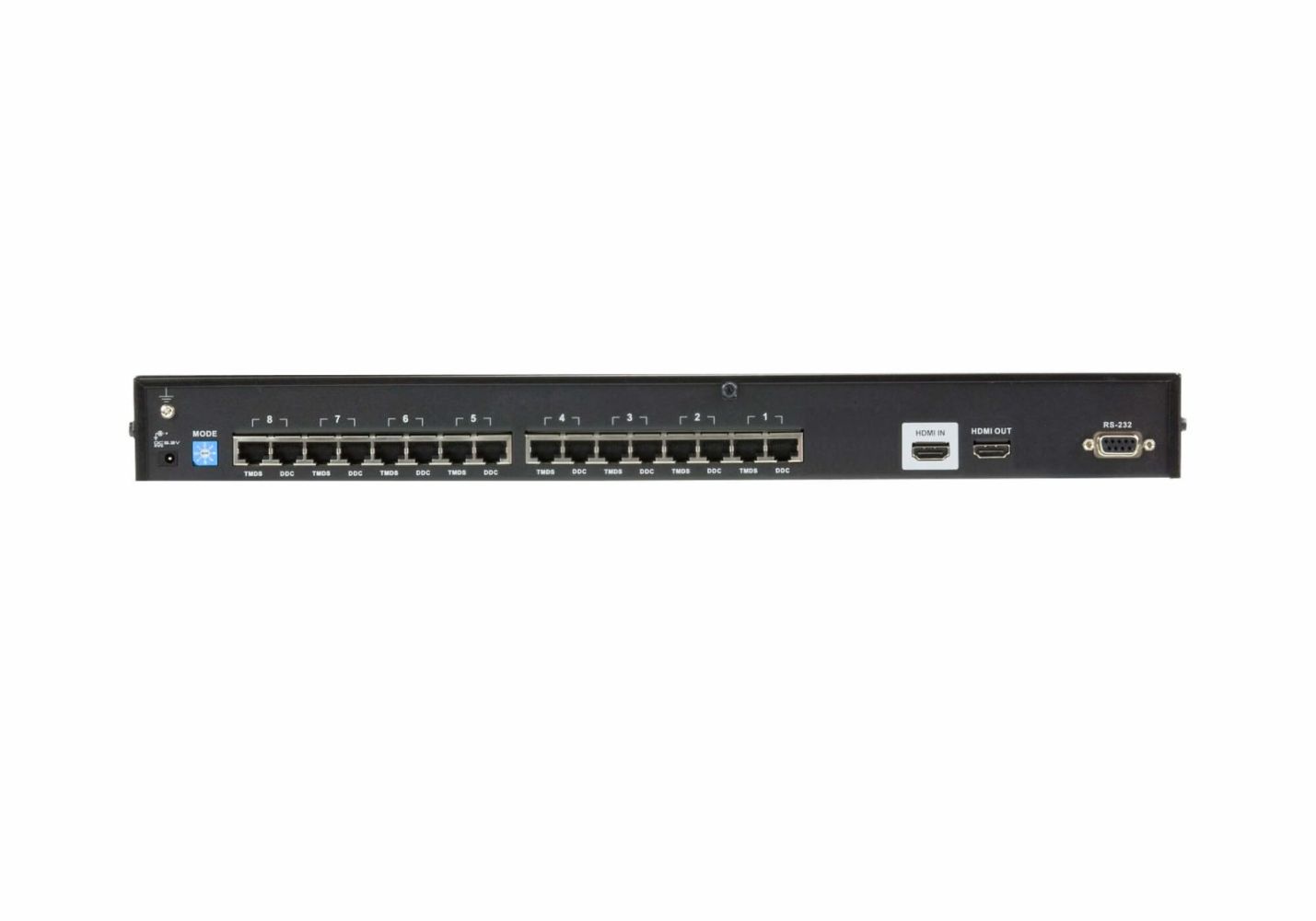

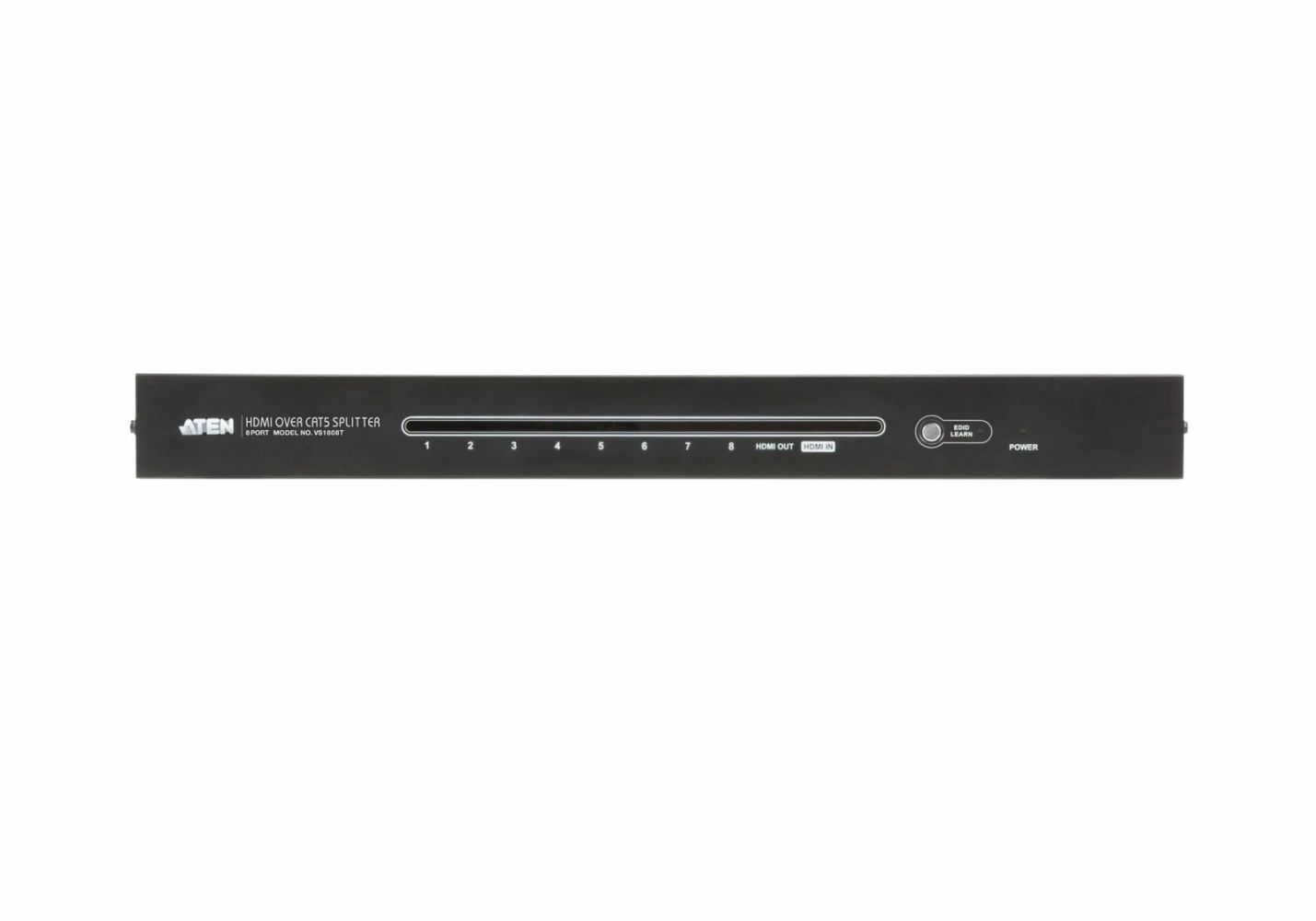

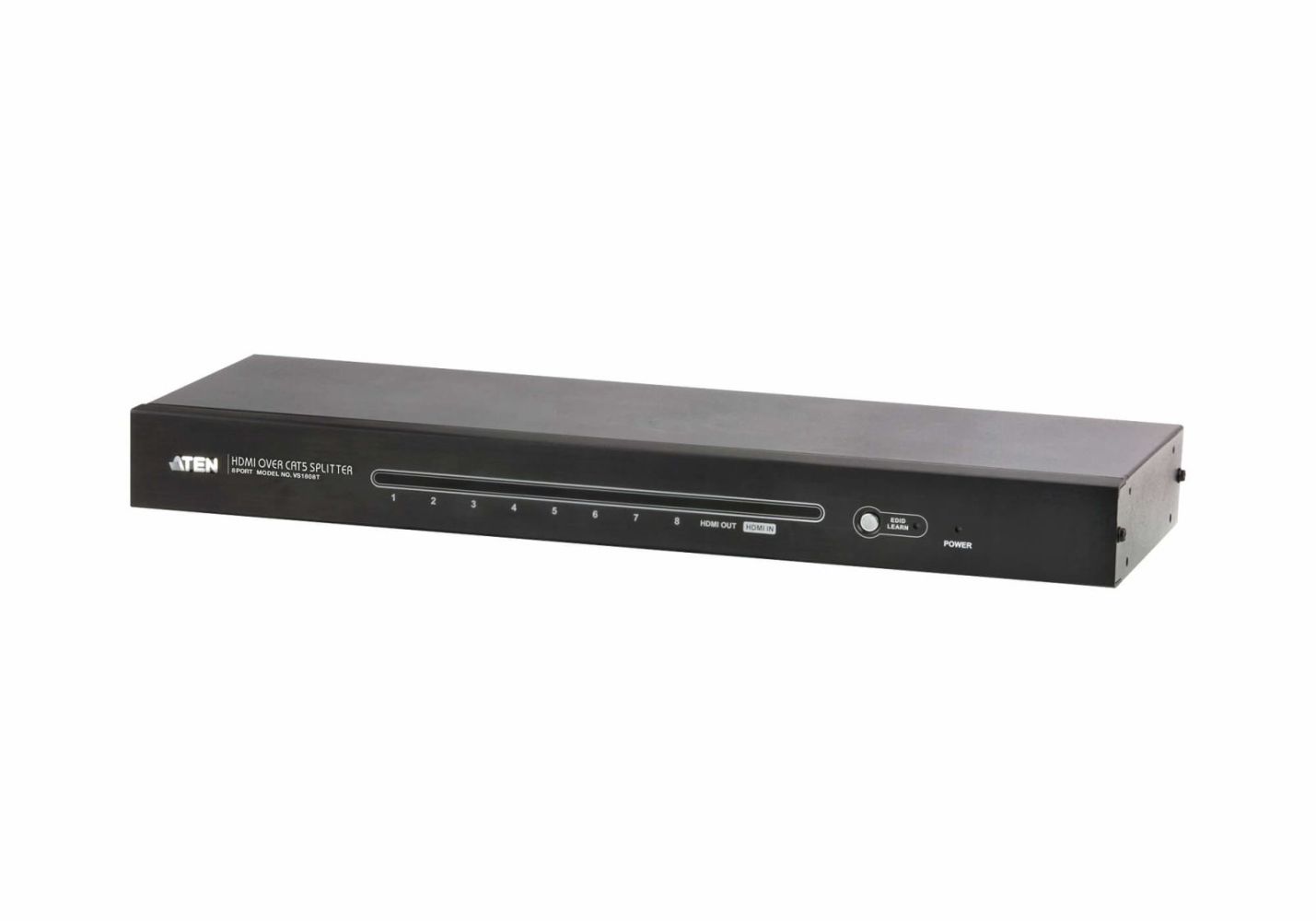

ATEN VS1808T HDMI Over Cat 5 Splitter - video/audio extender
|
-31% 305,03 EUR 443,23 EUR |
|
|
( 362,99 EUR incl. VAT ) ≈ £256.84 | ≈ $342.55 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 364946 |
| Mfg Part No: | VS1808T |
| UPC/EAN: | 4710423775749 |
| Weight: | 2.15 kg |
Product information for Aten VS1808T:
A one-to-many, point-to-multipoint system for transmission of high definition video and audio, the VS1808T transmits rich multimedia content in real time from HDMI source devices to HDMI display devices over Cat 5e cables. The VS1808T can support multi-displays when combined in an installation with ATEN's HDMI extender.
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Maximum operating distance | 60 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 225 MHz |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| 3D | |
| Rack mounting | |
| HDCP | |
| LED indicators | |
| Logistics data | |
| Master (outer) case net weight | 7.29 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9.37 kg |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Manual | |
| AC adapter included | |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.84 kg |
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | HDMI |
| Ethernet LAN (RJ-45) ports | 16 |
| Video ports quantity | 2 |
| Serial ports quantity | 1 |
| Consumer Electronics Control (CEC) support | |
| DC-in jack | |
| Power | |
| AC input voltage | 5.3 V |
| Power consumption (typical) | 7.77 W |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 157.8 mm |
| Height | 44 mm |
| Weight | 2.43 kg |
