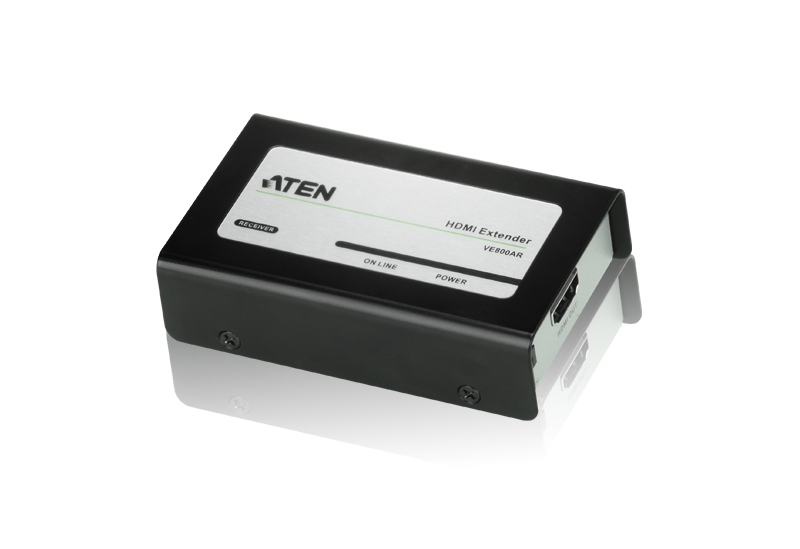

ATEN VE800AR HDMI Cat5Audio/Video Receiver content_copy

The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.Extends an HDMI output via a single Cat 5e cable
Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
Superior video quality – 1920 x 1200, up to 1080p
HDMI (3D, Deep Color); HDCP Compatible
Supports Dolby True HD and DTS HD Master Audio

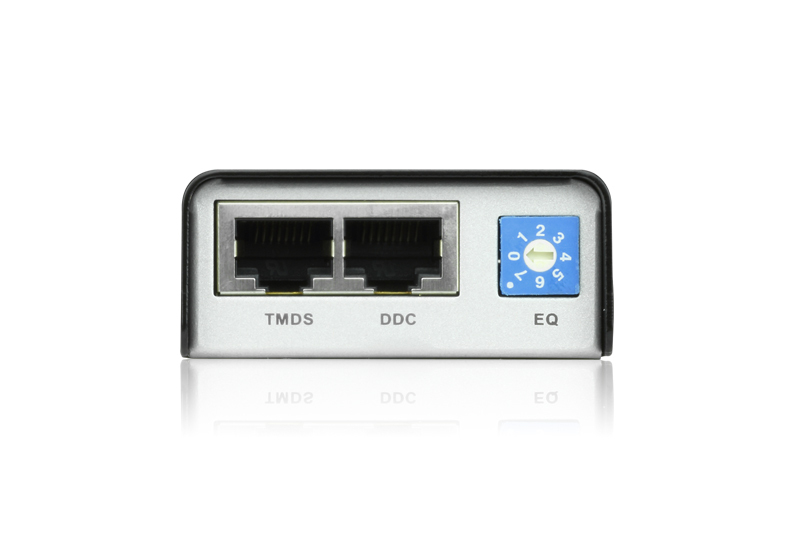

8 segment equalization adjustment switch optimizes display quality
DDC compatiblePackage Contents1x VE800AR HDMI Receiver
1x Power Adapters
1x Mounting Kit
1x User Instructions
Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 O
Max. Distance3 m (2L-7D03H)
Video
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz
ComplianceHDMI (3D, Deep Color)
HDCP Compatible
Max. Resolutions / DistanceUp to 1080p@40m; 1080i@60m
Audio

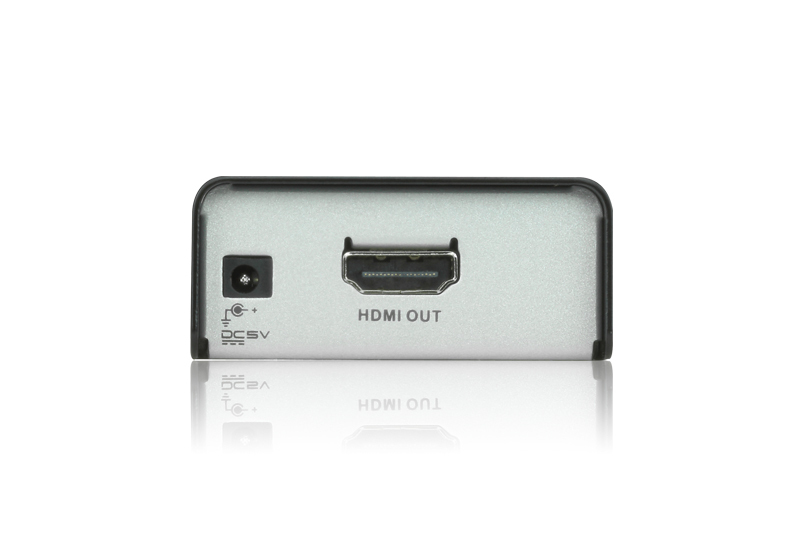

Output1 x HDMI Type A Female (Black)
Connectors
Power1 x DC Jack (Black)
Power ConsumptionDC5V:0.61W:3BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.16 kg ( 0.35 lb )
Dimensions (L x W x H)9.00 x 5.50 x 2.30 cm
(3.54 x 2.17 x 0.91 in.)
Carton Lot5 pcs

Features
Type	AV receiver
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5e
Maximum transfer distance	60 m
Supported video modes	1080i, 1080p
Supported graphics resolutions	1920 x 1200 (WUXGA)
Bandwidth	6.75 Gbit/s
Material	Metal
Impedance	100 Ω
Product colour	Black
LED indicators
HDCP
Logistics data
Master (outer) case width	315 mm
Master (outer) case length	490 mm
Master (outer) case height	178 mm
Master (outer) case gross weight	6.91 kg
Master (outer) case net weight	6.3 kg
Products per master (outer) case	20 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
AC adapter included
Manual
Mounting kit
Packaging data
Package width	59 mm
Package depth	119 mm
Package height	160 mm
Package weight	322 g
Ports & interfaces
Connectivity technology	Wired
Number of HDMI outputs	1
Video out	HDMI Type A F
Ethernet LAN
DC-in jack
Power
Operating voltage	5 V
Power consumption (typical)	0.75 W
Technical data
Height packaging	0.160m
Length packaging	0.119m
Article type	Extender receiver
Interface	HDMI
Width packaging	0.059m
Weight	0.322kg
Packaging volume	0.0011m³
Weight & dimensions
Weight	315 g
Receiver dimensions (WxDxH)	550 x 90 x 23 mm
Receiver weight	160 g

---
