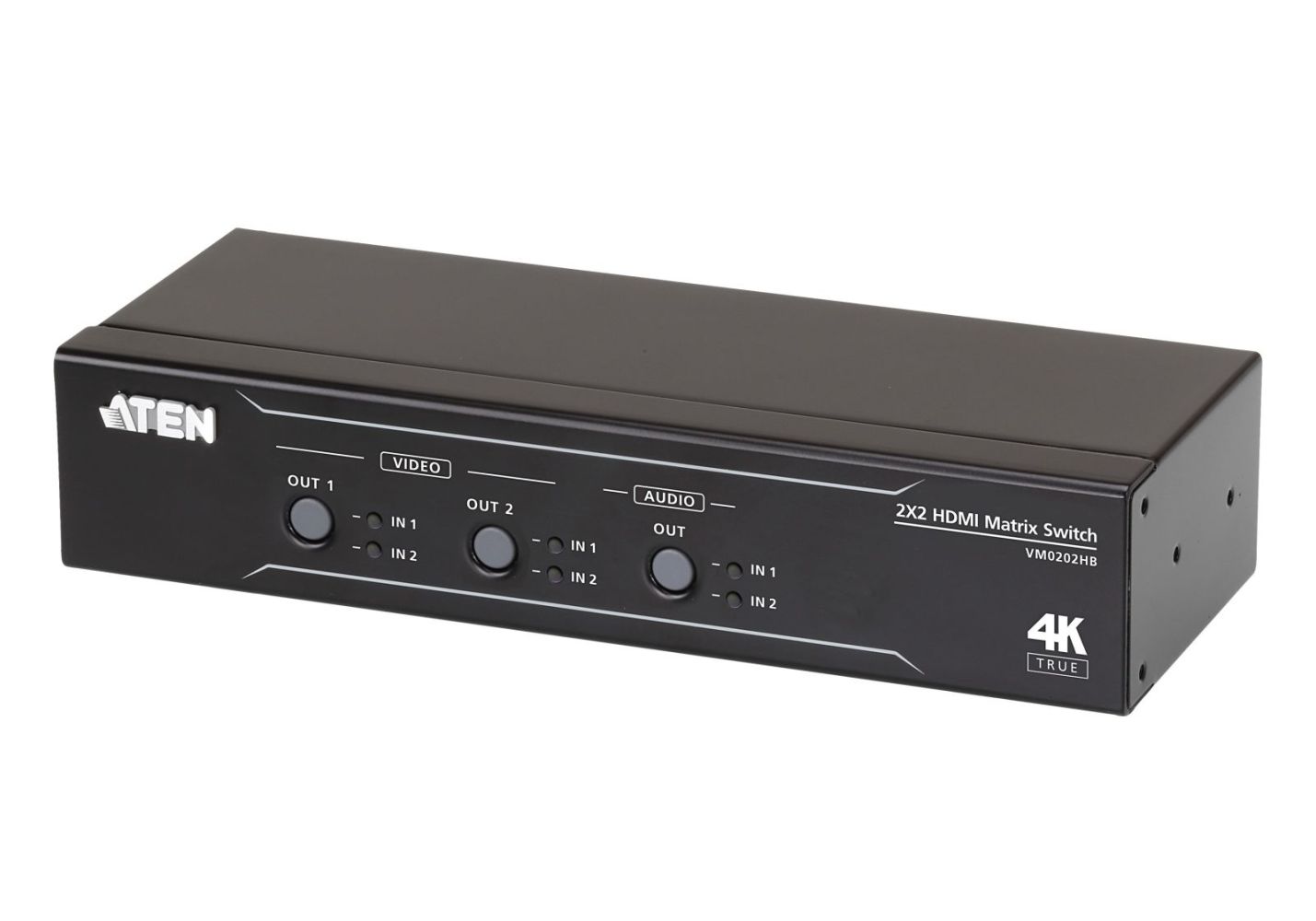

ATEN VM0202HB 2 x 2 True 4K HDMI Audio/Video Matrix Switch
|
196,65 EUR |
|
|
( 234,01 EUR incl. VAT ) ≈ £164.01 | ≈ $219.66 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 515209 |
| Mfg Part No: | VM0202HB |
| UPC/EAN: | 4710469340024 |
| Weight: | 1 kg |
Product information for Aten VM0202HB:
The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.
The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides highperformance routing of 2 HDMI video sources such as highdefinition Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio deembedder allows HDMI audio extraction for independent analog audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.Connects 2 HDMI sources to any 2 HDMI displays
Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
Supports Dolby True HD and DTS HD Master Audio
Auto switching – automatically detects and switches to a new source once connected (Default: off)

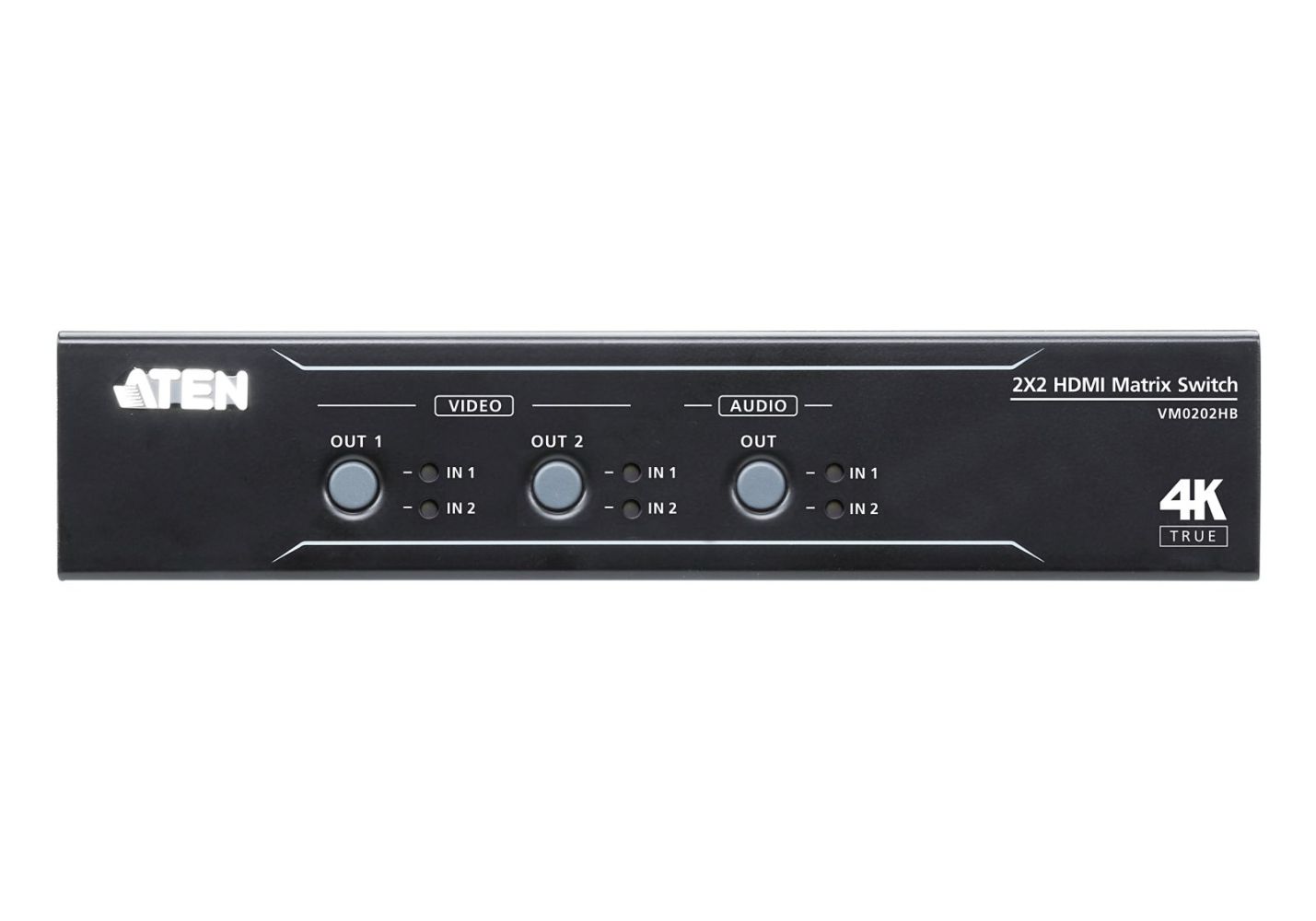

Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
Long-distance transmission up to 5 meters
HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
All metal casing
Firmware upgradable
Rack mountablePackage
Contents1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x 3-pole Terminal Block
1x Power Adapter
1x IR Remote Control
1x IR Receiver
1x Rack Mount Kit
1x User Instructions

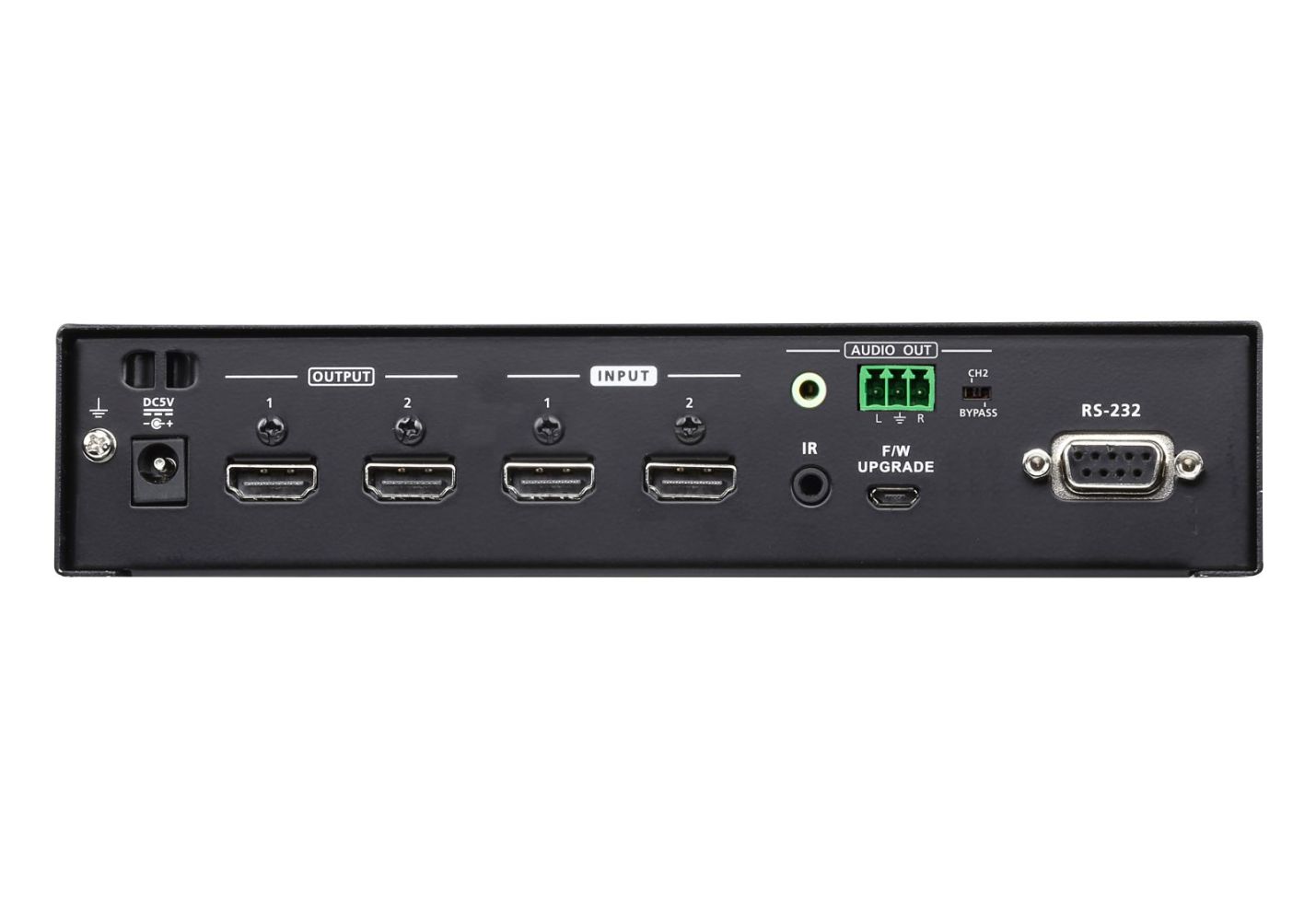

Video Input
Interfaces2 x HDMI Type A Female (Black)
Impedance100 O
Max. Distance5.0 m
Video Output
Interfaces2 x HDMI Type A Female (Black)
Impedance100 O
Max. Distance5.0 m
Video
Max. Data Rate18.0 Gbps (6.0 Gbps Per Lane)
Max. Pixel Clock600 MHz
ComplianceHDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. DistanceUp to 5.0 m
Audio
Output1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole
Control
USB1 x Micro USB
F/W upgrade
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR1 x Mini Stereo Jack Female (Black)
EDID SettingsEDID Mode: Default / Port1 / Remix
Connectors
Power1 x DC Jack (Black)
Power ConsumptionDC5V:2.47W:11BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.60 kg ( 1.32 lb )
Dimensions (L x W x H)20.00 x 7.60 x 4.20 cm
(7.87 x 2.99 x 1.65 in.)
Carton Lot5 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides highperformance routing of 2 HDMI video sources such as highdefinition Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio deembedder allows HDMI audio extraction for independent analog audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.Connects 2 HDMI sources to any 2 HDMI displays
Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
Supports Dolby True HD and DTS HD Master Audio
Auto switching – automatically detects and switches to a new source once connected (Default: off)
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
Long-distance transmission up to 5 meters
HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
All metal casing
Firmware upgradable
Rack mountablePackage
Contents1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x 3-pole Terminal Block
1x Power Adapter
1x IR Remote Control
1x IR Receiver
1x Rack Mount Kit
1x User Instructions
Video Input
Interfaces2 x HDMI Type A Female (Black)
Impedance100 O
Max. Distance5.0 m
Video Output
Interfaces2 x HDMI Type A Female (Black)
Impedance100 O
Max. Distance5.0 m
Video
Max. Data Rate18.0 Gbps (6.0 Gbps Per Lane)
Max. Pixel Clock600 MHz
ComplianceHDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. DistanceUp to 5.0 m
Audio
Output1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole
Control
USB1 x Micro USB
F/W upgrade
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR1 x Mini Stereo Jack Female (Black)
EDID SettingsEDID Mode: Default / Port1 / Remix
Connectors
Power1 x DC Jack (Black)
Power ConsumptionDC5V:2.47W:11BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.60 kg ( 1.32 lb )
Dimensions (L x W x H)20.00 x 7.60 x 4.20 cm
(7.87 x 2.99 x 1.65 in.)
Carton Lot5 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Control type | Buttons |
| Rack mounting | |
| LED indicators | |
| Remote control included | |
| Display | |
| Built-in display | |
| Features | |
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 2.2 |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
| HDCP | |
| 3D | |
| Firmware upgradeable | |
| Extended display identification data (EDID) | |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 5.25 kg |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case net weight | 4.25 kg |
| Harmonized System (HS) code | 85299097 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Rack mount kit | |
| Quick start guide | |
| AC adapter included | |
| IR receiver included | |
| Ports & interfaces | |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | |
| Power | |
| Power consumption (typical) | 2.47 W |
| Technical data | |
| Length packaging | 0.239m |
| Width packaging | 0.059m |
| Inputs x outputs | 2x2 |
| Packaging volume | 0.0023m³ |
| Height packaging | 0.160m |
| Weight | 1.000kg |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 76 mm |
| Height | 42 mm |
| Weight | 850 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 1 kg |
Questions & answers
What is the delivery time of ATEN VM0202HB 2 x 2 True 4K HDMI Audio/Video Matrix Switch?
The article ATEN VM0202HB 2 x 2 True 4K HDMI Audio/Video Matrix Switch is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VM0202HB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN VM0202HB 2 x 2 True 4K HDMI Audio/Video Matrix Switch always at the best possible price. We can give you a discount of 2% on ATEN VM0202HB 2 x 2 True 4K HDMI Audio/Video Matrix Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
