Aten video extender, 40/60mtr. HDMI/USB, 1080P/1080i
|
67,86 EUR |
|
|
( 80,75 EUR incl. VAT ) ≈ £57.14 | ≈ $76.21 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1221334 |
| Mfg Part No: | VE803 |
| UPC/EAN: | 4710423779716 |
| Weight: | 0.652 kg |

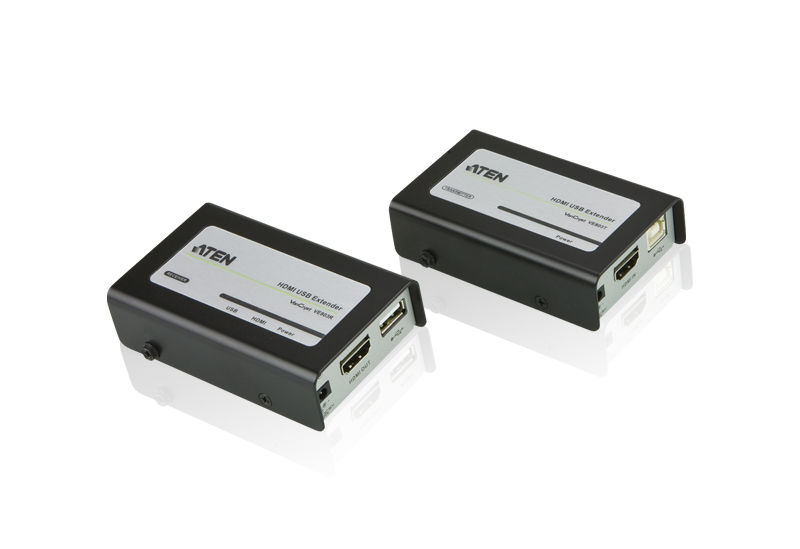

Product information for Aten VE803:
Transmitter/receiver set, *Order based on order * Uses two Cat. 5e Ethernet cables to connect the local and remote device Transmission from 1080p to 40 m Transmission from 1080i to 60 m Maximum picture quality HDTV resolution 480p, 720p, 1080i and 1080p (1920 x 1080), VGA, SVGA, Static discharges up to 8 kV / 15 kV Transparent USB support - supports all USB 2.0 full-speed devices (up to 12 Mbps) Supports widescreen formats HDMI (3D, deep color) and HDCP compatible Signal rates up to 2.25 Gbit/ s Power supply to the local device via USB cable
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 60 m |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Bandwidth | 6.75 Gbit/s |
| Material | Metal |
| Product colour | Black |
| Extended display identification data (EDID) | |
| Electrostatic Discharge (ESD) protection | |
| HDCP | |
| 3D | |
| Logistics data | |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 13.5 kg |
| Master (outer) case net weight | 9.9 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | USB |
| AC adapter included | |
| Manual | |
| Mounting kit | |
| Packaging data | |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 652 g |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB connector type | USB Type-A, USB Type-B |
| DC-in jack | |
| Power | |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (TX) | 1.04 W |
| Power consumption (RX) | 0.75 W |
| Technical data | |
| Max. distance | 60m |
| Width packaging | 0.059m |
| Packaging volume | 0.0023m³ |
| Length packaging | 0.239m |
| Height packaging | 0.160m |
| Weight | 0.652kg |
| Weight & dimensions | |
| Weight | 495 g |
| Receiver dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Receiver weight | 160 g |
| Transmitter dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Transmitter weight | 160 g |
Questions & answers
What is the delivery time of Aten video extender, 40/60mtr. HDMI/USB, 1080P/1080i?
The article Aten video extender, 40/60mtr. HDMI/USB, 1080P/1080i is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VE803 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten video extender, 40/60mtr. HDMI/USB, 1080P/1080i always at the best possible price. We can give you a discount of 2% on Aten video extender, 40/60mtr. HDMI/USB, 1080P/1080i if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
