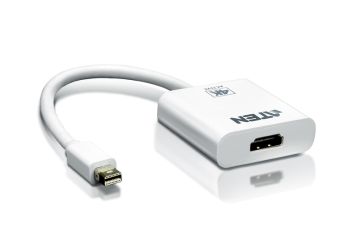

ATEN VC981mini DP to 4K HDMI Adapter
|
18,68 EUR |
|
|
( 22,23 EUR incl. VAT ) ≈ £15.69 | ≈ $20.96 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1550292 |
| Mfg Part No: | VC981-AT |
| UPC/EAN: | 4719264643729 |
| Weight: | 0.096 kg |
Product information for Aten VC981-AT:

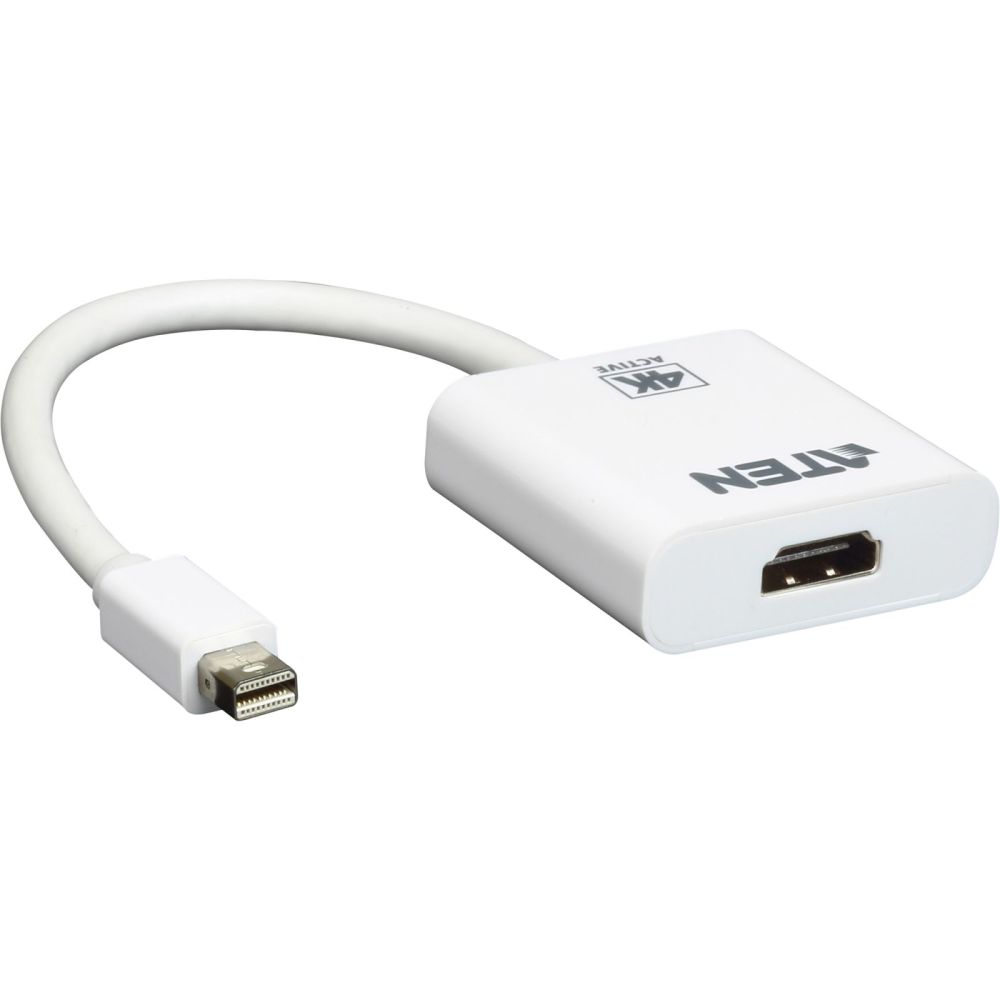

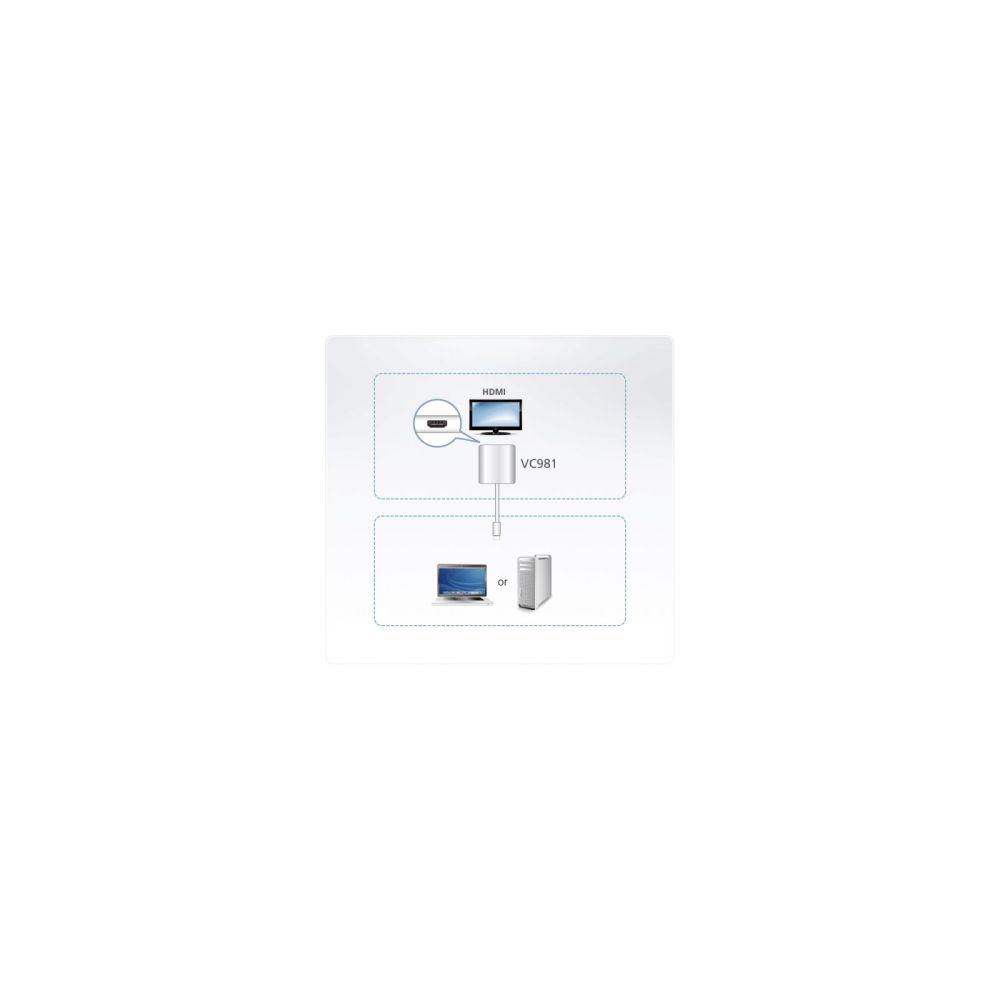

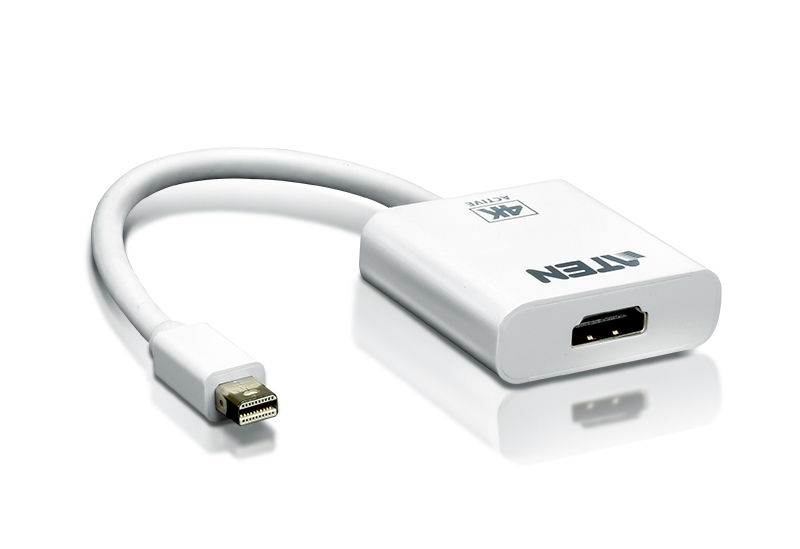

The VC981 is an active Mini DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.

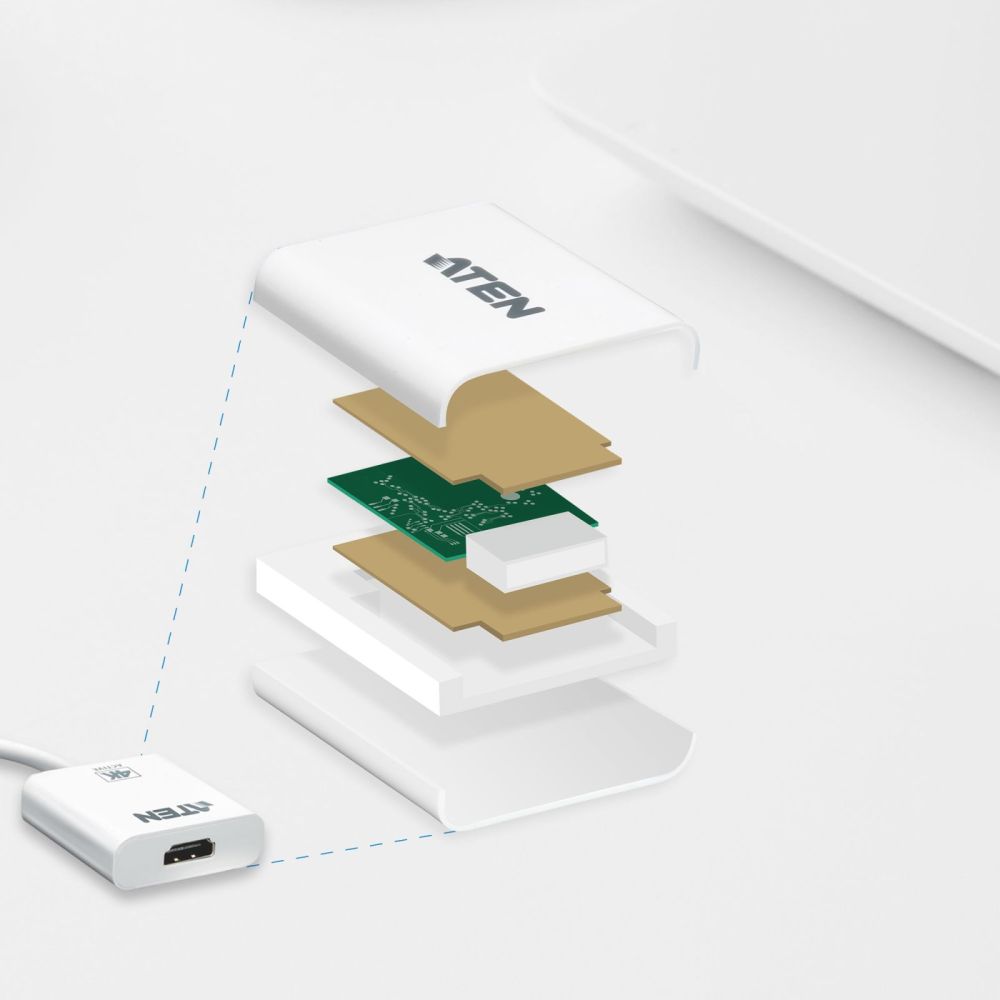

The ATEN VC981 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.Converts Mini DisplayPort signals to HDMI output
Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
Supports AMD Eyefinity™ Technology (multi-screen setups)
Audio supported
No software or driver installation required
Package Contents1x VC981 4K Mini DisplayPort to HDMI Active Adapter
Video Input
Interfaces1 x Mini DisplayPort Male (White)
Video Output
Interfaces1 x HDMI Type A Female (Black)
Video
Max. Pixel Clock297 MHz
Max. Resolution3840 x 2160@30Hz, 1920 x 1200@60Hz.
ComplianceDP1.2a, HDMI(3D, Deep Color, 4K), HDCP 1.3
Audio
Output1 x HDMI Type A Female (Black)
Environmental
Operating Temperature0 - 50 ºC
Storage Temperature-20–60 ºC
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.04 kg ( 0.09 lb )
Dimensions (L x W x H)17.50 x 4.50 x 1.50 cm
(6.89 x 1.77 x 0.59 in.)
Carton Lot40 pcs
The ATEN VC981 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.Converts Mini DisplayPort signals to HDMI output
Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
Supports AMD Eyefinity™ Technology (multi-screen setups)
Audio supported
No software or driver installation required
Package Contents1x VC981 4K Mini DisplayPort to HDMI Active Adapter
Video Input
Interfaces1 x Mini DisplayPort Male (White)
Video Output
Interfaces1 x HDMI Type A Female (Black)
Video
Max. Pixel Clock297 MHz
Max. Resolution3840 x 2160@30Hz, 1920 x 1200@60Hz.
ComplianceDP1.2a, HDMI(3D, Deep Color, 4K), HDCP 1.3
Audio
Output1 x HDMI Type A Female (Black)
Environmental
Operating Temperature0 - 50 ºC
Storage Temperature-20–60 ºC
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.04 kg ( 0.09 lb )
Dimensions (L x W x H)17.50 x 4.50 x 1.50 cm
(6.89 x 1.77 x 0.59 in.)
Carton Lot40 pcs
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDCP version | 1.3 |
| DisplayPort version | 1.2a |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160 |
| Bandwidth | 297 MHz |
| Product colour | White |
| Jacket material | Plastic |
| HDCP | |
| Logistics data | |
| Master (outer) case net weight | 3 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 270 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 230 mm |
| Master (outer) case gross weight | 4.35 kg |
| Products per master (outer) case | 40 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 19 mm |
| Package depth | 120 mm |
| Package height | 212 mm |
| Package weight | 96 g |
| Technical data | |
| Side A | Mini DisplayPort male |
| Supported HDTV resolution | Up to 1080p |
| Supported resolution | VGA, SVGA, XGA, SXGA, UXGA |
| Width packaging | 0.019m |
| Humidity | 0–80% relative humidity, non-condensing |
| Packaging volume | 0.0005m³ |
| Side B | HDMI A female |
| Length packaging | 0.120m |
| Colour | White |
| Compatibility DisplayPort | DisplayPort 1.2a, HDMI 2.0 |
| Height packaging | 0.212m |
| Supported display resolution | VGA, SVGA, XGA, SXGA, UXGA, up to 3840 x 2160 at 30 Hz, up to 1920 x 1200 at 60 Hz, up to 1080p |
| Compatibility HDMI | HDMI (3D, Deep Color, 4K). HDCP 1.3 |
| Variant | Active |
| Max. pixel clock | 297MHz |
| Signal | Video |
| Weight | 0.096kg |
| Audio signals | |
| Weight & dimensions | |
| Weight | 75 g |
| Width | 45 mm |
| Depth | 175 mm |
| Height | 15 mm |
