ATEN UC9040 StreamLIVE Pro All in One Multichannel AV Mixer
|
-10% 627,45 EUR 695,99 EUR |
|
|
( 746,67 EUR incl. VAT ) ≈ £527.06 | ≈ $704.00 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1255618 |
| Mfg Part No: | UC9040 |
| UPC/EAN: | 4710469340079 |
| Weight: | 3.59 kg |
Product information for Aten UC9040:

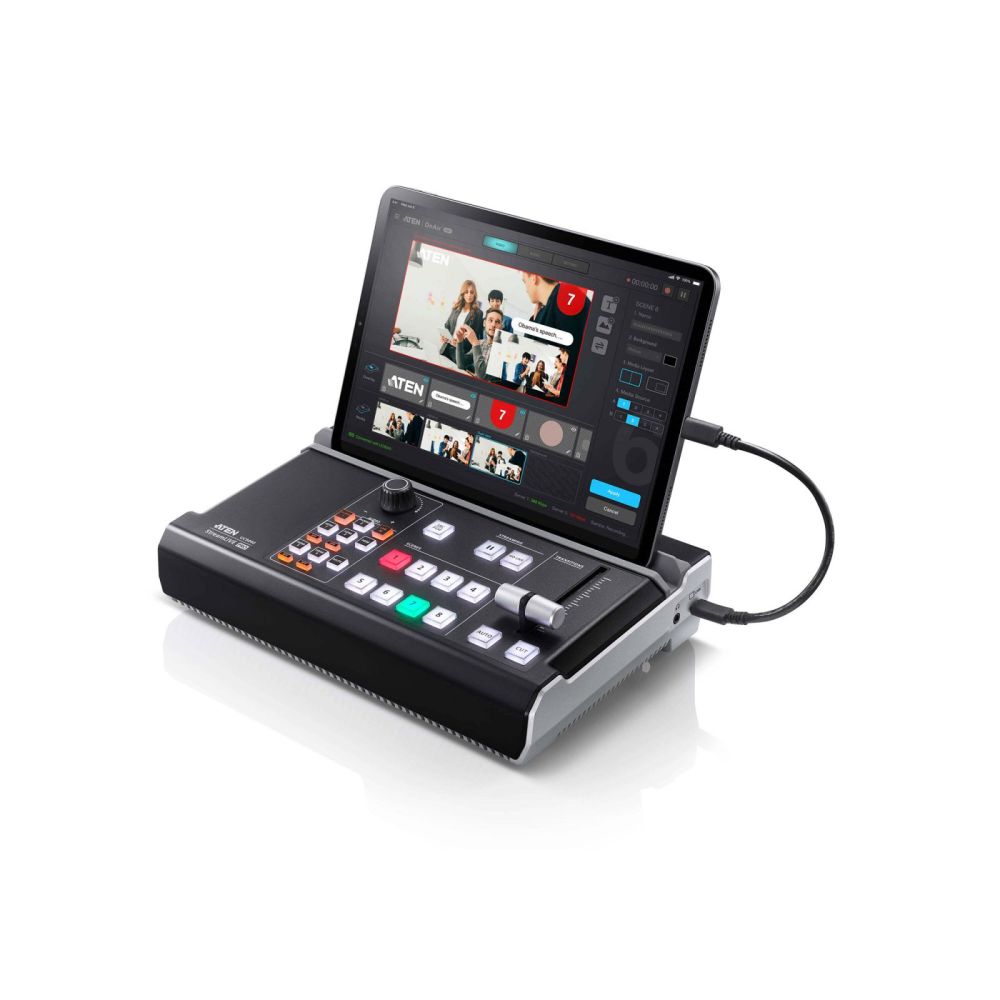

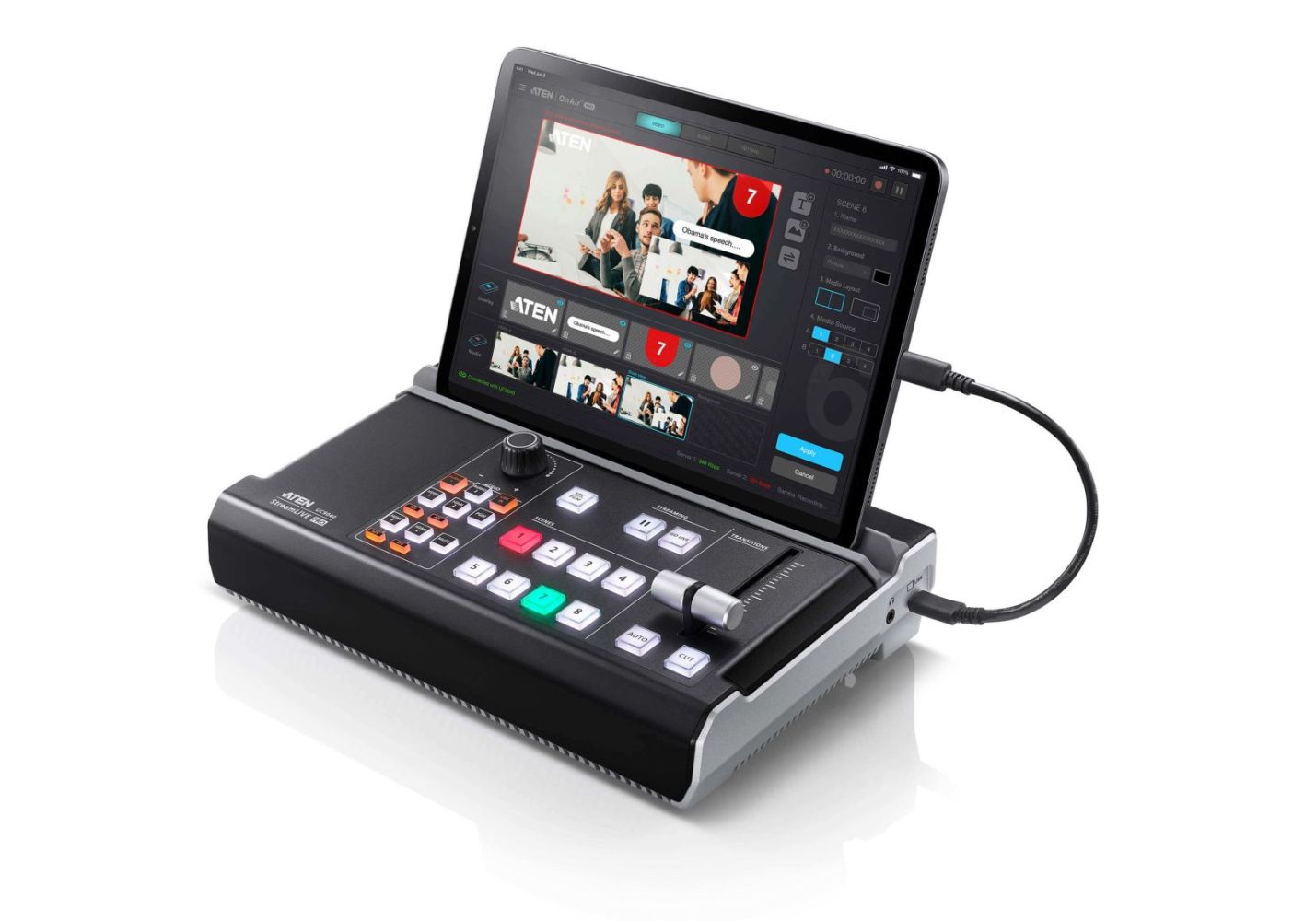

The StreamLIVE™ PRO is a portable, all-in-one, multi-channel audio/video mixer device that integrates a 1080p video capture, video recorder, video switch, stream broadcaster, video converter, video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE™ PRO makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook,and Twitch.
For added convenience, the StreamLIVE™ PRO provides an intuitive app – OnAir™ Pro App, making it easy to monitor, edit image layouts, and DVE, PiP or PbP settings. There are eight stunning DVE transitions including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square. The StreamLIVE™ PRO is PC and software-free, and with its well-designed control panel, it makes livestreaming operations smooth and effortless. You can even preview video and monitor audio levels before going live with your web broadcast! To get started, simply connect video/audio sources, and an Ethernet with an ATEN app-installed iPad, and you are ready to roll.
Whether you're capturing, editing or streaming, the StreamLIVE™ PRO with its ergonomic and practical design, it is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, the StreamLIVE™ PRO addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.All-in-one design to simplify streaming workflow – Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
Professional-quality live streaming everywhere – Compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere
1080P Recording – Features a media recording that can be used to record a program and save recordings directly to a connected external hard drive or flash drive via USB

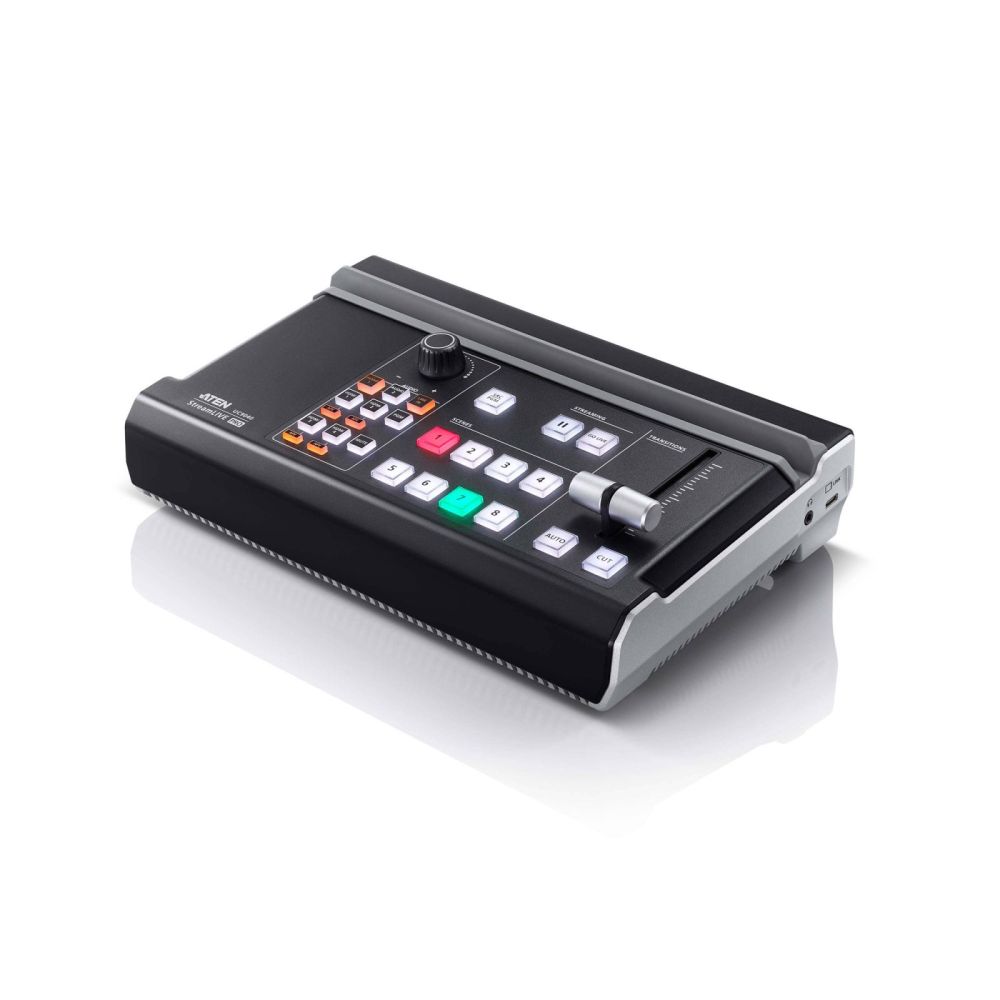

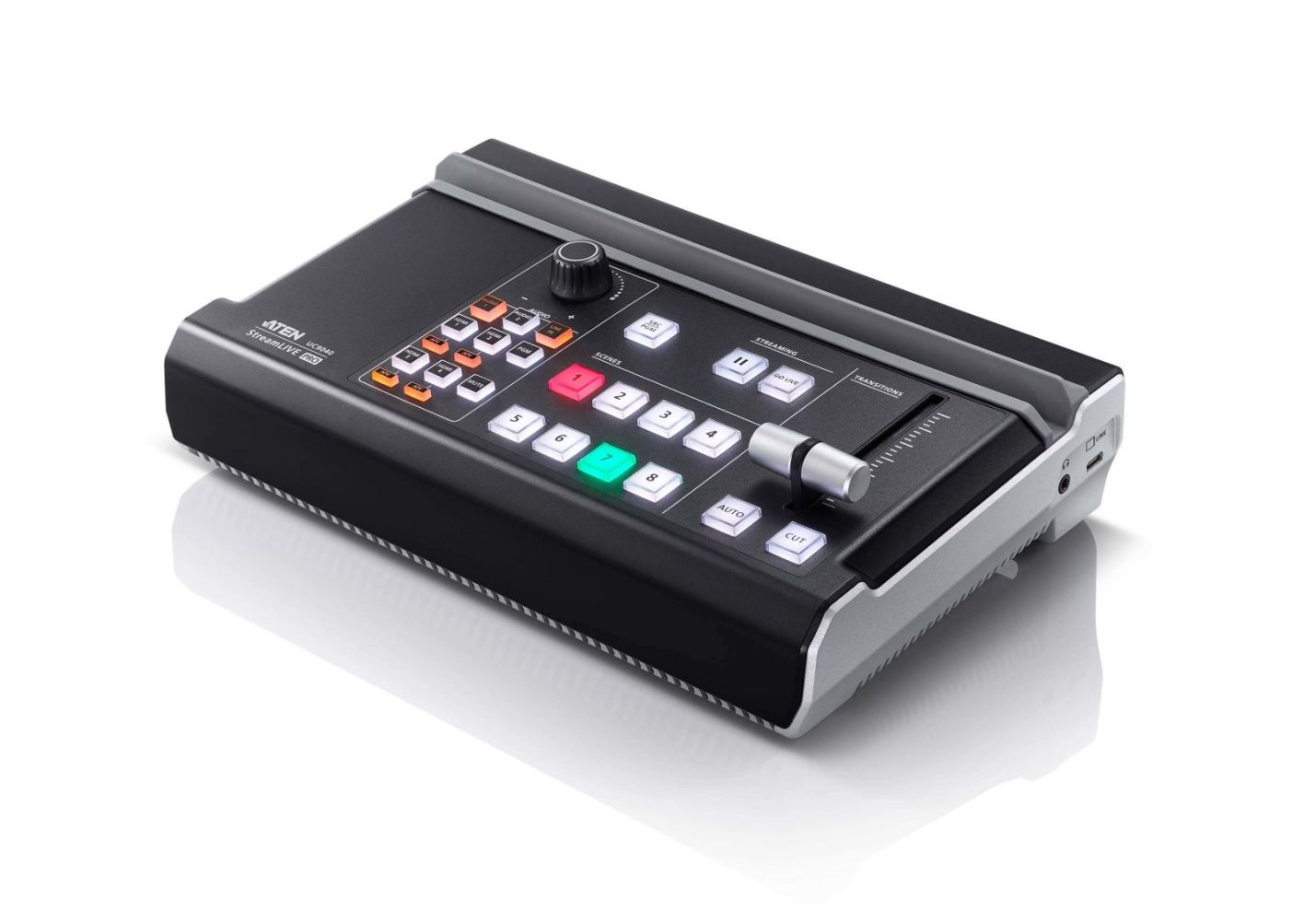

Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
Intuitive and powerful app – OnAir™ Pro App preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish
DVE (Digital Video Effect) Video Transition – Including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square.
Storyboard-like management – quick and smooth transitions control for professional programming during live events
Audio Management – Multi-channel audio mixing with faders, meters, and balance for every input
Fanless and optimized thermal air flow system for quiet operation
Multitask designed handle-stand to enhance portability and ergonomic comfort angle
Package Contents:1 x UC9040 StreamLIVE™ PRO
1 x USB-C to USB-C Cable
1 x USB-C to USB-A Cable
1 x Power Adapter
1 x User Instructions

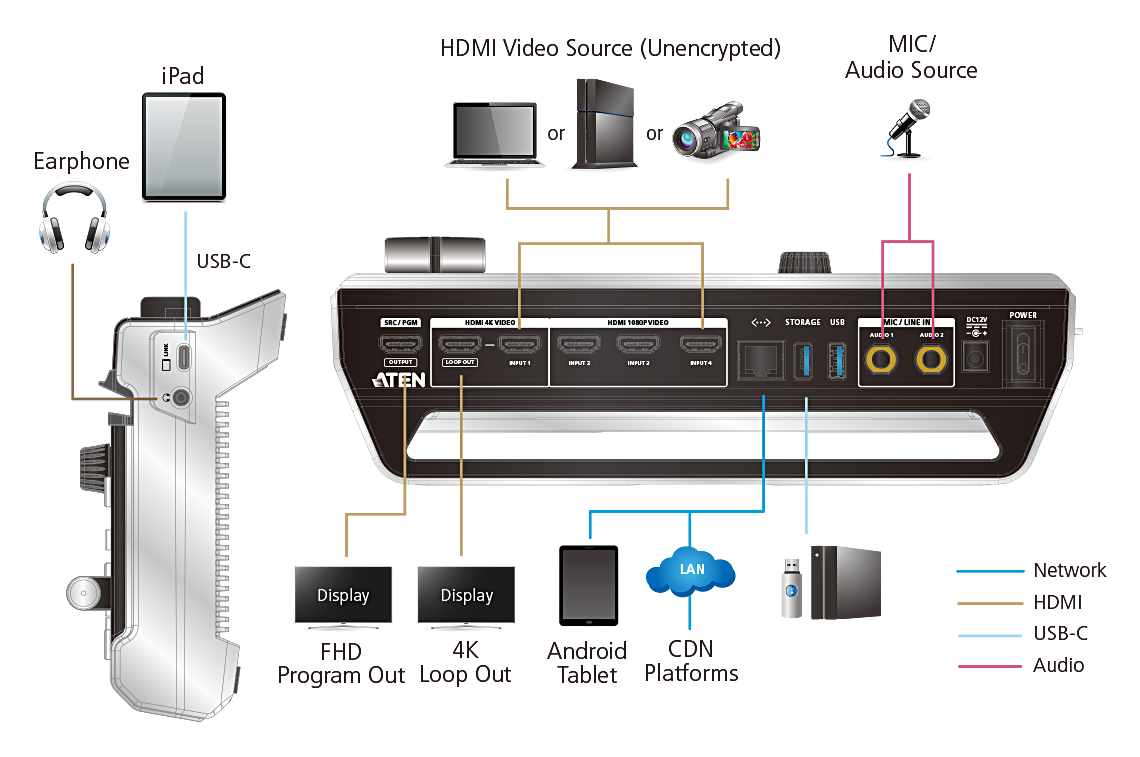

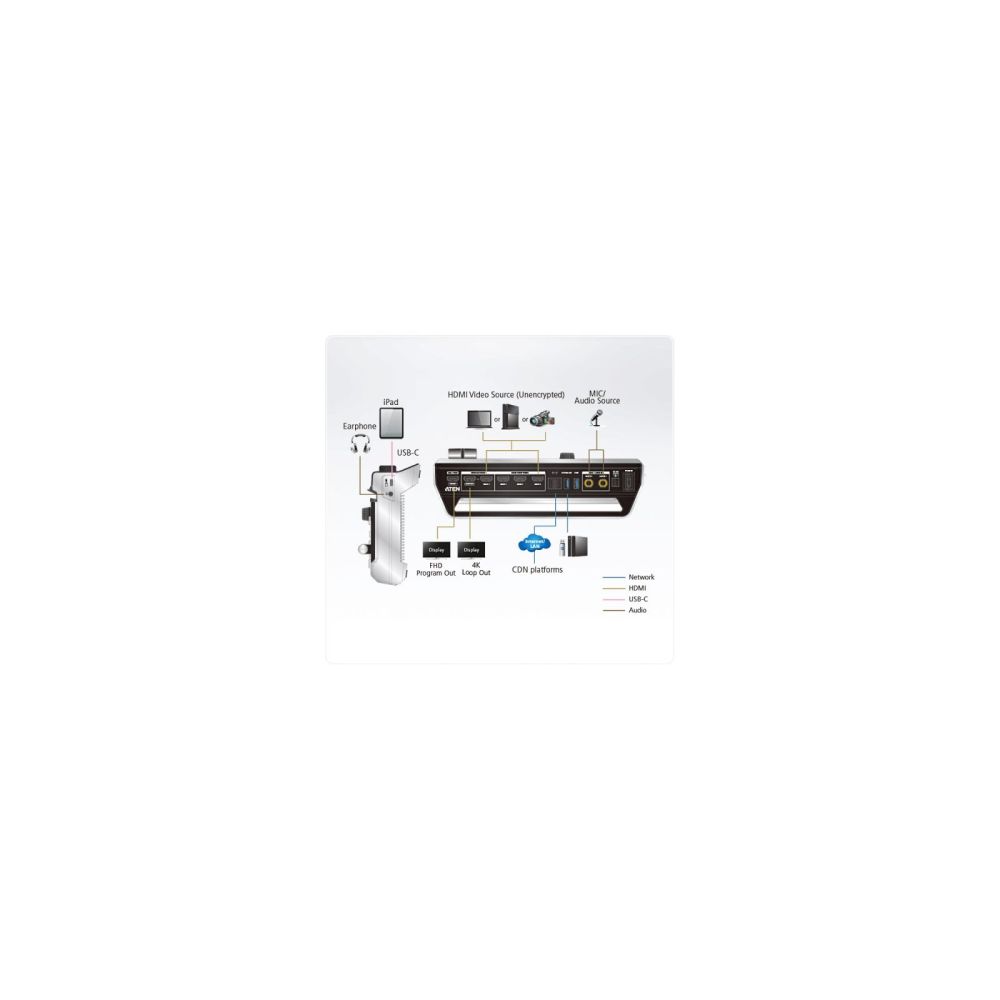

Video Input
Interfaces1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted)
3 x HDMI Type-A Female
(up to 1080p60, switcher, unencrypted )
Video Output
Interfaces1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female
(up to 1080p60, unencrypted)
Video Sampling4:2:2 8-bit
Color Space4:2:2 YUV
Video ResolutionHDMI 1 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
HDMI 2/3/4 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25
SRC/PGM HDMI Output:
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25
HDMI Loop-Through Output:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Audio Inputs
InterfacesHDMI captured inputs (stereo)
2 x 1/10,2 cm ( 4 inch ) TRS jack (dual mono)
Audio Outputs
InterfacesHDMI outputs (stereo)
1x 1/20,3 cm ( 8 inch ) TRS jack (stereo)
Network ProtocolDual-stream encoder supports direct live streaming to CDN server over ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
-------------------------------------------------------
Video Encoding
Format: H.264
Bit rate: 512Kbps~10Mbps
Color Format: YUV420
Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
-------------------------------------------------------------------
Audio Encoding
Format: AAC
Sampling rate: 48kHz
Bit rate: 128kbps
Recording StorageMax. video resolution: 1080p30/25
File format:MP4
Support media: USB 3.x compatible mobile drive (HDD / SSD) or flash drive, at least 32GB of free space

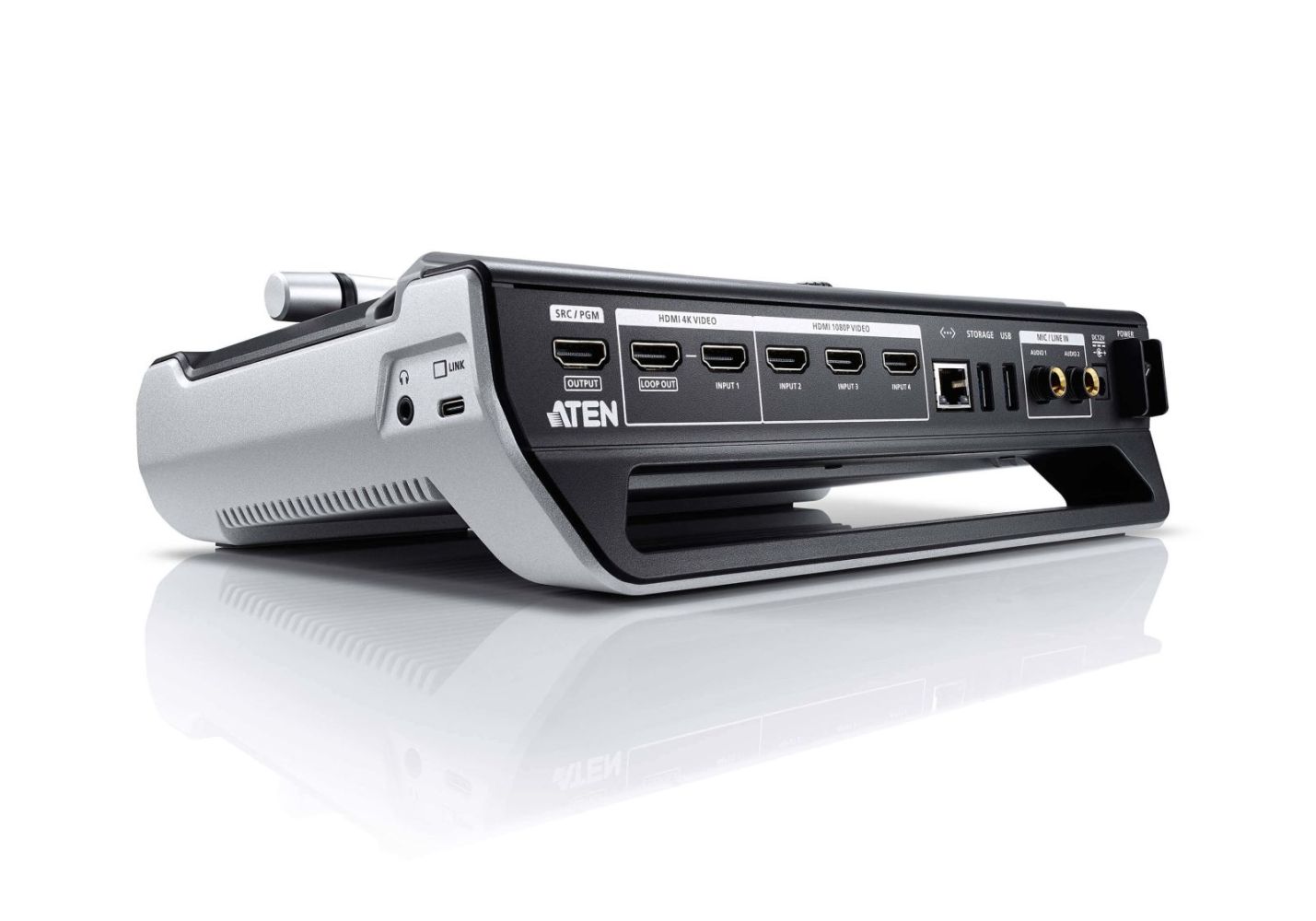

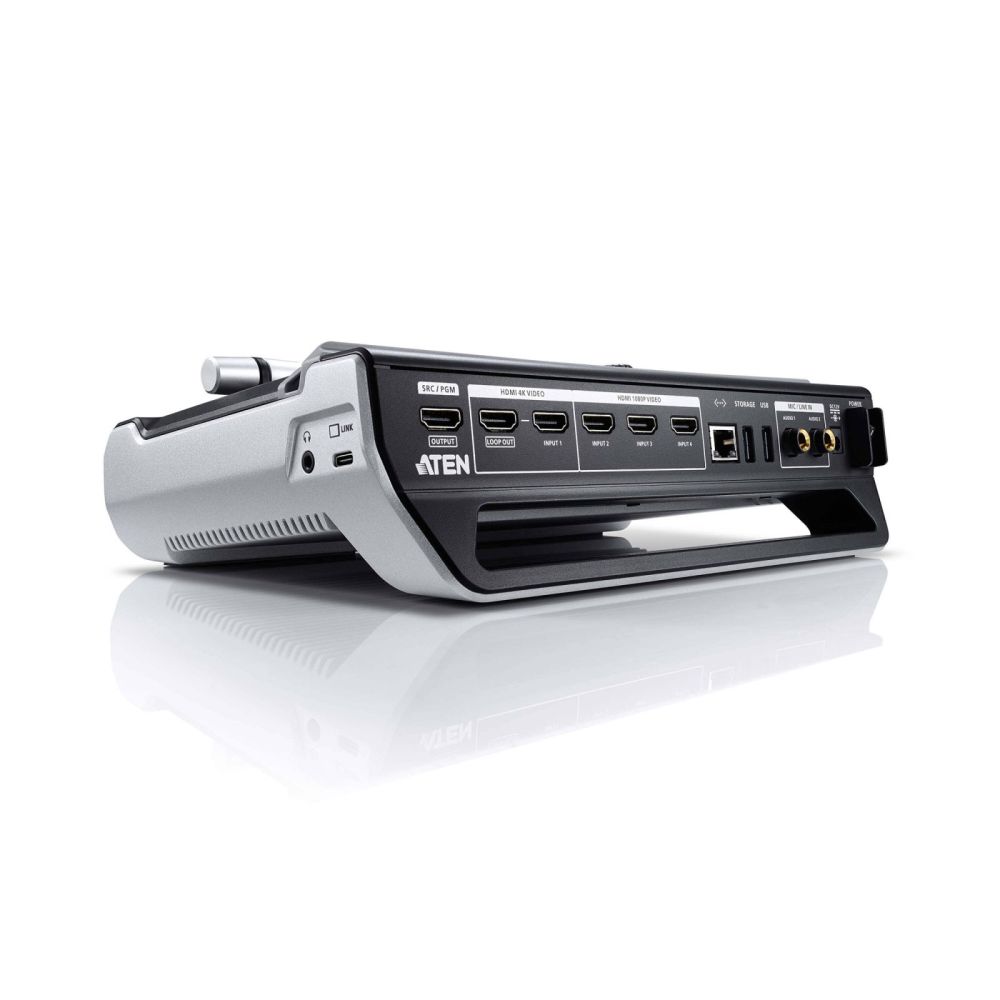

Connection2x USB 3.1 Gen1 Type-A Female (blue)
1x USB Type-C
1x GbE LAN port
Environmental
Operating Temperature0 - 40 ºC
Storage Temperature-20 – 60 ºC
Humidity0 - 80% RH, Non-Condensing
OS Support• iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)
Power
Maximum Input Power RatingDC12V, 7.5A
Power ConsumptionDC12V:17.37W:184BTU
Physical Properties
HousingMetal
Weight1.85 kg ( 4.07 lb )
Dimensions (L x W x H)28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
For added convenience, the StreamLIVE™ PRO provides an intuitive app – OnAir™ Pro App, making it easy to monitor, edit image layouts, and DVE, PiP or PbP settings. There are eight stunning DVE transitions including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square. The StreamLIVE™ PRO is PC and software-free, and with its well-designed control panel, it makes livestreaming operations smooth and effortless. You can even preview video and monitor audio levels before going live with your web broadcast! To get started, simply connect video/audio sources, and an Ethernet with an ATEN app-installed iPad, and you are ready to roll.
Whether you're capturing, editing or streaming, the StreamLIVE™ PRO with its ergonomic and practical design, it is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, the StreamLIVE™ PRO addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.All-in-one design to simplify streaming workflow – Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
Professional-quality live streaming everywhere – Compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere
1080P Recording – Features a media recording that can be used to record a program and save recordings directly to a connected external hard drive or flash drive via USB
Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
Intuitive and powerful app – OnAir™ Pro App preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish
DVE (Digital Video Effect) Video Transition – Including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square.
Storyboard-like management – quick and smooth transitions control for professional programming during live events
Audio Management – Multi-channel audio mixing with faders, meters, and balance for every input
Fanless and optimized thermal air flow system for quiet operation
Multitask designed handle-stand to enhance portability and ergonomic comfort angle
Package Contents:1 x UC9040 StreamLIVE™ PRO
1 x USB-C to USB-C Cable
1 x USB-C to USB-A Cable
1 x Power Adapter
1 x User Instructions
Video Input
Interfaces1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted)
3 x HDMI Type-A Female
(up to 1080p60, switcher, unencrypted )
Video Output
Interfaces1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female
(up to 1080p60, unencrypted)
Video Sampling4:2:2 8-bit
Color Space4:2:2 YUV
Video ResolutionHDMI 1 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
HDMI 2/3/4 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25
SRC/PGM HDMI Output:
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25
HDMI Loop-Through Output:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Audio Inputs
InterfacesHDMI captured inputs (stereo)
2 x 1/10,2 cm ( 4 inch ) TRS jack (dual mono)
Audio Outputs
InterfacesHDMI outputs (stereo)
1x 1/20,3 cm ( 8 inch ) TRS jack (stereo)
Network ProtocolDual-stream encoder supports direct live streaming to CDN server over ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
-------------------------------------------------------
Video Encoding
Format: H.264
Bit rate: 512Kbps~10Mbps
Color Format: YUV420
Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
-------------------------------------------------------------------
Audio Encoding
Format: AAC
Sampling rate: 48kHz
Bit rate: 128kbps
Recording StorageMax. video resolution: 1080p30/25
File format:MP4
Support media: USB 3.x compatible mobile drive (HDD / SSD) or flash drive, at least 32GB of free space
Connection2x USB 3.1 Gen1 Type-A Female (blue)
1x USB Type-C
1x GbE LAN port
Environmental
Operating Temperature0 - 40 ºC
Storage Temperature-20 – 60 ºC
Humidity0 - 80% RH, Non-Condensing
OS Support• iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)
Power
Maximum Input Power RatingDC12V, 7.5A
Power ConsumptionDC12V:17.37W:184BTU
Physical Properties
HousingMetal
Weight1.85 kg ( 4.07 lb )
Dimensions (L x W x H)28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Design | |
| Product colour | Black, Grey |
| Housing material | Metal |
| Rack mounting | |
| Display | |
| Built-in display | |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 3.59 kg |
| Master (outer) case length | 380 mm |
| Master (outer) case width | 305 mm |
| Master (outer) case height | 157 mm |
| Master (outer) case net weight | 2.5 kg |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Performance | |
| Video formats supported | H.264, MP4 |
| Audio formats supported | AAC |
| Ports & interfaces | |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | |
| Power | |
| Power source type | DC |
| Technical data | |
| Height packaging | 0.133m |
| Weight | 3.590kg |
| Length packaging | 0.365m |
| Colour | Multicolour |
| Packaging volume | 0.0141m³ |
| Width packaging | 0.290m |
| Video | |
| HD type | 4K Ultra HD |
| Video resolutions | 640 x 480,800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050 |
| Supported video modes | 1080p, 2160p |
| Weight & dimensions | |
| Width | 288.5 mm |
| Depth | 189.9 mm |
| Height | 96.6 mm |
| Weight | 2.5 kg |
| Package width | 290 mm |
| Package depth | 365 mm |
| Package height | 133 mm |
| Package weight | 3.59 kg |
Questions & answers
What is the delivery time of ATEN UC9040 StreamLIVE Pro All in One Multichannel AV Mixer?
The article ATEN UC9040 StreamLIVE Pro All in One Multichannel AV Mixer is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten UC9040 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN UC9040 StreamLIVE Pro All in One Multichannel AV Mixer always at the best possible price. We can give you a discount of 2% on ATEN UC9040 StreamLIVE Pro All in One Multichannel AV Mixer if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
