ATEN KL1116VN 48cm LCD IP KVM 16-port ES layout content_copy

German Layout
ATEN's KL1116VN 16-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 48,3 cm ( 19 inch ) LED-backlit LCD monitor and keyboard with built-in touchpad.

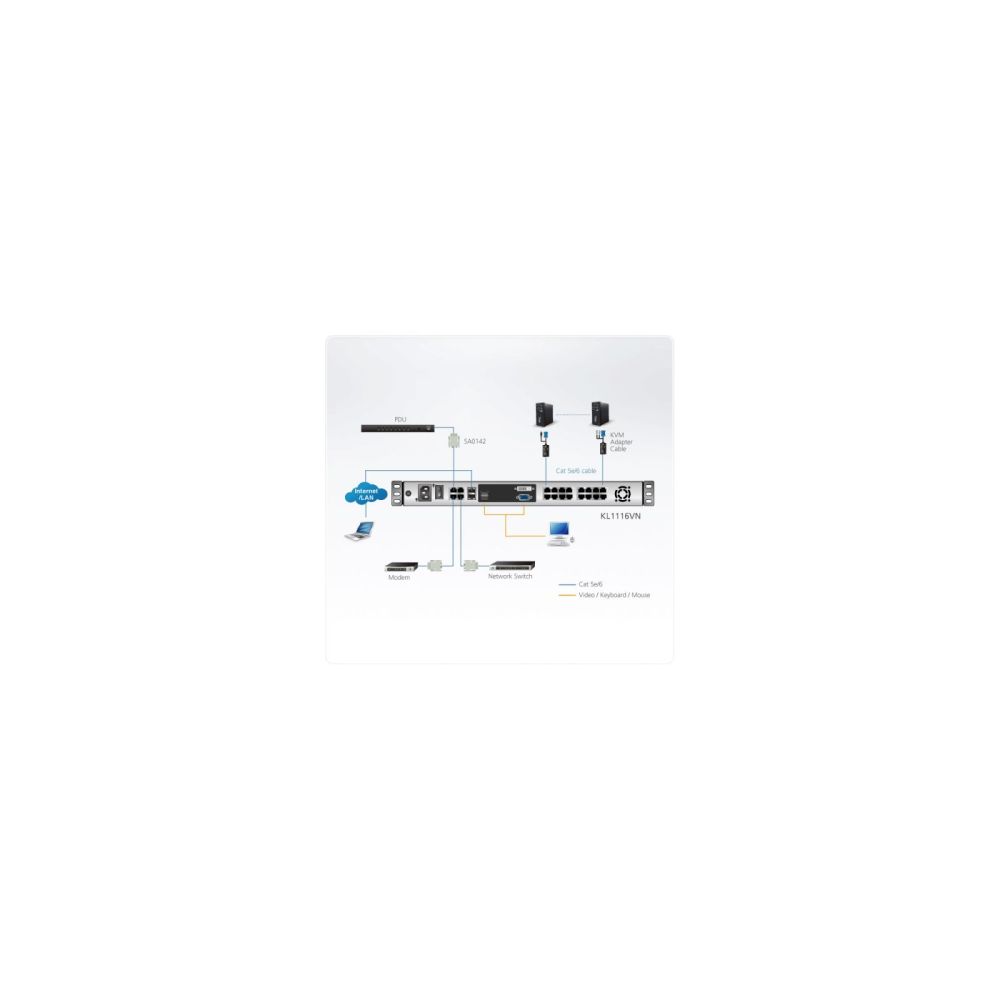

The KL1116VN switches allow local console and remote over IP access for operators to monitor and manage their entire data center locally at the switch, and over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
To help manage and control an entire data center, our KL1116VN KVM over IP switches support blade servers and chassis with powerful new features such as Power Association which allows KVM ports to be associated with ATEN PDU power outlets for power management of servers from the KVM switches’ user interface.
The KL1116VN KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) and CC2000 Centralized Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing them to remotely monitor and control all devices on a network, including blade server chassis, individual blades and virtual machines. The CCVSR records all operations on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system is recorded and saved to a secure video file as evidence, without exception.
The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers – allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.
Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, Adapter ID and Secure Serial Server Access. The secure access to serial-controlled devices includes network equipment, UNIIX servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.
With dual on-board NICs and out-of-band access with external modem support, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers.
With ATEN KVM over IP switches, IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – ensuring the highest availability of data center services possible.
Exclusive Features:High-Grade Security – supports FIPS 140-2 level 1 security standards
Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
2x faster virtual media transmission speeds

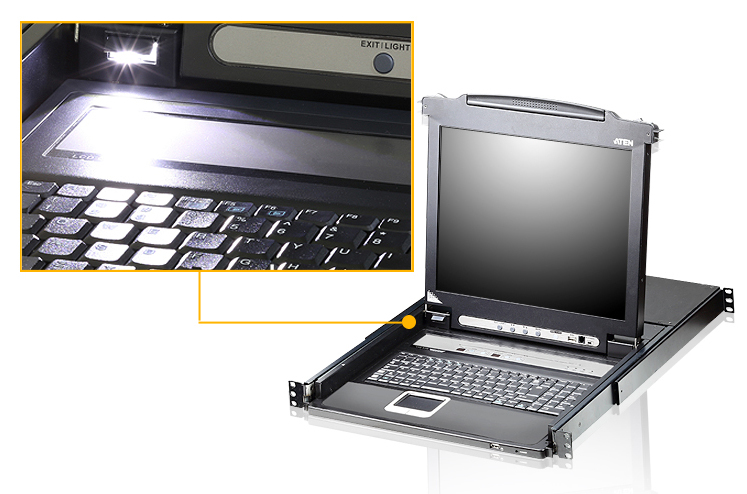

Hardware:Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
Integrated KVM console with 19” LED-backlit LCD monitor in a dual rail housing
One bus for local and one bus for remote KVM over IP access
Space-saving RJ-45 ports for Cat 5e/6 cable connections
KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
Extra Console Ports – manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Supports external USB mouse

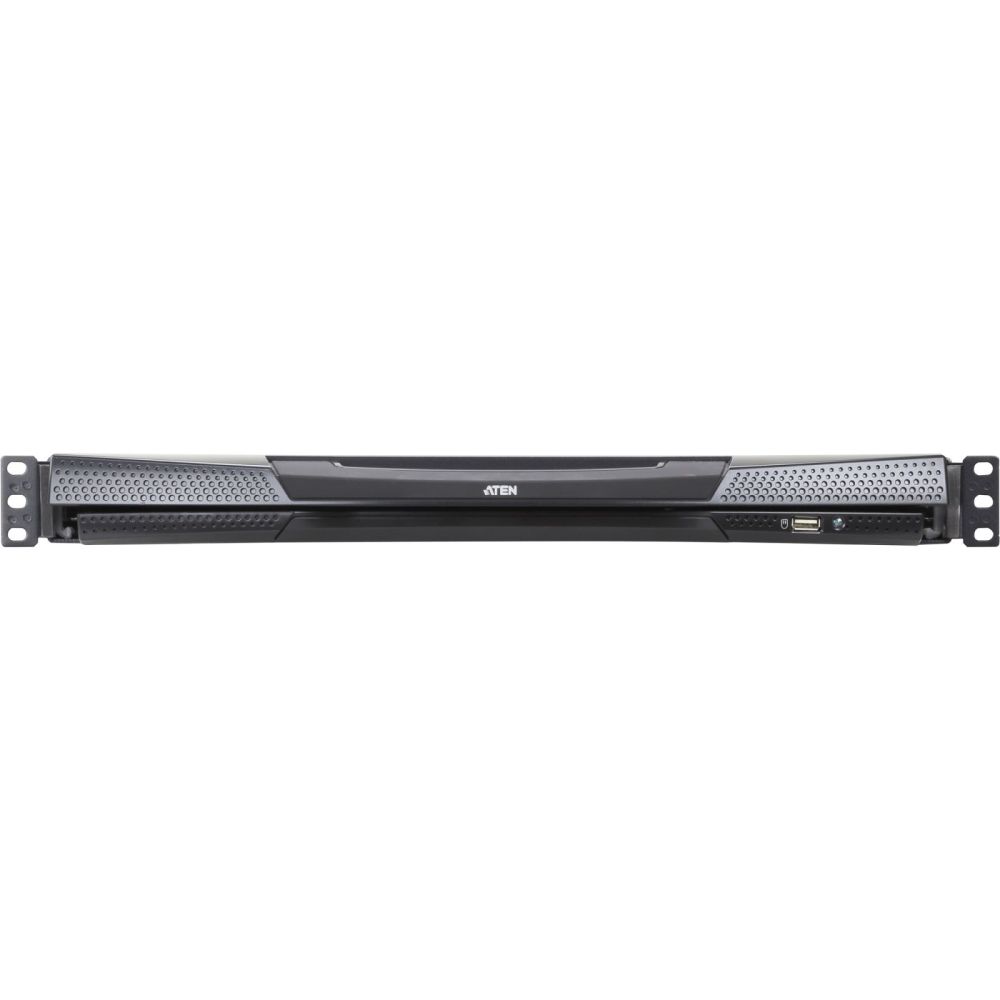

Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space

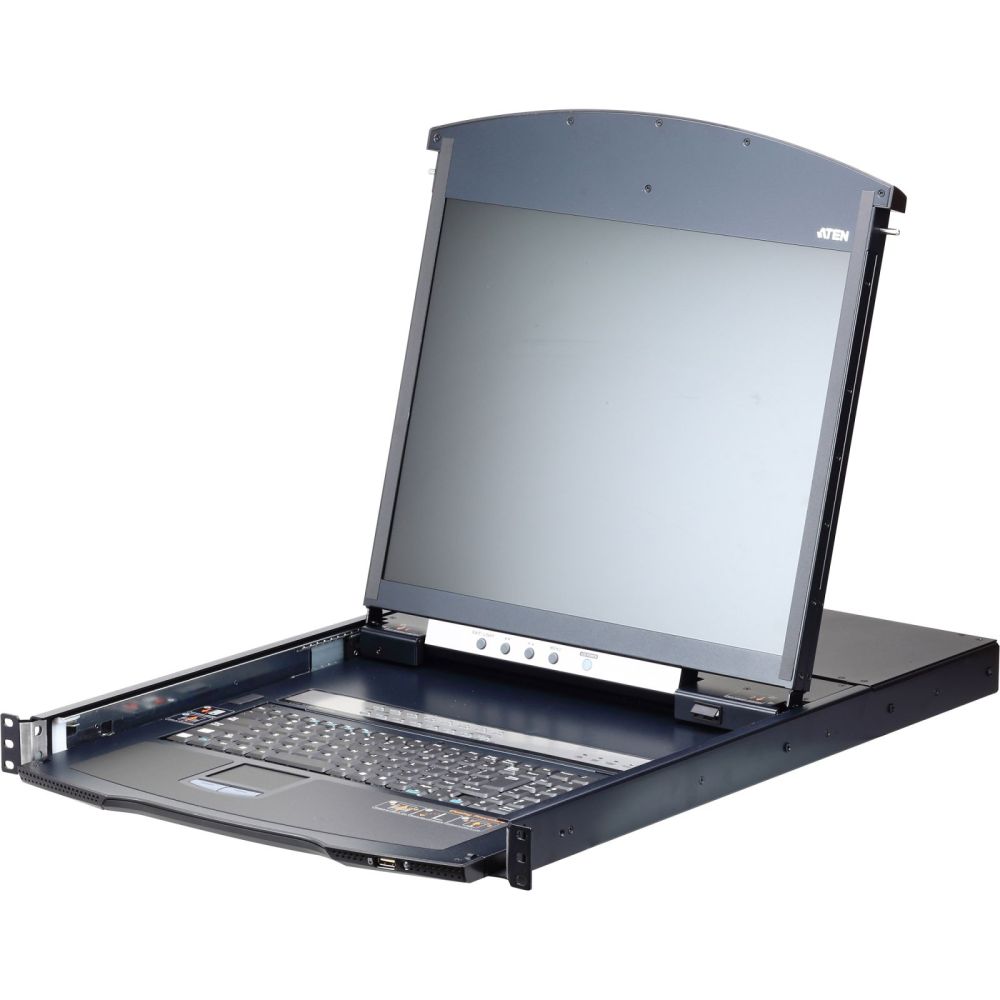

Dual Rail Housing – allows the LCD monitor to slide independently of the keyboard and touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock enables the console drawer to remain securely locked away when not in use
LCD power button saves energy and prolongs the life of the display
High Port Density – RJ-45 connectors provide up to 16 ports in 1U housing
Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
Blade server support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
High Video Resolutions – up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch’s built-in LCD screen
Monitor and control up to 16 computers on a single level or control up to 256 computers in a cascade (Cascade-compatible KVM switches include the following: CS1308, CS1316, KH1508A and KH1516A)
Management:Up to 64 user accounts
Up to 32 concurrent logins
End Session Feature – administrators can terminate any remote session
Port Share Mode allows multiple users to gain access to a server simultaneously
Remote power control for attached ATEN PDU devices
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software (Supports recording computer operations accessed via remote sessions.)
Event logging and Windows-based Log Server support
Local Log Event
Firmware upgradeable
IPv6 capable
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Out-of-Band Access – modem dial-in / dial-out / dial-back support
Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
Easy-to-Use Interface:Easy computer selection via pushbuttons, OSD (On-Screen Display), and Browser-based GUI
Local console, browser, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
ATEN Exclusive Panel Array™ Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
Launch virtual remote desktop sessions to control multiple servers at the same time
Full screen or scalable virtual remote desktop window
Video syncing allows the local console monitor’s EDID information to be stored on the KVM Adapter Cables for display resolution optimization
Advanced Security:Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Configurable user and group permissions for server access and control
Automated CSR creation utility and third-party CA certificate authentication
IP/MAC Filter support for enhanced security protection
Virtual Media:Virtual media enables file application, OS patching, software installations and diagnostic testing
Works with USB-enabled servers at the operating system and BIOS level
Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
Supports Smart Card/CAC Reader
Virtual Remote Desktop:Video quality can be adjusted to optimize data transfer speeds; color depth, threshold and noise settings reduce data transmission to lower bandwidth
Full screen or scalable window for virtual remote desktop
Message board feature allows logged in users to communicate with each other
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Exit Macro support
On-screen keyboard with multi-language support
BIOS-level access for troubleshooting
Package Contents:1x KL1116VN Cat 5 Dual Rail 48,3 cm ( 19 inch )-LCD KVM over IP Switch with a Rack Mount Kit, German keyboard layout
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
1x Power Cord
1x User Instructions
FunctionKL1116VN
Console Connections
Local1
Remote1
Computer Connections
Direct16
Maximum256 (via Cascade)
Port SelectionOSD, Hotkeys, Pushbuttons

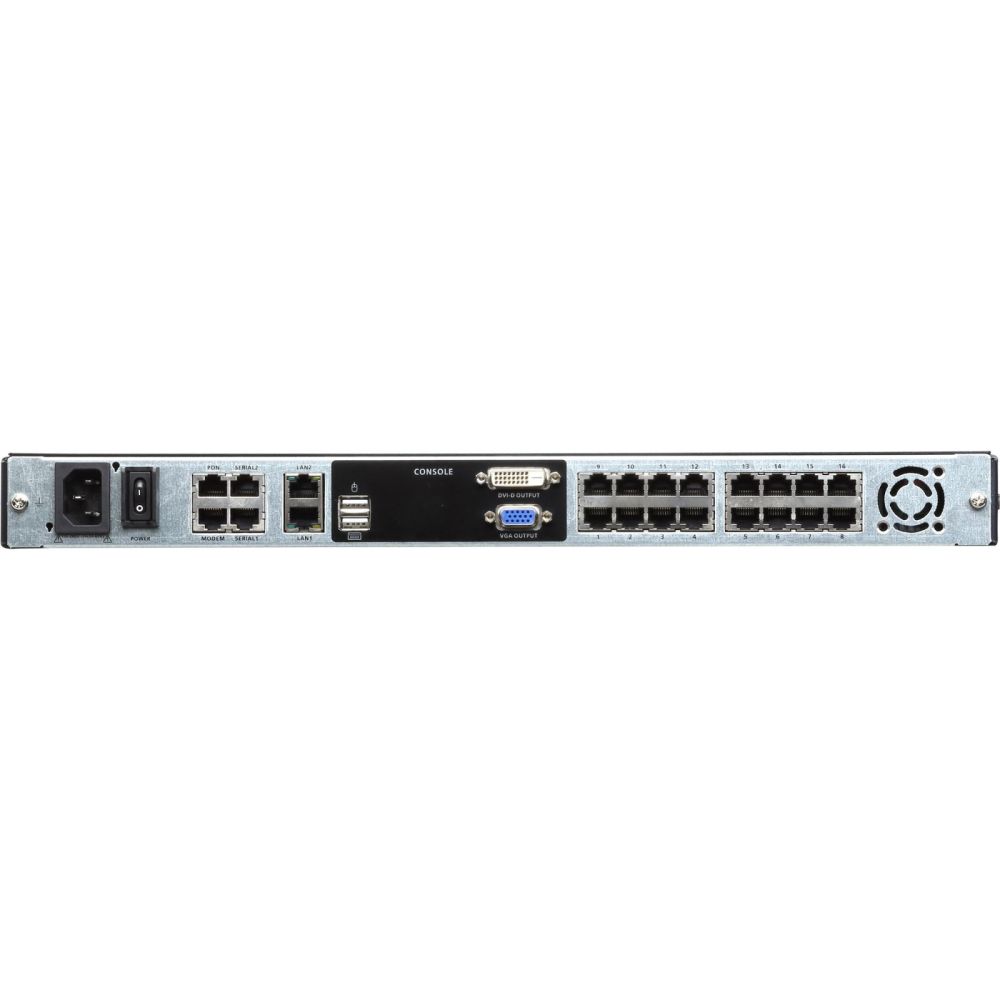

Connectors
Console Ports2 x USB Type-A Female (White)
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
External Mouse Port1 x USB Type-A Female
KVM Ports16 x RJ-45 Female
Serial2 x RJ-45 Female
PON1 x RJ-45 Female
Modem1 x RJ-45 Female
LAN Ports2 x RJ-45 Female
Power1 x IEC 60320/C14
Switches
Port Selection16 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker
LCD Power1 x Pushbutton
LCD Adjustment4 x Pushbutton
LEDs
Online16 (Green)
Selected16 (Orange)
10/100/1000 Mbps2 (Orange / Orange & Green / Green)
Power1 (Blue)
LCD Power1 (Orange)
Lock1 x Num Lock(Green)
1 x Caps Lock(Green)
1 x Scroll Lock(Green)
Video
Remote1920 x 1200@60Hz
Panel Spec
LCD Module48,3 cm ( 19 inch )
Resolution1280 x 1024 @75Hz
Pixel Pitch0.294 mm x 0.294 mm
Response time5 ms
Viewing Angle170° (H), 160° (V)
Contrast Ratio1000:1
Support Color16.7M colors
Luminance250 cd/m²
Emulation
Keyboard / MousePS/2; USB
Scan Interval1-255 Sec.
Maximum Input Power Rating100-240V AC; 50-60Hz; 1A
Power Consumption110V/32.1W; 220V/32.4W
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingMetal
WeightTBD
Dimensions (L x W x H)TBD

Display
Display diagonal	48.3 cm (19")
Display	LCD
On Screen Display (OSD)
Keyboard
Keyboard language	Spanish
Keyboard layout	QWERTY
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Manual
Ports & interfaces
Mouse port type	USB
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Number of consoles	1x remote, 1x external + 1x (integrated)
Fiber optic network	Without
TP Network	RJ45 x1
Resolution integrated display	1280x1024
Number of CPU	16
Type 1	KVM over IP
Periphery inputs per CPU	With adapter cable
Screen connectors per console	1
Audio per CPU	Without
Type 2	16-port VGA / DVI-D KVM Dual Rail
Design	Rack-Mount
Keyboard layout	ES (Spanish)
Max. resolution	1920x1200 / 60Hz
Video outputs per console	VGA x1, DVI-D (Dual Link) x1
Data rate	480Mb/s
Audio outputs per console	Without
Peripheral outputs per console	USB mouse for integrated console x1, USB-A socket x2, RJ45 socket x2
Display diagonal	19"
Audio microphone
Audio loudspeakers
Technical details
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1280 x 1024 pixels
Number of computers controlled	8
Rack capacity	1U
Rack mounting
LED indicators
Weight & dimensions
Width	689.2 mm
Height	44 mm
Depth	480 mm
Weight	13.4 kg

---
