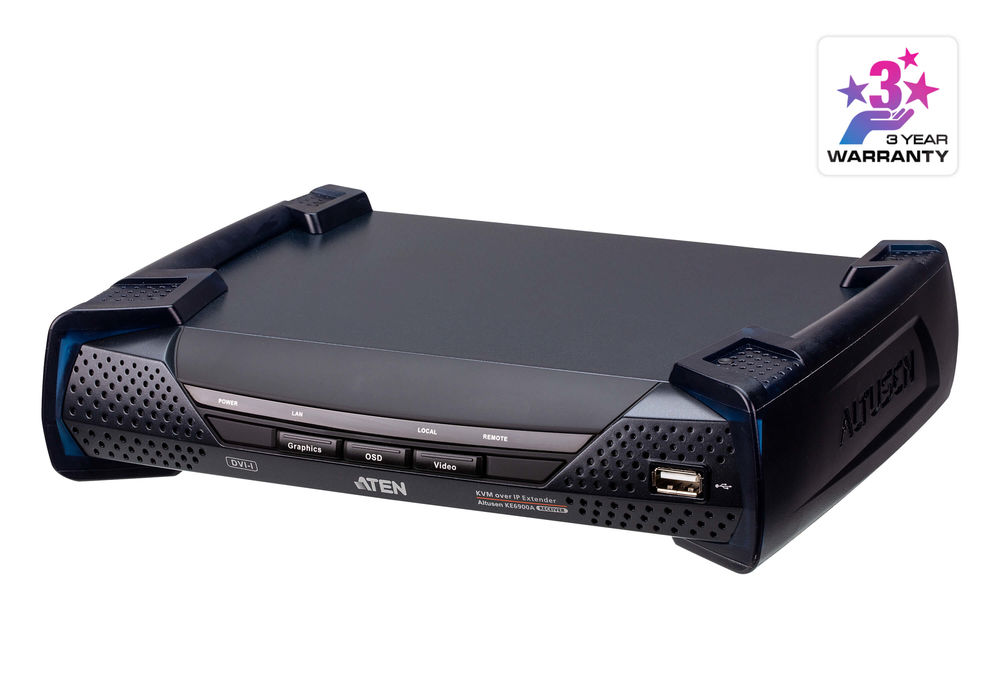

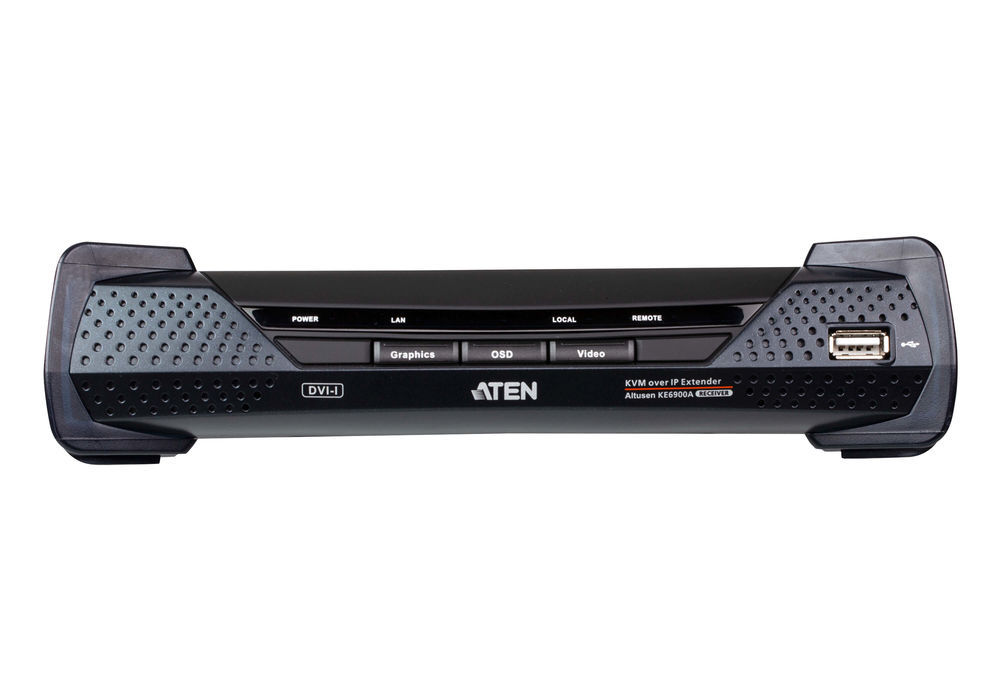

Aten KVM extender, over IP, receiver only, DVI, (receiver only) content_copy

*Order-related, cannot be canceled*, Can only be ordered with end customer data Supports 1 Gbps SFP fiber module extensions up to 10 km Supports power/network failover - two DC sockets for power redundancy and 1 RJ45 and 1 SFP fiber optic port for network failover, to ensure constant availability for mission-critical applications Superior video quality - up to 1920 x 1200 at 60 Hz 24 bit color depth Supports digital (DVI) or analog (VGA) video output The KE6900A extender consists of a powerful IP-based transmitter (KE6900AT), which connected to the computer and the receiver (KE6900AR), which allows console access from a separate location. The KE6900A enables advanced remote access to computer systems via USB consoles (USB keyboard, USB mouse, DVI monitor) over the intranet, allowing users to locate the computer system in secure and temperature-controlled environments that can be isolated from the user's workstation .
The KE6900A DVI-I Single Display KVM over IP Extender supports a DVI display at each end and offers lossless and low latency video transmissions up to 1920 x 1200 at 60 Hz.
The KE6900A supports connections via an RJ-45 port or an SFP slot. The transmitter and receiver can be connected either directly or via a high-speed network via a copper-based or fiber-based LAN. By connecting via the SFP slot with 1 Gbps SFP fiber optic module* extensions in the fiber optic network, you can extend the transmission distances up to 10 km. The KE6900A also features dual power supplies for redundancy to ensure reliable services.
As an IP-based matrix extender, the KE6900A can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender or in combination with the KE Matrix Management Software (CCKM) in a KVM over IP matrix system (multipoint -to-multipoint) to enable more flexible applications in different work environments.
By implementing KE Matrix Management Software (CCKM) with the KE6900A, IT administrators can benefit from advanced features such as automatic discovery of all KE6900A devices on the same subnet for quick installation or configuration, authentication and authorization of usernames and passwords, and the ability to define different types of connections that can be switched and shared. Security features provide additional protection with AES-128 bit encryption for secure data transfers, while RADIUS, LDAP, AD or remote user authentication provides an additional level of connection security. In addition, with an OSD, RS-232 support and Auto MDIX, the KE6900A is the most cost-effective and convenient way to get a fully digital extension from any location via the intranet.
*The SFP module (2A-136G / 2A-137G) is available separately. For product information, please contact your ATEN dealer. Scope of delivery
1 x KE6900AR DVI-I single display KVM over IP receiver 1 x 0AD8-8005-40MA power supply 1 x LIN2-418K-E12G power cable 1 x user manual

Features
Type	Receiver
Connectivity technology	Wired
Maximum transfer distance	10000 m
Maximum digital resolution	1920 x 1200 pixels
Product colour	Black
Material	Metal
LED indicators	Link, Power
On Screen Display (OSD)
Logistics data
Master (outer) case net weight	4.59 kg
Harmonized System (HS) code	84733080
Master (outer) case width	370 mm
Master (outer) case length	427 mm
Master (outer) case height	232 mm
Master (outer) case gross weight	7.09 kg
Products per master (outer) case	3 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Other features
Bandwidth	0.00006 MHz
Packaging data
Package width	207 mm
Package depth	414 mm
Package height	117 mm
Package weight	2.13 kg

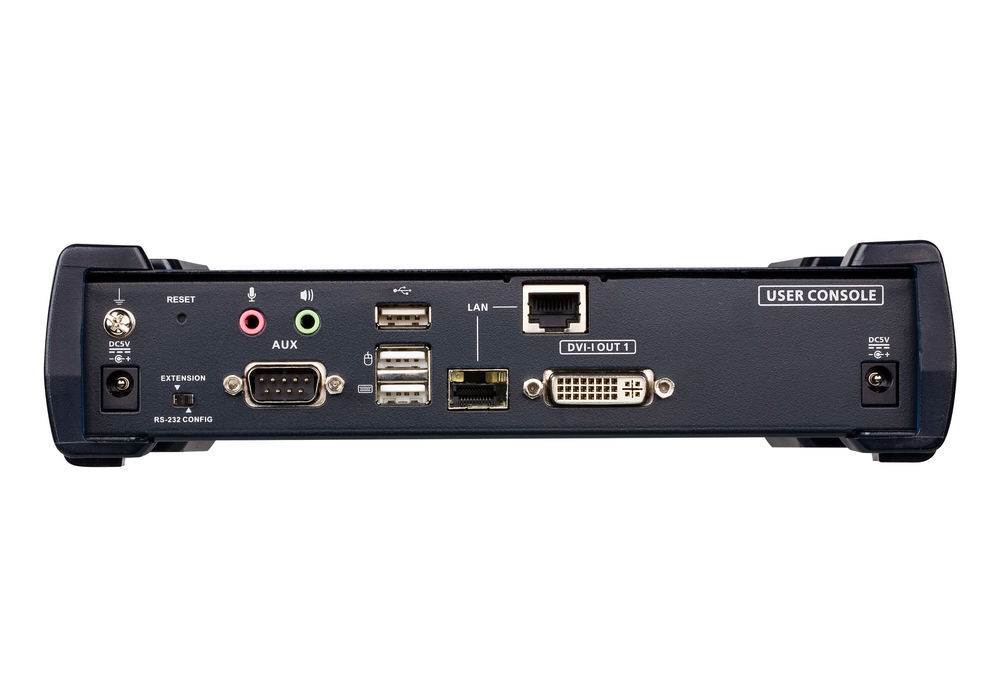

Ports & interfaces
USB port type	USB Type-A
RS-232 ports	1
RJ-45 ports quantity	1
PC Audio in
PC Audio out
Power
AC input voltage	5 V
Power consumption (receiver) (max)	6.35 W
Receiver
Receiver local video port type	DVI-I
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Technical details
Weight	1.53 kg
Weight & dimensions
Receiver width	17.2 cm
Receiver depth	22.8 cm
Receiver height	5.48 cm
Receiver weight	1.3 kg

---
