ATEN USB - HDMI Virtual Media KVM adapter cable content_copy

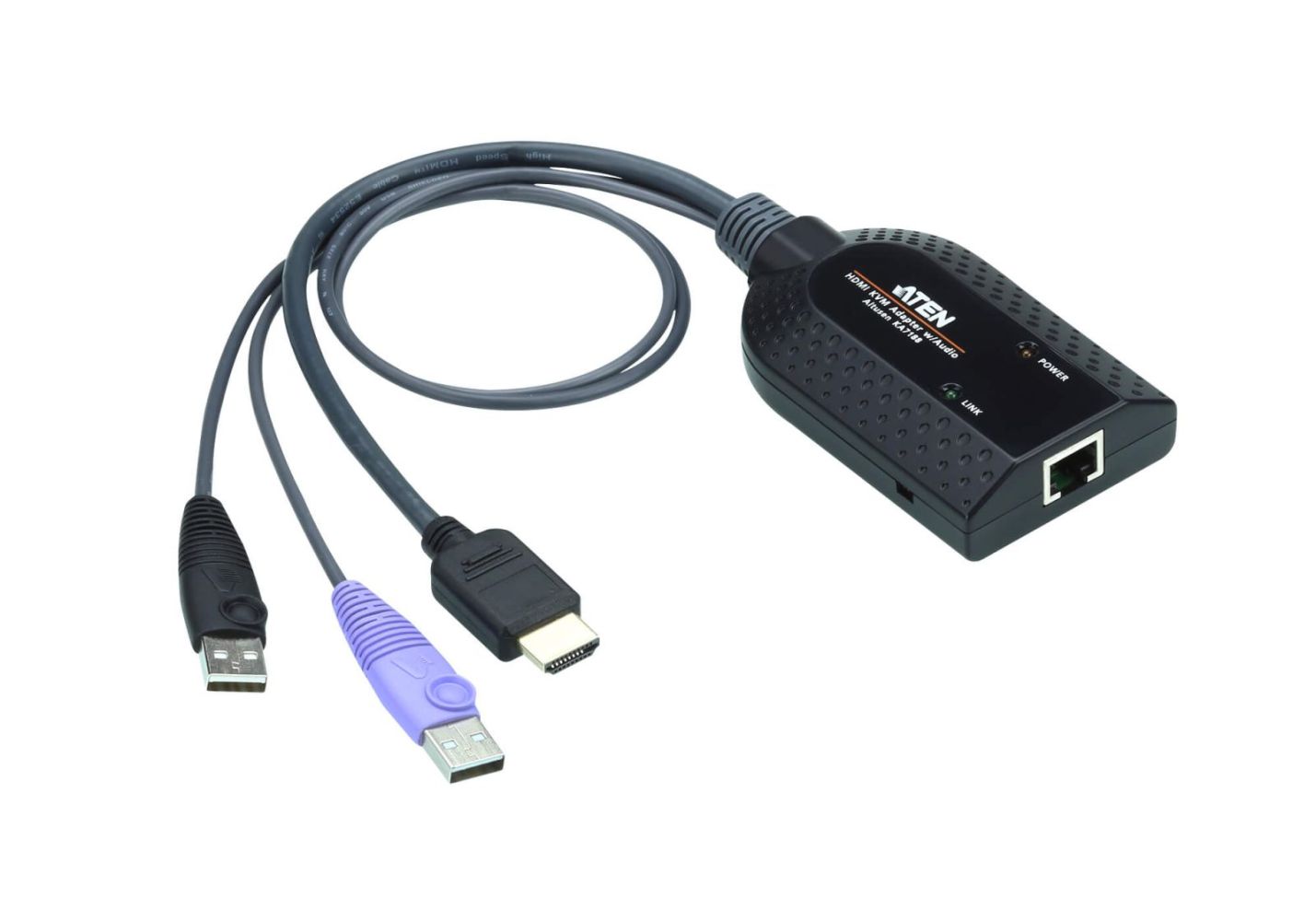

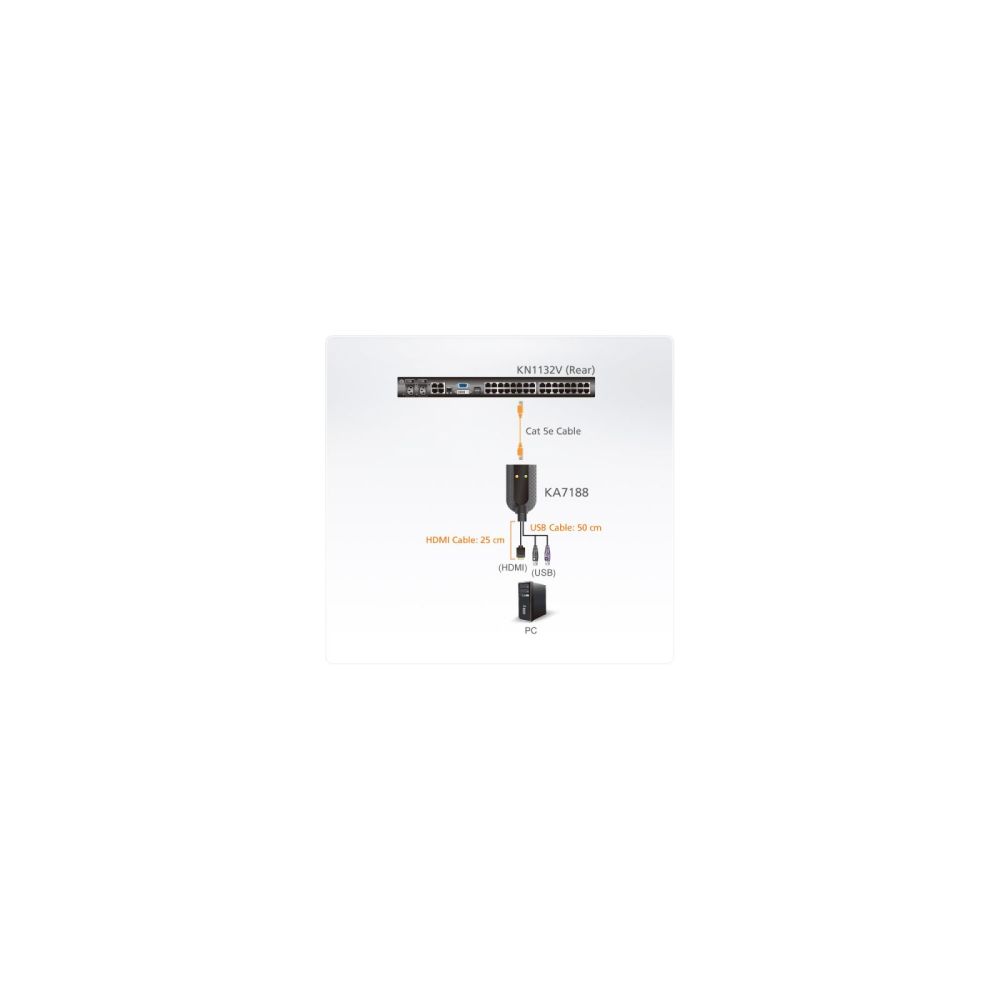

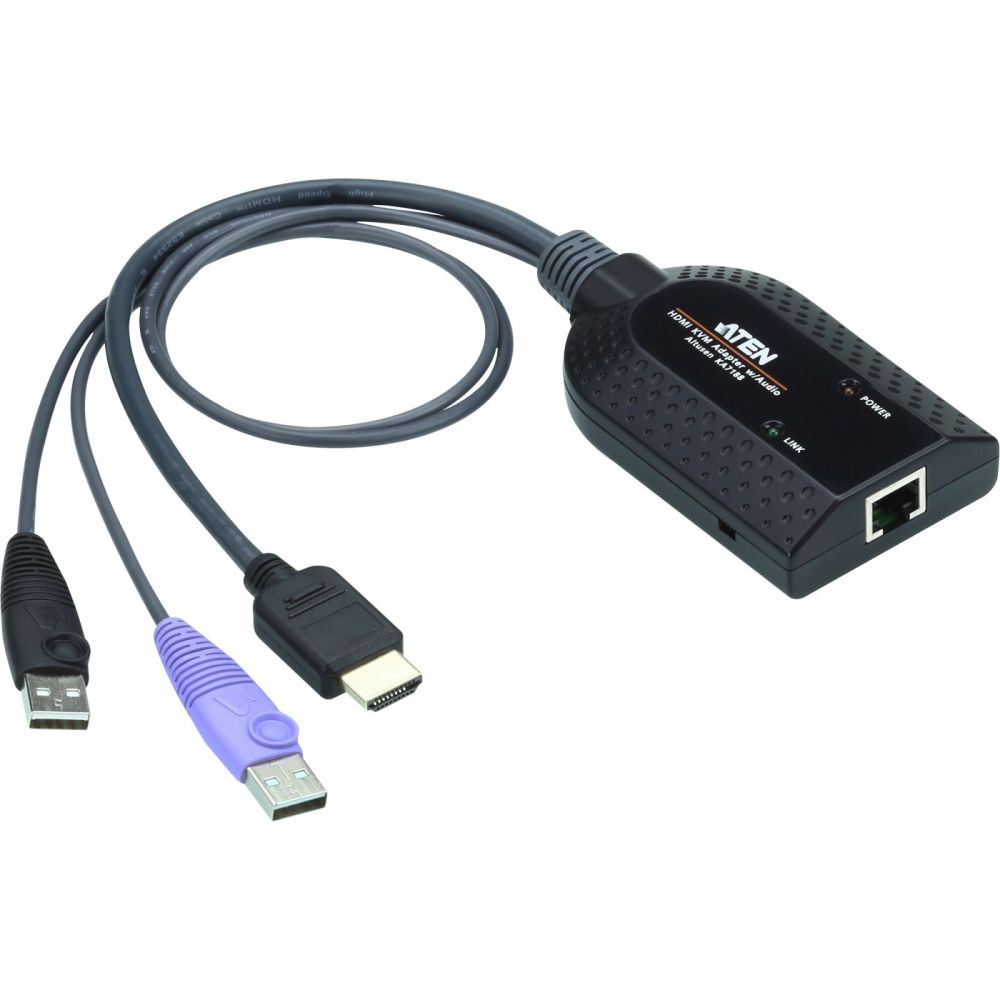

The KA7188 KVM Adapter Cable connects a KVM switch to the HDMI video and USB ports of a target computer (Both USB connectors must be plugged into USB ports on the target computer for the KA7188 to receive sufficient power.). The KA7188 supports HDMI output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions. Please refer to the webpage of KVM Adapter Cable Compatibility List (http://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches.
The KA7188 supports Audio De-Embedder, which extracts the audio from an HDMI signal. More advanced features of KA7188 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.Connects a KVM switch to the HDMI video and USB ports of a target computer
Supports Audio De-Embedder
Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
Virtual Media Support
Smart Card / CAC Reader Support
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking) This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.
Built in ASIC for greater reliability and compatibility
Compact size
Firmware upgradeable
Package Contents:1x KA7188 KVM Adapter Cable
Connectors
Link1 x RJ-45 Female
Computer2 x USB Type A Male
1 x HDMI Male
LEDs
Link1 (Green)
Power1 (Orange)
Physical Properties
HousingPlastic
Weight0.11 kg ( 0.24 lb )
Dimensions (L x W x H)9.10 x 5.60 x 2.14 cm
(3.58 x 2.2 x 0.84 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Logistics data
Master (outer) case net weight	4.4 kg
Harmonized System (HS) code	84733080
Master (outer) case width	270 mm
Master (outer) case length	470 mm
Master (outer) case height	296 mm
Master (outer) case gross weight	7.13 kg
Products per master (outer) case	40 pc(s)
Other features
Dimensions (WxDxH)	56 x 91 x 21.4 mm
Packaging data
Weight	110 g
Package width	42 mm
Package depth	124 mm
Package height	129 mm
Package weight	160 g
Performance
Product colour	Black, Metallic, Purple
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console port	RJ-45
Connector 1	1 x RJ-45
Connector 2	2 x USB Type A, 1 x HDMI
Connector 1 gender	Female
Connector 2 gender	Male
Material	Plastic
Technical data
Side A	RJ45 female x1
Max. resolution	1920x1200
Height packaging	0.129m
Length packaging	0.124m
Width packaging	0.042m
Design	Cable
Type 1	KVM CPU module cable
TP Network	RJ45 x1
Fiber optic network	Without
Type 2	KVM CPU module cable HDMI
Side B	HDMI male x1, USB-A male x2
Weight	0.158kg
Packaging volume	0.0007m³

---
