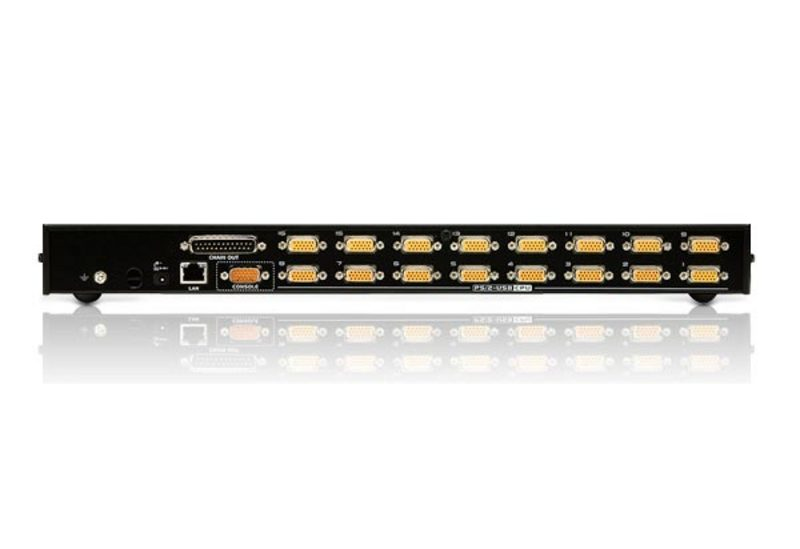

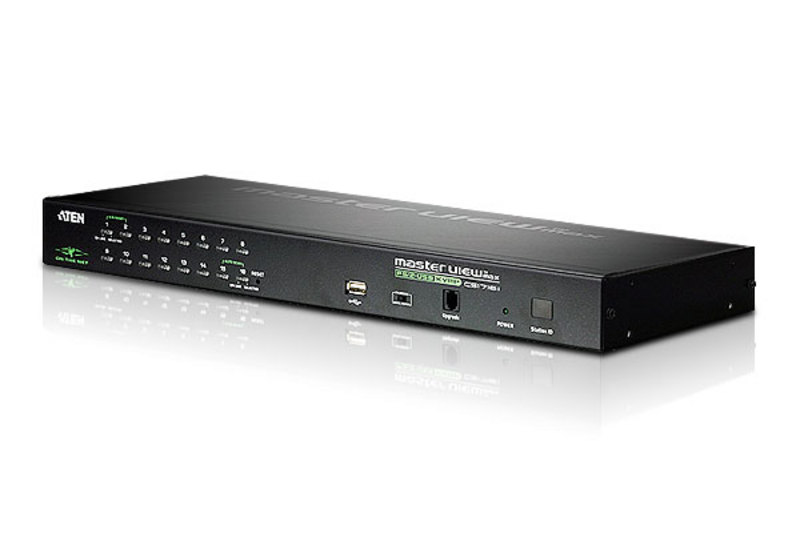

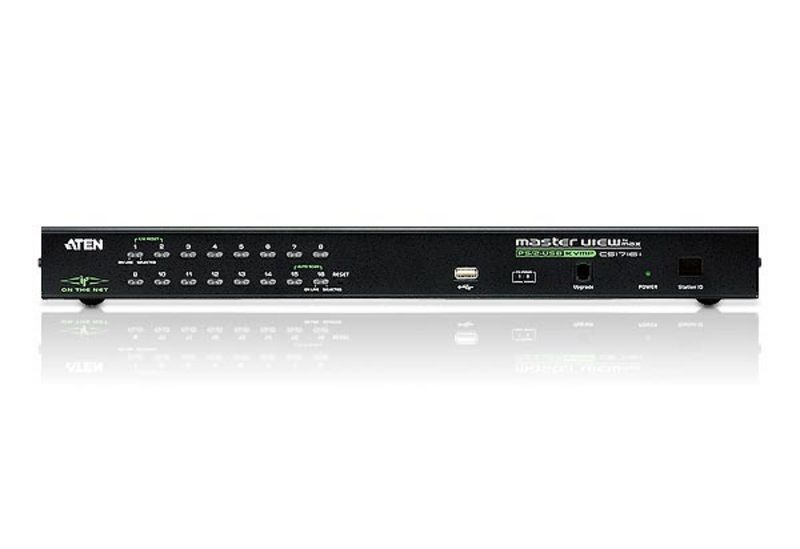

Aten CS1716I KVM Over-IP Switch VGA PS/2-USB USB-peripheral 16 ports content_copy

The CS1716i KVM switch is IP-based KVM control units that allow both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.Among the CS1716i's other outstanding features, a panel array mode provides the ability to simultaneously monitor up to 16 servers per switch; while the Mouse DynaSync feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.The CS1716i supports high security protocols. For easier and more efficient user management integration, the CS1716i also supports authentication and authorization via remote servers.These powerful features not only help administrators manage their server room in an efficient and flexible manner, it provides a cost effective management solution for the SMB sector.

Design
Rack capacity	1U
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
Push button
Hot keys
Display
Built-in display
On Screen Display (OSD)
Logistics data
Master (outer) case net weight	10.8 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	12.6 kg
Products per master (outer) case	3 pc(s)
Network
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit RC4, SSL/TLS
Ethernet LAN
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Cables included	DC, KVM
Quick installation guide
Manual
AC adapter included
Software included
Rack mount kit
Packaging data
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	3.98 kg
Performance
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Video bandwidth	60 Hz
Scan interval	1,255 s
Number of users	32 user(s)
DDC2B support
HDCP
Hot-Plug support
Daisy chain
Firmware upgradeable
Ports & interfaces
Number of computers controlled	256
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
VGA (D-Sub) ports quantity	16
Console ports	USB A, VGA (D-Sub)
Console USB ports quantity	1
Power
Power source	DC
Input voltage	5.3 V
Power consumption (typical)	11 W
Sustainability
Compliance certificates	RoHS
System requirements
Windows operating systems supported
Linux operating systems supported
Mac operating systems supported
Weight & dimensions
Width	437.2 mm
Depth	159.6 mm
Height	44 mm
Weight	3.59 kg

---
