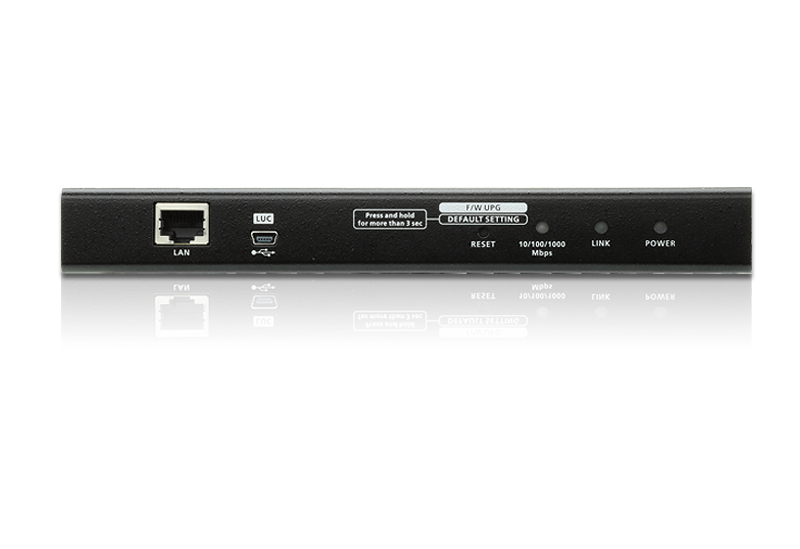

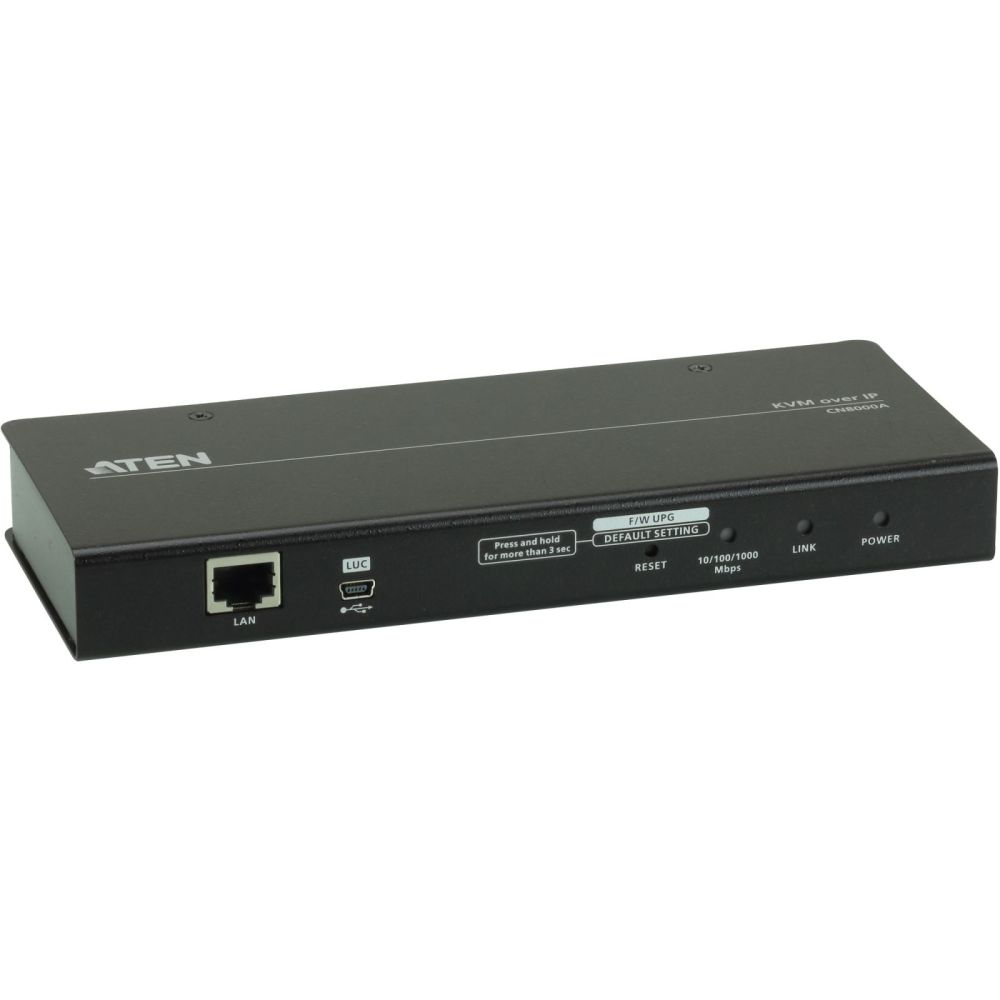

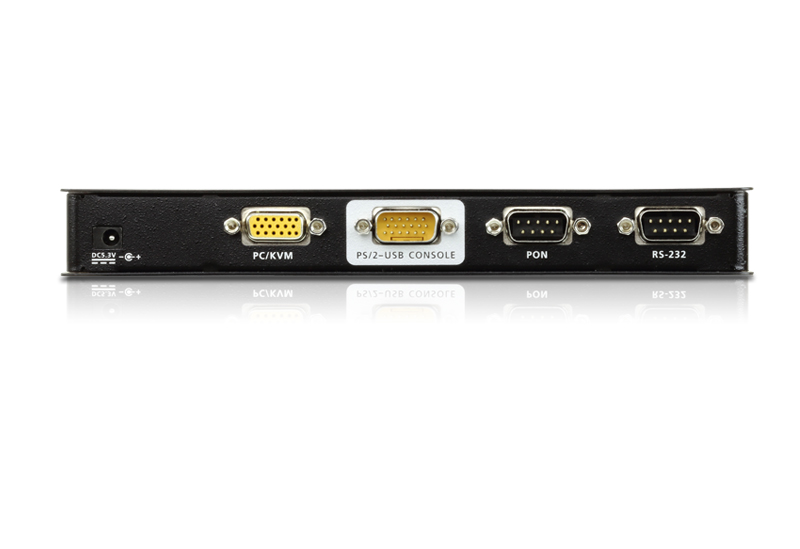

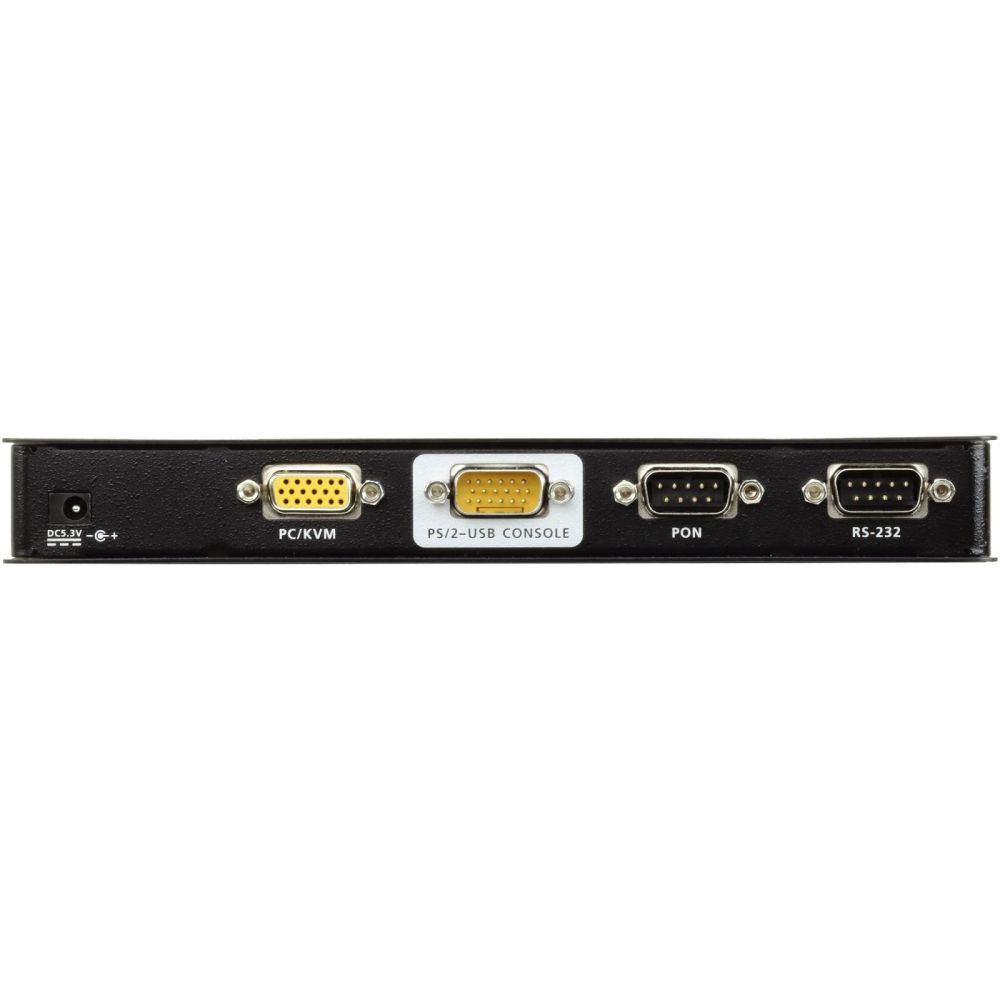

ATEN CN8000A KVM Over IP Control Unit with Virtual Disk Interface
|
554,81 EUR |
|
|
( 660,22 EUR incl. VAT ) ≈ £471.03 | ≈ $625.27 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1158319 |
|---|---|
| Mfg Part No: | CN8000A |
| UPC/EAN: | 4719264644979 |
| Weight: | 1.238 kg |
Product information for Aten CN8000A:
*Order-related order * 1xLAN 10/100Mbit TP, RS-232, 1x Console/1x PC/KVM, Console: 1xTP, 1xSPHD-18 plug, PC/KVM: 1xSPHD-15 socket (VGA HDB plug 15-pin, 1xUSB A plug, 2x PS/2 plug) Scope of delivery 1x CN8000A single port KVM over IP 1x 2L-5301UP user KVM cable set 1x LIN5-27X6-U21G user console cable set 1x LIN5-04U1-U1LG laptop USB cable 1x 0AD6-1605-24EG power supply 1x Rack mounting set 1x user manual
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Push button | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 5.25 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 6.66 kg |
| Products per master (outer) case | 5 pc(s) |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security algorithms | TLS |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | USB |
| Manual | |
| AC adapter included | |
| Rack mount kit | |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.23 kg |
| Performance | |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Number of users | 64 user(s) |
| DDC2B support | |
| Firmware upgradeable | |
| Ports & interfaces | |
| Number of computers controlled | 1 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | USB B, VGA (D-Sub) |
| USB connector type | Mini-USB B |
| Serial port type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 7.26 W |
| External power adapter | |
| Sustainability | |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Mac operating systems supported | |
| Weight & dimensions | |
| Width | 81.4 mm |
| Depth | 25 mm |
| Height | 200 mm |
| Weight | 1.05 kg |
Questions & answers
What is the delivery time of ATEN CN8000A KVM Over IP Control Unit with Virtual Disk Interface?
The article ATEN CN8000A KVM Over IP Control Unit with Virtual Disk Interface is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CN8000A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CN8000A KVM Over IP Control Unit with Virtual Disk Interface always at the best possible price. We can give you a discount of 2% on ATEN CN8000A KVM Over IP Control Unit with Virtual Disk Interface if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
