ATEN CL5816N 48cm LCD KVM Switch USB-PS/2 VGA 16-port FR layout content_copy

The CL5816 Slideaway™ Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.

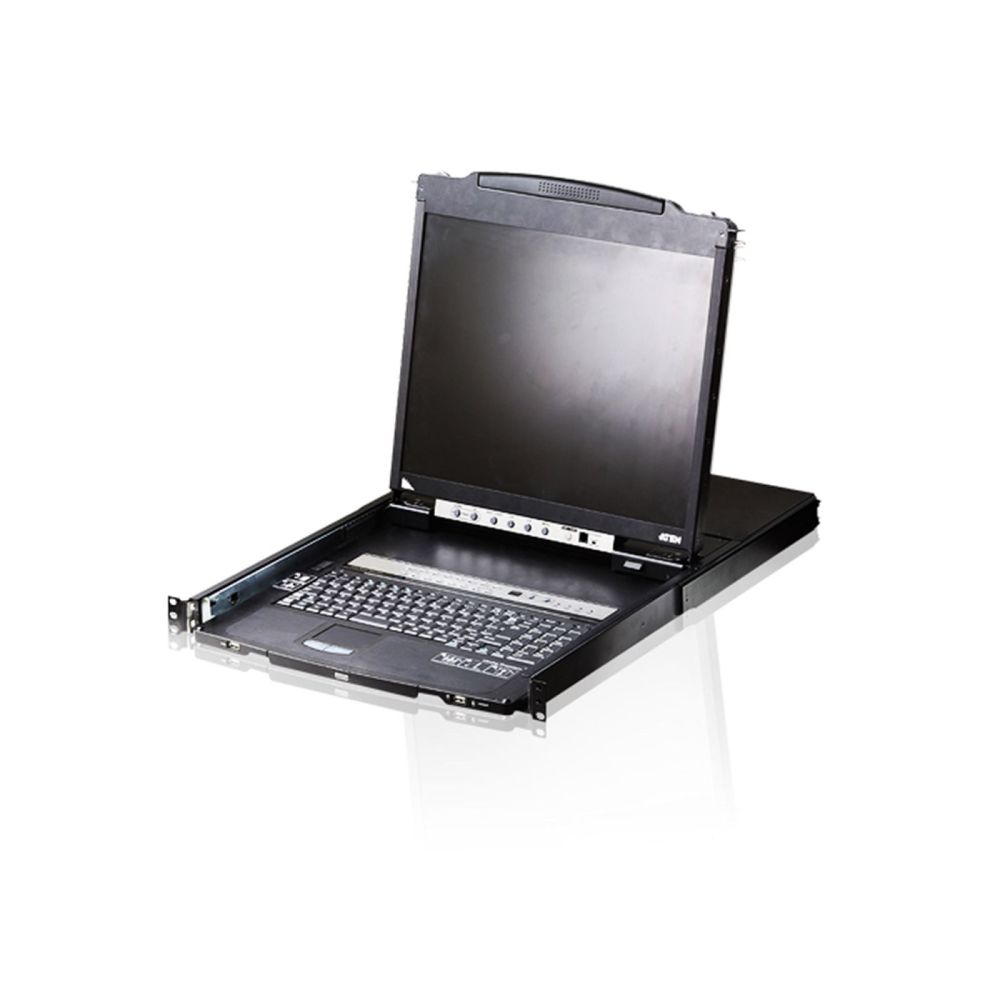

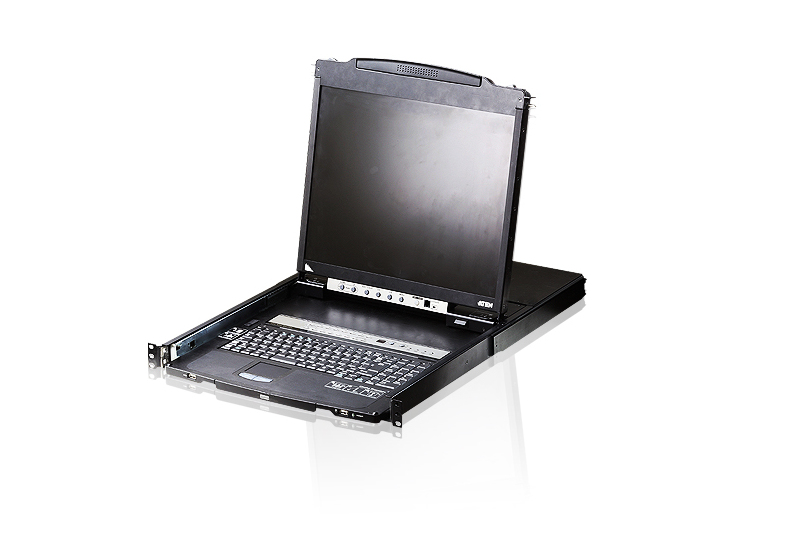

The CL5816 48,3 cm ( 19 inch ) LED-backlit LCD monitor and keyboard / touch pad modules slide independently of each other. To maximize space in your data center, the keyboard / touch pad module slides back to hide away when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection pushbutton switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up / Port Down pushbuttons located on the monitor module.

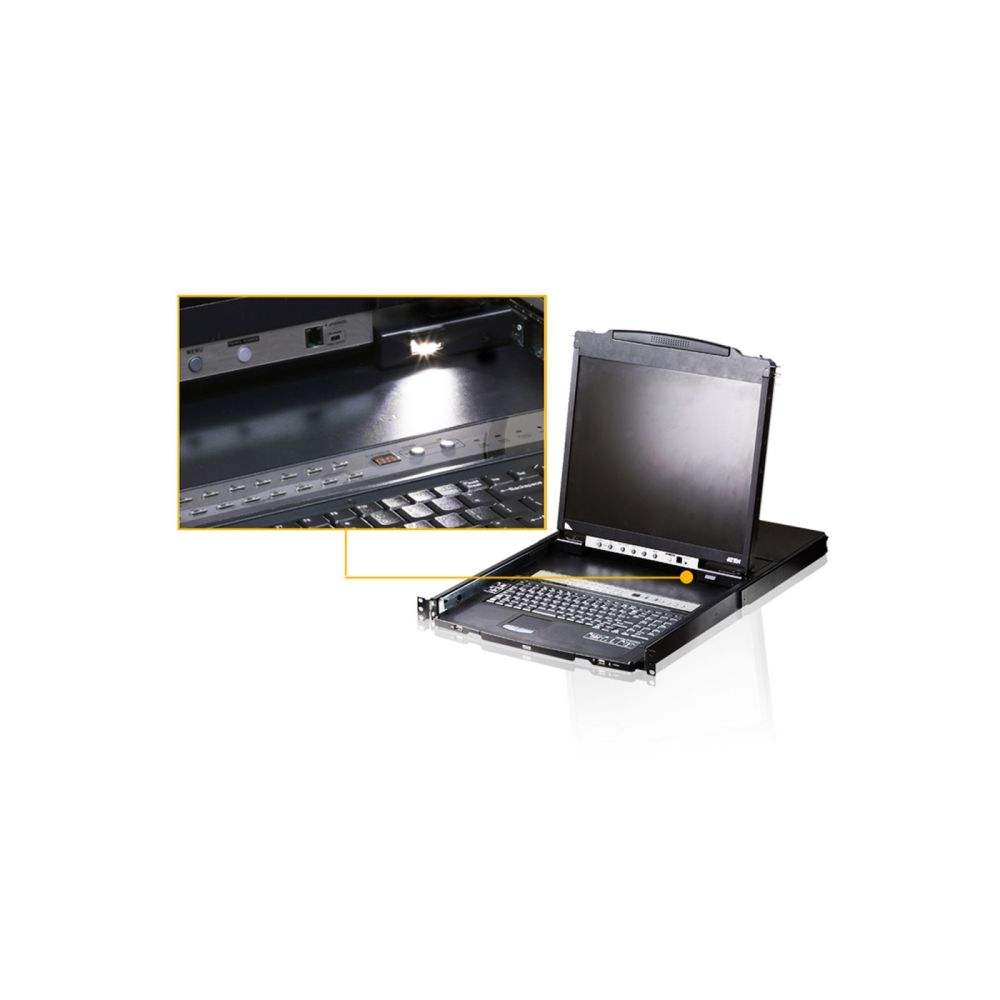

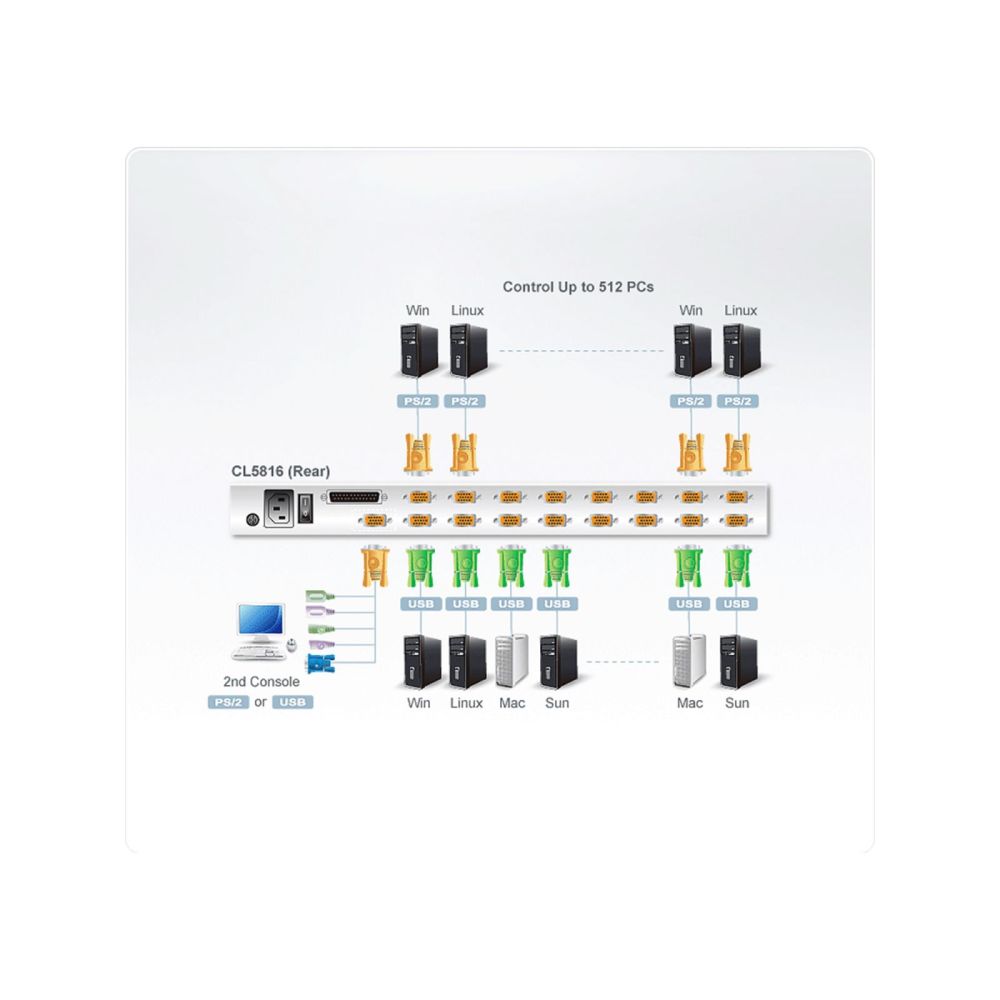

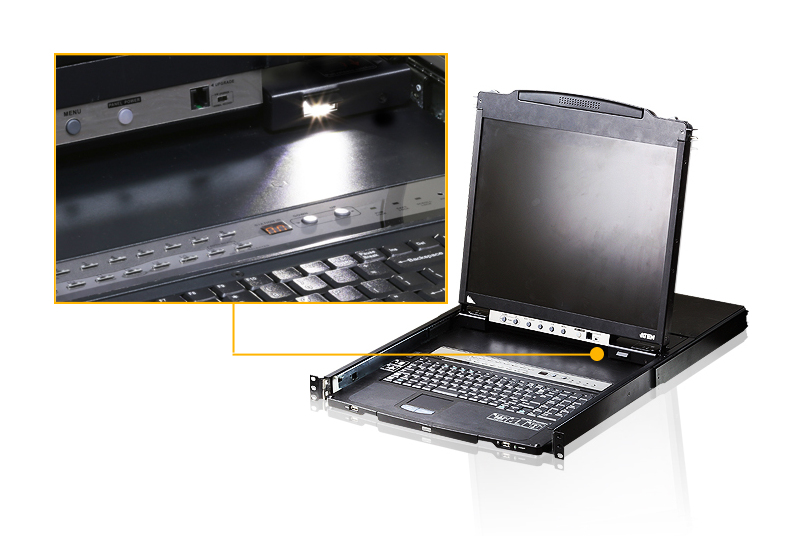

The CL5816 supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5816 supports USB peripheral devices to be used with the attached computers. A single CL5816 can control up to 16 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 512 computers can all be controlled from a single keyboard, monitor, and mouse consoleExclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 48,3 cm ( 19 inch ) LED-backlit LCD monitor in a Dual Rail housing
Space saving technology - up to two consoles (one bus) control up to 16 computers
Daisy-chain up to 31 additional units*– control up to 512 computers from two consoles (one bus)
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
Supports USB peripherals for computers connected to the local station
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console Lock - enables the console drawer to remain securely locked away in position when not in use
Multiplatform support - Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
Supports external USB mouse
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
LCD power button helps save energy and prolong display's life
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Beeper on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
Optional rack mount kits available including easy installation options
Keyboard Language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Package Contents1x CL5816 KVM Switch with Standard Rack Mounting Kit
2x Custom KVM Cable (VGA, USB, PS/2; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Power Cord
2x L Brackets
1x User Instructions
FunctionCL5816N
Computer Connections
Direct16
Maximum512 (via Daisy-chain)
Port SelectionOSD, Hotkey, Pushbutton

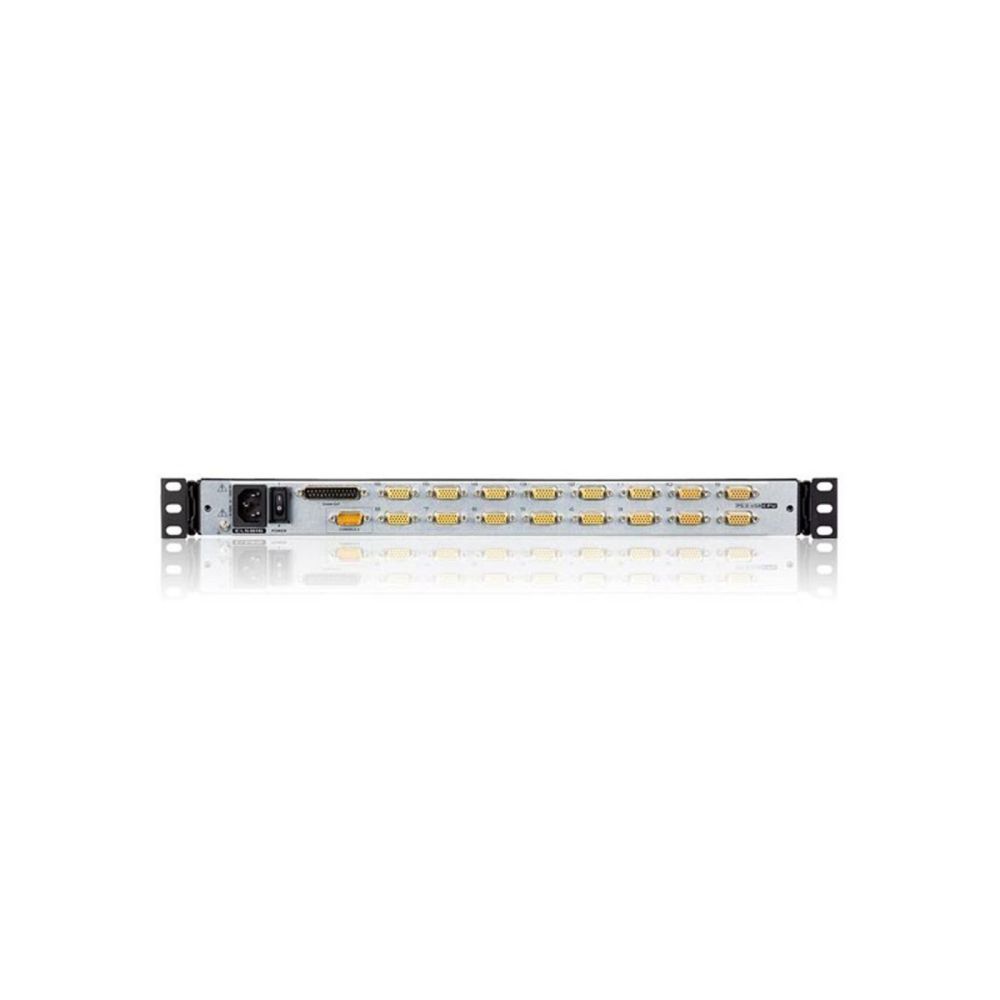

Connectors
KVM Ports16 x SPHD Female (Yellow)
Daisy Chain Ports1 x DB-25 Male
Firmware Upgrade1 x RJ-11 Female
Power1 x IEC 60320/C14
External Console Ports1 x SPHD Male (Yellow)
External Mouse Port1 x USB Type A Female (Front)
USB Port1 x USB Type A Female (Front)
Switches
Port Selection2 x Pushbutton (LCD)
16 x Pushbutton (Keyboard)
Station Selection2 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
Power1 x Rocker Switch
LCD Control4 x Pushbutton
LCD Power1 x LED Pushbutton
LEDs
Online16 (Orange)
Selected16 (Green)
Station ID2 x 7-segment LED Display (Orange)
Power1 (Dark Green)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light1 x LED Illumination Light
Panel Spec
LCD Module48,3 cm ( 19 inch ) TFT-LCD
Resolution1280 x 1024 @ 75 Hz
Response time5 ms
Viewing Angle170° (H), 160° (V)
Pixel Pitch0.294 mm x 0.294 mm
Support Color16.77M colors
Contrast Ratio1000:1
Luminance250 cd/m²
Video
Input Video Resolutionup to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B
Scan Interval1–255 seconds
Emulation
Keyboard / MousePS/2, USB
Maximum Input Power Rating100–240V AC, 50/60Hz, 1A
Power ConsumptionAC110V:25.2W:129BTU/h
AC220V:27.2W:138BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0–50°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingMetal + Plastic
Rail TypeDual Rail
Weight14.76 kg
Dimensions (L x W x H)48.00 x 68.04 x 4.40 cm

Display
Display diagonal	48.3 cm (19")
Display	LCD
On Screen Display (OSD)
Keyboard
Keyboard language	French
Keyboard layout	AZERTY
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Manual
Ports & interfaces
Mouse port type	USB
Power
Power consumption (typical)	26.8 W
Input current	1 A
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
TP Network	Without
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
USB specification	USB 2.0
Video inputs per CPU	SPHD female (to VGA) x1
Type 2	16-port VGA Dual Rail
Fiber optic network	Without
Audio outputs per console	Without
Data rate	480Mb/s
Number of CPU	16
Type 1	KVM Display Console
Keyboard layout	FR (French)
Display diagonal	19"
Video outputs per console	SPHD male x1 (to VGA)
Resolution integrated display	1280x1024
Max. resolution	1920x1200 / 60Hz
Peripheral outputs per console	USB for integrated console x2, SPHD connector (to USB or PS/2)
Screen connectors per console	1
Number of consoles	1x external + 1x (integrated)
Audio loudspeakers
USB peripherals
Extension (daisy chain or cascading)
Audio microphone
Technical details
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1280 x 1024 pixels
Number of computers controlled	16
Rack capacity	1U
Rack mounting
LED indicators
Weight & dimensions
Width	680.4 mm
Height	44 mm
Depth	480 mm
Weight	14.8 kg

---
