ATEN CL5716M 43cm LCD KVM Switch USB-PS/2 VGA 16 ports ES layout content_copy

The CL5716 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

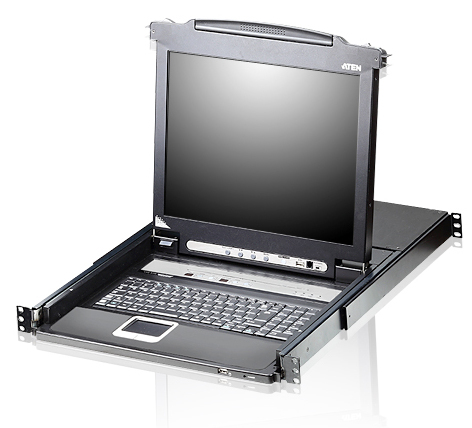

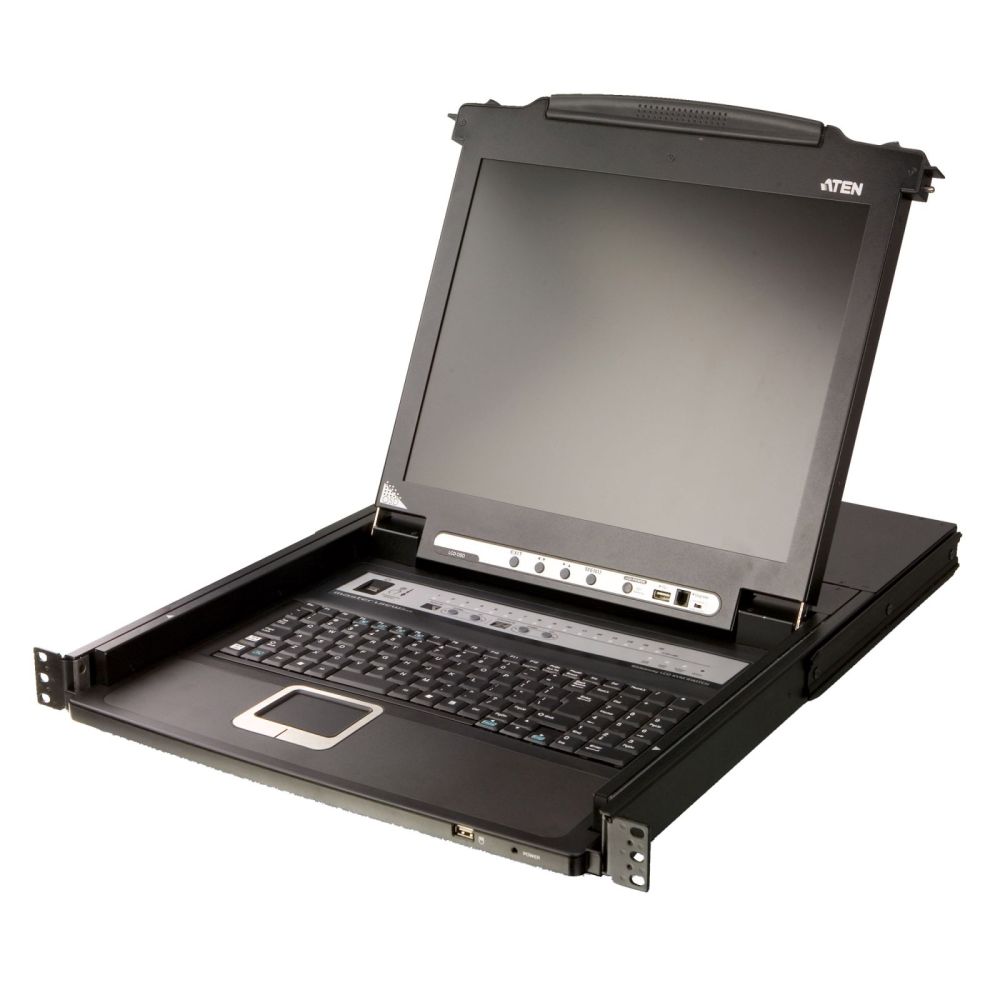

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 43,2 cm ( 17 inch ), 43,9 cm ( 17,3 inch ) or 48,3 cm ( 19 inch ) LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands.
The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

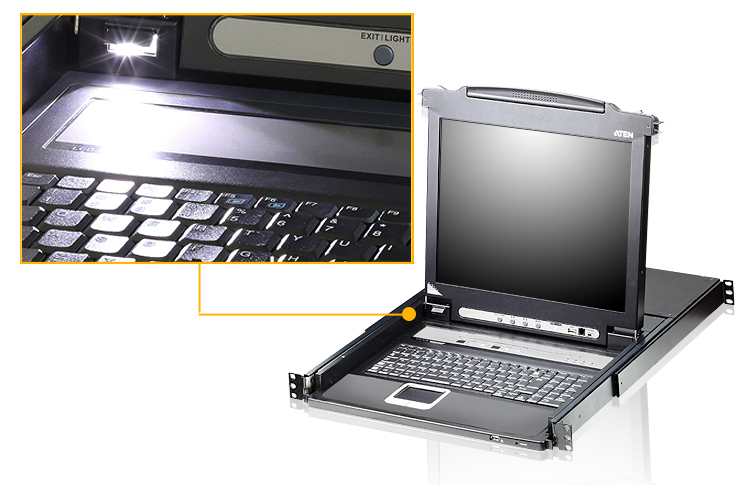

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
Integrated KVM console with 17”, 17.3”or 19“ LED-backlit LCD monitor in a Slideaway™ housing
Available with or without fingerprint identification reader1
Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers
Daisy-chain up to 31 additional units – controls up to 512 computers from a single console
Dual interface – supports computers and console with PS/2 or USB keyboards and mice
USB port allows each computer to access USB peripherals2 (inapplicable to CL5716MW)
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Multiplatform support – Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5716M / CL5716FM / CL5716N) and 1920 x 1080 @ 60 Hz (CL5716MW)
No software required –convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security – only authorized users can view and control computers
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable
Beeper on / off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Optional rack mount kits available including easy installation options
Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Note:
1. The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.
2. The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections (inapplicable to CL5716MW).
Package Contents1x CL5716 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Power Cord (AC Power Models)
1x User Instructions
FunctionCL5716MCL5716MWCL5716N
Computer Connections
Direct161616
Maximum512 (via Daisy-chain)512 (via Daisy-chain)512 (via Daisy-chain)
Port SelectionOSD, Hotkey, PushbuttonOSD, Hotkey, PushbuttonOSD, Hotkey, Pushbutton
Connectors

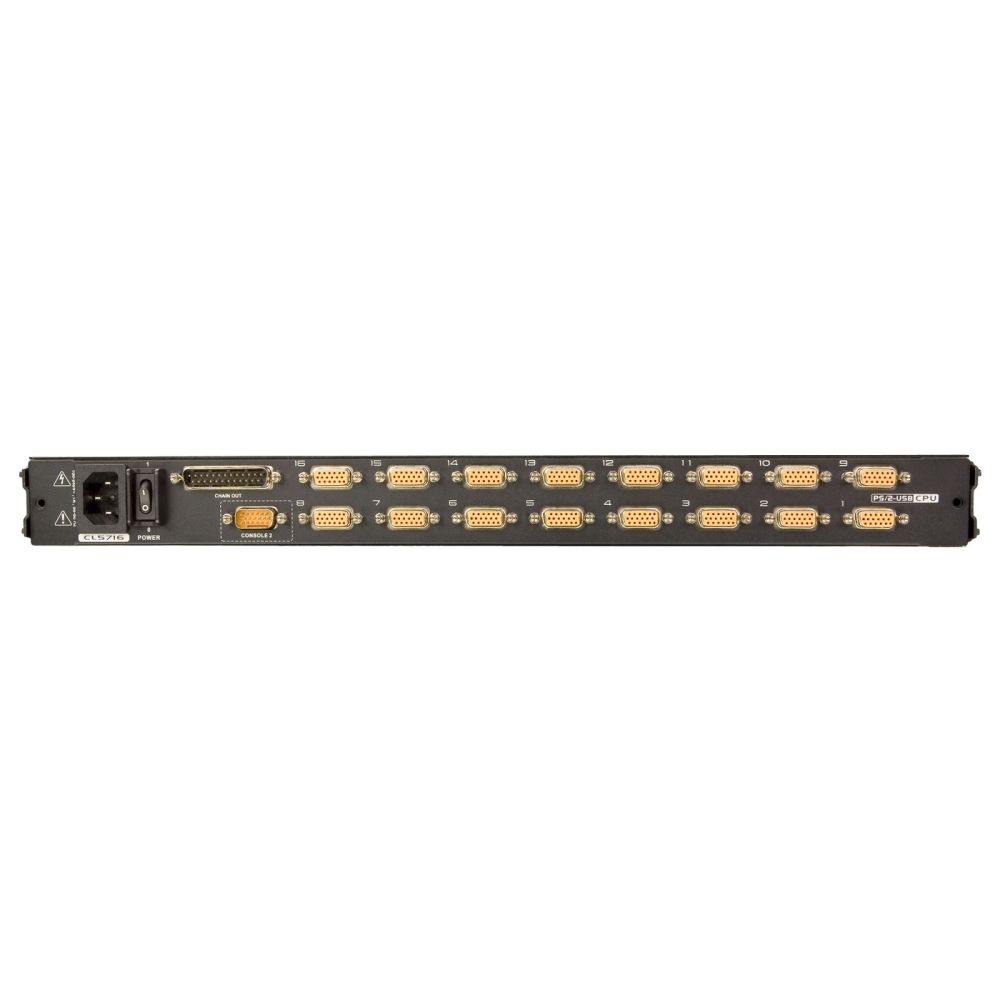

KVM Ports16 x SPHD Female (Yellow)16 x SPHD Female (Yellow)16 x SPHD Female (Yellow)
Daisy Chain Ports1 x DB-25 Male1 x DB-25 Male1 x DB-25 Male
Firmware Upgrade1 x RJ-11 Female1 x RJ-11 Female1 x RJ-11 Female
Power1 x IEC 60320/C14
1 x IEC 60320/C14
1 x IEC 60320/C14
External Console Ports1 x SPHD Male (Yellow)1 x SPHD Male (Yellow)1 x SPHD Male (Yellow)
External Mouse Port1 x USB Type A Female (Front)1 x USB Type A Female (Front)1 x USB Type A Female (Front)
USB Port1 x USB Type A FemaleN/A1 x USB Type A Female
Switches
Port Selection2 x Pushbutton2 x Pushbutton2 x Pushbutton
Station Selection2 x Pushbutton2 x Pushbutton2 x Pushbutton
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch1 x Slide Switch1 x Slide Switch
Power1 x Rocker Switch1 x Rocker Switch1 x Rocker Switch
LCD Control4 x Pushbutton4 x Pushbutton4 x Pushbutton
LCD Power1 x LED Pushbutton
1 x LED Pushbutton
1 x LED Pushbutton
LEDs
Online16 (Orange)16 (Orange)16 (Orange)
Port ID2 x 7-segment LED Display (Orange)2 x 7-segment LED Display (Orange)2 x 7-segment LED Display (Orange)
Station ID2 x 7-segment LED Display (Orange)2 x 7-segment LED Display (Orange)2 x 7-segment LED Display (Orange)
Power1 (Dark Green)1 (Dark Green)1 (Dark Green)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light1 x LED Illumination Light
1 x LED Illumination Light
1 x LED Illumination Light
Panel Spec
LCD Module43,2 cm ( 17 inch ) TFT-LCD43,9 cm ( 17,3 inch ) TFT-LCD48,3 cm ( 19 inch ) TFT-LCD
Resolution1280 x 1024 @ 75 Hz1920 x 1080 @ 60 Hz1280 x 1024 @ 75 Hz
Response time5 ms16 ms5 ms
Viewing Angle170° (H), 160° (V)170° (H), 170° (V)170° (H), 160° (V)
Pixel Pitch0.264 mm x 0.264 mm0.1989 mm x 0.1989 mm0.294 mm x 0.294 mm
Support Color16.77M colors16.77M colors16.77M colors
Contrast Ratio1000 : 1800 : 11000 : 1
Luminance250 cd/m²250 cd/m²250 cd/m²
Video
Input Video Resolutionup to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2Bup to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only);
1920 × 1080 @ 60 Hz, DDC2Bup to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B
Scan Interval1-255 seconds1-255 seconds1-255 seconds
Emulation
Keyboard / MousePS/2, USBPS/2, USBPS/2, USB
Maximum Input Power Rating100-240V AC, 50/60Hz, 1A100-240V AC, 50/60Hz, 1A100-240V AC, 50/60Hz, 1A
Power ConsumptionAC110V:24.7W:129BTU/h
AC220V:25.8W:134BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.AC110V:14.8W:80BTU/h
AC220V:15.6W:84BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.AC110V:26.9W:139BTU/h
AC220V:27.9W:144BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-40°C0-40°C0-50°C
Storage Temperature-20-60°C-20-60°C-20-60°C
Humidity0-85% RH, Noncondensing0-85% RH, Noncondensing0-85% RH, Noncondensing
Physical Properties
HousingMetal + PlasticMetal + PlasticMetal + Plastic
Rail TypeSingle RailSingle RailSingle Rail
Weight13.59 kg ( 29.93 lb )13.65 kg ( 30.07 lb )13.65 kg ( 30.07 lb )
Dimensions (L x W x H)48.00 x 64.27 x 4.40 cm
(18.9 x 25.3 x 1.73 in.)48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.)48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.)

Display
Display diagonal	43.2 cm (17")
Display	LCD
On Screen Display (OSD)
Keyboard
Keyboard language	Spanish
Keyboard layout	QWERTY
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Manual
Ports & interfaces
Mouse port type	USB
Power
Power consumption (typical)	18 W
Input current	1 A
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Number of consoles	1x external + 1x (integrated)
Screen connectors per console	1
Height packaging	0.130m
Audio outputs per console	Without
Peripheral outputs per console	USB for integrated console x2, SPHD connector (to USB or PS/2)
Number of CPU	16
Audio per CPU	Without
Length packaging	0.700m
Width packaging	0.600m
Display diagonal	17"
Max. resolution	1920x1200 / 60Hz
Video outputs per console	SPHD male x1 (to VGA)
Weight	16.597kg
USB specification	USB 2.0
Type 1	KVM Display Console
TP Network	Without
Resolution integrated display	1280x1024
Fiber optic network	Without
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
Type 2	16-port VGA Single Rail
Data rate	480Mb/s
Video inputs per CPU	SPHD female (to VGA) x1
Keyboard layout	ES (Spanish)
Extension (daisy chain or cascading)
Audio microphone
USB peripherals
Audio loudspeakers
Technical details
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1280 x 1024 pixels
Number of computers controlled	16
Rack capacity	1U
Rack mounting
LED indicators
Weight & dimensions
Width	642.7 mm
Height	44 mm
Depth	480 mm
Weight	13.6 kg

---
