ATEN CL5708M 43cm LCD KVM Switch USB-PS/2 VGA 8-port UK layout content_copy

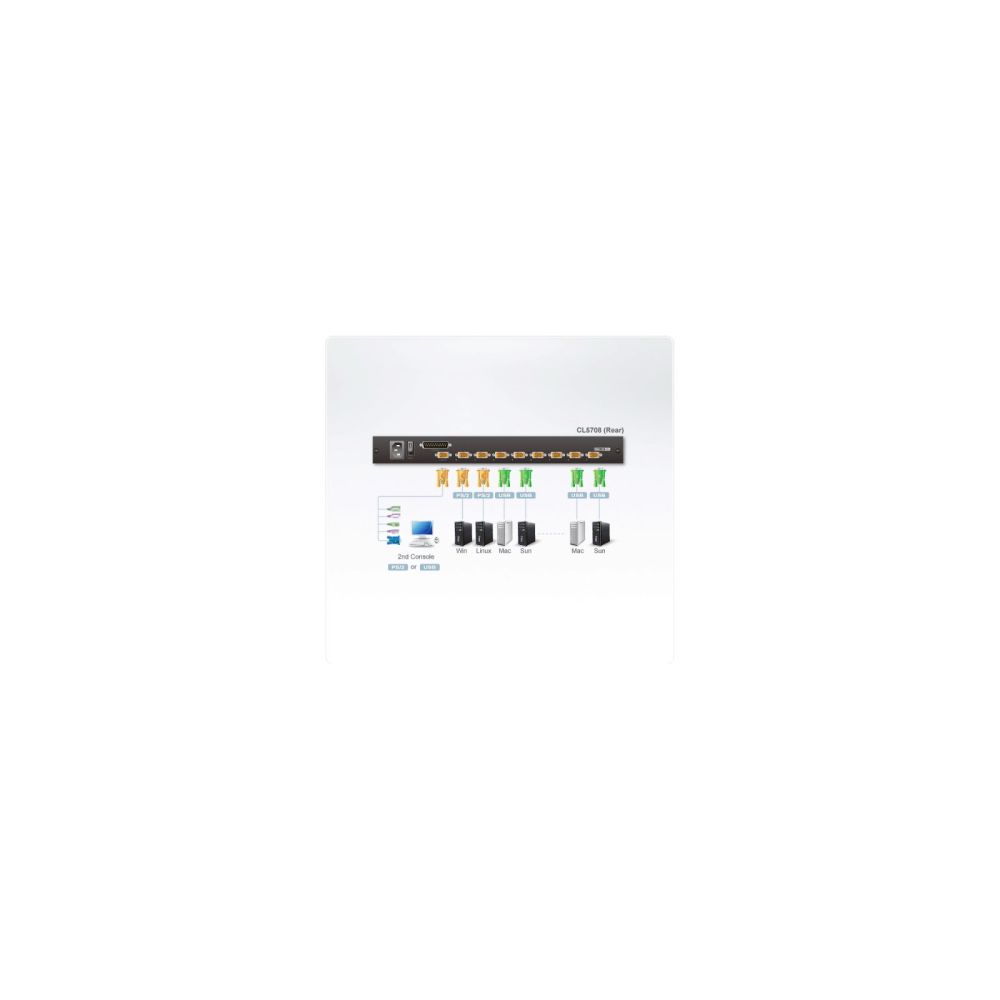

The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

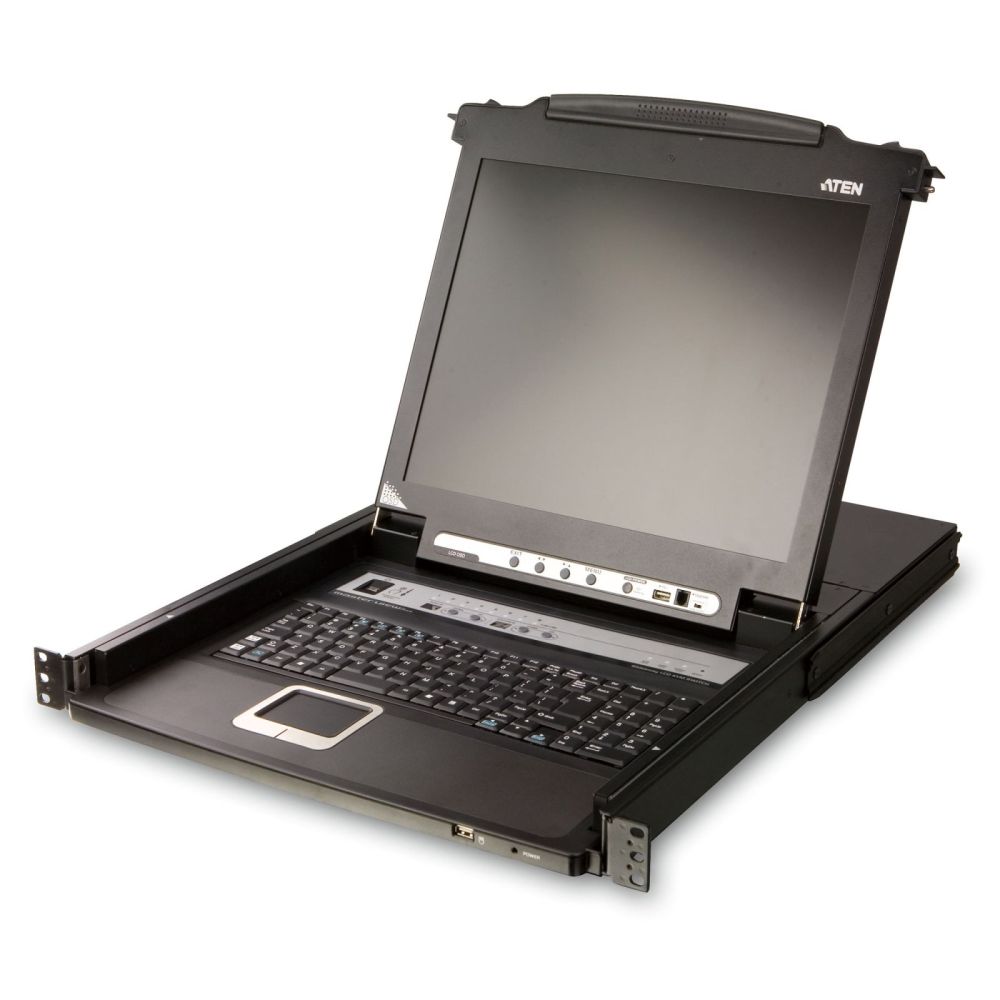

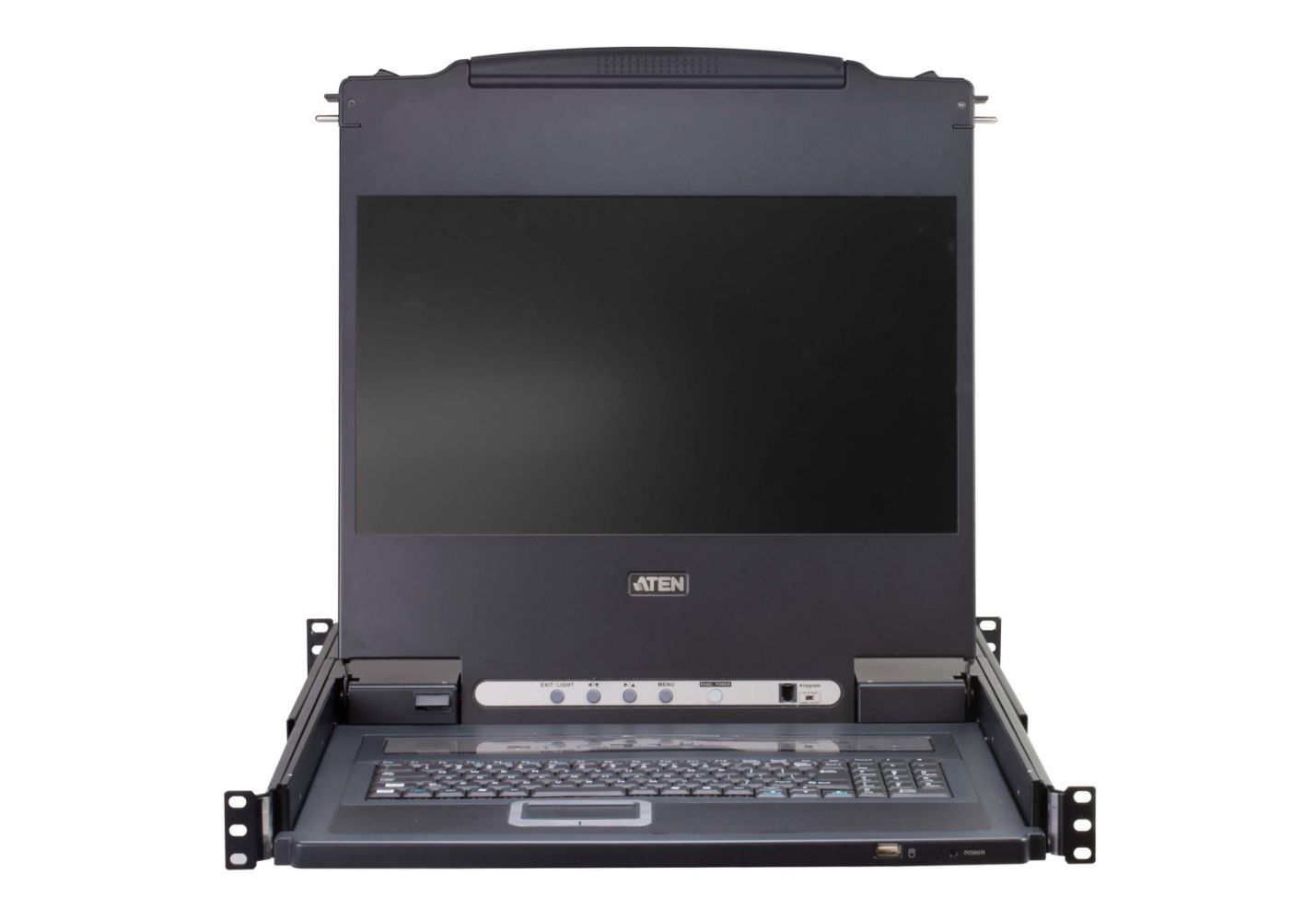

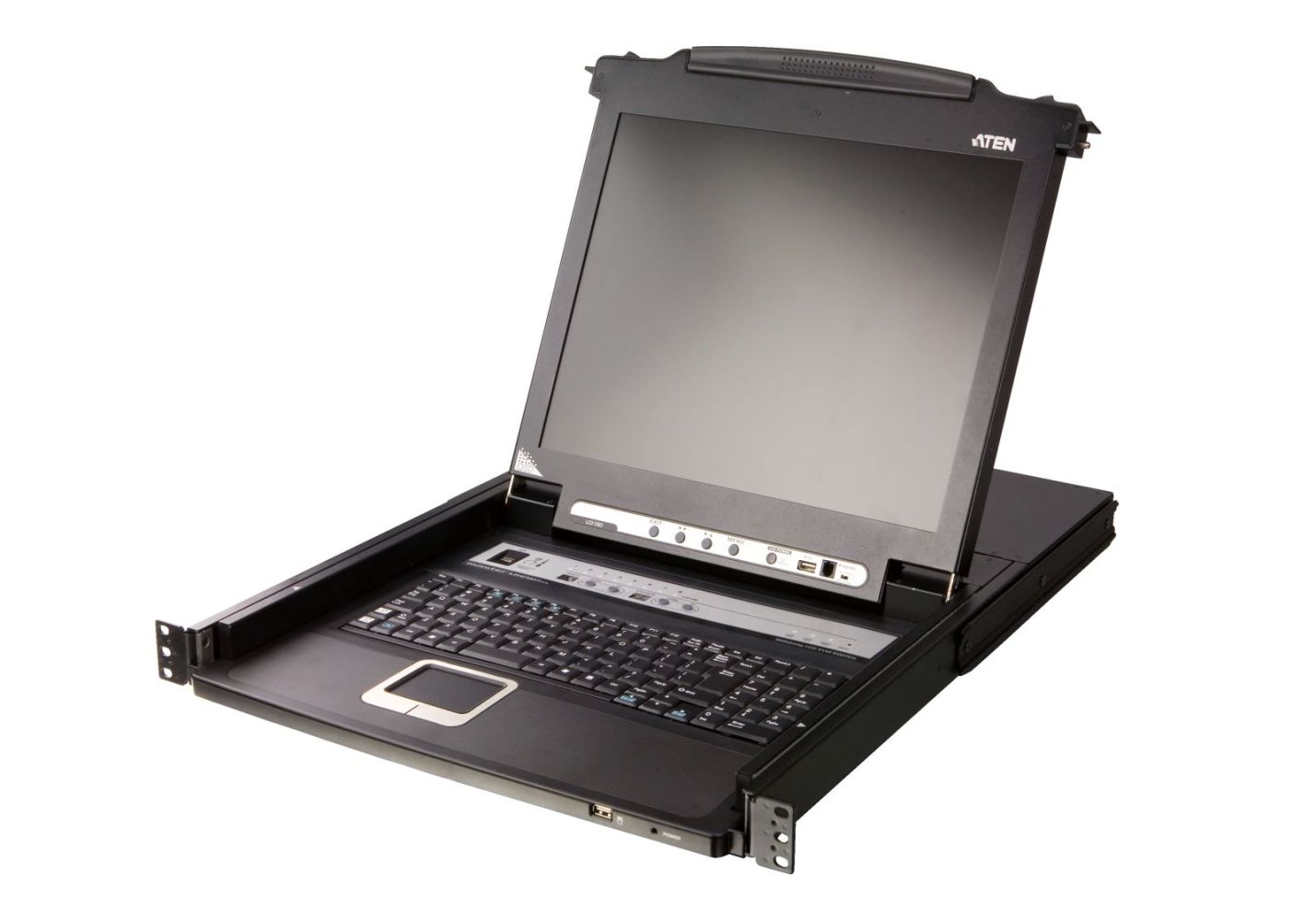

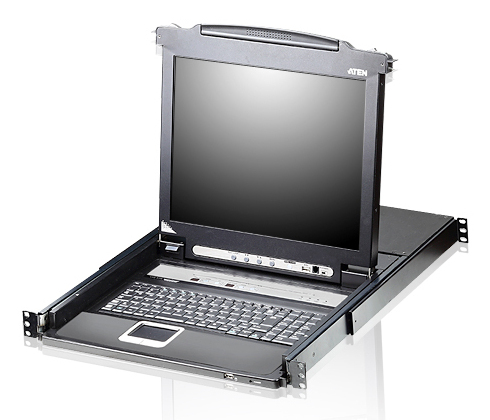

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 43,2 cm ( 17 inch ), 43,9 cm ( 17,3 inch ) or 48,3 cm ( 19 inch ) LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.

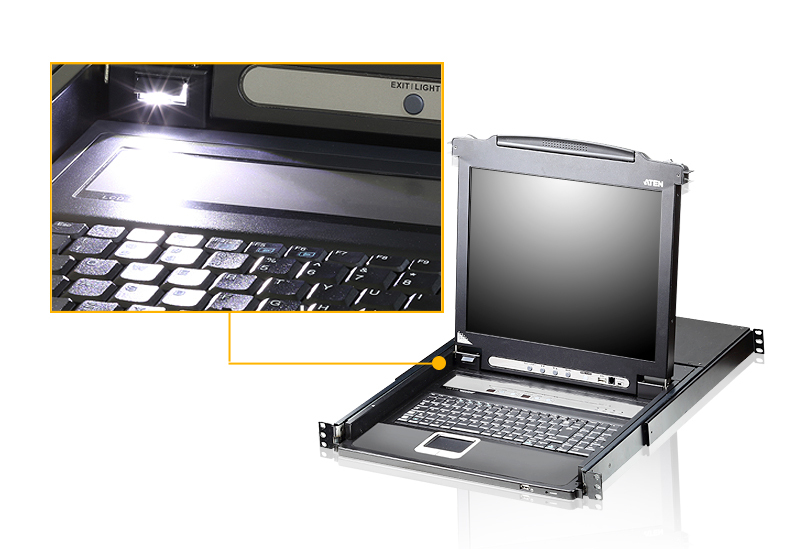

The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
Integrated KVM console with 17”, 17.3”or 19“ LED-backlit LCD monitor in a Slideaway™ housing
Available with or without fingerprint identification reader1
Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers
Daisy-chain up to 31 additional units – controls up to 256 computers from a single console
Dual interface – supports computers and console with PS/2 or USB keyboards and mice
USB port allows each computer to access USB peripherals2 (inapplicable to CL5708MW)
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Multiplatform support – Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5708M / CL5708FM / CL5708N) and 1920 x 1080 @ 60 Hz (CL5708MW)
No software required –convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security – only authorized users can view and control computers
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable
Beeper on / off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Optional rack mount kits available including easy installation options
Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Note:
1. The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.
2. The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections (inapplicable to CL5708MW).
Package Contents1x CL5708 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Power Cord (AC Power Models)
1x User Instructions
FunctionCL5708M
Computer Connections
Direct8
Maximum256 (via Daisy-chain)
Port SelectionOSD, Hotkey, Pushbutton

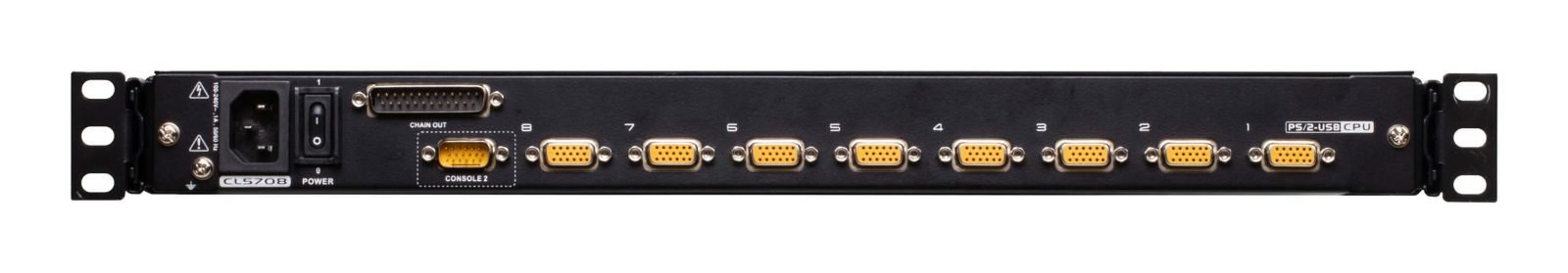

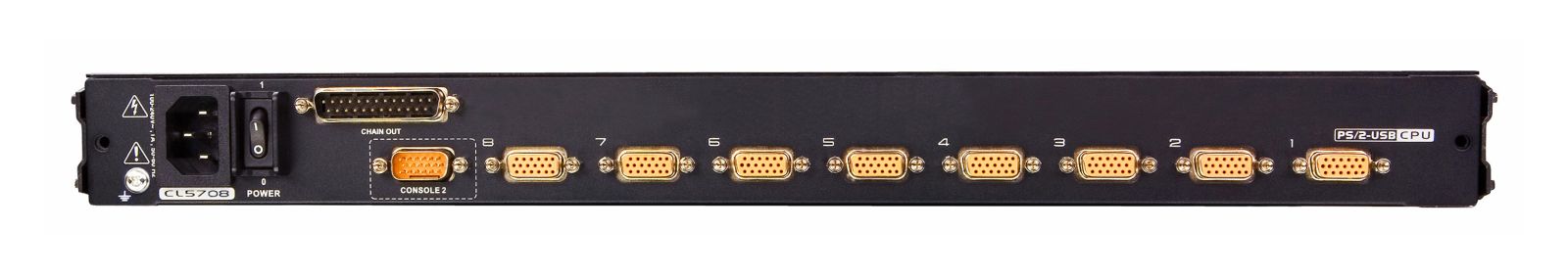

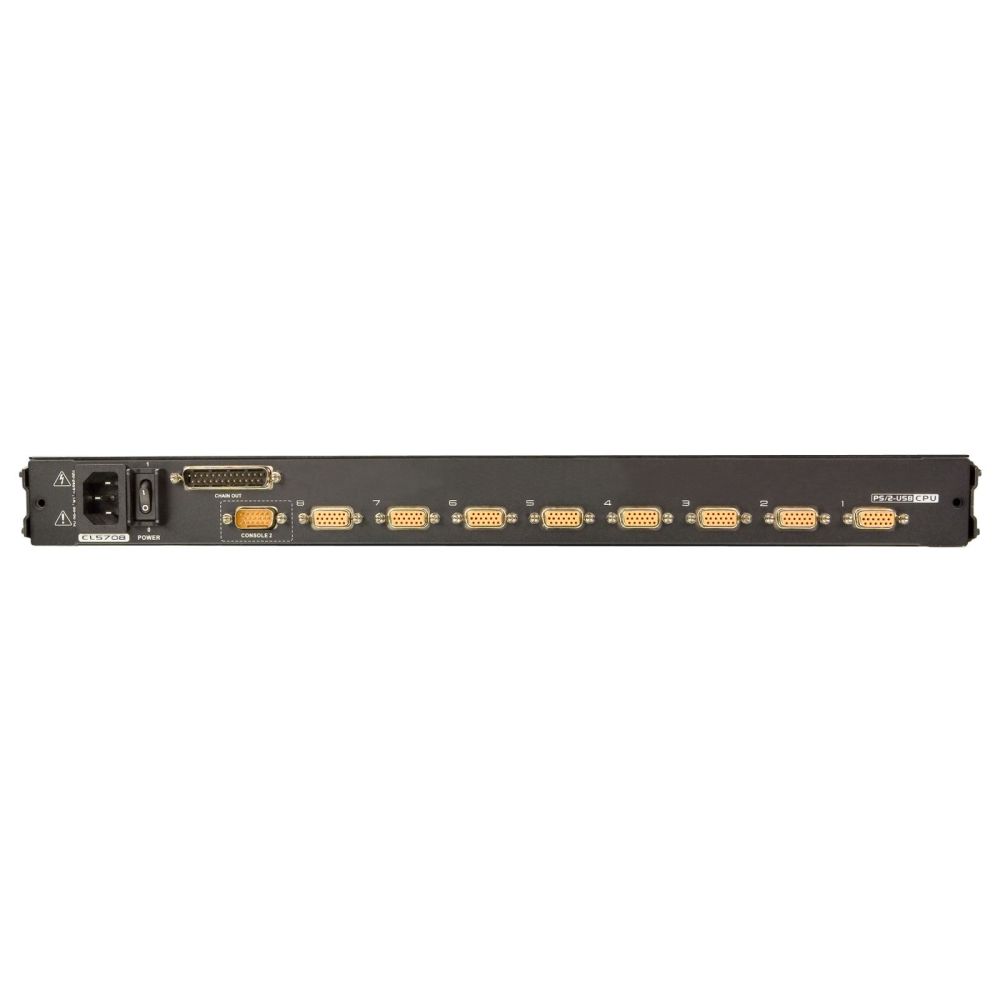

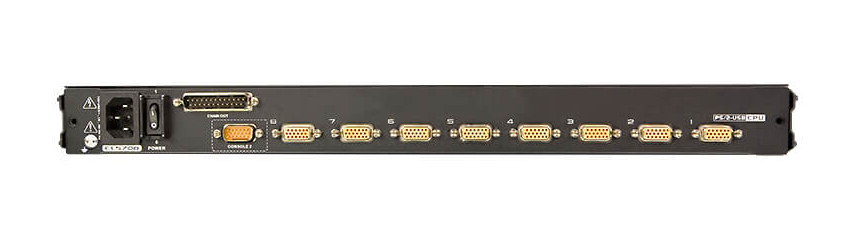

Connectors
KVM Ports8 x SPHD Female (Yellow)
Daisy Chain Ports1 x DB-25 Male
Firmware Upgrade1 x RJ-11 Female
Power1 x IEC 60320/C14
External Console Ports1 x SPHD Male (Yellow)
External Mouse Port1 x USB Type A Female (Front)
USB Port1 x USB Type A Female
Switches
Port Selection2 x Pushbutton
Station Selection2 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
Power1 x Rocker Switch
LCD Control4 x Pushbutton
LCD Power1 x LED Pushbutton
LEDs
Online8 (Orange)
Port ID2 x 7-segment LED Display (Orange)
Station ID2 x 7-segment LED Display (Orange)
Power1 (Dark Green)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light1 x LED Illumination Light
Panel Spec
LCD Module43,2 cm ( 17 inch ) TFT-LCD
Resolution1280 x 1024 @ 75 Hz
Response time5 ms
Viewing Angle170° (H), 160° (V)
Pixel Pitch0.264 mm x 0.264 mm
Support Color16.77M colors
Contrast Ratio1000 : 1
Luminance250 cd/m²
Video
Input Video Resolutionup to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B
Scan Interval1-255 seconds
Emulation
Keyboard / MousePS/2, USB
Maximum Input Power Rating100-240V AC, 50/60Hz, 1A
Power ConsumptionAC110V:23.9W:125BTU/h
AC220V:25.1W:130BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0-85% RH, Noncondensing
Physical Properties
HousingMetal + Plastic
Rail TypeSingle Rail
Weight13.47 kg ( 29.67 lb )
Dimensions (L x W x H)48.00 x 64.27 x 4.40 cm
(18.9 x 25.3 x 1.73 in.)

Display
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Display	LCD
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.264 x 0.264 mm
Display type	TFT
Response time	5 ms
Supported resolutions	1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
On Screen Display (OSD)
Keyboard
Keyboard language	UK English
Keyboard layout	QWERTY
Built-in touchpad
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	AC, KVM
Quick installation guide
Manual
Rack mount kit
Ports & interfaces
I/O ports	1x DB-25 1x RJ-11
Keyboard port type	USB
Mouse port type	USB
Serial ports quantity	1
RJ-45 ports quantity	1
USB 2.0 Type-A ports quantity	2
Power
Power consumption (typical)	16 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Display diagonal	17"
Number of consoles	1x external + 1x (integrated)
Resolution integrated display	1280x1024
Type 2	8-port VGA Single Rail
Data rate	480Mb/s
TP Network	Without
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
Weight	17.550kg
Height packaging	0.140m
Audio outputs per console	Without
Peripheral outputs per console	USB for integrated console x2, SPHD connector (to USB or PS/2)
USB specification	USB 2.0
Type 1	KVM Display Console
Width packaging	0.680m
Number of CPU	8
Audio per CPU	Without
Length packaging	0.725m
Max. resolution	1920x1200 / 60Hz
Video outputs per console	SPHD male x1 (to VGA)
Screen connectors per console	1
Video inputs per CPU	SPHD female x1 (to VGA)
Fiber optic network	Without
Packaging volume	0.0690m³
Keyboard layout	UK (English)
Audio microphone
Extension (daisy chain or cascading)
Audio loudspeakers
USB peripherals
Technical details
Material	Metal, Plastic
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
KVM switch ports quantity	8
Maximum resolution	1920 x 1200 pixels
Console port	SPHD-18
Number of computers controlled	256
Auto scan delay (min)	1 s
Auto scan delay (max)	255 s
Compliance certificates	RoHS
Rack capacity	1U
Hot-Plug support
Built-in KVM switch
Rack mounting
Daisy chain
On/off switch
LED indicators
Push button
Weight & dimensions
Width	642.7 mm
Height	44 mm
Depth	480 mm
Weight	13.5 kg

---
