Aten KVM/TFT 4-way, 48,3 cm ( 19 inch ) 1HE, incl. TFT 47 cm ( 18,5 inch ), Black, German, (USB/HDMI), with ultra-short depth, content_copy

Order-related order * Scope of delivery 1x CL3884NW LCD KVM Switch with standard rack mounting kit 2xLIN5-28V1-V11G KVM cable sets (USB, HDMI, audio 1.8 m) 2x KC06-0024-100G/200G L-brackets 1x LIN2-418K-E12G power cable 1x user manual

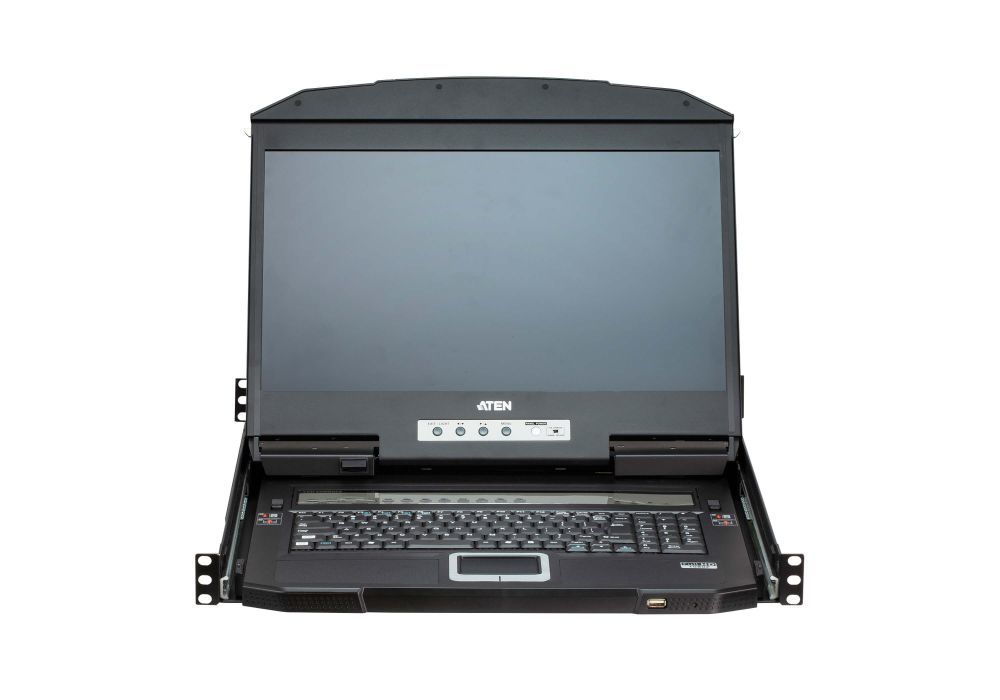

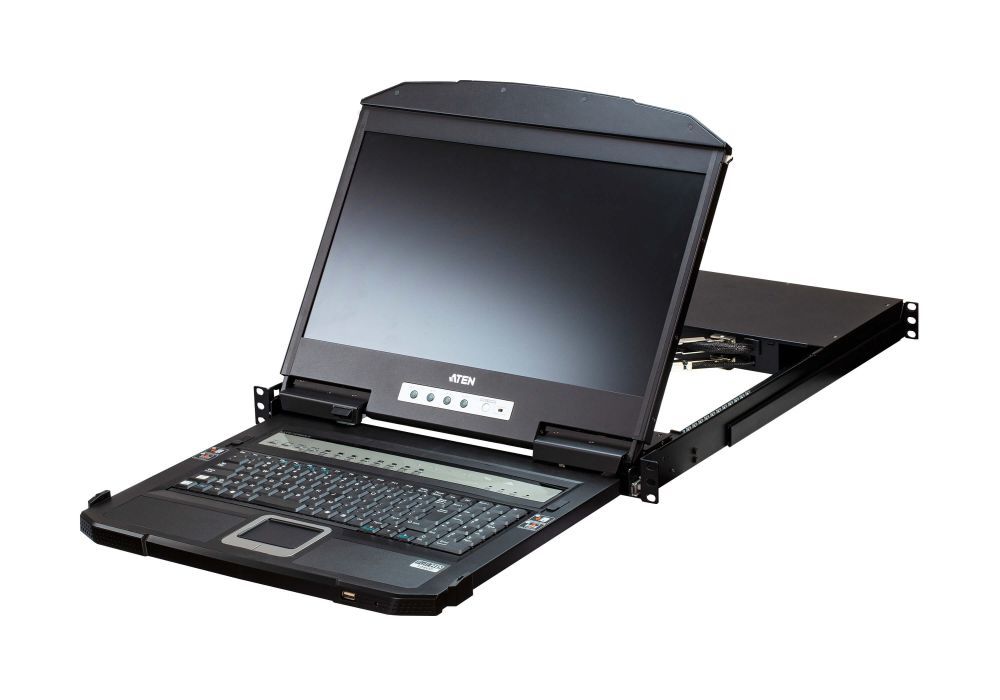

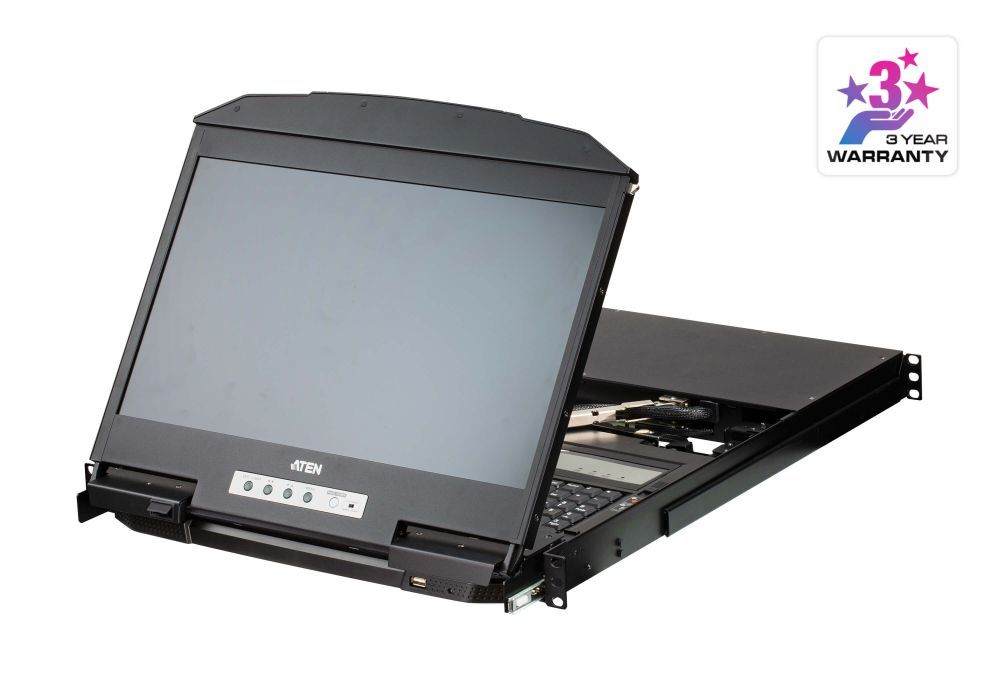

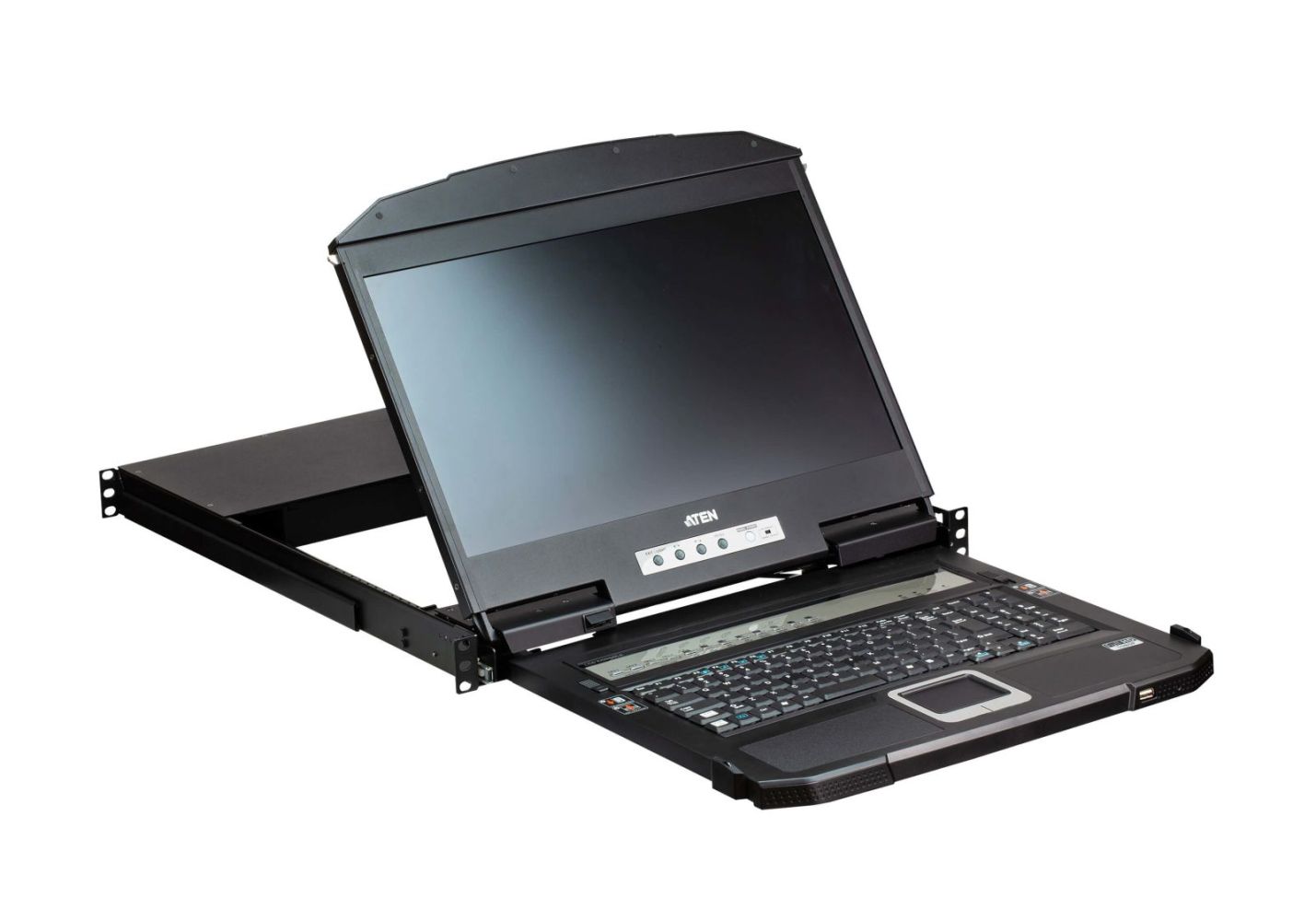

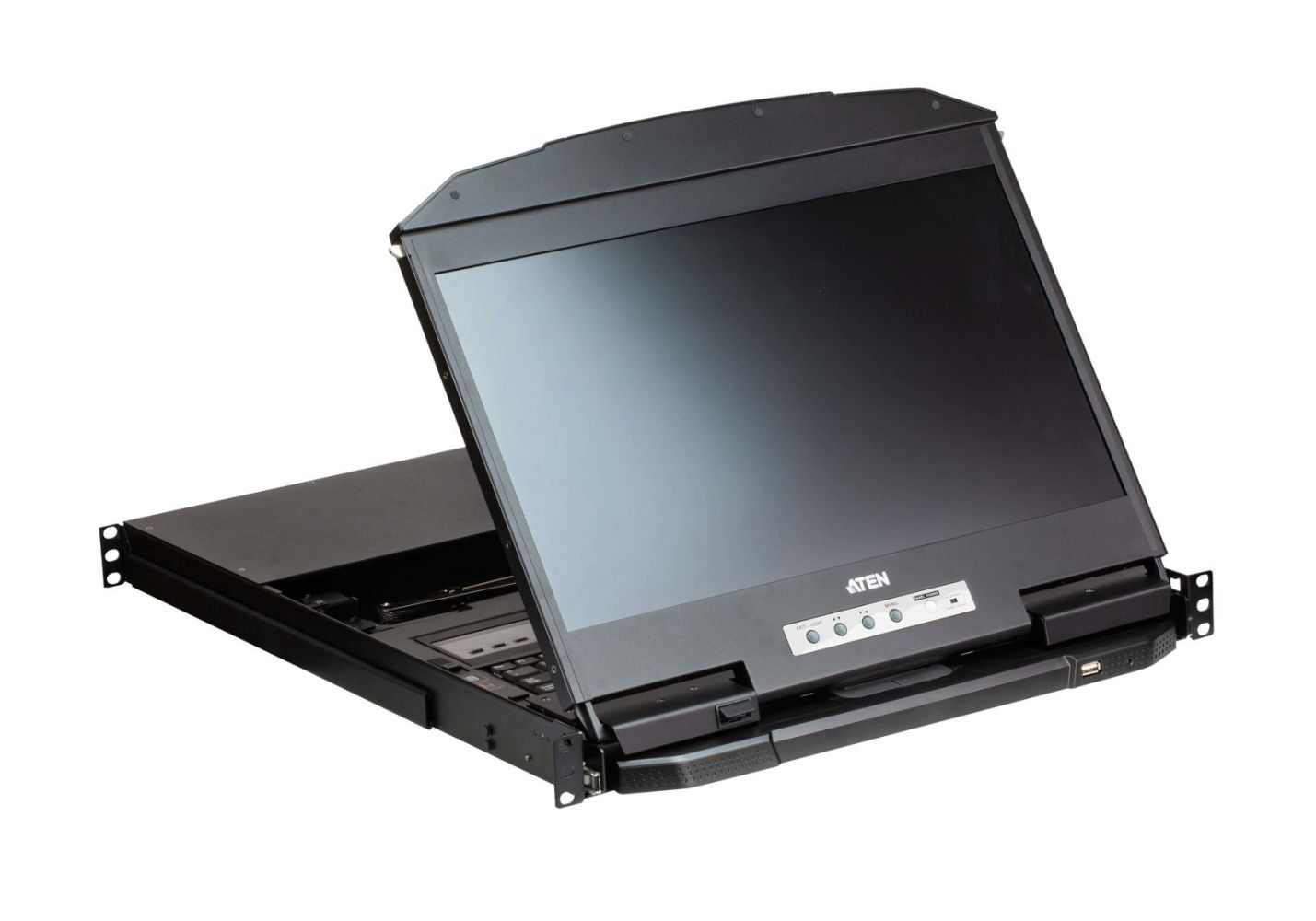

The ATEN CL3884NW LCD KVM Switch offers a space-saving, slim approach to KVM switch technology by integrating a keyboard, 18.5-inch LCD monitor with LED backlight and touchpad in a rack-mountable 1U sliding housing. Thanks to the dual rail design, the LCD monitor, keyboard and touchpad can be operated independently. To make the most of the space, the keyboard and touchpad modules can be pushed back when not in use, while the LCD monitor can be rotated back flush with the rack for convenient monitoring of computer activities.
The CL3884NW provides two console outputs, guaranteeing the user real-time monitoring capabilities. The user can control both outputs to display the following display modes: Quad view, Picture in picture (PiP), Picture by picture (PbP) and Picture on Picture (PoP). The display modes have various layout options, allowing the user to customize the sources displayed. With the ability to cascade up to 2 levels, the CL3884NW can display up to 16 video sources simultaneously and control them with independent keyboard and mouse. The
CL3884NW's Boundless Switching feature allows users to switch control to another computer by simply moving the mouse cursor across one screen edge to the target computer's screen without any restrictions. With ATEN's patented technology - Video DynaSync, users can enjoy better screen resolutions and faster switching between systems. In addition, EDID modes are available for smooth power-on and high-quality display, eliminating monitor compatibility issues.

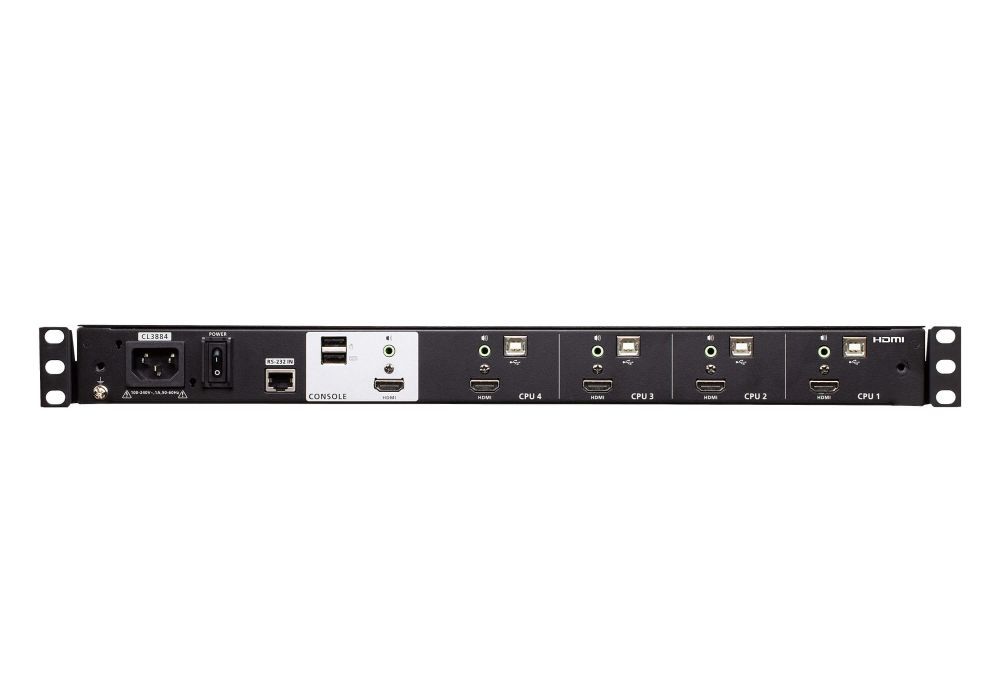

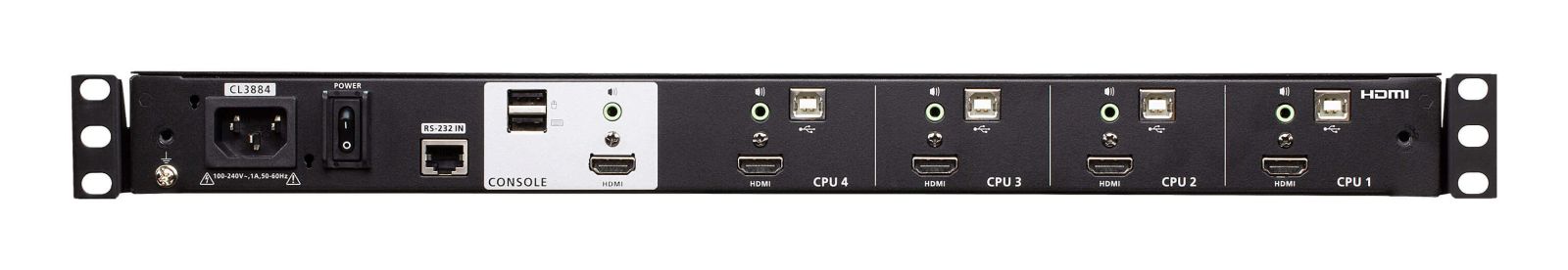

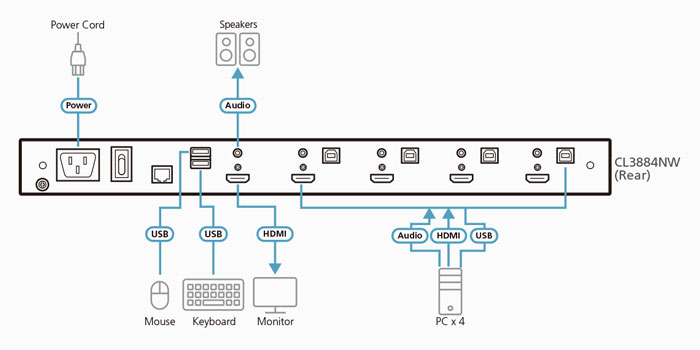

For added convenience, users can manage the computer from an external console. The CL3884NW features a USB peripheral port on the front of the unit, external KVM console ports (USB keyboard/mouse and HDMI monitor) on the rear, and audio ports for connecting audio speakers.
The CL3884NW is a feature-rich LCD KVM switch that exceeds the requirements for control room applications in any industry with its capabilities to optimize video quality, space utilization, adaptive deployment, and operational versatility.
Note: Optional rack mount kits are available. See Compatible Accessories below for more information.

Display
Display diagonal	47 cm (18.5")
Display resolution	1920 x 1080 pixels
Display	LCD
Display brightness	350 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.213 x 0.213 mm
Display type	TFT
Response time	20 ms
Supported resolutions	1920 x 1200 @ 60 Hz
On Screen Display (OSD)
Keyboard
Keyboard language	German
Keyboard layout	QWERTZ
Built-in touchpad
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	AC, KVM
Package type	Box
Quick installation guide
Manual
Rack mount kit
Ports & interfaces
I/O ports	5x HDMI
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
RJ-45 ports quantity	1
USB 2.0 Type-A ports quantity	3
USB 2.0 Type-B ports quantity	4
3.5 mm (1/8-inch) out
3.5 mm (1/8-inch) in
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in
System requirements
Other operating systems supported	SunOS
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical details
Material	Metal
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1920 x 1200 pixels
Number of computers controlled	4
Auto scan delay (min)	5 s
Auto scan delay (max)	90 s
Compliance certificates	RoHS
Rack capacity	1U
Plug and Play
Hot-Plug support
Built-in KVM switch
Rack mounting
On/off switch
LED indicators
Push button
Weight & dimensions
Width	631 mm
Height	42.8 mm
Depth	480.6 mm
Weight	1.12 kg

---
