ATEN 8-Port 19inch LCD KVM Switch USB - PS 2 VGA(P) content_copy

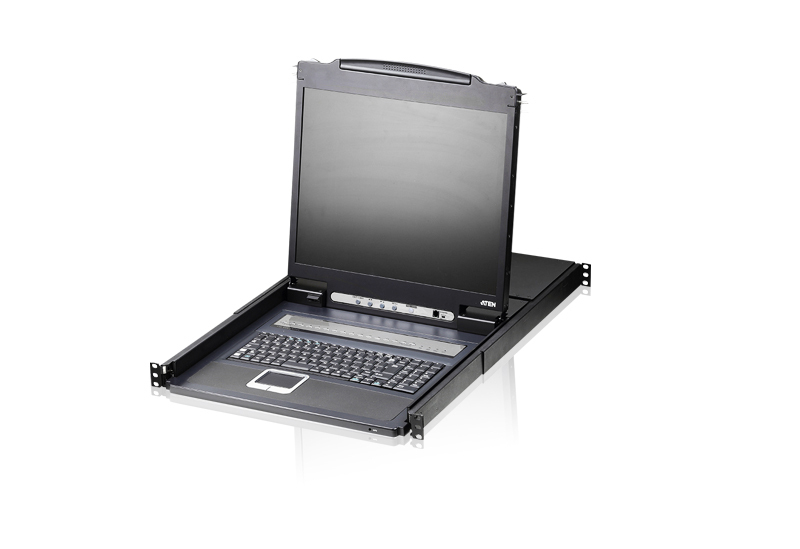

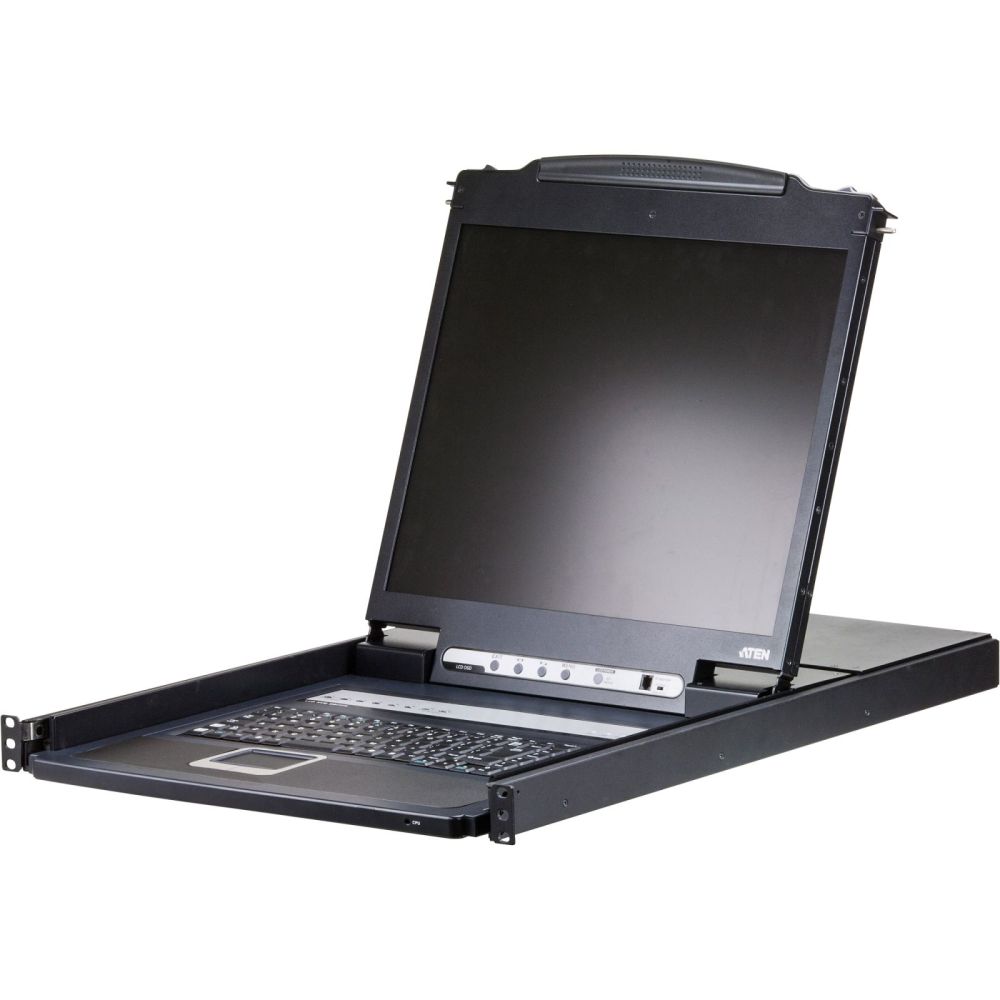

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
The CL1308 LCD KVM Switch features an integrated 48,3 cm ( 19 inch ) LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.

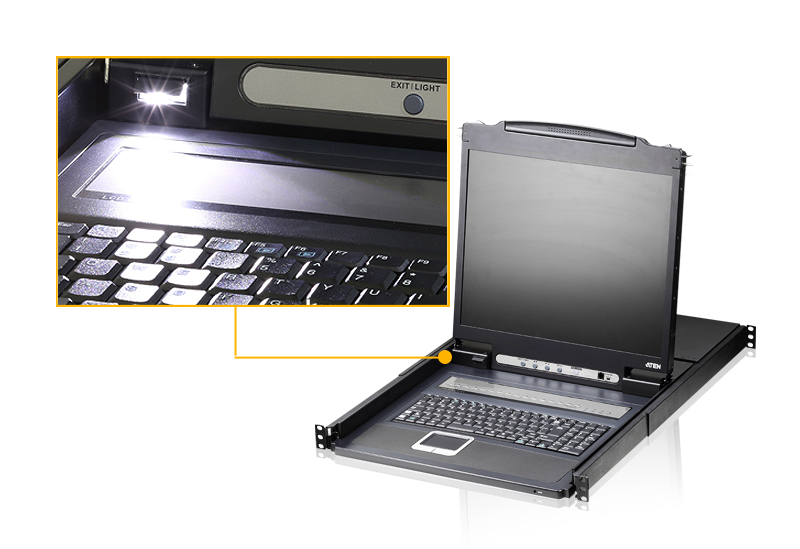

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
Integrated KVM console with 48,3 cm ( 19 inch ) LED-backlit LCD panel
Dual Interface – supports computers with PS/2 or USB keyboards and mice
Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profi le for each
Auto Scan feature for monitoring user-selected computers
Broadcast mode – operations simultaneously performed on all selected computers
Hot pluggable – add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Rack mountable
Optiona available with following Keyboard language: English (US), English (UK), French, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Package Contents:1x CL1308 LCD KVM Switch with Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions
FunctionCL1308N
Computer Connections
Direct8
Maximum128 (via Cascade)
Port SelectionOSD, Hotkeys, Pushbuttons
Connectors

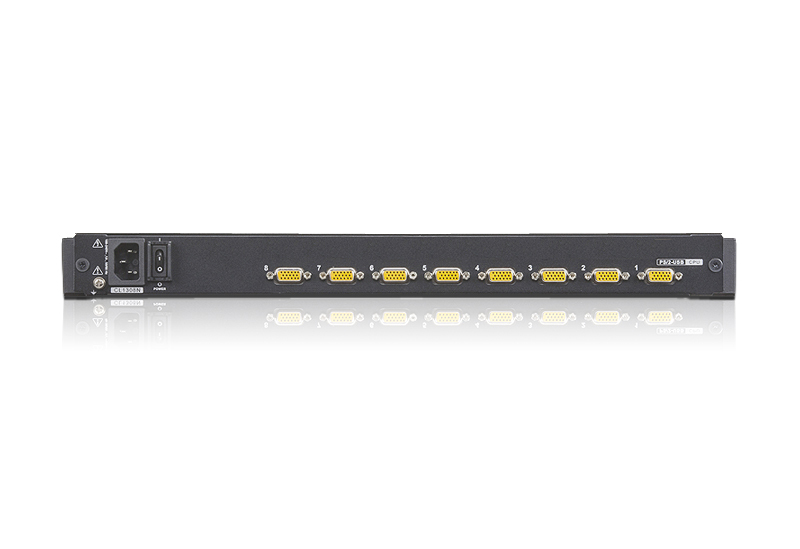

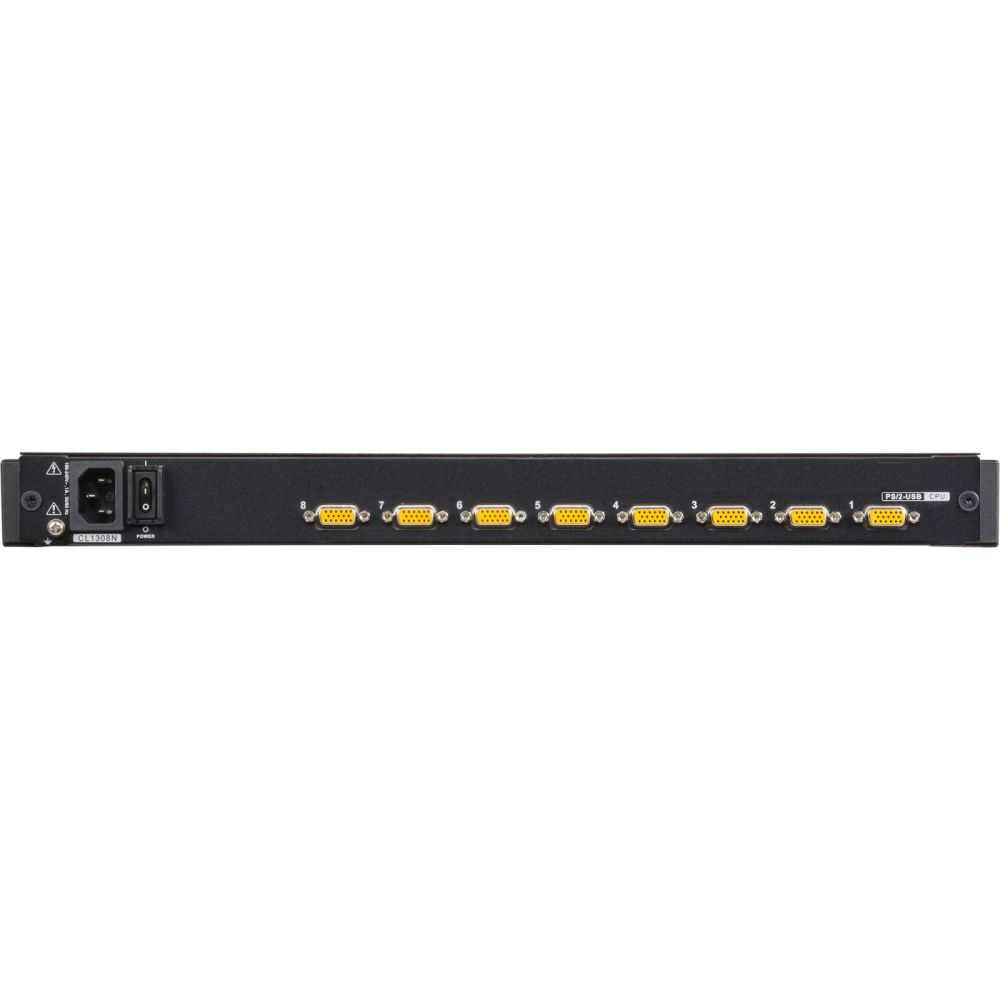

KVM Ports8 x SPHD-17 Female (Yellow)
Firmware Upgrade1 x RJ-11 Female
Power1 x 3-prong AC Socket
Switches
Reset1 x Semi-recessed Pushbutton
Power1x Rocker
Firmware Upgrade1 x Slide
LCD Control4 x Pushbutton
LCD On/Off1 x Pushbutton
Ports8 x Pushbutton
LEDs
Online8 (Orange)
Selected8 (Green)
Power1 (Dark Green)
1 (Orange)
Lock1 (Green)
Panel Spec
LCD Module48,3 cm ( 19 inch ) TFT-LCD
Resolution1280 ×1024 @ 75 Hz
Response time5 ms
Viewing Angle170° (H), 160° (V)
Pixel Pitch0.294 mm x 0.294 mm
Support Color16.7M colors
Contrast Ratio1000:1
Luminance250 cd/m²
Emulation
Keyboard / MousePS/2, USB
Video
Input Video Resolution1920 x 1200 @ 60 Hz
Scan Interval1-255 seconds
Maximum Input Power Rating100-240 V AC; 50-60 Hz; 1A
Power ConsumptionAC110V:15.6W:75BTU
AC220V:15.3W:74BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal + Plastic
Weight12.59 kg ( 27.73 lb )
Dimensions (L x W x H)48.30 x 68.92 x 4.40 cm
(19.02 x 27.13 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Display
Display diagonal	48.3 cm (19")
Display	LCD
On Screen Display (OSD)
Keyboard
Keyboard language	US English
Keyboard layout	QWERTY
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	AC, KVM
Quick installation guide
Manual
Rack mount kit
Packaging data
Package weight	16.1 kg
Package width	668 mm
Package depth	833 mm
Package height	135 mm
Ports & interfaces
VGA (D-Sub) ports quantity	8
Keyboard port type	PS/2
Mouse port type	USB
Video port type	VGA
Power
Power consumption (typical)	22 W
Input current	1 A
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Height packaging	0.130m
Screen connectors per console	Without
Type 1	LCD KVM Switch
Width packaging	0.670m
Max. resolution	1920x1200 / 60Hz
Peripheral outputs per console	Without
Audio per CPU	Without
Keyboard layout	US (English)
TP Network	Without
Resolution integrated display	1280x1024
Packaging volume	0.0723m³
Number of CPU	8
Video outputs per console	Without
Type 2	8-port VGA Single Rail
Audio outputs per console	Without
Fiber optic network	Without
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
Video inputs per CPU	SPHD female (to VGA) x1
Weight	16.740kg
Length packaging	0.830m
Display diagonal	19"
Design	Rack-Mount
Number of consoles	1 (integrated)
Extension (daisy chain or cascading)
Audio loudspeakers
Audio microphone
USB peripherals
Technical details
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1920 x 1200 pixels
Number of computers controlled	128
Compliance certificates	RoHS
Rack capacity	1U
Hot-Plug support
Rack mounting
LED indicators
Push button
Weight & dimensions
Width	483 mm
Height	44 mm
Depth	689.2 mm
Weight	12.7 kg

---
