ATEN CL1000N KVM console 19inch LCD VGA PS/2 CH layout
|
648,48 EUR 671,55 EUR |
|
|
( 771,69 EUR incl. VAT ) ≈ £546.02 | ≈ $728.24 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 214742 |
|---|---|
| Mfg Part No: | CL1000N CH |
| UPC/EAN: | 4710469345715 |
| Weight: | 15.88 kg |
Product information for Aten CL1000N CH:

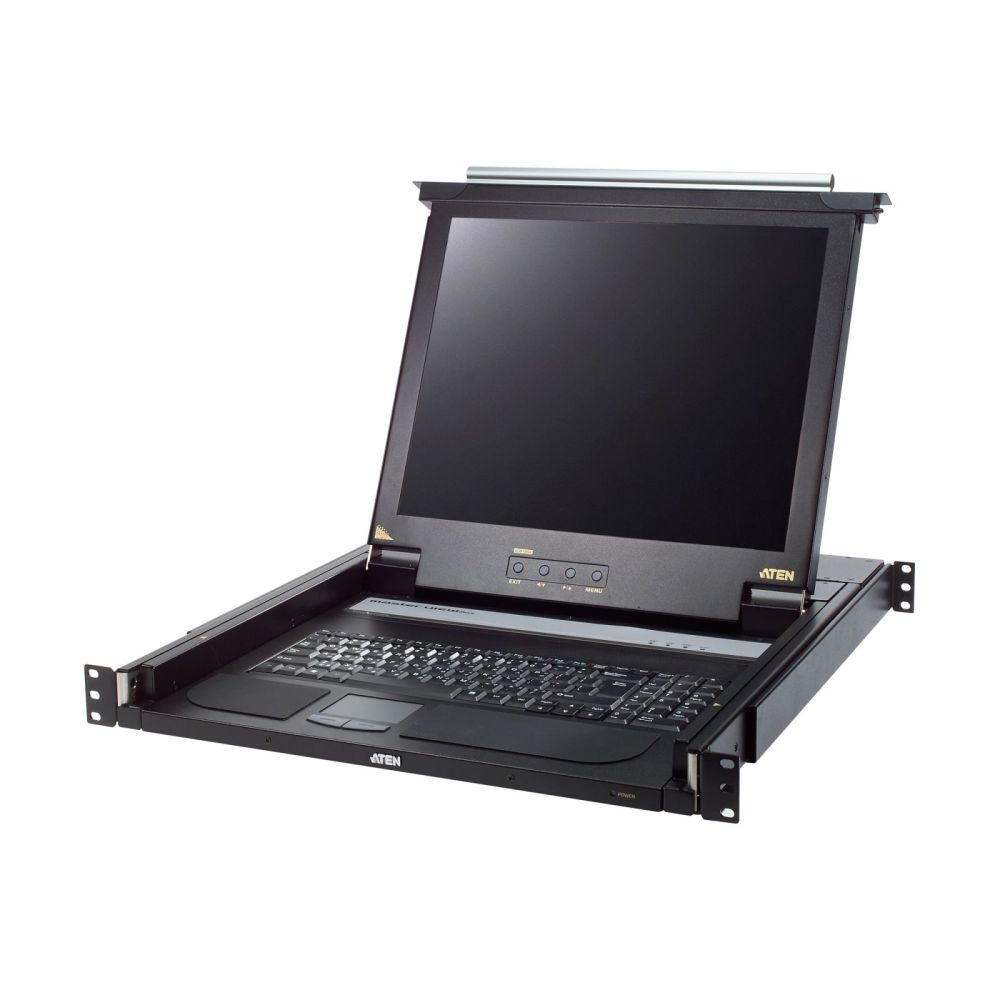

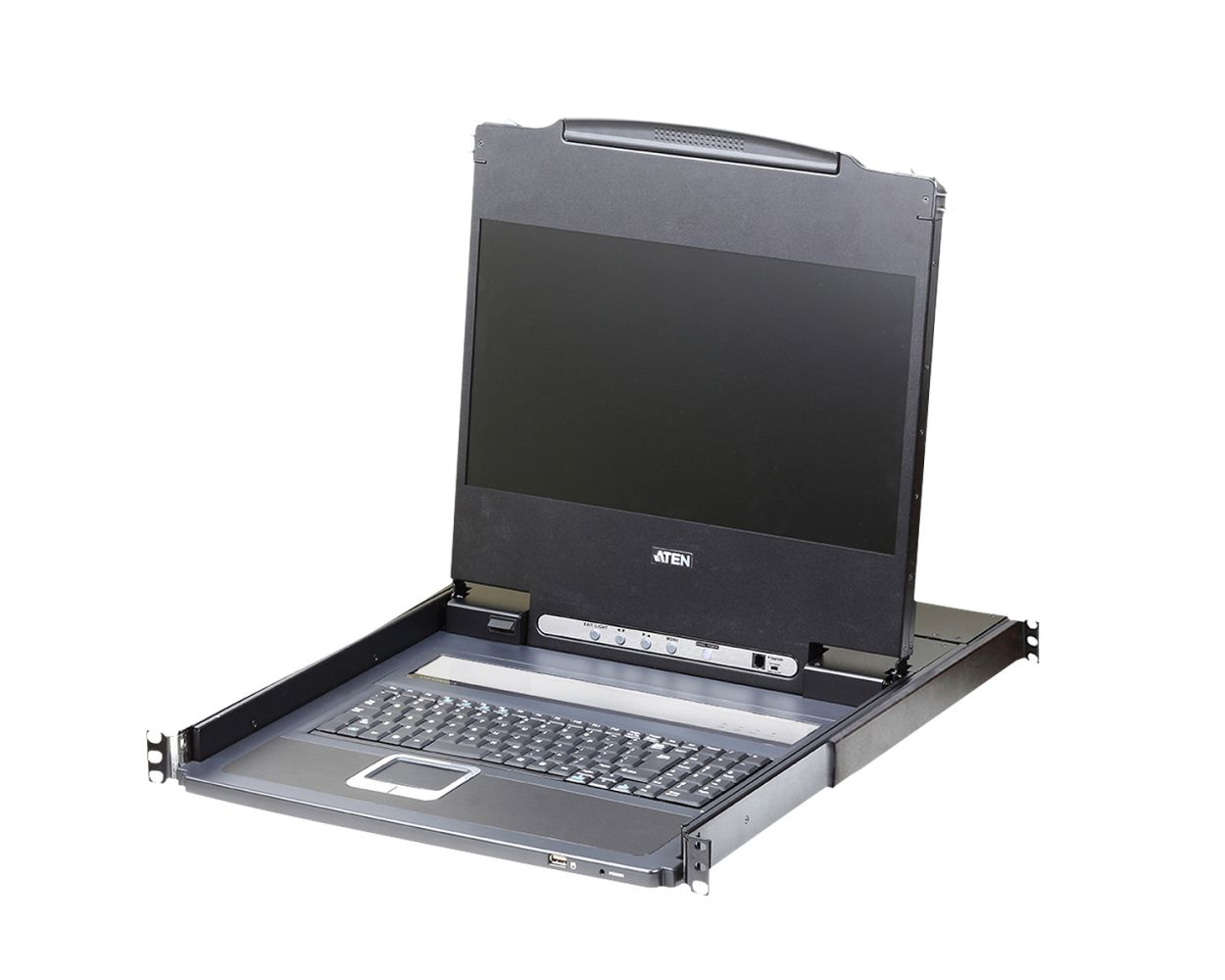

The CL1000N is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000N features an integrated 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

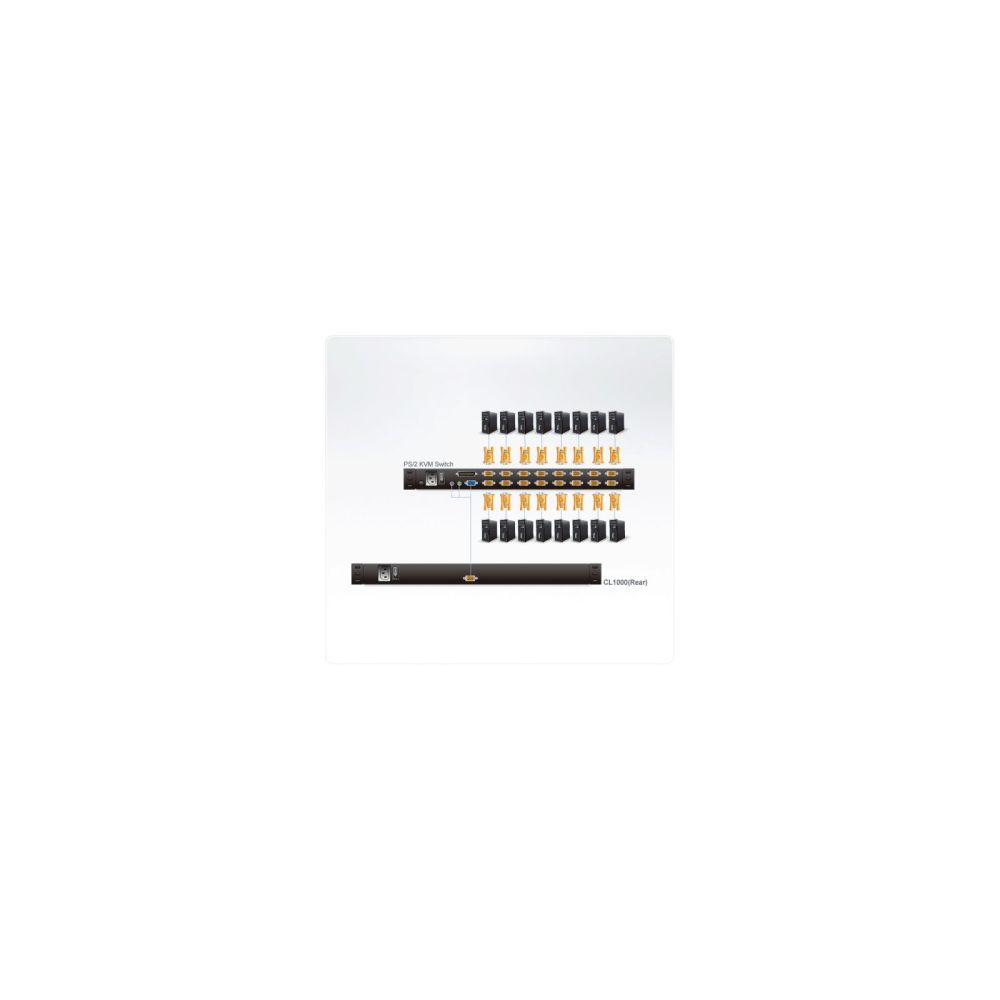

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000N LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack, Compatible rack mounting kit: 2X-023G, 2X-024G, 2X-025G
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
Compatible with most PS/2 KVM Switches
Internal power supply
Adjustable depth to fit within a rack
High video resolution: Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
Supports DDC, DDC2, DDC2B
DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
Improved design – optional single person installation kit
Delivery contents:1x CL1000N with standard rack mounting kit
1x 2L-5202UP Custom KVM cable (VGA, USB; 1.8 m/6 ft)
1x LIN2-418K-E12G power cable
1x User manual
DeciveCL1000MCL1000N
Computer Connections
Direct11

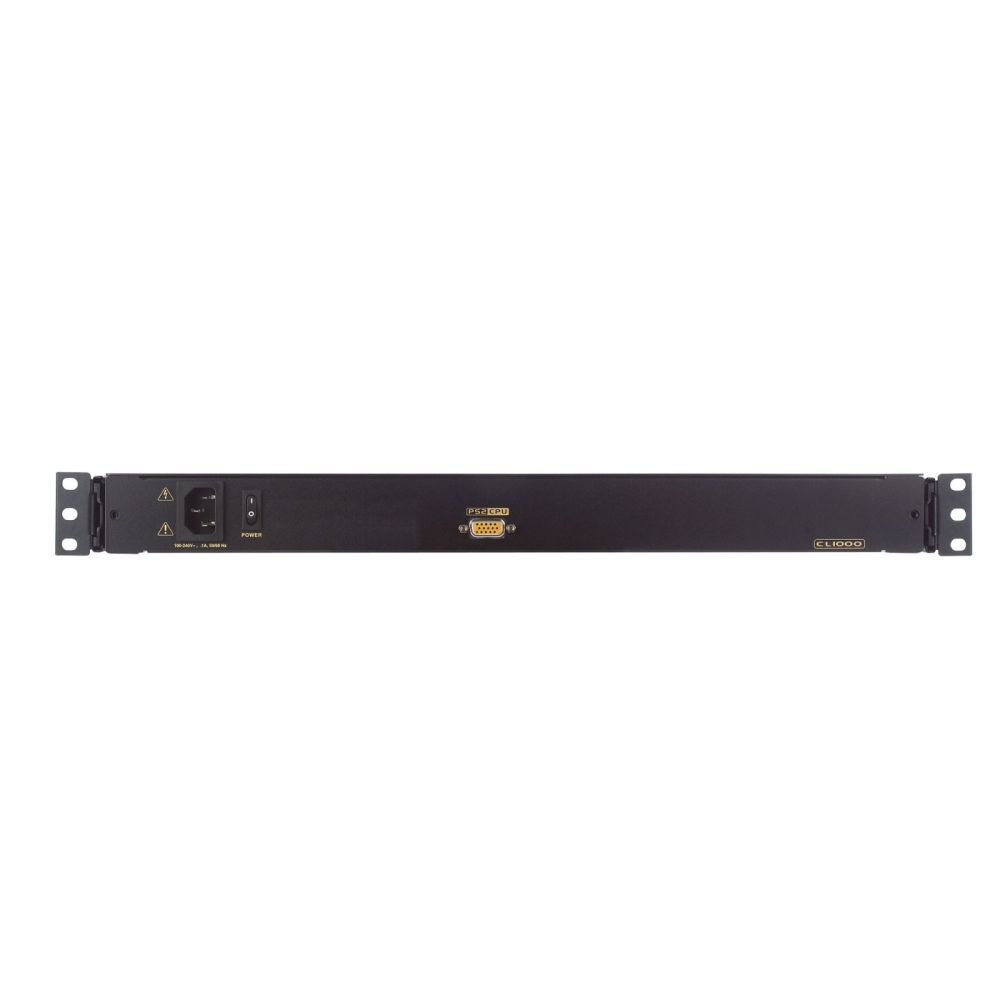

Connectors
KVM Ports1 x SPHD Female (Yellow)1 x SPHD Female (Yellow)
Power1 x 3-prong AC Socket1 x 3-prong AC Socket
Switches
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Power1 x RockerN/A
LCD Power1 x Pushbutton1 x Pushbutton
LCD Adjustment4 x Pushbutton4 x Pushbutton
LEDs
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green)1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green)
Video
Input Video Resolution1920 x 1200 @ 60Hz; DDC2B1920 x 1200 @ 60Hz; DDC2B
Panel Spec
LCD Module43,2 cm ( 17 inch ) TFT-LCD48,3 cm ( 19 inch ) TFT-LCD
Resolution1280 x 1024 @ 75 Hz1280 x 1024 @ 75 Hz
Pixel Pitch0.264 mm x 0.264 mm0.294 mm x 0.294 mm
Response time5 ms5 ms
Viewing Angle170° (H), 160° (V)170° (H), 160° (V)
Contrast Ratio1000:11000:1
Support Color16.7M colors16.7M colors
Luminance250 cd/m²250 cd/m²
Emulation
Keyboard / MousePS/2PS/2
Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1A100-240 VAC; 50-60 Hz; 1A
Power ConsumptionAC110V:19.6W:92BTU
AC220V:21.3W:100BTUAC110V:29.2W:137BTU
AC220V:29.3W:137BTU
Environmental
Operating Temperature0-50°C0-50°C
Storage Temperature-20-60°C-20-60°C
Humidity0-80% RH, Non-condensing0-80% RH, Non-condensing
Physical Properties
HousingMetal+PlasticMetal+Plastic
Weight12.02 kg ( 26.48 lb )11.06 kg ( 24.36 lb )
Dimensions (L x W x H)48.00 x 53.83 x 4.40 cm
(18.9 x 21.19 x 1.73 in.)48.30 x 58.52 x 4.40 cm
(19.02 x 23.04 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000N LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack, Compatible rack mounting kit: 2X-023G, 2X-024G, 2X-025G
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
Compatible with most PS/2 KVM Switches
Internal power supply
Adjustable depth to fit within a rack
High video resolution: Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
Supports DDC, DDC2, DDC2B
DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
Improved design – optional single person installation kit
Delivery contents:1x CL1000N with standard rack mounting kit
1x 2L-5202UP Custom KVM cable (VGA, USB; 1.8 m/6 ft)
1x LIN2-418K-E12G power cable
1x User manual
DeciveCL1000MCL1000N
Computer Connections
Direct11
Connectors
KVM Ports1 x SPHD Female (Yellow)1 x SPHD Female (Yellow)
Power1 x 3-prong AC Socket1 x 3-prong AC Socket
Switches
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Power1 x RockerN/A
LCD Power1 x Pushbutton1 x Pushbutton
LCD Adjustment4 x Pushbutton4 x Pushbutton
LEDs
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green)1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green)
Video
Input Video Resolution1920 x 1200 @ 60Hz; DDC2B1920 x 1200 @ 60Hz; DDC2B
Panel Spec
LCD Module43,2 cm ( 17 inch ) TFT-LCD48,3 cm ( 19 inch ) TFT-LCD
Resolution1280 x 1024 @ 75 Hz1280 x 1024 @ 75 Hz
Pixel Pitch0.264 mm x 0.264 mm0.294 mm x 0.294 mm
Response time5 ms5 ms
Viewing Angle170° (H), 160° (V)170° (H), 160° (V)
Contrast Ratio1000:11000:1
Support Color16.7M colors16.7M colors
Luminance250 cd/m²250 cd/m²
Emulation
Keyboard / MousePS/2PS/2
Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1A100-240 VAC; 50-60 Hz; 1A
Power ConsumptionAC110V:19.6W:92BTU
AC220V:21.3W:100BTUAC110V:29.2W:137BTU
AC220V:29.3W:137BTU
Environmental
Operating Temperature0-50°C0-50°C
Storage Temperature-20-60°C-20-60°C
Humidity0-80% RH, Non-condensing0-80% RH, Non-condensing
Physical Properties
HousingMetal+PlasticMetal+Plastic
Weight12.02 kg ( 26.48 lb )11.06 kg ( 24.36 lb )
Dimensions (L x W x H)48.00 x 53.83 x 4.40 cm
(18.9 x 21.19 x 1.73 in.)48.30 x 58.52 x 4.40 cm
(19.02 x 23.04 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Display | |
| Display diagonal | 43.9 cm (17.3") |
| Display | LCD |
| Keyboard | |
| Keyboard language | Spanish |
| Keyboard layout | QWERTY |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| Manual | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Power | |
| Power consumption (typical) | 19.4 W |
| Input current | 1 A |
| System requirements | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Technical data | |
| Type 2 | VGA Single Rail |
| Resolution integrated display | 1280x1024 |
| Audio per CPU | Without |
| Peripheral outputs per console | Without |
| Display diagonal | 19" |
| Max. resolution | 1920x1200 / 60Hz |
| Periphery inputs per CPU | SPHD-15 female x1 (on USB, PS/2) |
| Audio outputs per console | Without |
| Number of consoles | 1 (integrated) |
| Fiber optic network | Without |
| Video outputs per console | Without |
| Keyboard layout | CH (Swiss) |
| TP Network | Without |
| Video inputs per CPU | SPHD female (to VGA) x1 |
| Type 1 | KVM Display Console |
| Screen connectors per console | Without |
| Audio microphone | |
| USB peripherals | |
| Audio loudspeakers | |
| Technical details | |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution | 1920 x 1080 pixels |
| Number of computers controlled | 1 |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Rack mounting | |
| LED indicators | |
| Weight & dimensions | |
| Width | 589.2 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 11.4 kg |
Questions & answers
What is the delivery time of ATEN CL1000N KVM console 19inch LCD VGA PS/2 CH layout?
The article ATEN CL1000N KVM console 19inch LCD VGA PS/2 CH layout is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CL1000N CH to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CL1000N KVM console 19inch LCD VGA PS/2 CH layout always at the best possible price. We can give you a discount of 2% on ATEN CL1000N KVM console 19inch LCD VGA PS/2 CH layout if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
