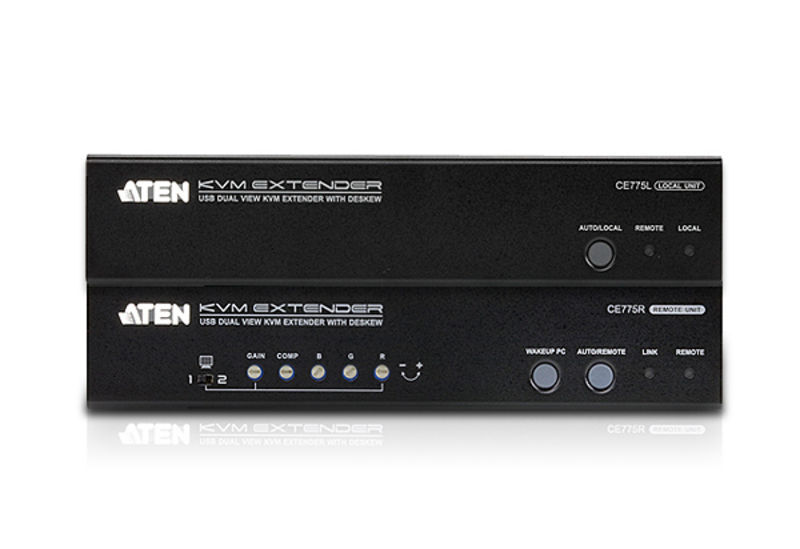

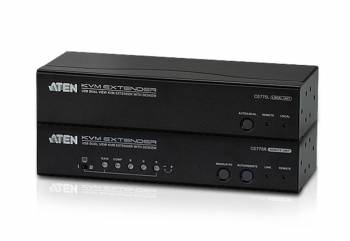

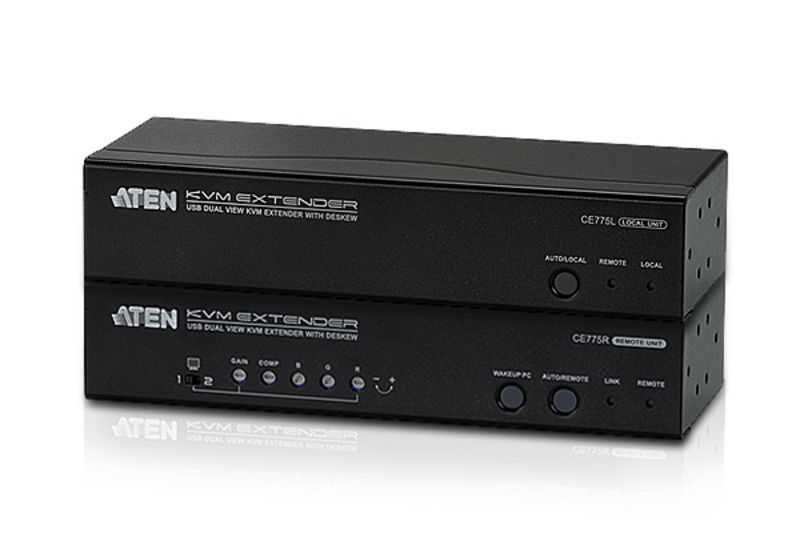

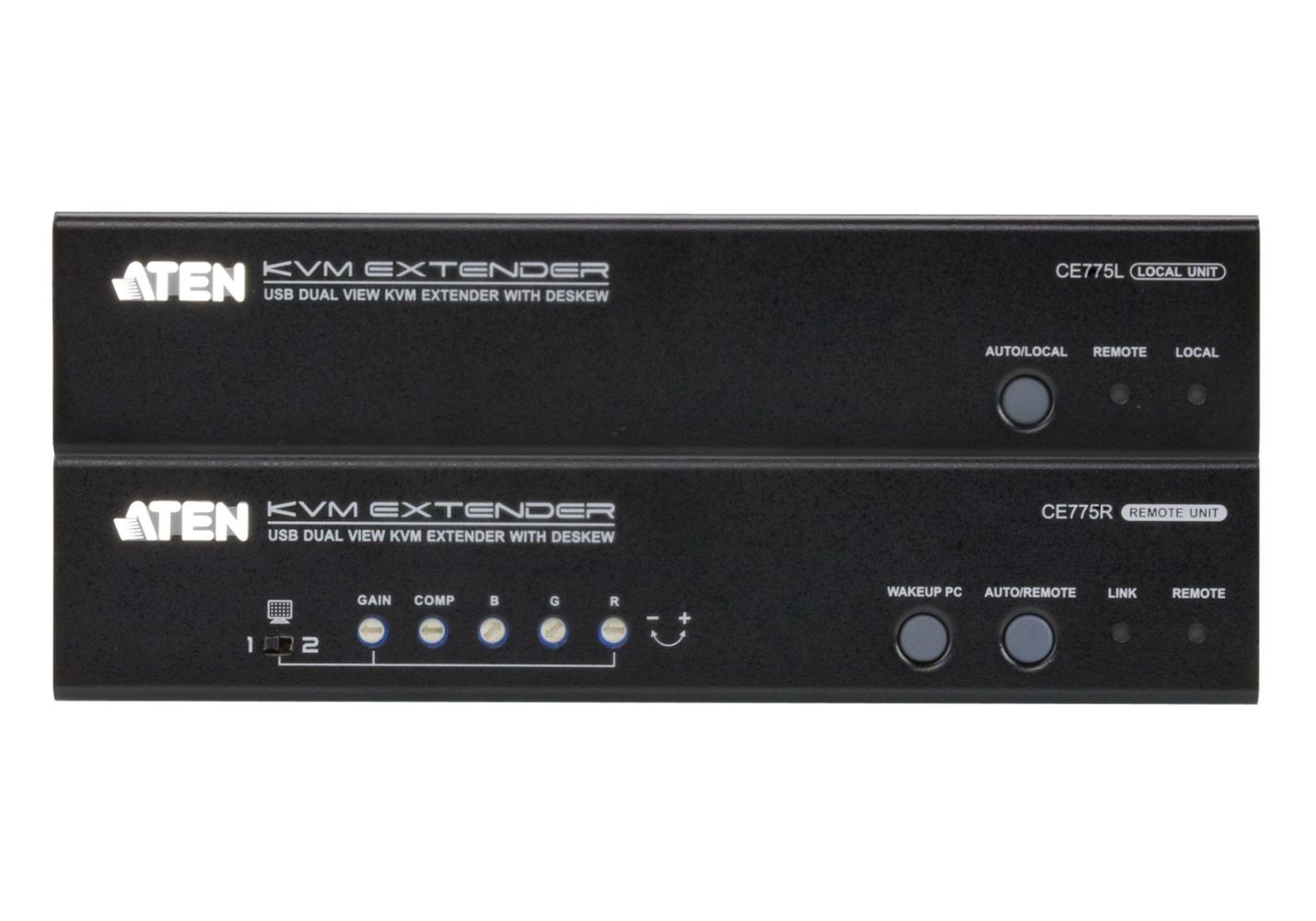

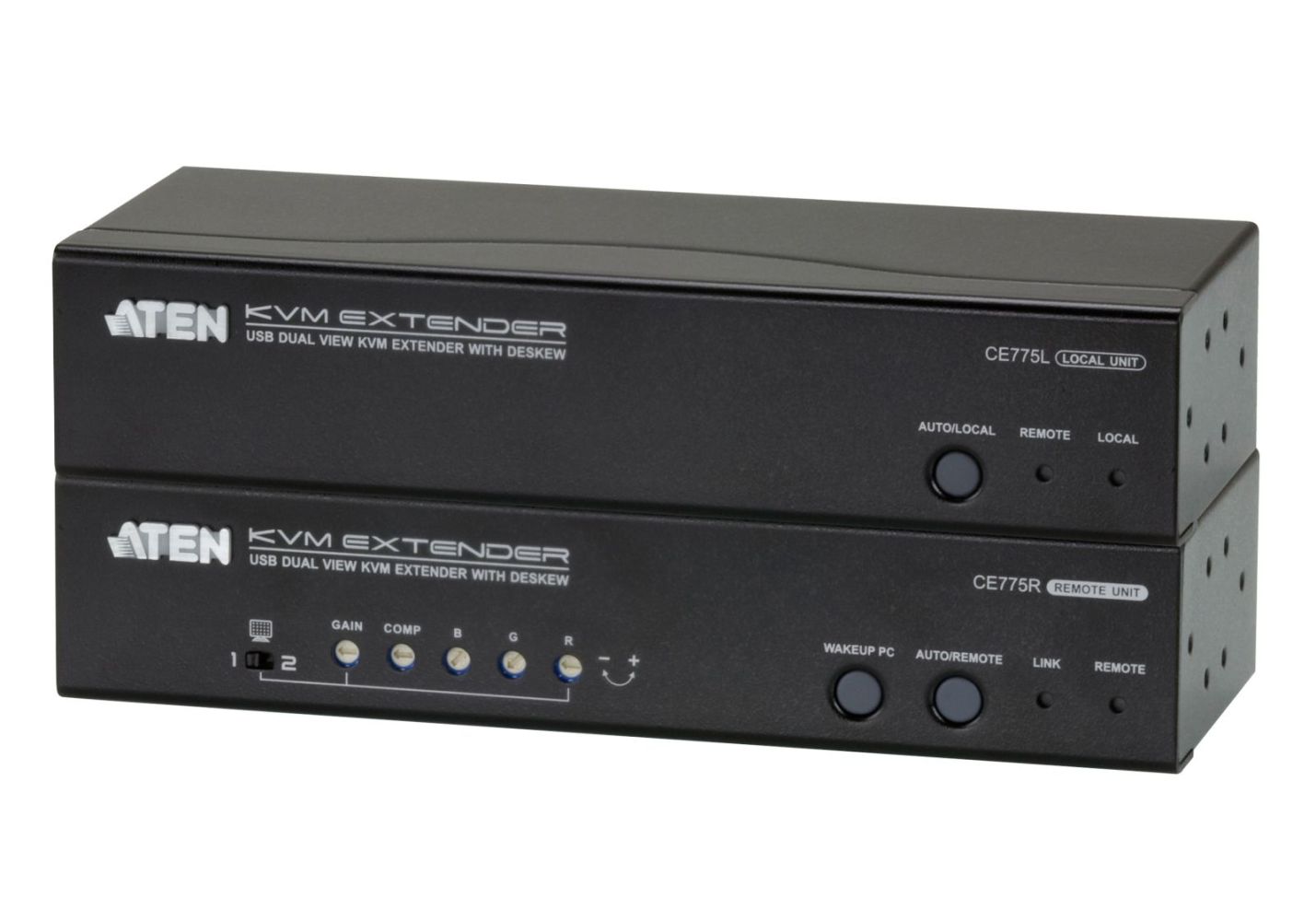

Aten KVM extender, 300mtr.1xPC, 2xMon.1280/1024, USB/VGA/Audio, Dual content_copy

*Order-based, non-cancellable*, Dual-screen support Connect two screens and transmit the image of two signal sources to a location up to 300 m away via affordable Cat. 5e/6 cables. Dual-console operation allows you to operate your system via the local and the Remote console (USB keyboard, mouse and monitor) Signal compensation automatically synchronizes the cable length-related runtime differences of the RGB signals Improved image quality up to 1920 x 1200 at 60 Hz (150 m), 1280 x 1024 at 60 Hz (300 m) Close dual-screen support Connect two screens and transmit the image from two signal sources to a location up to 300 m away via affordable Cat. 5e/6 cables. Dual console operation allows you to operate your system via the local and remote console (USB keyboard, mouse and monitor) Signal compensation automatically synchronizes the cable length-related runtime differences of the RGB signals PC wakeup support Simply press a push button on the remote console to wake up a local computer via RS-232 Improved image quality up to 1920 x 1200 at 60 Hz (150 m), 1280 x 1024 at 60 Hz (300 m) Controller for adjusting the signal strength/compensation enables manual adjustment to the distance OSD screen menu convenient adjustment options for the image quality via the intuitive OSD menu navigation Serial RS-232 channel Connection option for serial Terminal or serial devices such as touchscreens or barcode scanners Built-in protection against static discharge up to 8 or 15 kV (8 kV for contact, 15 kV for flashover) Supports and emulates Sun/Mac keyboards * Supports widescreen formats

Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5e
Maximum transfer distance	300 m
Audio system	Multichannel
Product colour	Black
LED indicators
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

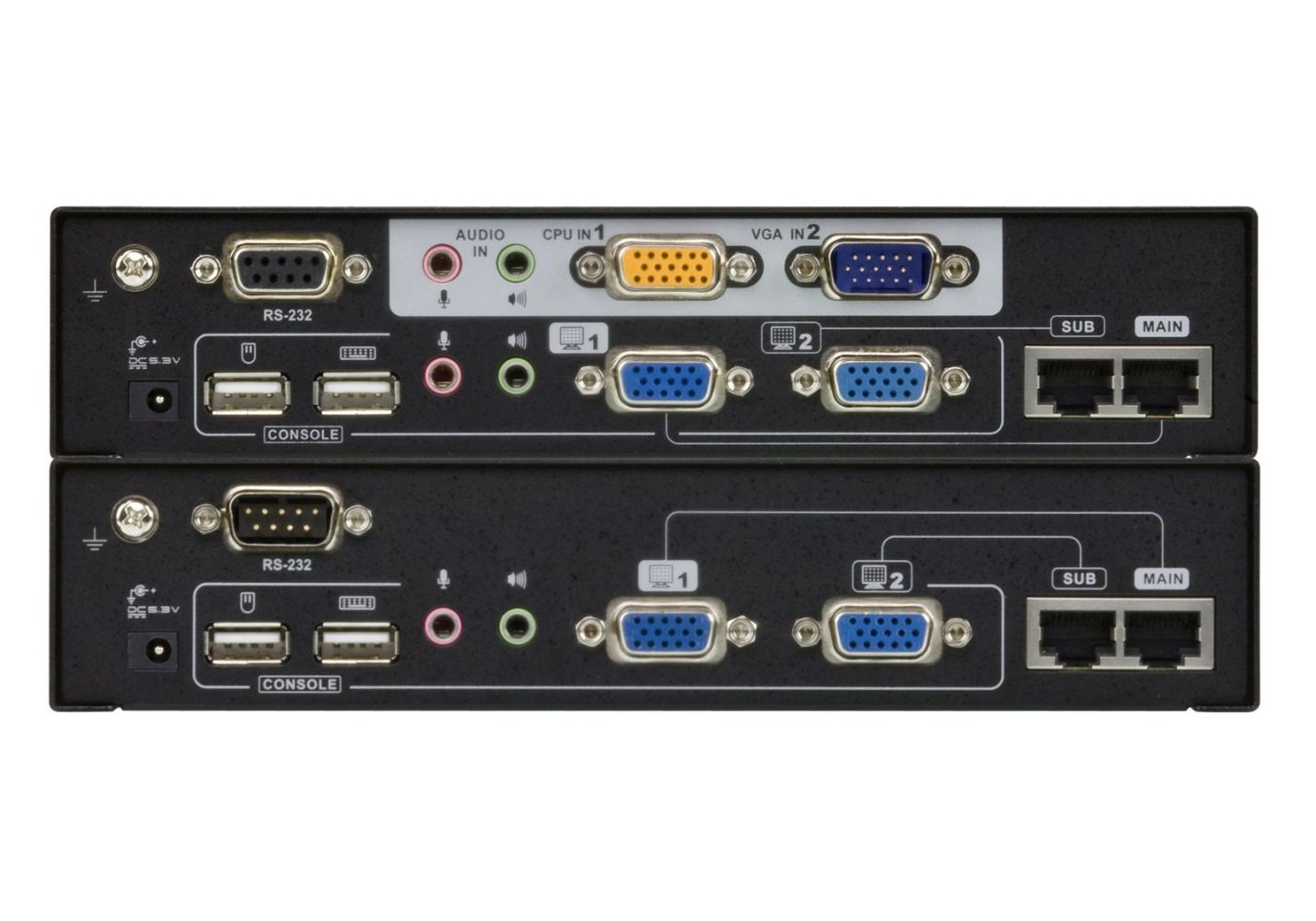

Ports & interfaces
RJ-45 input ports	2
RJ-45 output ports	2
VGA (D-Sub) input ports	4
Audio input	3.5mm
Audio output	3.5mm
DC-in jack
Power
Operating voltage	5.3 V
External power adapter
Technical data
Max. distance	300m
Weight	2.710kg
Width packaging	0.098m
Type 2	VGA Extender Bundle
Packaging volume	0.0067m³
Height packaging	0.210m
Type 1	KVM Extender
Length packaging	0.325m
Technical details
Connector type	USB, SPHD-17, RS-232
Weight & dimensions
Dimensions (WxDxH)	75.8 x 200 x 42 mm
Weight	690 g

---
