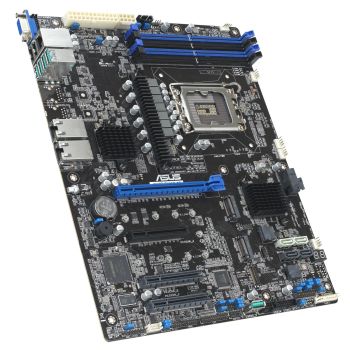

ASUS SERVER P13R-E/10G-2T S1700 C266/DDR5/VGA/2x10GBL/ATX (ASMB11-iKVM onboard)
|
508,60 EUR |
|
|
( 605,23 EUR incl. VAT ) ≈ £425.70 | ≈ $567.09 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1108452 |
| Mfg Part No: | 90SB0CY0-M0UAY1 |
| UPC/EAN: | 4711387396490 |
| Weight: | 1.42 kg |
Product information for ASUS 90SB0CY0-M0UAY1:
CPU: Sockel LGA1700 für Intel Xeon E-24xx
RAM: 4x DDR5 PC4400 UB ECC, max. 128 GB, non-REG!
SATA Anschlüsse/Typ:
8 (4x über mini-SAS HD Port), unterstützt SW RAID 0/1/10/5
2x M.2 NVMe (22110/2280/2260/2242), ohne RAID-Unterstützung
Slotanzahl:
1x PCIe 5.0 x16 @ x16/x8
1x PCIe 5.0 x8 @ x8
2x PCIe 4.0 x8 @ x4
Schnittstellen (hinten):
1x VGA (Aspeed AST2600, 64MB VRAM)
2x 10 GbE LAN (RJ-45) (Intel X710-AT2)
1x Mgmt LAN
4x USB 3.2 Gen2, 2x USB 2.0
Schnittstellen (intern):
1x USB 3.2 Gen2
| Expansion slots | |
| PCI Express x4 (Gen 4.x) slots | 2 |
| PCI Express x8 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel C266 |
| Product colour | Black |
| PC health monitoring | CPU, Fan, Temperature |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 6 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of COM connectors | 1 |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 3600,4000,4400 MHz |
| Supported memory clock speed (max) | 4400 MHz |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Other features | |
| Weight | 800 g |
| Packaging data | |
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.9 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express, SATA III |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 10 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
