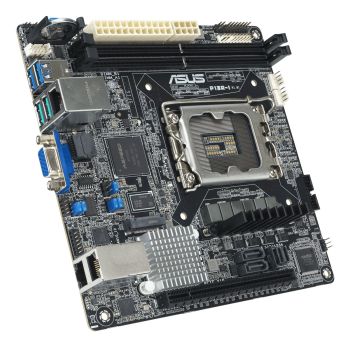

ASUS SERVER P13R-I S1700 C262/DDR5/VGA/2xGBL/mITX (ASMB11-iKVM onboard)
|
313,71 EUR 319,76 EUR |
|
|
( 373,31 EUR incl. VAT ) ≈ £262.58 | ≈ $349.79 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1563576 |
| Mfg Part No: | 90SB0CR0-M0UAY1 |
| UPC/EAN: | 4711387372340 |
| Weight: | 1.109 kg |
Product information for ASUS 90SB0CR0-M0UAY1:
CPU: Sockel LGA1700 für Intel Xeon E-24xx
RAM: 2x DDR5 PC4800 UB ECC, max. 64 GB, non-REG!
SATA Anschlüsse/Typ:
6 (4x über mini-SAS HD Port), unterstützt SW RAID 0/1/10/5
1x M.2 NVMe (2280)
Slotanzahl:
1x PCIe 5.0 x16 @ x16
Schnittstellen (hinten):
1x VGA (Aspeed AST2600, 64MB VRAM)
2x 1 GbE LAN (RJ-45) (Intel I210-AT2)
1x Mgmt LAN
2x USB 3.2 Gen2, 2x USB 3.2 Gen1
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel C262 |
| Product colour | Black |
| Component for | Server |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Graphics | |
| Parallel processing technology support | Not supported |
| Graphics card | AST2600 |
| On-board graphics card memory | 64 MB |
| Internal I/O | |
| Number of SATA III connectors | 6 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Front panel connector | |
| CPU fan connector | |
| Chassis intrusion connector | |
| TPM connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 3600,4000,4400,4800 MHz |
| Supported memory clock speed (max) | 4800 MHz |
| Maximum internal memory | 64 GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Pentium®, Intel® Xeon®, Intel Xeon E |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 7 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
Questions & answers
What is the delivery time of ASUS SERVER P13R-I S1700 C262/DDR5/VGA/2xGBL/mITX (ASMB11-iKVM onboard)?
The article ASUS SERVER P13R-I S1700 C262/DDR5/VGA/2xGBL/mITX (ASMB11-iKVM onboard) is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90SB0CR0-M0UAY1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS SERVER P13R-I S1700 C262/DDR5/VGA/2xGBL/mITX (ASMB11-iKVM onboard) always at the best possible price. We can give you a discount of 2% on ASUS SERVER P13R-I S1700 C262/DDR5/VGA/2xGBL/mITX (ASMB11-iKVM onboard) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
