ASUS SERVER P12R-E S1200 C256/VGA/2xGBL/ATX
|
346,31 EUR 346,56 EUR |
|
|
( 412,11 EUR incl. VAT ) ≈ £290.21 | ≈ $388.91 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1979264 |
| Mfg Part No: | 90SB0A90-M0UAY0 |
| UPC/EAN: | 4711081420217 |
| Weight: | 1.532 kg |
Product information for ASUS 90SB0A90-M0UAY0:
Chipsatz: Intel C256
CPU: Sockel LGA1200 für Intel Xeon E-23xx/E-23xxG
RAM: 4x DDR4 PC3200/2933/2666 UB ECC, max. 128 GB, non-REG!
SATA Anschlüsse/Typ:
8 (4x über mini-SAS HD Port)
2x M.2 SATA/NVMe (22110/2280/2260/2242) *
Slotanzahl:
1x PCIe 4.0 x16 (x16/x8 link)
1x PCIe 4.0 x8
2x PCIe 3.0 x8 (x4 link)

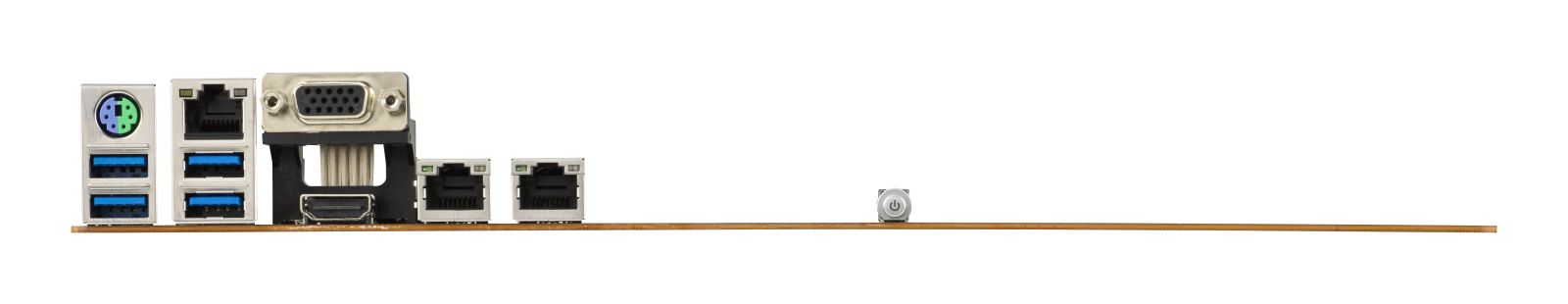

Schnittstellen (hinten):
1x PS/2 (Tastatur/Maus)
1x VGA (Aspeed AST2600, 64MB VRAM)
1x HDMI
2x 1 GbE LAN (RJ-45) (Intel I210)
1x Mgmt LAN
2x USB 3.2 Gen2, 2x USB 3.2 Gen1
CPU: Sockel LGA1200 für Intel Xeon E-23xx/E-23xxG
RAM: 4x DDR4 PC3200/2933/2666 UB ECC, max. 128 GB, non-REG!
SATA Anschlüsse/Typ:
8 (4x über mini-SAS HD Port)
2x M.2 SATA/NVMe (22110/2280/2260/2242) *
Slotanzahl:
1x PCIe 4.0 x16 (x16/x8 link)
1x PCIe 4.0 x8
2x PCIe 3.0 x8 (x4 link)
Schnittstellen (hinten):
1x PS/2 (Tastatur/Maus)
1x VGA (Aspeed AST2600, 64MB VRAM)
1x HDMI
2x 1 GbE LAN (RJ-45) (Intel I210)
1x Mgmt LAN
2x USB 3.2 Gen2, 2x USB 3.2 Gen1
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel C256 |
| PC health monitoring | CPU, Fan |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Graphics | |
| Graphics card family | ASPEED |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | |
| Power fan connector | |
| Chassis intrusion connector | |
| TPM connector | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Other features | |
| Weight | 800 g |
| Packaging data | |
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.5 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 68 mm |
