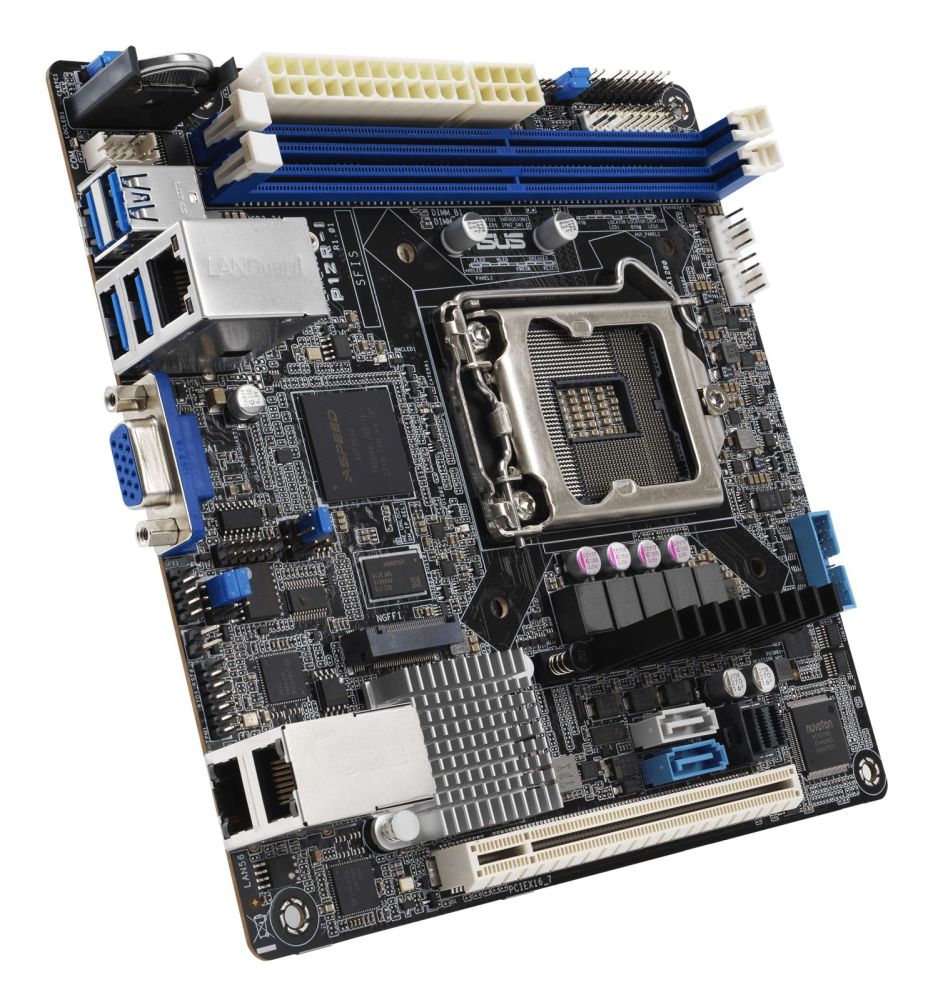

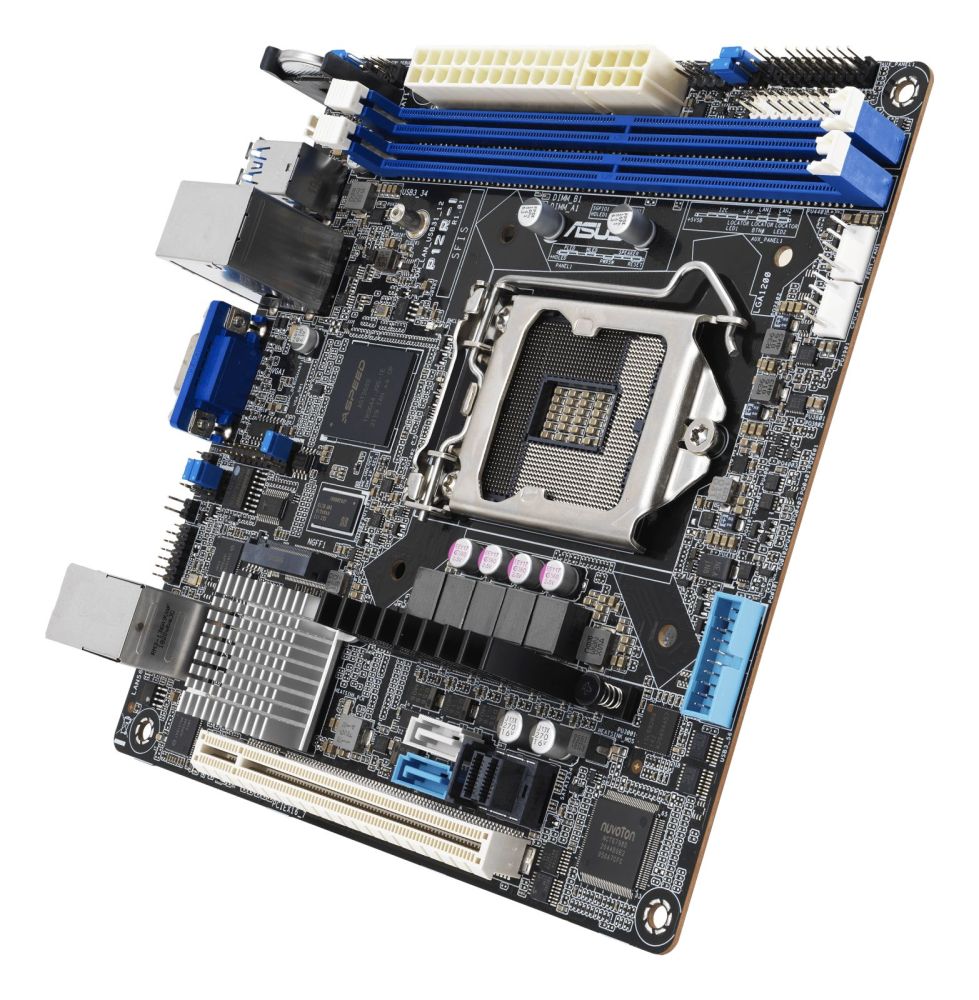

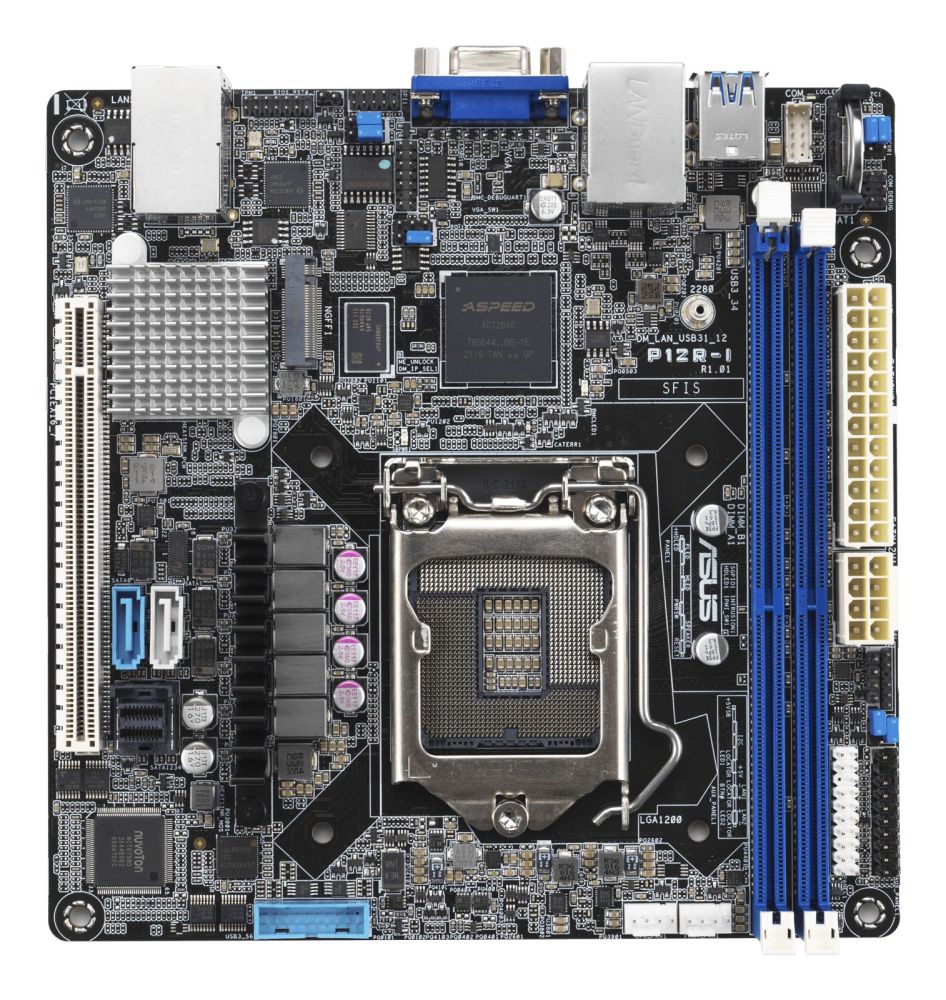

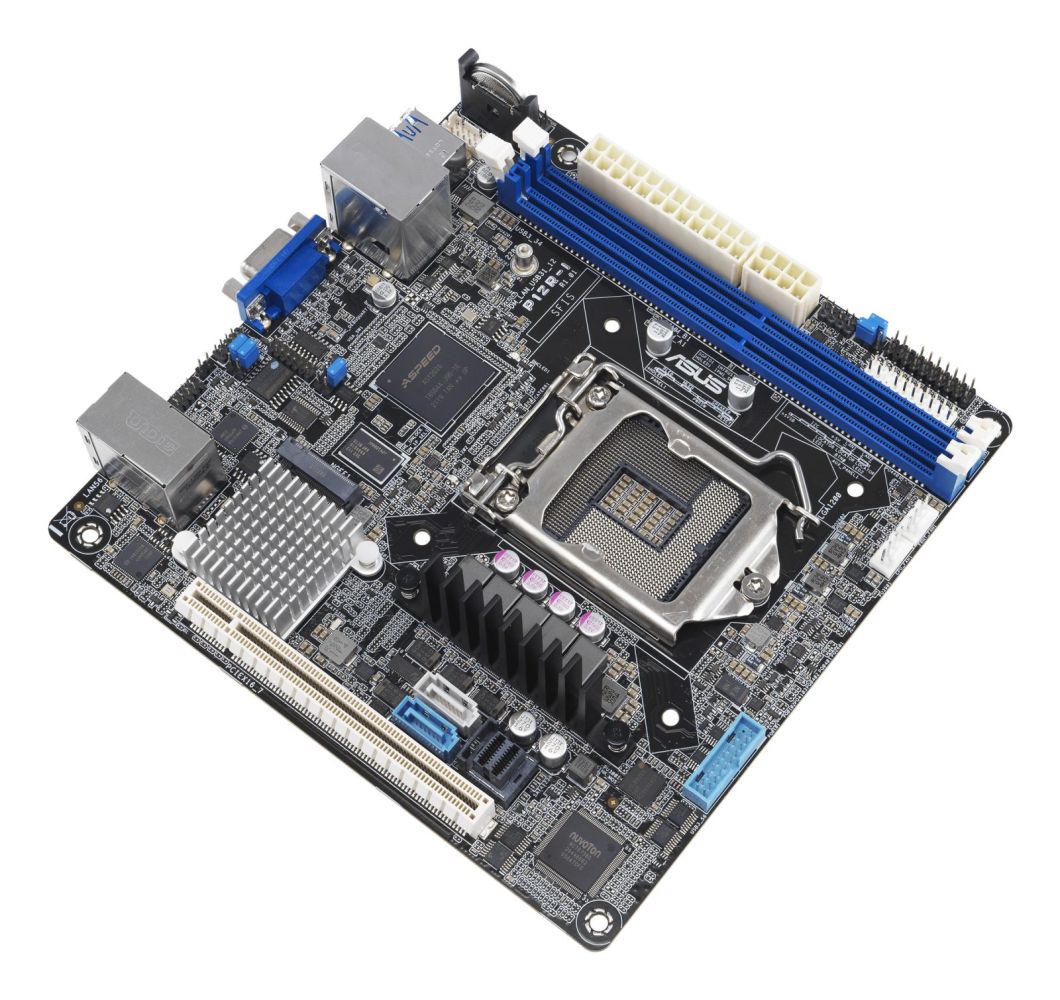

ASUS SERVER P12R-I S1200 C252/VGA/2xGBL/mITX (incl. ASMB10 iKVM)
|
-7% 262,76 EUR 283,86 EUR |
|
|
( 312,68 EUR incl. VAT ) ≈ £220.19 | ≈ $295.08 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1979272 |
| Mfg Part No: | 90SB0A70-M0UAY0 |
| UPC/EAN: | 4711081507604 |
| Weight: | 1.112 kg |
Product information for ASUS 90SB0A70-M0UAY0:
CPU: Sockel LGA1200 für Intel Xeon E-23xx/E-23xxG
RAM: 2x DDR4 PC3200/2933/2666 UB ECC, max. 64 GB, non-REG!
SATA Anschlüsse/Typ:
6 (4x über mini-SAS HD Port)
1x M.2 SATA/NVMe (2280) *
Slotanzahl:
1x PCIe 4.0 x16

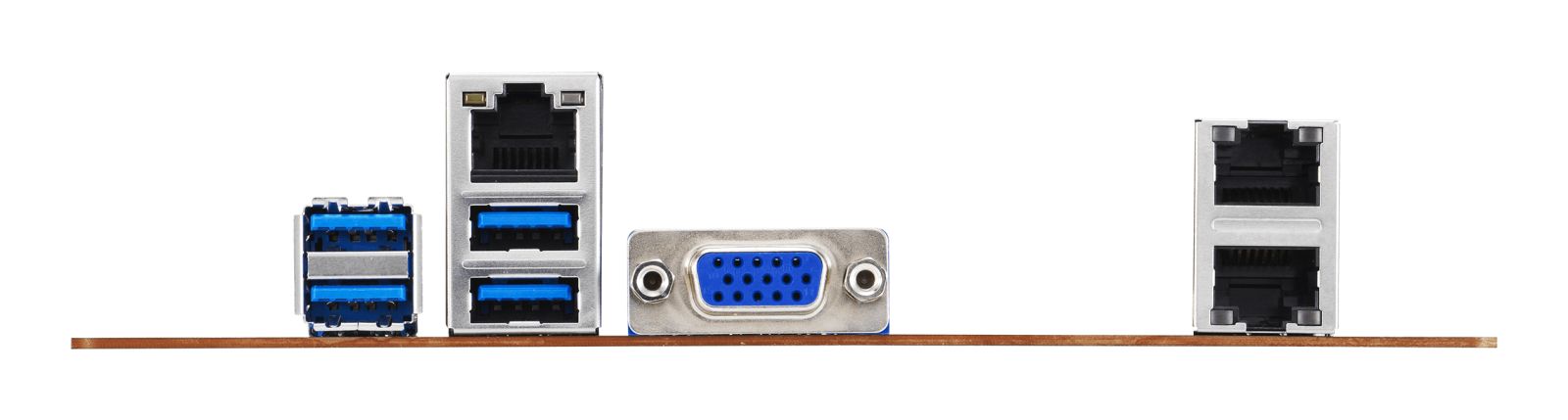

Schnittstellen (hinten):
1x VGA (Aspeed AST2600, 64MB VRAM)
2x 1 GbE LAN (RJ-45) (Intel I210)
1x Mgmt LAN
4x USB 3.2 Gen1
| Expansion slots | |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Motherboard chipset | Intel C252 |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| On-board graphics card memory | 64 MB |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of chassis fan connectors | 2 |
| Serial port headers | 1 |
| ATX Power connector (24-pin) | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Network | |
| LAN controller | Intel® I210-AT |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Other features | |
| Weight | 500 g |
| Packaging data | |
| Package width | 311 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.2 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Number of SAS ports | 2 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
Questions & answers
What is the delivery time of ASUS SERVER P12R-I S1200 C252/VGA/2xGBL/mITX (incl. ASMB10 iKVM)?
The article ASUS SERVER P12R-I S1200 C252/VGA/2xGBL/mITX (incl. ASMB10 iKVM) is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90SB0A70-M0UAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS SERVER P12R-I S1200 C252/VGA/2xGBL/mITX (incl. ASMB10 iKVM) always at the best possible price. We can give you a discount of 2% on ASUS SERVER P12R-I S1200 C252/VGA/2xGBL/mITX (incl. ASMB10 iKVM) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
