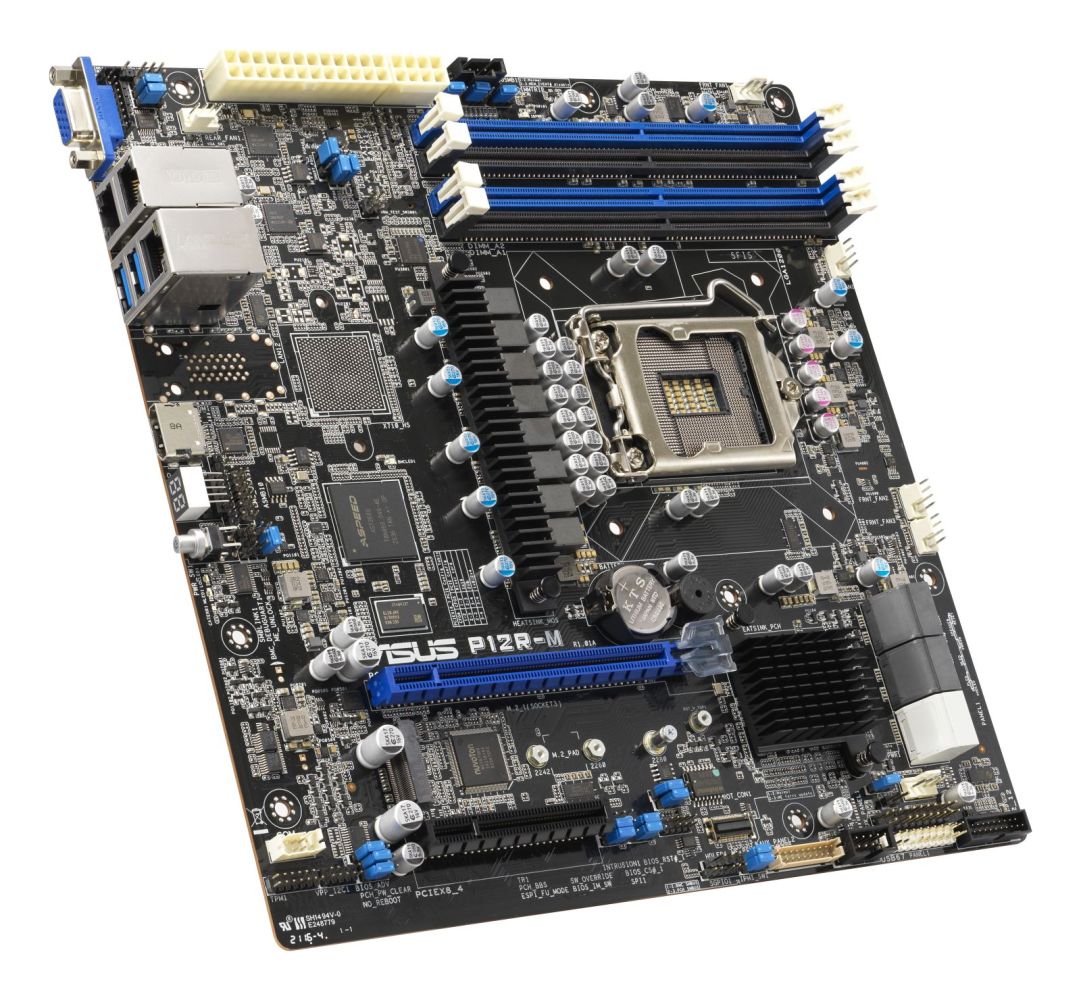

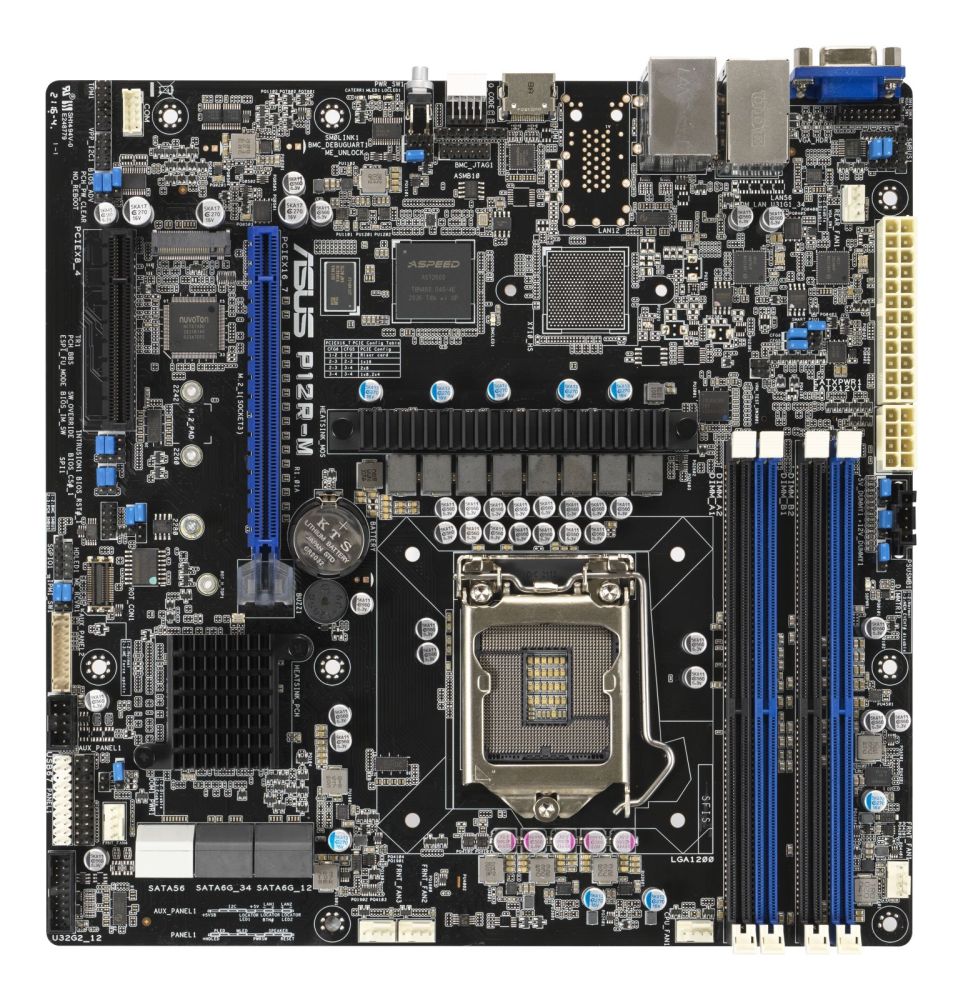

ASUS P12R-M LGA1200 mATX Server MB 4xDDR4 1xm.2 6xSATA
|
312,99 EUR |
|
|
( 372,46 EUR incl. VAT ) ≈ £262.29 | ≈ $351.49 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 16. Oct 2026 |
|---|---|
| Lieske Part No.: | 1979268 |
| Mfg Part No: | 90SB09X0-M1UAY0 |
| UPC/EAN: | 4711081684749 |
| Weight: | 0.123 kg |
Product information for ASUS 90SB09X0-M1UAY0:
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel C256 |
| PC health monitoring | CPU, Fan |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| Serial port headers | 1 |
| ATX Power connector (24-pin) | |
| Power fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Other features | |
| Weight | 700 g |
| Packaging data | |
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.3 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |

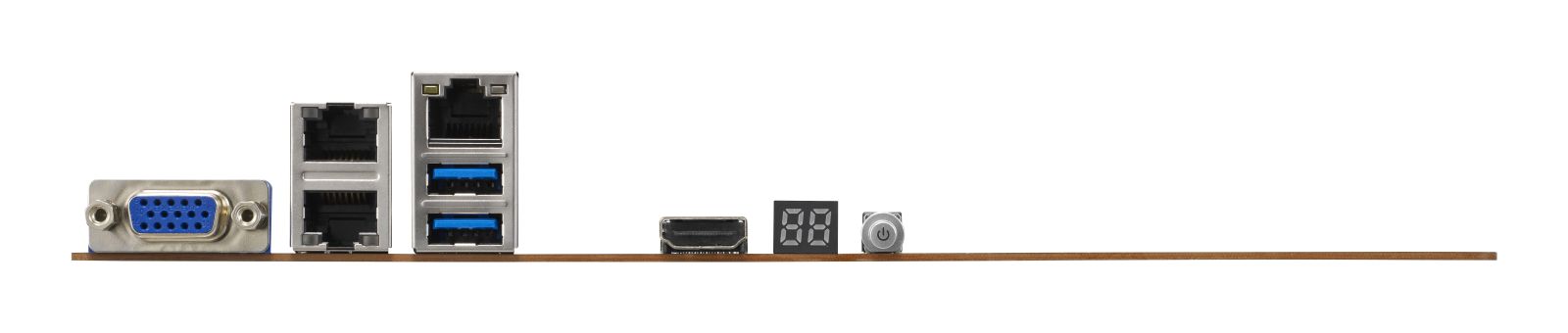

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 68 mm |
Questions & answers
What is the delivery time of ASUS P12R-M LGA1200 mATX Server MB 4xDDR4 1xm.2 6xSATA?
The article ASUS P12R-M LGA1200 mATX Server MB 4xDDR4 1xm.2 6xSATA is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90SB09X0-M1UAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS P12R-M LGA1200 mATX Server MB 4xDDR4 1xm.2 6xSATA always at the best possible price. We can give you a discount of 2% on ASUS P12R-M LGA1200 mATX Server MB 4xDDR4 1xm.2 6xSATA if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
