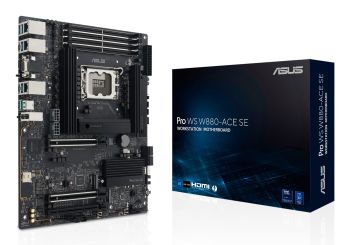

ASUS PRO WS W880-ACE SE S1851/DDR5/VGA-HDMI/2xLAN/24-7/ATX
|
543,56 EUR |
|
|
( 646,84 EUR incl. VAT ) ≈ £454.96 | ≈ $606.07 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 1614351 |
|---|---|
| Mfg Part No: | 90MB1KV0-M0EAY0 |
| UPC/EAN: | 4711387994221 |
| Weight: | 1.652 kg |
Product information for ASUS 90MB1KV0-M0EAY0:
Intel® W880 Chipset
2 x Thunderbolt™ 4 USB Type-C port
1 x USB 20Gbps port (Type-C), 6 x USB 10Gbps ports (6 x Type-A)
1 x HDMI, 1 x VGA port from AST2600, 2 x Audio jacks
2 x Intel® 2.5Gb Ethernet port
2x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
1x PCIe 4.0 x16 slot (supports x4 mode)
Total supports 4x M.2 slots and 8 x SATA 6Gb/s ports
2 x Thunderbolt™ 4 USB Type-C port
1 x USB 20Gbps port (Type-C), 6 x USB 10Gbps ports (6 x Type-A)
1 x HDMI, 1 x VGA port from AST2600, 2 x Audio jacks
2 x Intel® 2.5Gb Ethernet port
2x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
1x PCIe 4.0 x16 slot (supports x4 mode)
Total supports 4x M.2 slots and 8 x SATA 6Gb/s ports
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel W880 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Grey |
| Component for | Workstation |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 5 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| Integrated SAS ports | 1 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 2.1 |
| Headphone outputs | 1 |
| Thunderbolt ports quantity | 1 |
| Line-in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
Questions & answers
What is the delivery time of ASUS PRO WS W880-ACE SE S1851/DDR5/VGA-HDMI/2xLAN/24-7/ATX?
The article ASUS PRO WS W880-ACE SE S1851/DDR5/VGA-HDMI/2xLAN/24-7/ATX is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1KV0-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS PRO WS W880-ACE SE S1851/DDR5/VGA-HDMI/2xLAN/24-7/ATX always at the best possible price. We can give you a discount of 2% on ASUS PRO WS W880-ACE SE S1851/DDR5/VGA-HDMI/2xLAN/24-7/ATX if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
