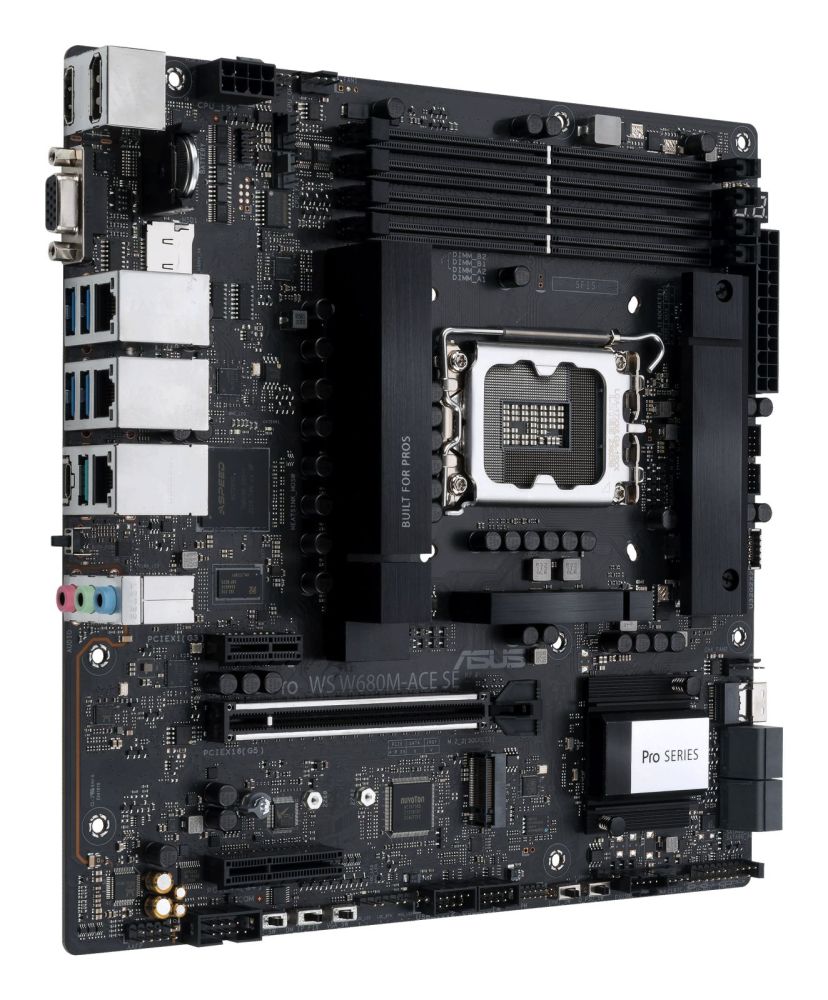

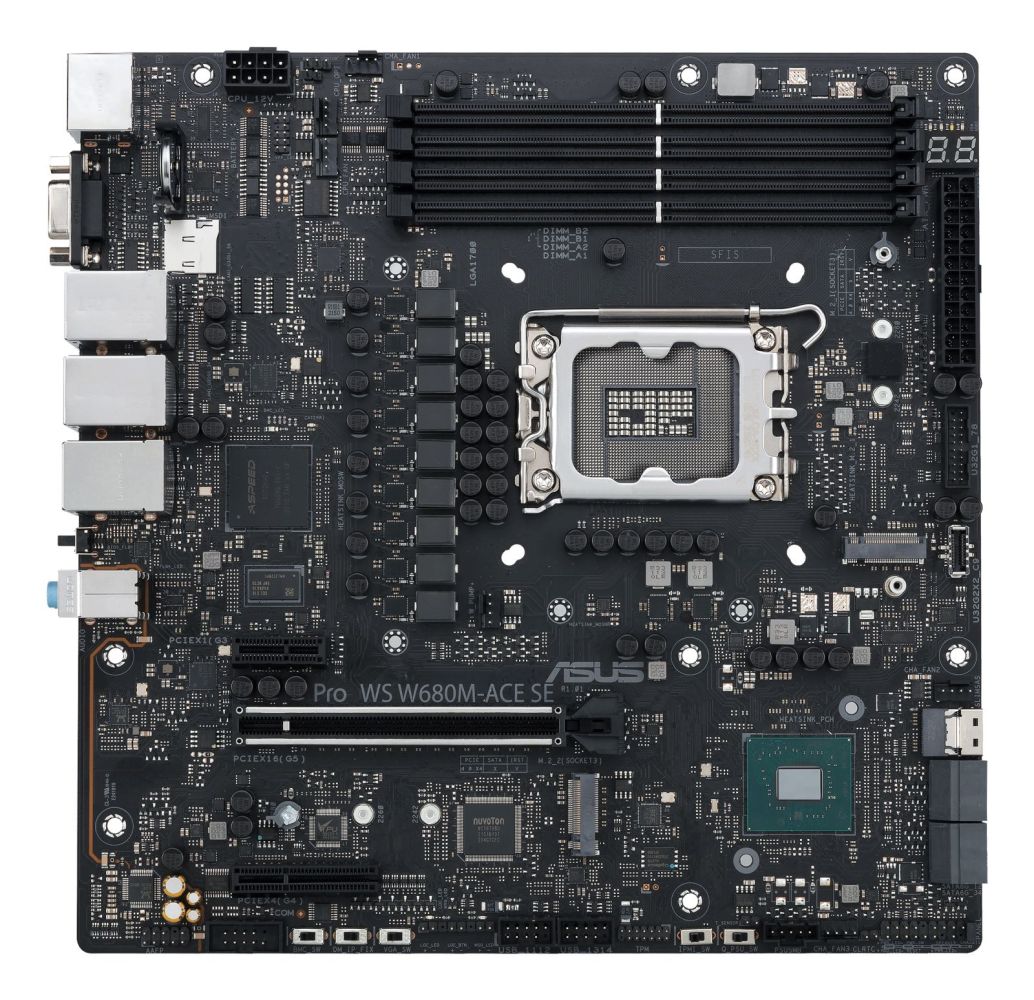

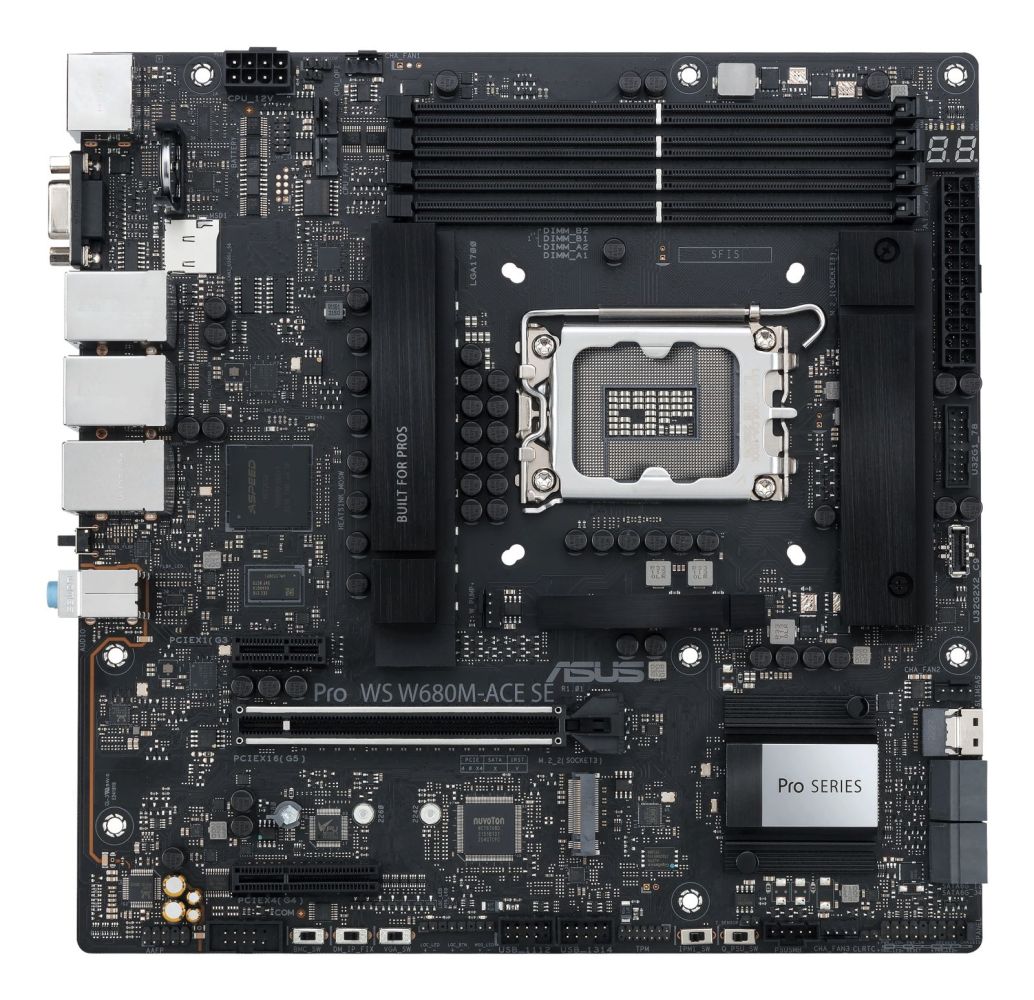

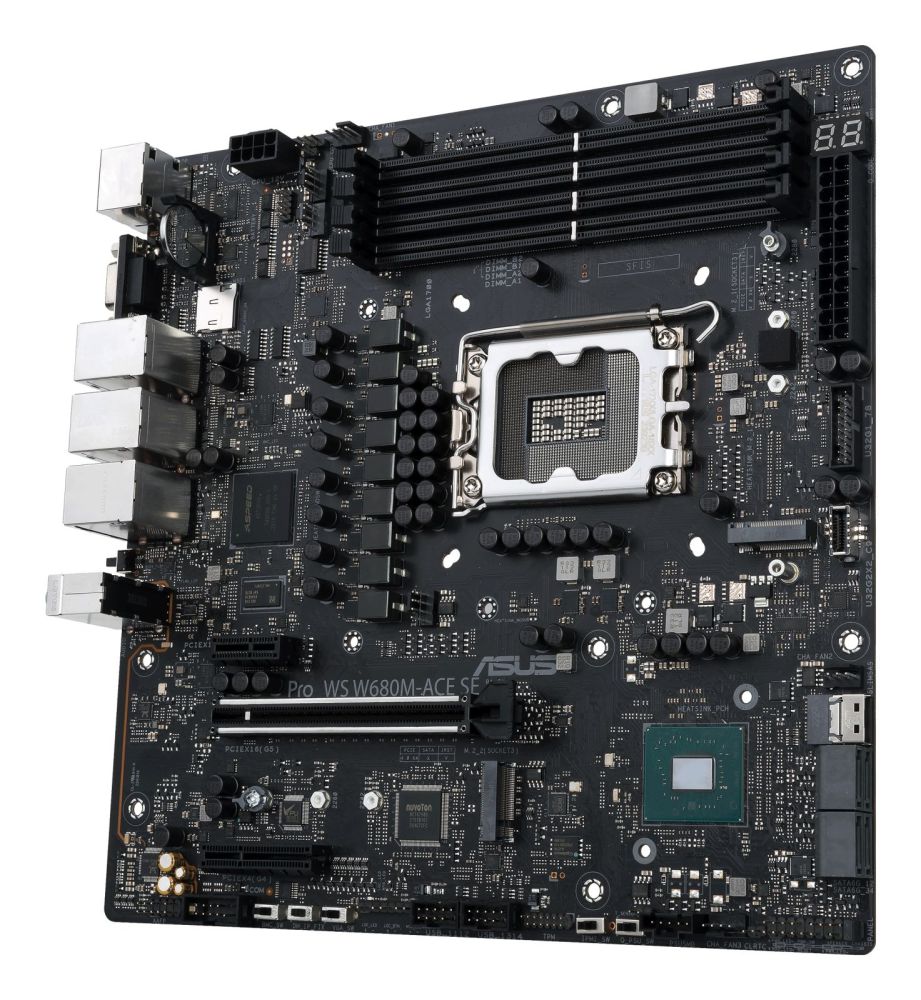

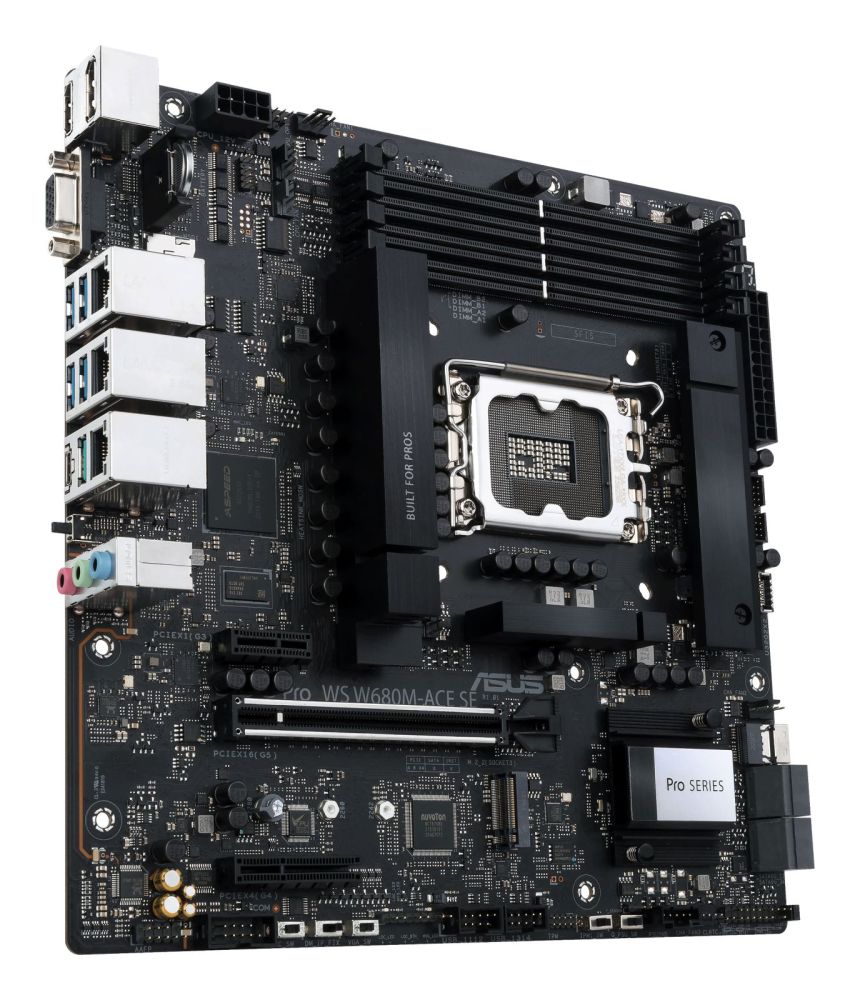

Motherboard ASUS PRO WS W680M-ACE SE (Intel,1700,DDR5,mATX)
|
478,97 EUR |
|
|
( 569,98 EUR incl. VAT ) ≈ £406.17 | ≈ $536.93 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 1610434 |
|---|---|
| Mfg Part No: | 90MB1FA0-M0EAY0 |
| UPC/EAN: | 4711387298190 |
| Weight: | 1.284 kg |
Product information for ASUS 90MB1FA0-M0EAY0:
Workstation Motherboard 24-/7 Reliability
Intel LGA1700 for 14th/ 13th/ 12th Gen Intel® Core™ Processors
Intel W680 Chipset
4x DDR5 Unbuffered DIMM, ECC and non-ECC, max. 192GB (4x 48GB)
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1
2x M.2 PCIe x4 NVMe (2280) (PCIe RAID 0/1)
2x Intel 2.5Gb Ethernet, 1x Realtek 1Gb Ethernet dedicated for AST2600
2x USB 3.2 Gen 2 ports (1x Type-A, 1 x Type-C), 4x USB 3.2 Gen 1 ports (Type-A)
Realtek 7.1 Surround Sound High Definition Audio CODEC
1x DisplayPort 1.4*, 1x HDMI 2.1*, 1x D-Sub (VGA) from AST2600,
3x LAN RJ45, 3x Audio jacks, Option: 1x SPI TPM, 1x COM, 1x LPT
Intel LGA1700 for 14th/ 13th/ 12th Gen Intel® Core™ Processors
Intel W680 Chipset
4x DDR5 Unbuffered DIMM, ECC and non-ECC, max. 192GB (4x 48GB)
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1
2x M.2 PCIe x4 NVMe (2280) (PCIe RAID 0/1)
2x Intel 2.5Gb Ethernet, 1x Realtek 1Gb Ethernet dedicated for AST2600
2x USB 3.2 Gen 2 ports (1x Type-A, 1 x Type-C), 4x USB 3.2 Gen 1 ports (Type-A)
Realtek 7.1 Surround Sound High Definition Audio CODEC
1x DisplayPort 1.4*, 1x HDMI 2.1*, 1x D-Sub (VGA) from AST2600,
3x LAN RJ45, 3x Audio jacks, Option: 1x SPI TPM, 1x COM, 1x LPT
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel W680 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 192 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 820 g |
| Back-to-BIOS button | |
| Packaging content | |
| Cables included | SATA |
| User guide | |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.35 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Number of SAS ports | 1 |
| Line-in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 10 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
