ASUS PRO A620M-C-CSM AM5 A620/HDMI-DP-DVI-VGA/2xM.2/µATX Business Series. 24/7 ready
|
111,67 EUR |
|
|
( 132,89 EUR incl. VAT ) ≈ £93.47 | ≈ $124.51 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2074656 |
| Mfg Part No: | 90MB1F80-M0EAYC |
| UPC/EAN: | 4711387239704 |
| Weight: | 1.4 kg |
Product information for ASUS 90MB1F80-M0EAYC:
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series CPU
Supports up to AMD 120W CPU
2x DIMM slots, Max. 96GB, DDR5, Dual Channel Memory Architecture
1x DisplayPort, max. 8K@60Hz as specified in DisplayPort 1.4
1x DVI-D port + 1x VGA port
1x HDMI, max. 4K@60Hz as specified in HDMI 2.1
Supports up to 4 Displays simultaneously
With AMD Ryzen 9000 & 7000 Series Processors:
1x PCIe 4.0 x16 slot
With AMD Ryzen™ 8000 Series:
1x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD A620 Chipset supports:
2x PCIe 3.0 x1 slots, 1x PCI slot
2x M.2_1 slot (Key M), supports PCIe 4.0 x4 mode
4x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10
1x Realtek 1Gb Ethernet RJ4
2x USB 3.2 Gen 2 (10G) ports (1x Type-A + 1x USB Type-C)
1x USB 3.2 Gen 1 (5G) port (1x Type-A)
1x COM port, 3x Audio jacks, 1x PS/2, option: 1x LPT
Supports up to AMD 120W CPU
2x DIMM slots, Max. 96GB, DDR5, Dual Channel Memory Architecture
1x DisplayPort, max. 8K@60Hz as specified in DisplayPort 1.4
1x DVI-D port + 1x VGA port
1x HDMI, max. 4K@60Hz as specified in HDMI 2.1
Supports up to 4 Displays simultaneously
With AMD Ryzen 9000 & 7000 Series Processors:
1x PCIe 4.0 x16 slot
With AMD Ryzen™ 8000 Series:
1x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD A620 Chipset supports:
2x PCIe 3.0 x1 slots, 1x PCI slot
2x M.2_1 slot (Key M), supports PCIe 4.0 x4 mode
4x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10
1x Realtek 1Gb Ethernet RJ4
2x USB 3.2 Gen 2 (10G) ports (1x Type-A + 1x USB Type-C)
1x USB 3.2 Gen 1 (5G) port (1x Type-A)
1x COM port, 3x Audio jacks, 1x PS/2, option: 1x LPT
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | AMD A620 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| User guide | |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 950 g |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |

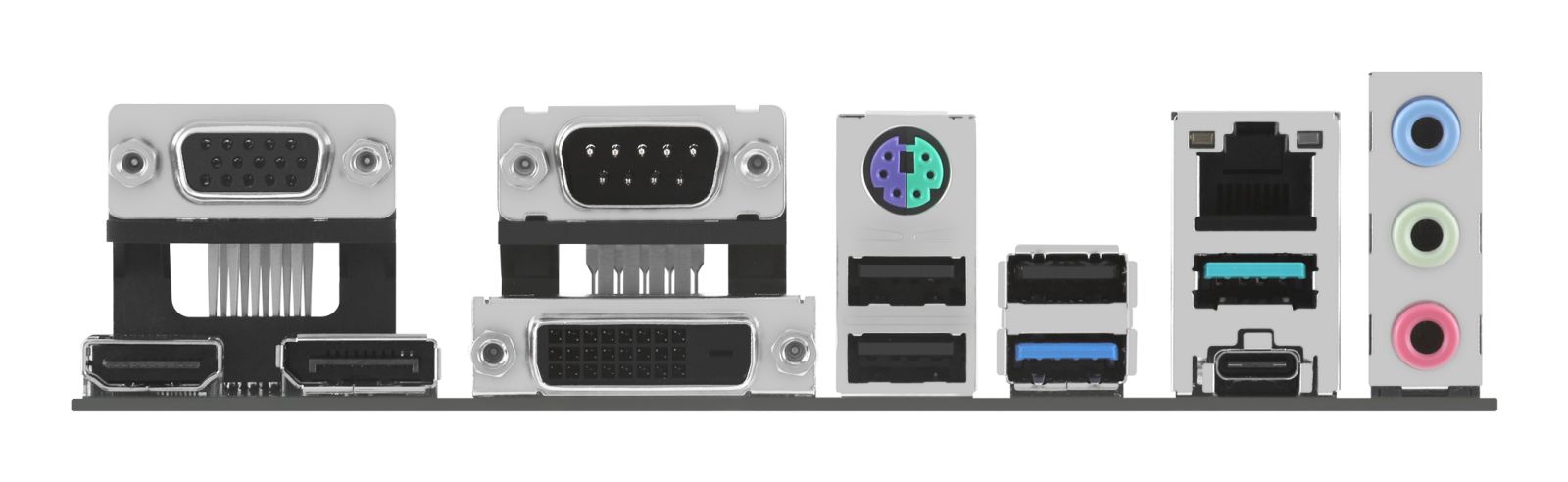

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| COM ports quantity | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 4 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 224 mm |
