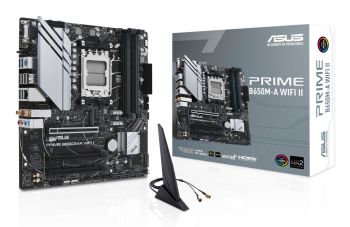

ASUS PRIME B650M-A WIFI II AM5 B650/HDMI-DP-VGA/2xM.2/µATX
|
166,08 EUR |
|
|
( 197,64 EUR incl. VAT ) ≈ £139.01 | ≈ $185.18 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2029548 |
| Mfg Part No: | 90MB1EG0-M0EAY0 |
| UPC/EAN: | 4711387034934 |
| Weight: | 1.402 kg |
Product information for ASUS 90MB1EG0-M0EAY0:
AMD Socket AM5 for AMD Ryzen 7000/8000 Series Desktop Processors
AMD B650 Chipset
4x DDR5 Unbuffered DIMM, ECC and non-ECC, max. 128GB (4x 32GB)
1x PCIe 4.0 x16 slot, 2x PCIe 4.0 x1 slots (x16 physical)
1x M.2 PCIe 5.0 x4 mode*, 1x M.2 PCIe 4.0 x4 mode* / 4 x SATA 6Gb/s ports*
*AMD RAIDXpert2 Technology supports PCIe/NVMe RAID 0/1/10 and SATA RAID 0/1/10
1x Realtek 2.5Gb Ethernet, Wi-Fi 6 (2x2 Wi-Fi 6, 802.11ax, 2.4/ 5GHz), Bluetooth 5.2
2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen1 Type-A, 4x USB 2.0 ports Type-A
1x DisplayPort 1.4 (8K@60Hz), 1x D-Sub (VGA), 1x HDMI 2.1 (4K@60Hz), 1x LAN RJ45,
3x Audio jacks, 1x BIOS FlashBack button, 1x PS/2, Option: 1x COM, 1x SPI TPM
Realtek 7.1 Surround Sound High Definition Audio CODEC
AMD B650 Chipset
4x DDR5 Unbuffered DIMM, ECC and non-ECC, max. 128GB (4x 32GB)
1x PCIe 4.0 x16 slot, 2x PCIe 4.0 x1 slots (x16 physical)
1x M.2 PCIe 5.0 x4 mode*, 1x M.2 PCIe 4.0 x4 mode* / 4 x SATA 6Gb/s ports*
*AMD RAIDXpert2 Technology supports PCIe/NVMe RAID 0/1/10 and SATA RAID 0/1/10
1x Realtek 2.5Gb Ethernet, Wi-Fi 6 (2x2 Wi-Fi 6, 802.11ax, 2.4/ 5GHz), Bluetooth 5.2
2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen1 Type-A, 4x USB 2.0 ports Type-A
1x DisplayPort 1.4 (8K@60Hz), 1x D-Sub (VGA), 1x HDMI 2.1 (4K@60Hz), 1x LAN RJ45,
3x Audio jacks, 1x BIOS FlashBack button, 1x PS/2, Option: 1x COM, 1x SPI TPM
Realtek 7.1 Surround Sound High Definition Audio CODEC
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA connectors | 4 |
| Total number of SATA connectors | 4 |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of COM connectors | 1 |
| S/PDIF out connector | |
| Audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| Power fan connector | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Audio output | <strong>Realtek 7.1 Surround Sound High Definition Audio CODEC*</strong> - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback <strong>Audio Features</strong> - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Special features | <strong>Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen<sup>™</sup> 7000 Series Desktop Processors</strong> M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) <strong>AMD B650 Chipset</strong> M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Graphics output | 1 x DisplayPort** 1 x VGA port 1 x HDMI<sup>®</sup> port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI<sup>®</sup> 2.1. |
| Packaging content | |
| Cables included | SATA |
| Bundled software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| USB connector type | USB Type-A |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 2 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Questions & answers
What is the delivery time of ASUS PRIME B650M-A WIFI II AM5 B650/HDMI-DP-VGA/2xM.2/µATX?
The article ASUS PRIME B650M-A WIFI II AM5 B650/HDMI-DP-VGA/2xM.2/µATX is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1EG0-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS PRIME B650M-A WIFI II AM5 B650/HDMI-DP-VGA/2xM.2/µATX always at the best possible price. We can give you a discount of 2% on ASUS PRIME B650M-A WIFI II AM5 B650/HDMI-DP-VGA/2xM.2/µATX if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
