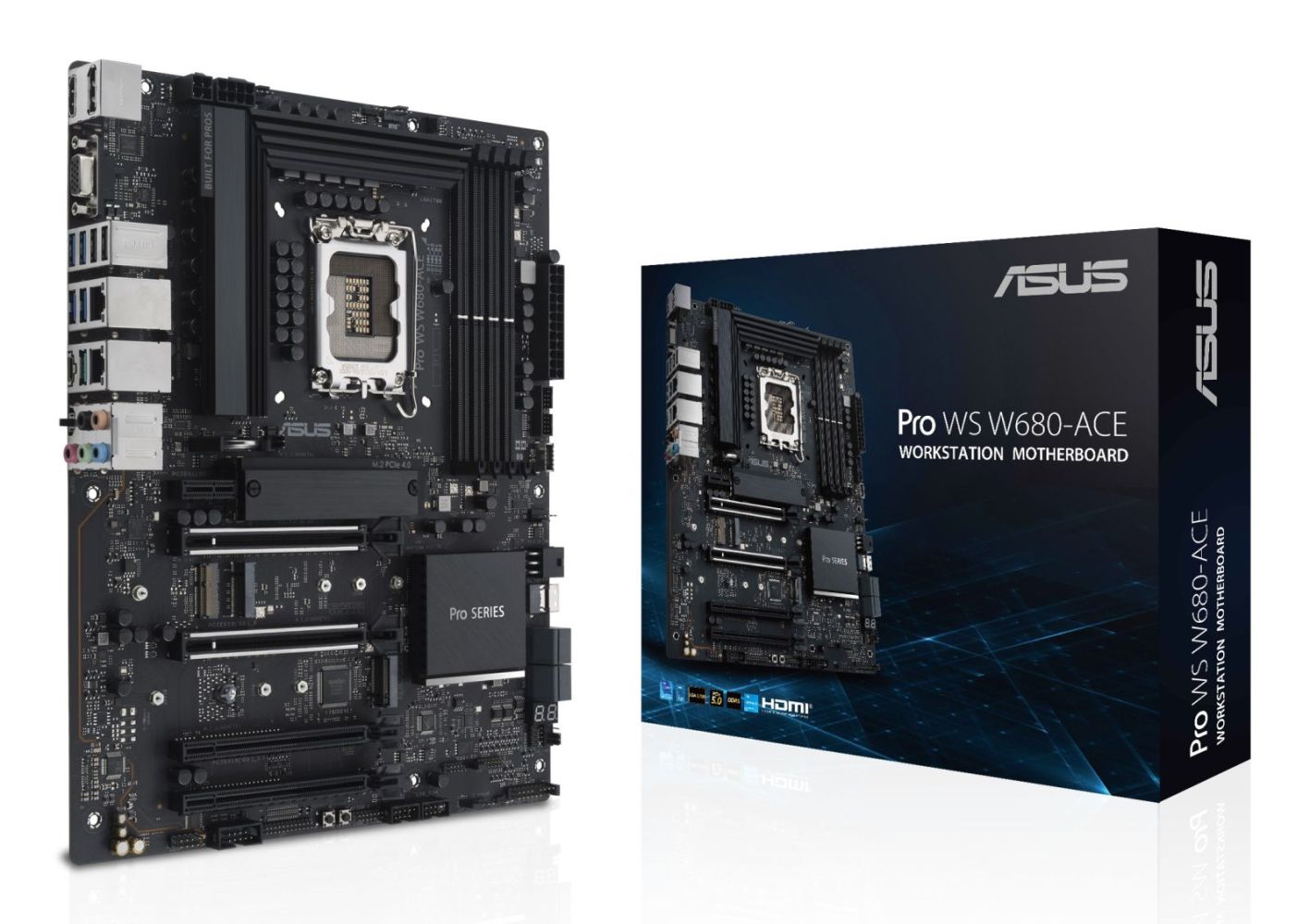

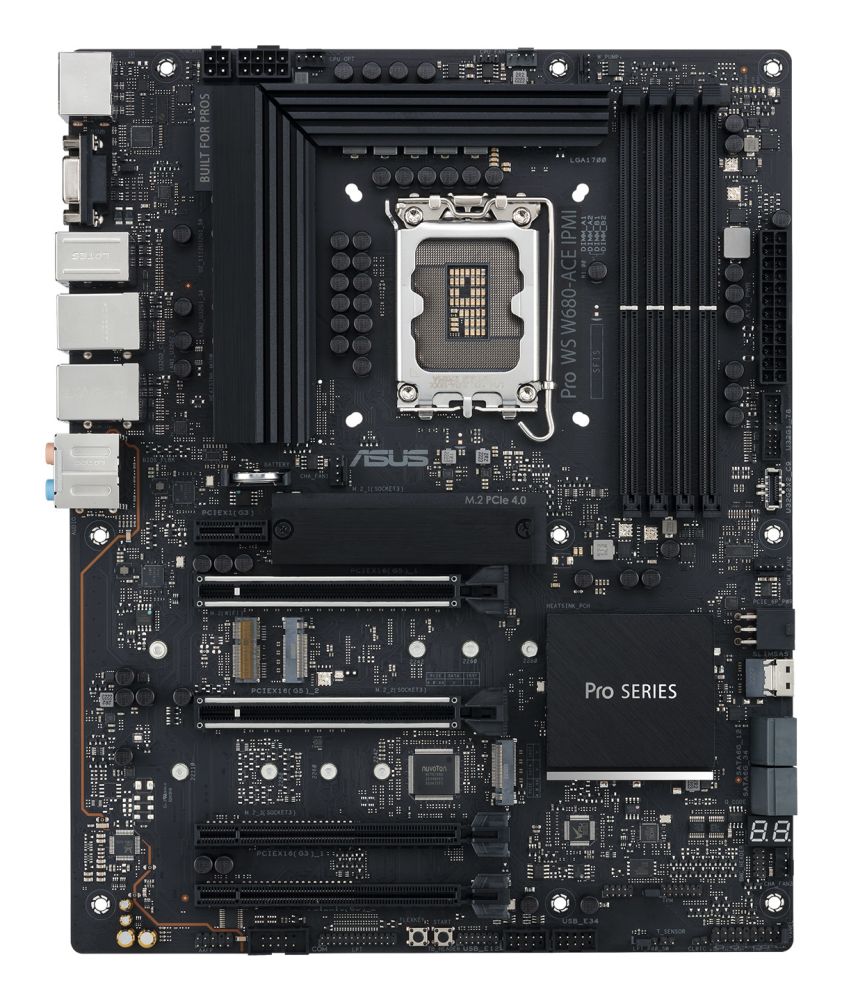

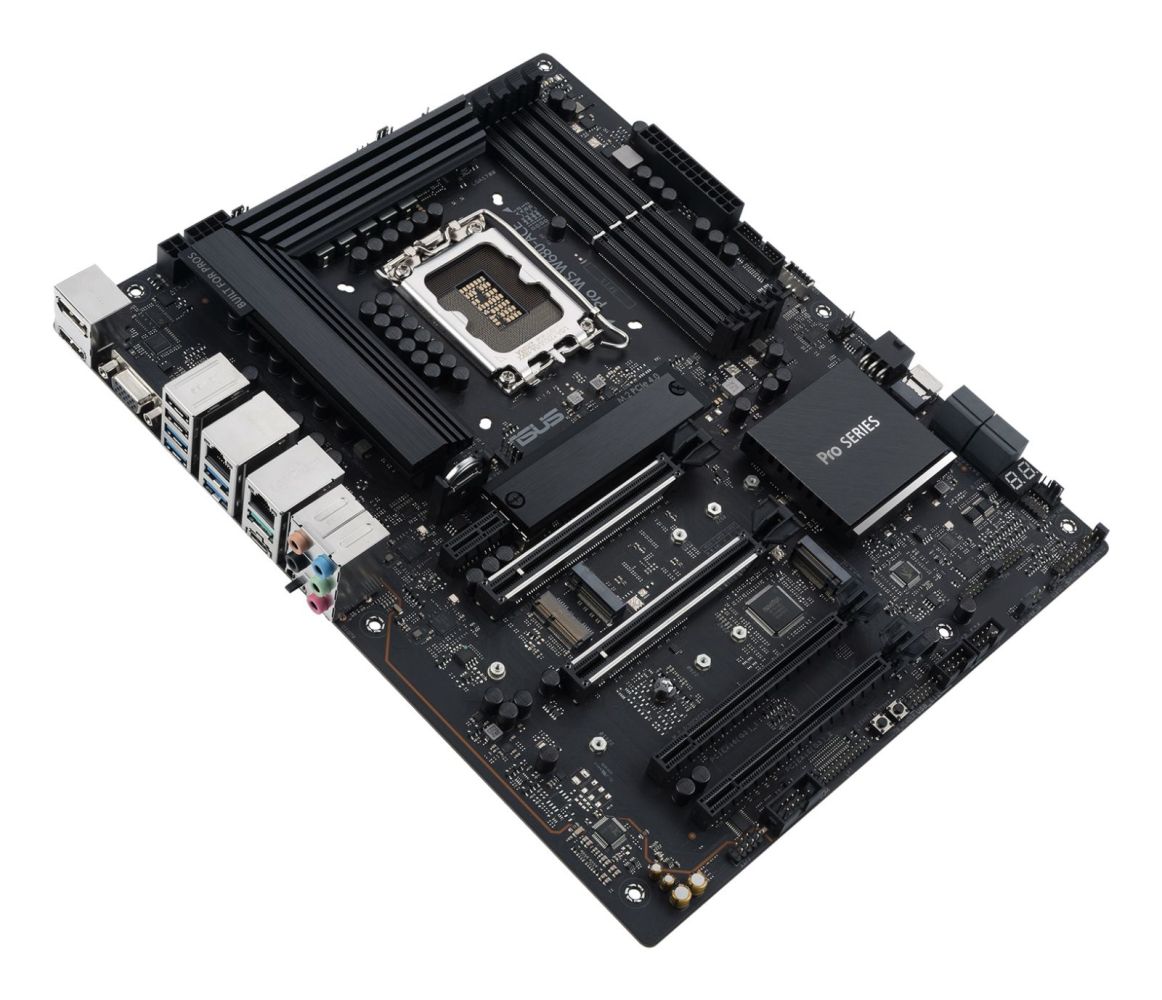

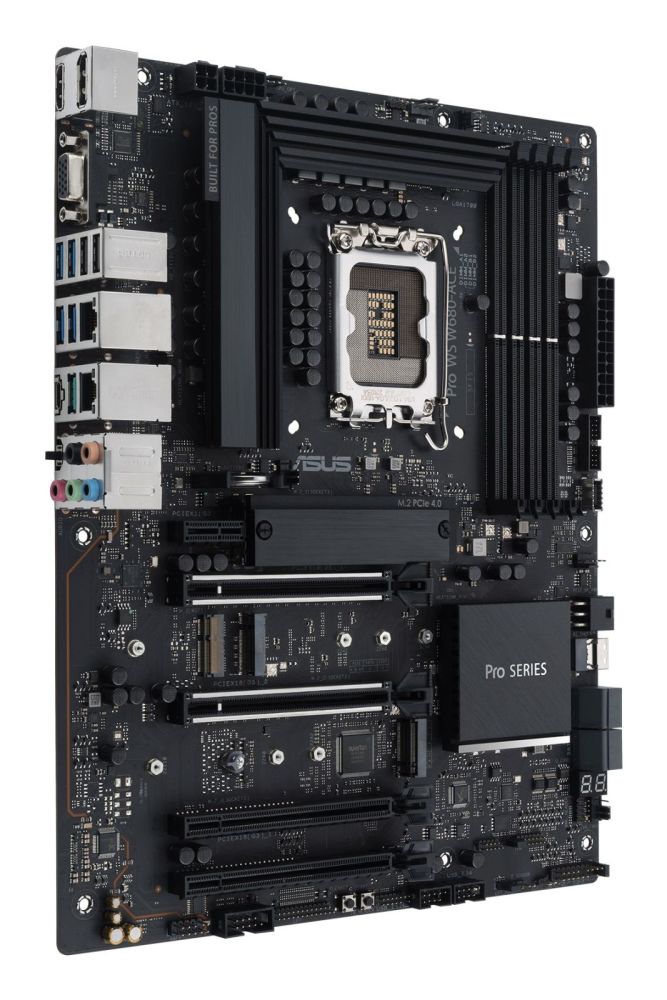

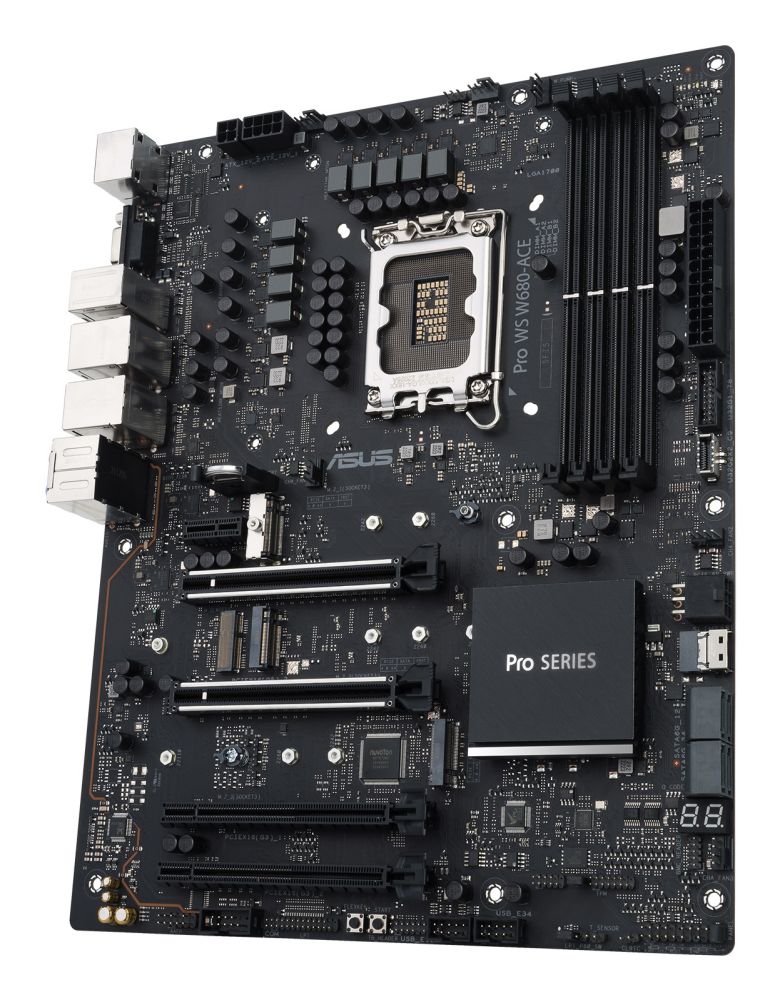

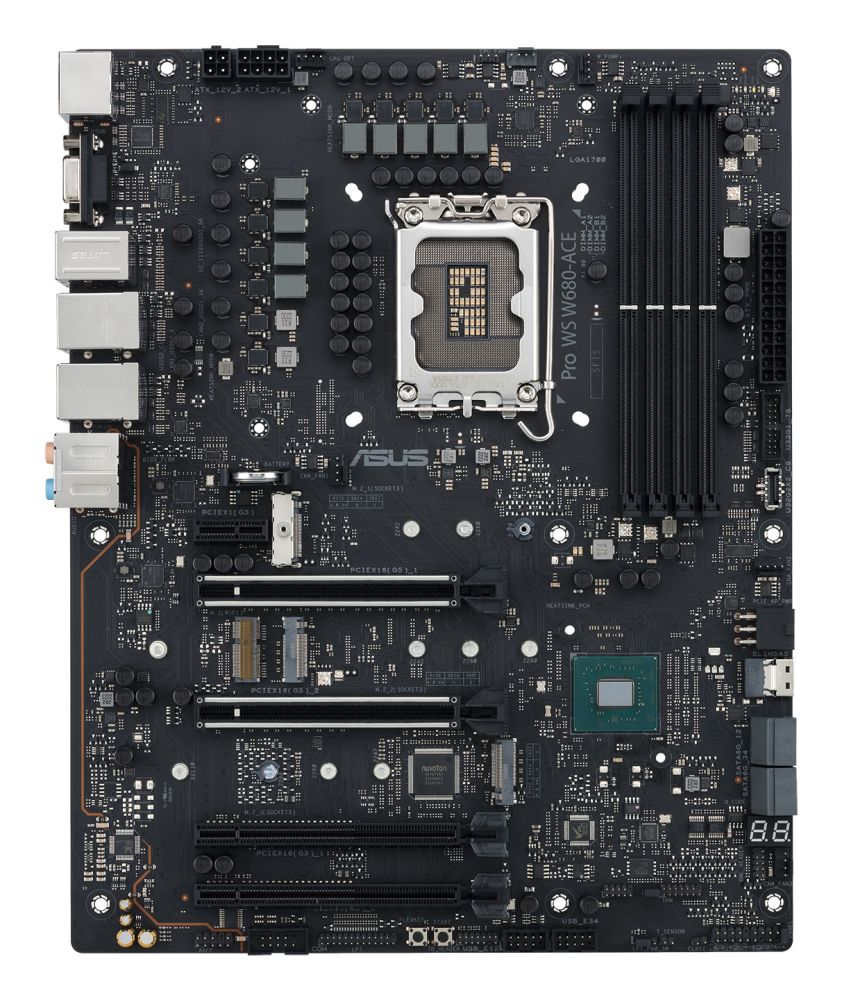

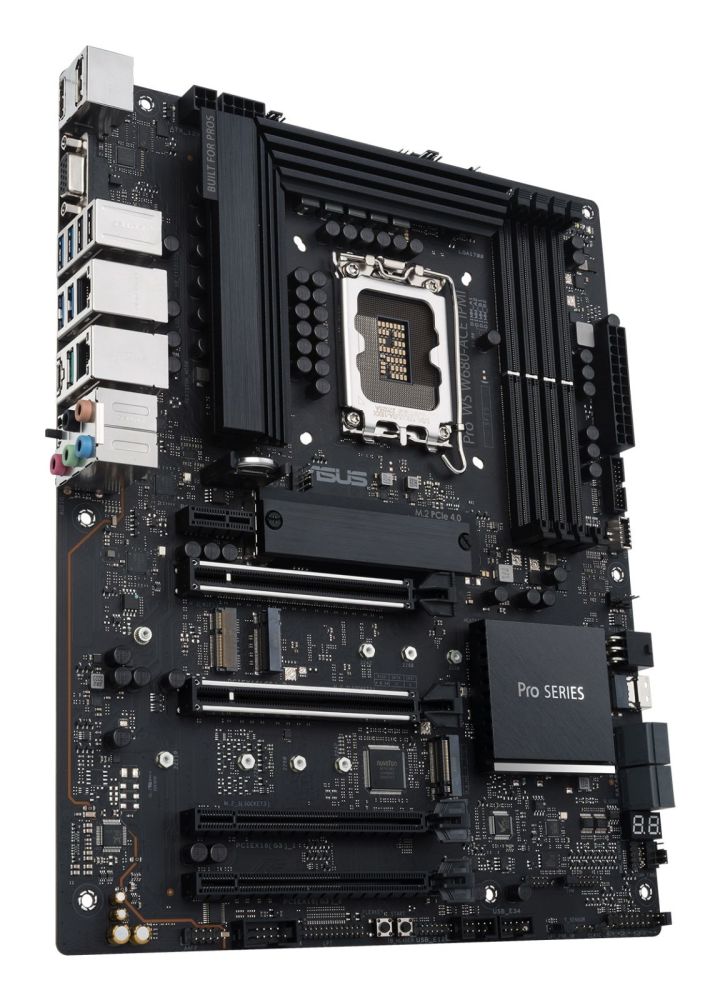

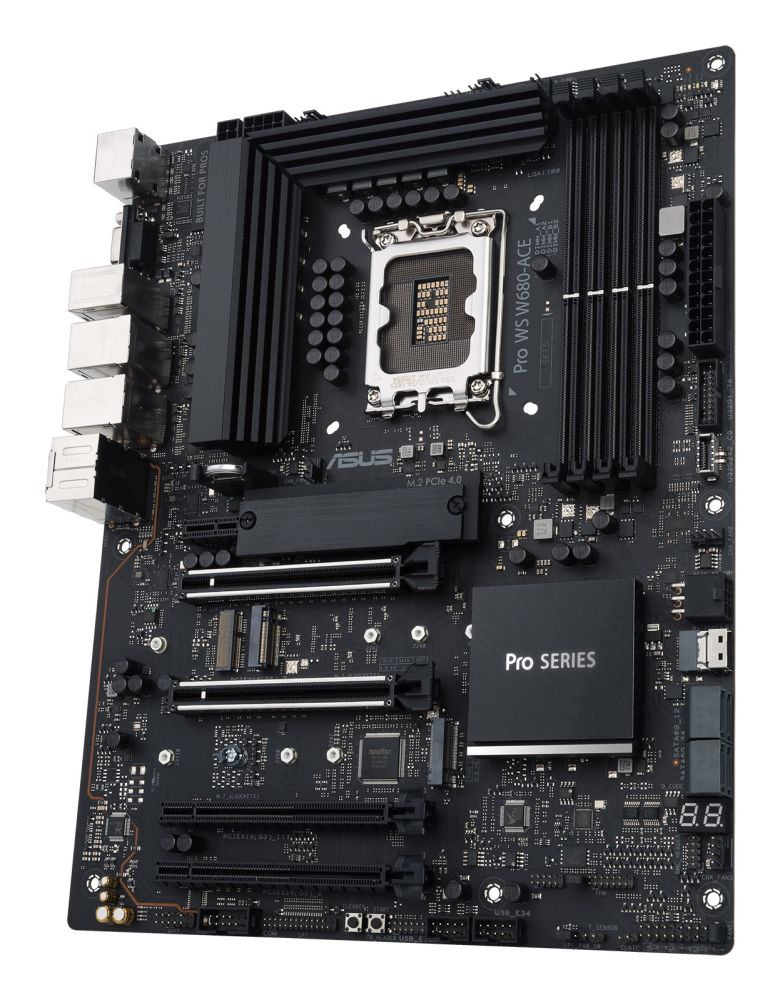

Motherboard ASUS PRO WS W680-ACE
|
-32% 449,05 EUR 661,69 EUR |
|
|
( 534,37 EUR incl. VAT ) ≈ £376.30 | ≈ $504.28 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Lieske Part No.: | 466469 |
| Mfg Part No: | 90MB1DZ0-M0EAY0 |
| UPC/EAN: | 4711387006177 |
| Weight: | 1.616 kg |
Product information for ASUS 90MB1DZ0-M0EAY0:
ATX Mainboard, W680, LGA1700, 4x DDR5 slots, max. 192GB, dual PC5-38400E/DDR5-4800 ECC, dual PC5-48000U/DDR5-6000 (OC), VGA, HDMI, DP, USB-C, 2x PCIe 5.0 x16, 2x PCIe 3.0 x16 (x4), PCIe 3.0 x1, 2x M.2 PCIe 4.0 x4 (2280/2260/2242), 1x M.2 PCIe 4.0 x4 (221
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
| Features | |
| Motherboard chipset | Intel W680 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| Integrated SAS ports | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 997 g |
| Number of M.2 (E) slots | 1 |
| Back-to-BIOS button | |
| Packaging content | |
| Cables included | SATA |
| User guide | |
| Packaging data | |
| Package width | 331 mm |
| Package depth | 266 mm |
| Package height | 76 mm |
| Package weight | 1.18 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |

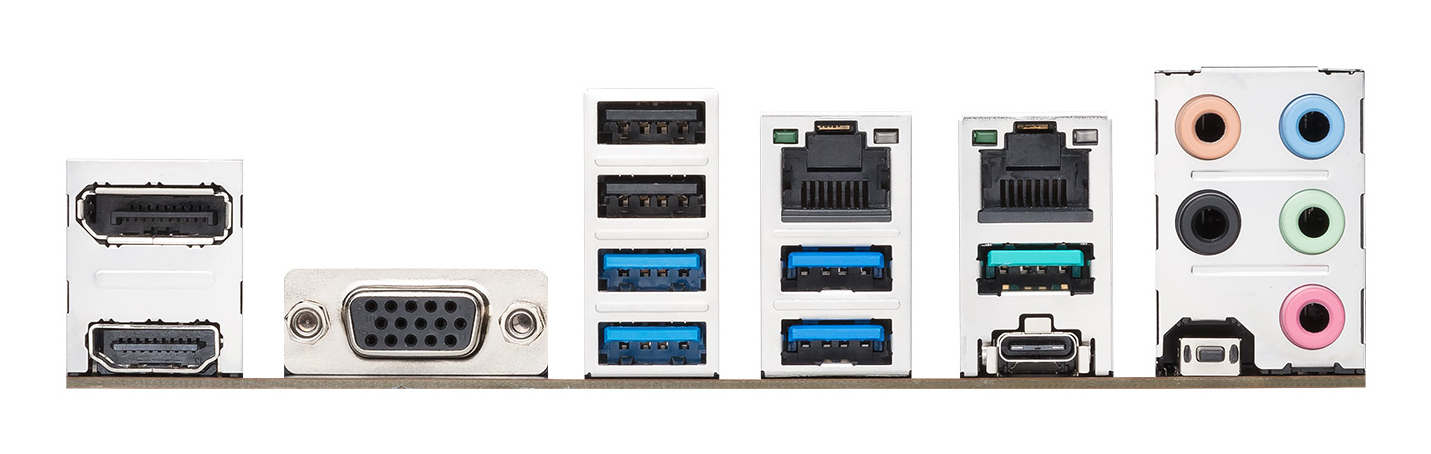

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 11 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 50 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
