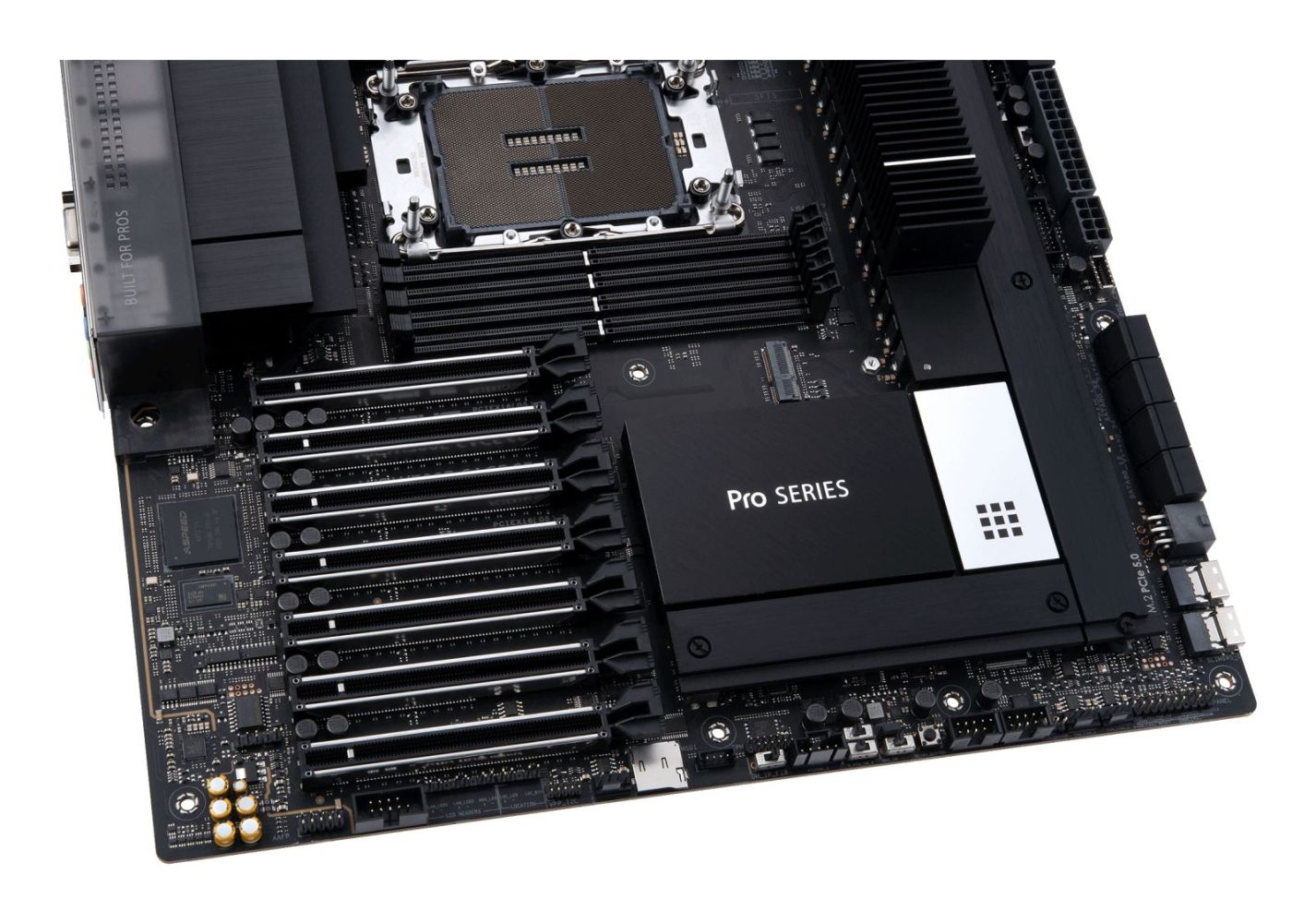

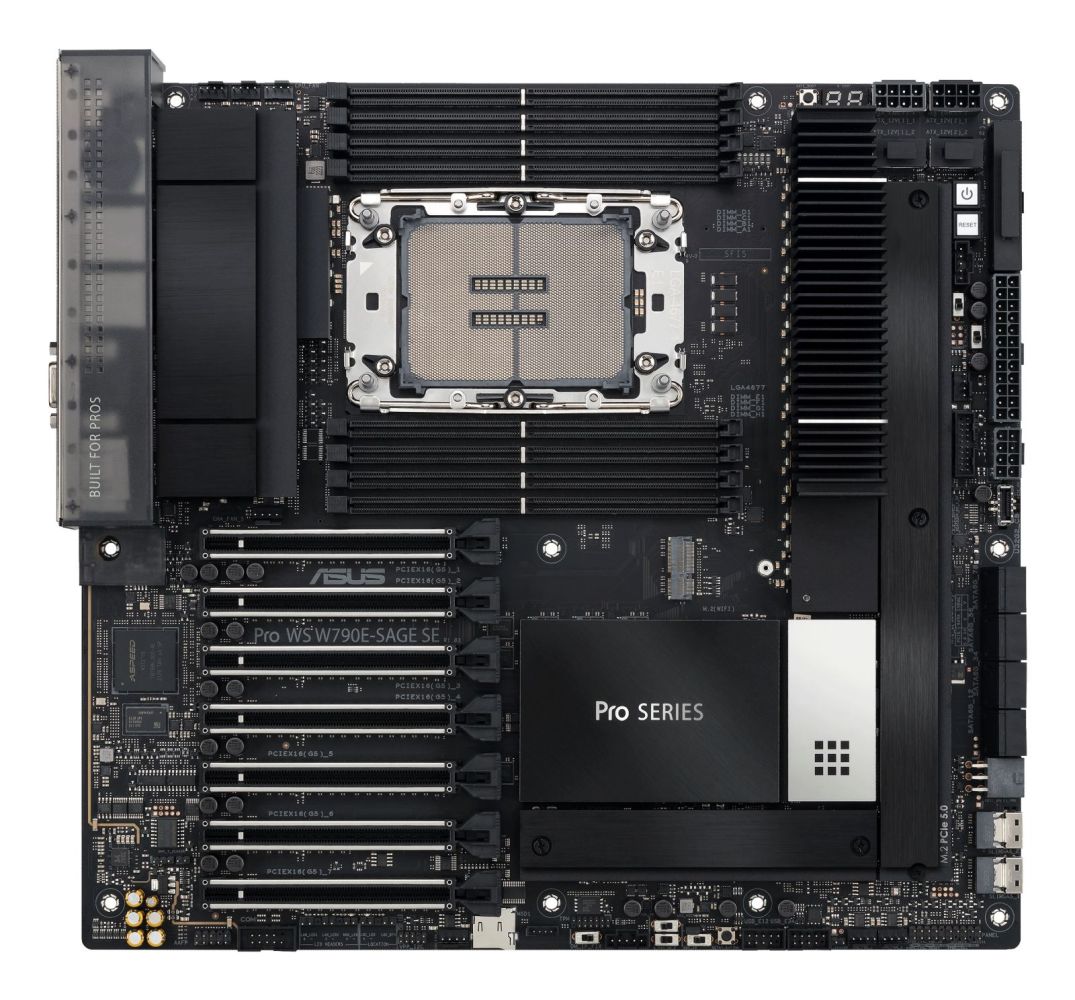

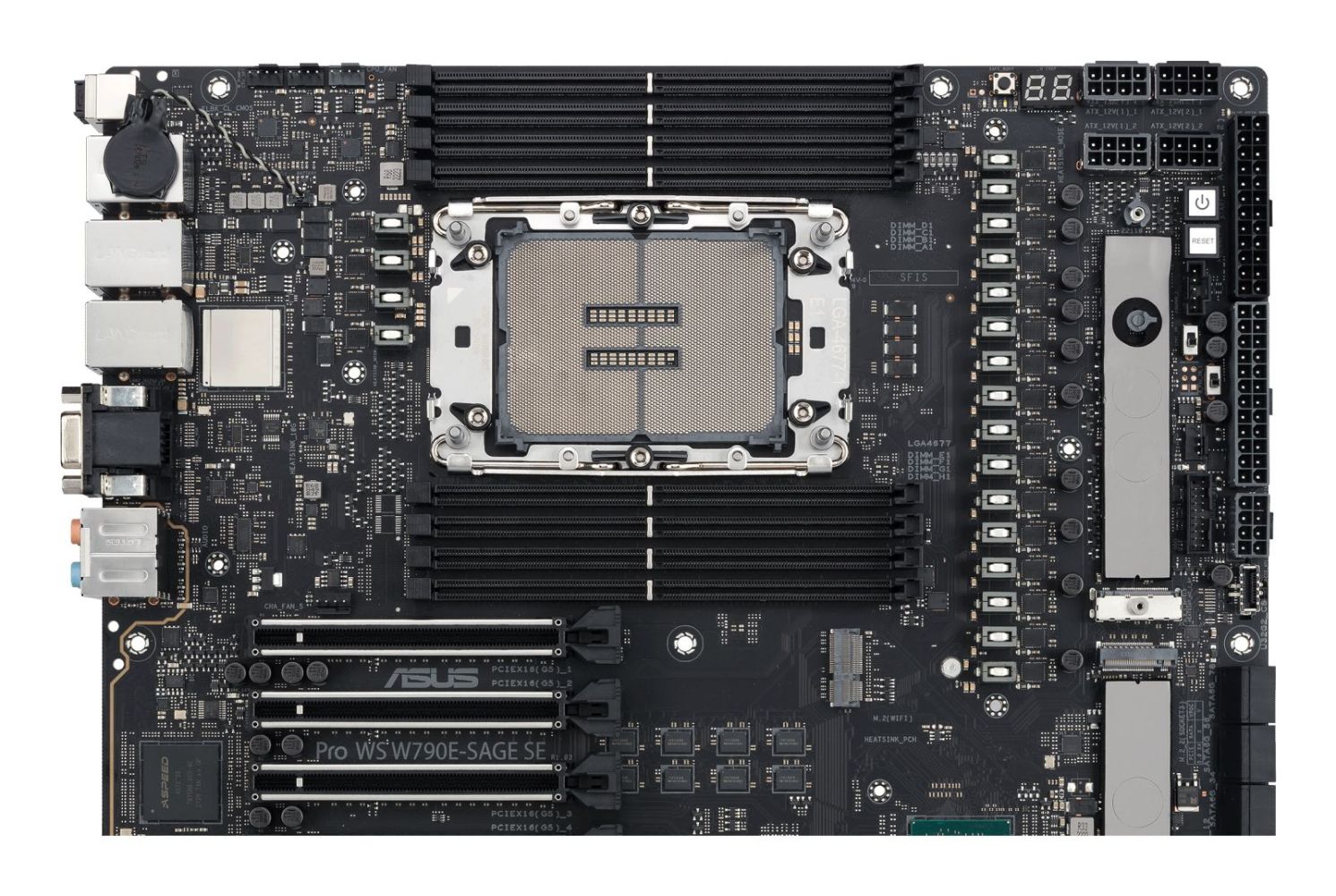

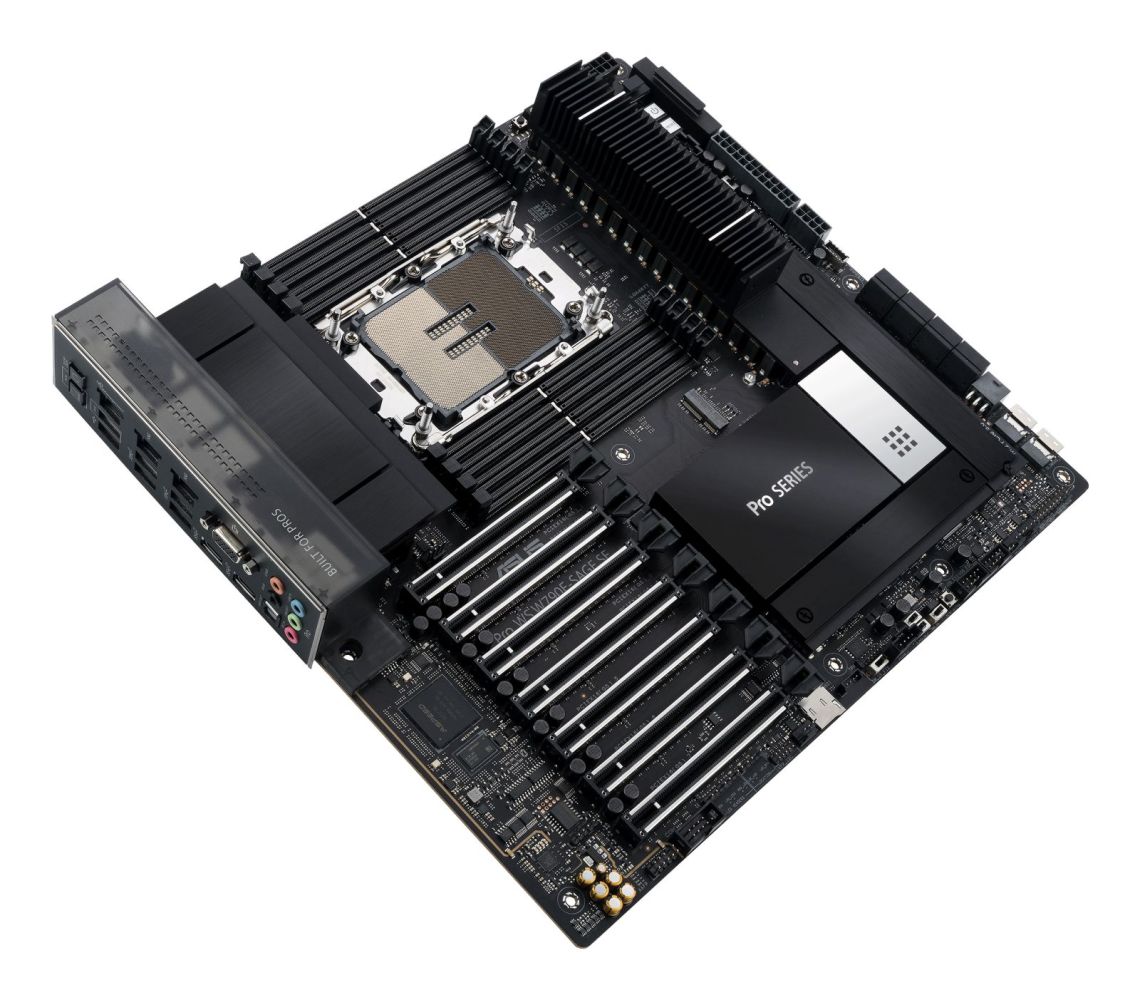

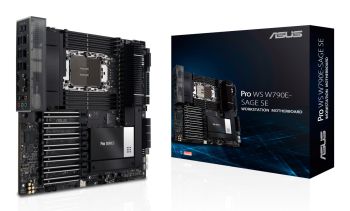

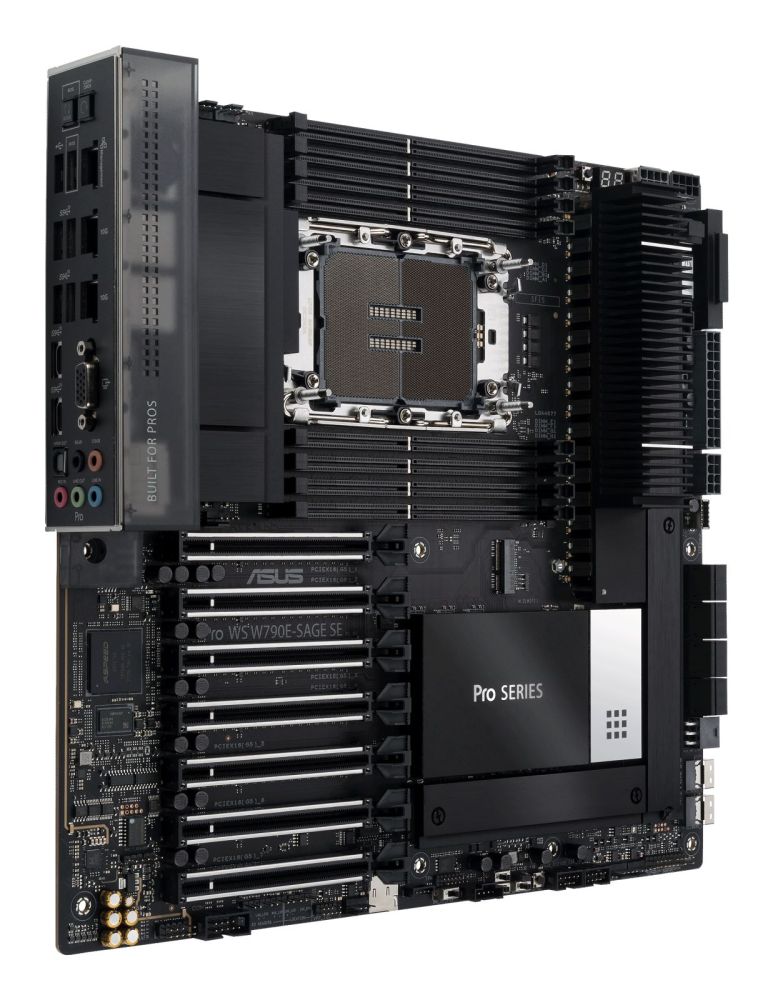

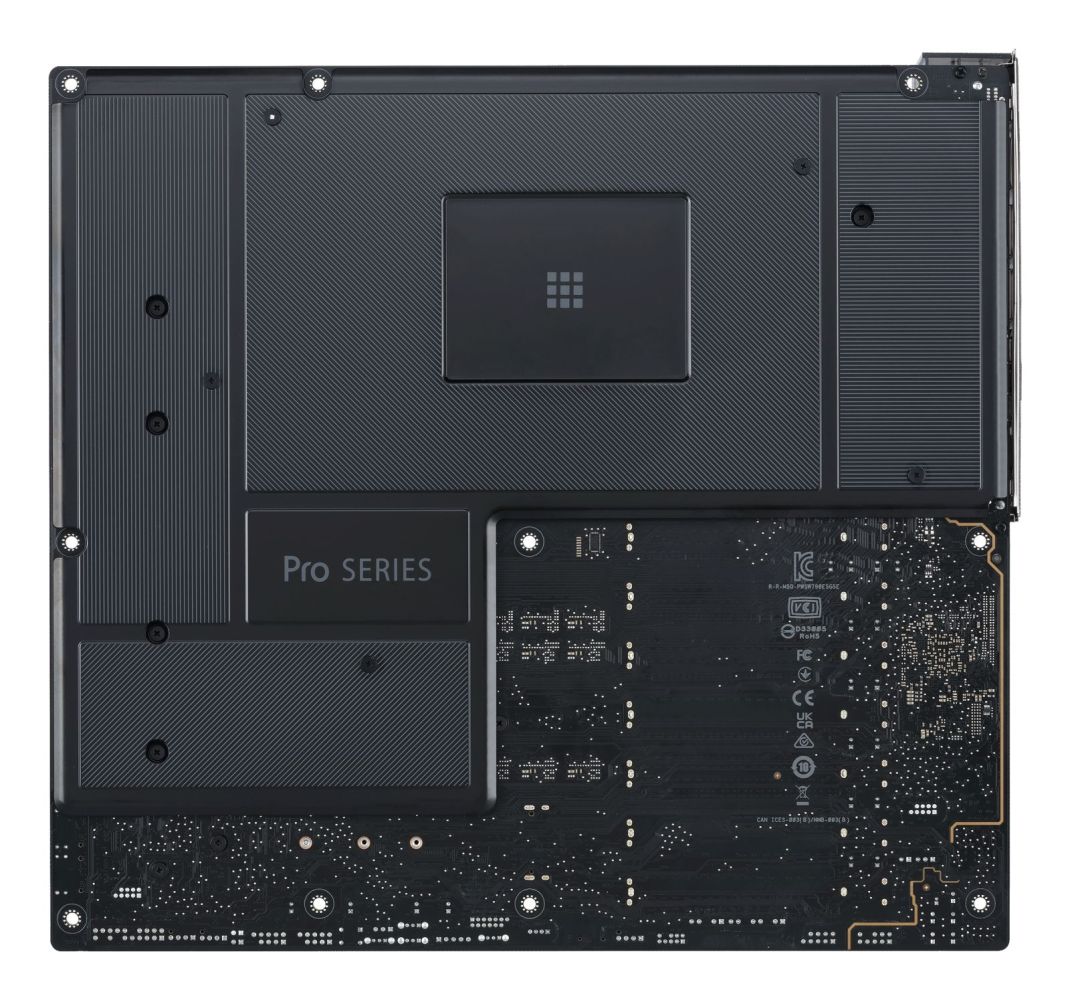

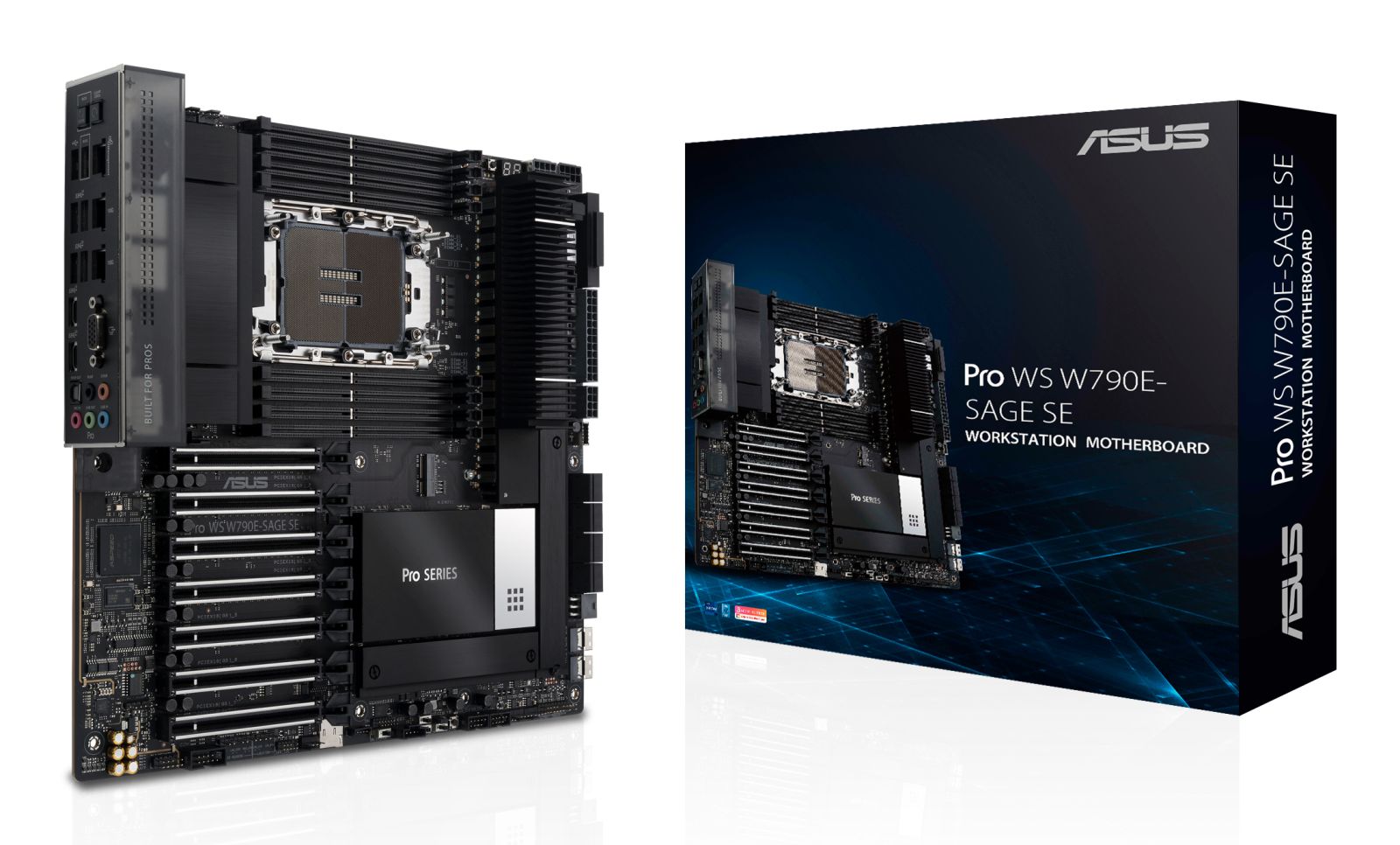

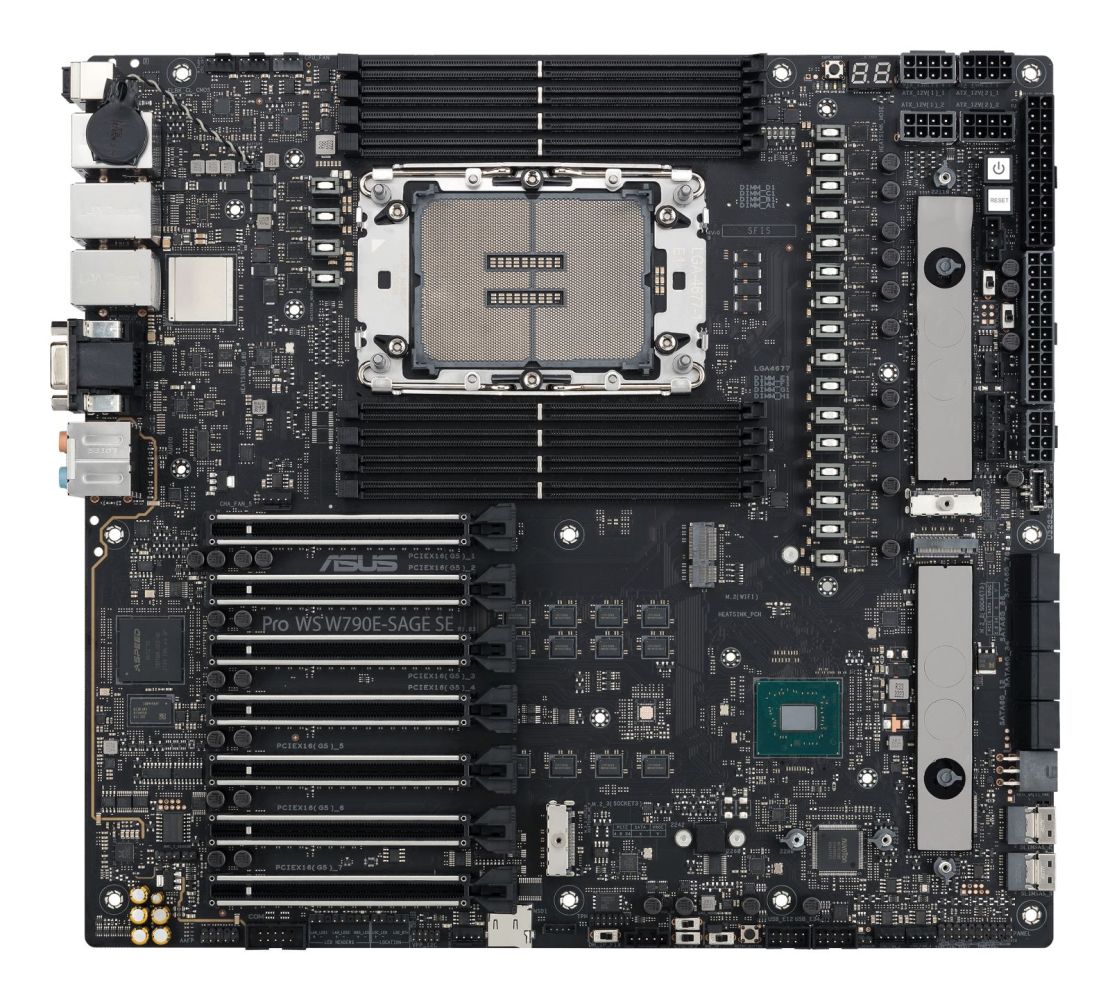

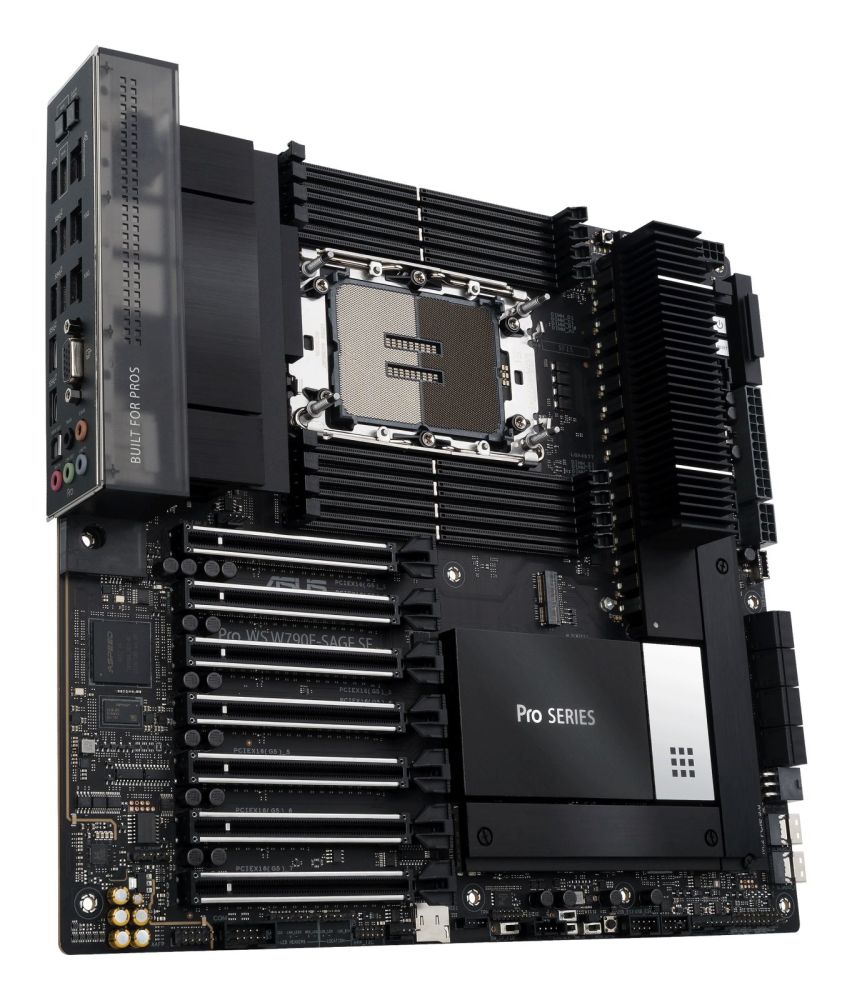

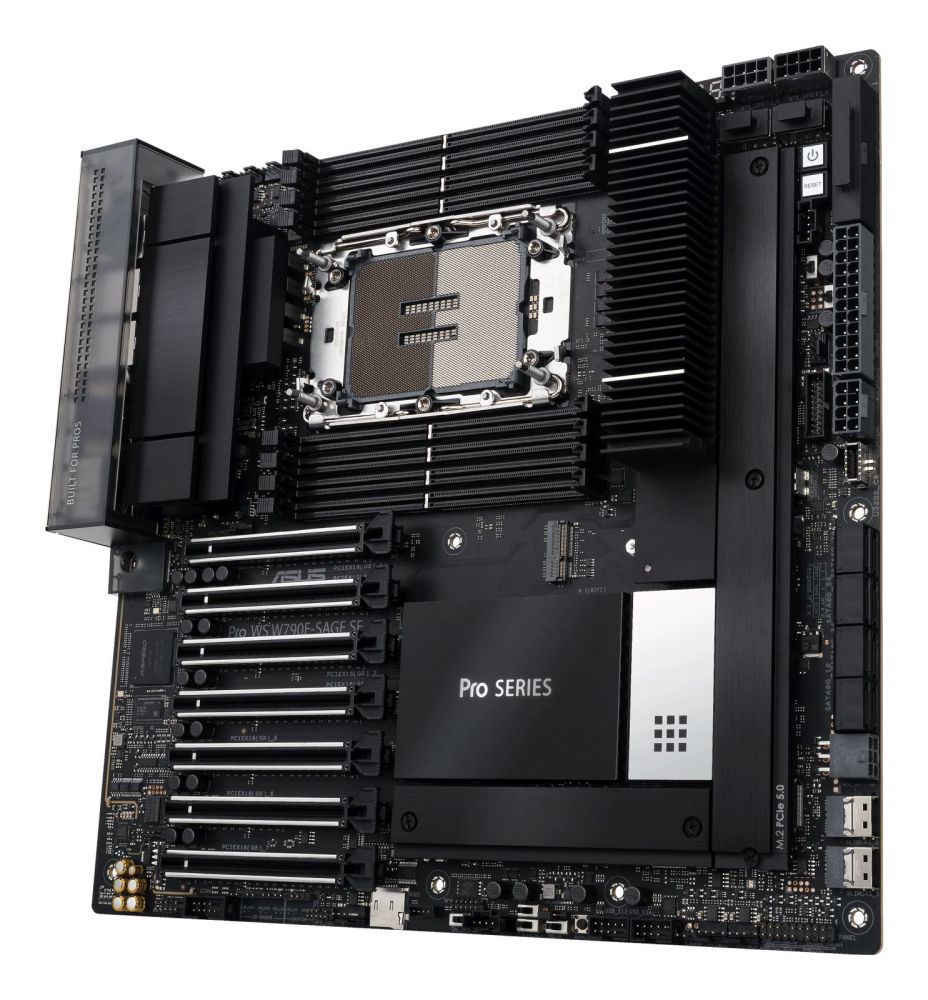

Motherboard ASUS PRO WS W790E-SAGE SE (Intel,LGA4677,DDR5,EEB)
|
1.089,89 EUR 1.091,84 EUR |
|
|
( 1.296,97 EUR incl. VAT ) ≈ £913.33 | ≈ $1,223.95 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2088200 |
| Mfg Part No: | 90MB1C20-M0EAY0 |
| UPC/EAN: | 4711387123515 |
| Weight: | 4.066 kg |
Product information for ASUS 90MB1C20-M0EAY0:
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | |
| Expansion slots | |

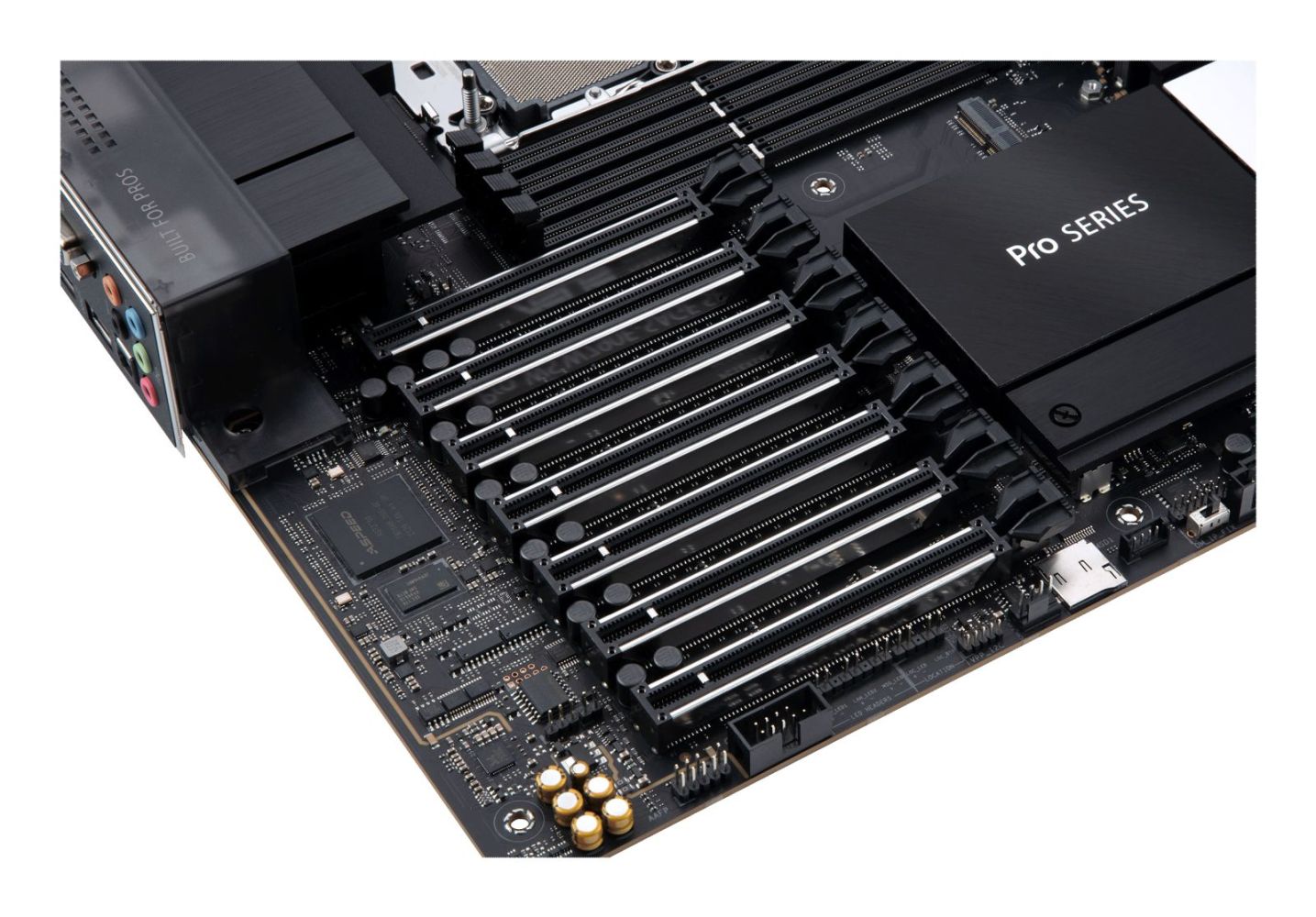

| PCI Express x16 (Gen 5.x) slots | 7 |

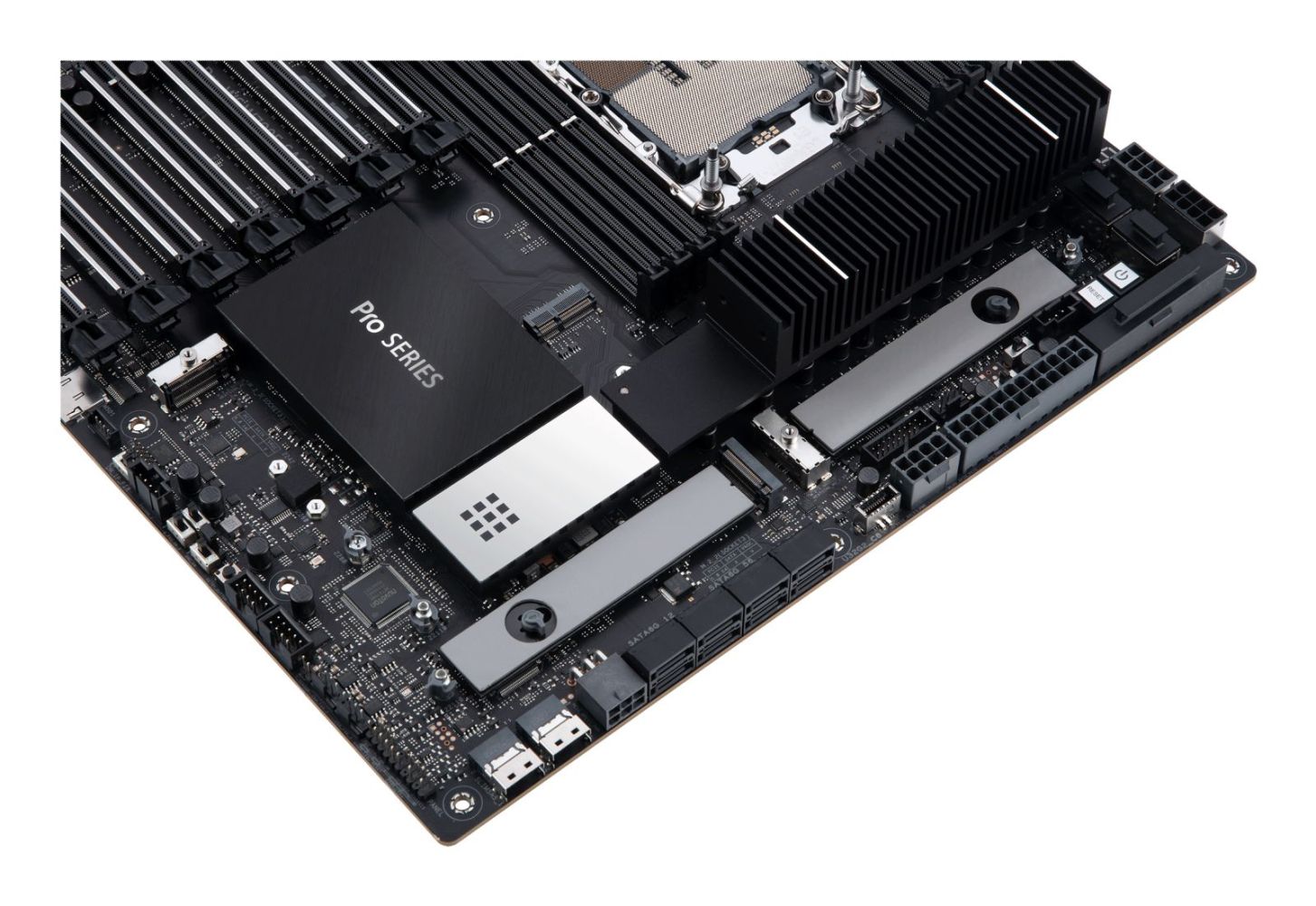

| Number of M.2 (M) slots | 3 |
| Features | |
| Motherboard chipset | Intel W790 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | EEB |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 5 |
| Number of COM connectors | 1 |
| Integrated SAS ports | 2 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| Power fan connector | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Supported memory clock speed (max) | 6800 MHz |
| Maximum internal memory | 2 TB |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Number of M.2 (E) slots | 1 |
| Back-to-BIOS button | |
| Packaging content | |
| Cables included | SATA |
| User guide | |
| Packaging data | |
| Package width | 379 mm |
| Package depth | 362 mm |
| Package height | 81 mm |
| Package weight | 2.99 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-2400, W-3400 |
| Supported processor sockets | LGA 4677 (Socket E) |

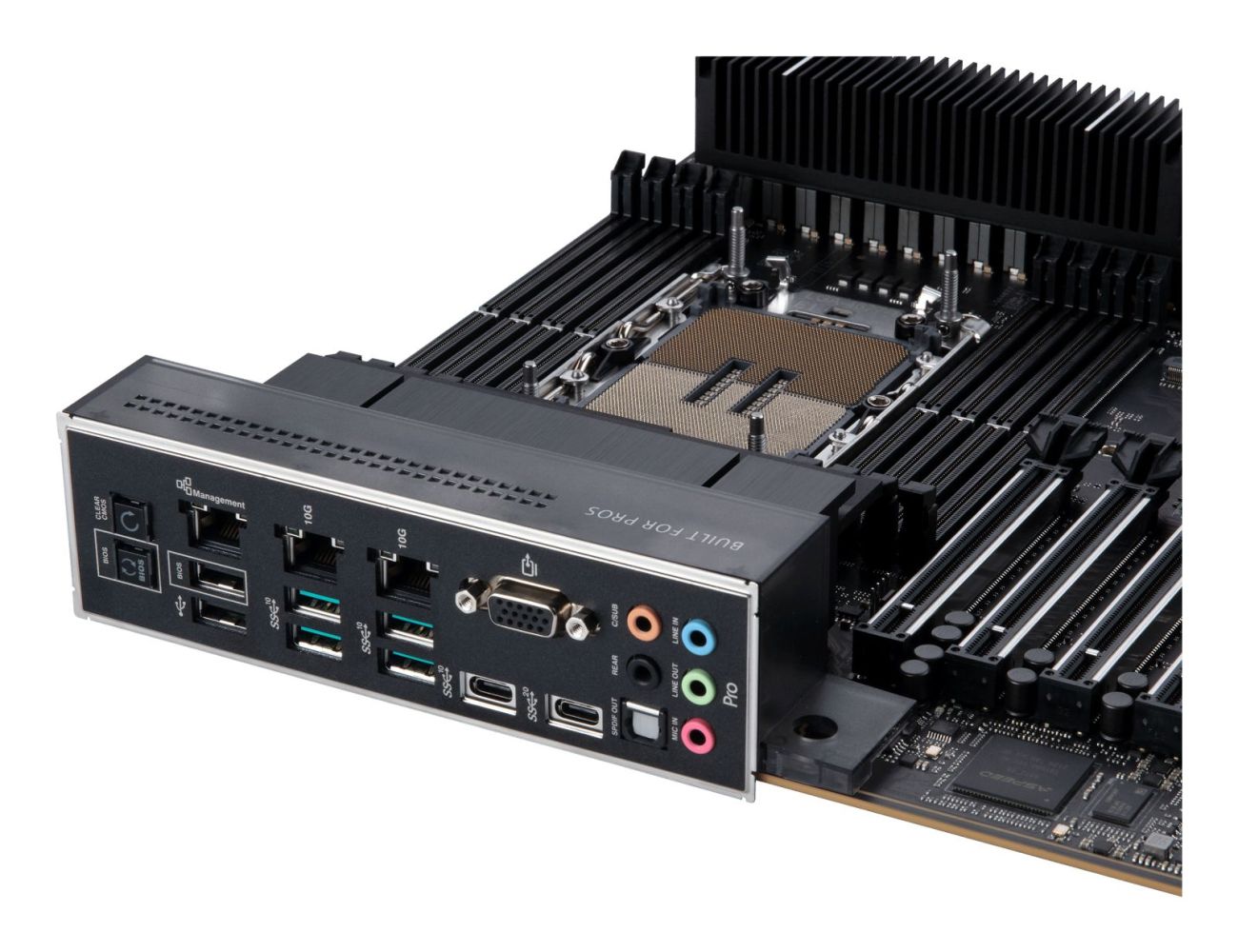

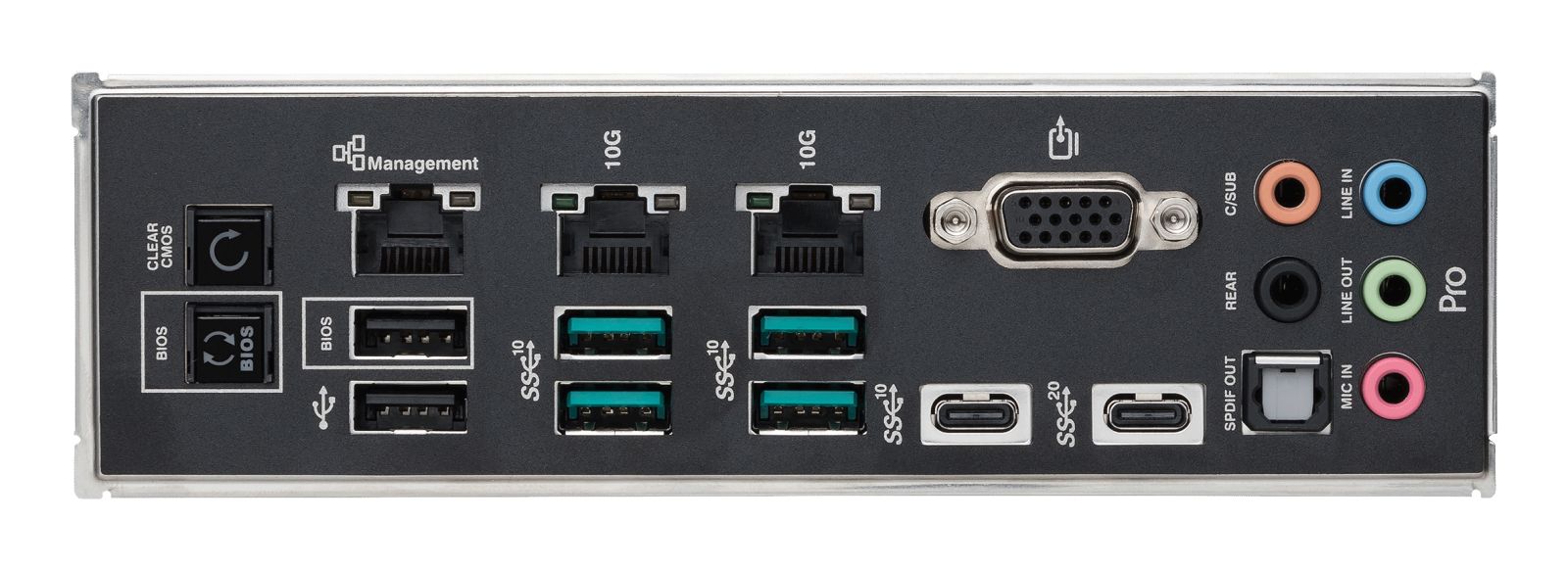

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SlimSAS, M.2, SATA III |
| Number of HDDs supported | 10 |
| Number of storage drives supported | 13 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 330 mm |
Questions & answers
What is the delivery time of Motherboard ASUS PRO WS W790E-SAGE SE (Intel,LGA4677,DDR5,EEB)?
The article Motherboard ASUS PRO WS W790E-SAGE SE (Intel,LGA4677,DDR5,EEB) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1C20-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Motherboard ASUS PRO WS W790E-SAGE SE (Intel,LGA4677,DDR5,EEB) always at the best possible price. We can give you a discount of 2% on Motherboard ASUS PRO WS W790E-SAGE SE (Intel,LGA4677,DDR5,EEB) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
