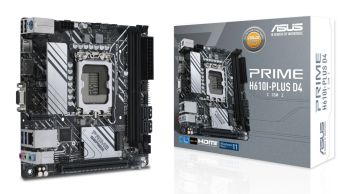

Motherboard ASUS PRIME H610I-PLUS D4-CSM (Intel,1700,DDR4,mITX)
|
109,19 EUR |
|
|
( 129,94 EUR incl. VAT ) ≈ £91.39 | ≈ $122.18 plus delivery charges: 55,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1938531 |
|---|---|
| Mfg Part No: | 90MB1B20-M0EAYC |
| UPC/EAN: | 4711081755753 |
| Weight: | 0.771 kg |
Product information for ASUS 90MB1B20-M0EAYC:
2x DDR4 Unbuffered DIMM, non-ECC, max. 64GB (2x 32GB)
Intel H610 Chipset, Realtek HD Audio 7.1, Realtek 1Gb LAN RTL8111
1x M.2 slot (Key M) supports PCIe 3.0 x4 mode, 4x SATA 6Gb/s
1x PCIe 4.0 x16 slot, 1x Vertical M.2 slot (Key E, CNVi) for WiFi module
1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x D-Sub (VGA)
Supports up to 3 Displays simultaneously
2x USB 3.2 Gen2*, 2x USB 3.2 Gen1*, 4x USB 2.0* (*Type-A)
3x Audio jacks, 1x PS/2, 1x RJ45, option: 1x COM, 1x SPI TPM
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Compatible operating systems | Windows® 11 64-bit, Windows® 10 64-bit |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| Power fan connector | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 382 g |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Packaging data | |
| Package width | 226 mm |
| Package depth | 182 mm |
| Package height | 60 mm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 2 |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Weight & dimensions | |
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Height | 71 mm |
Questions & answers
What is the delivery time of Motherboard ASUS PRIME H610I-PLUS D4-CSM (Intel,1700,DDR4,mITX)?
The article Motherboard ASUS PRIME H610I-PLUS D4-CSM (Intel,1700,DDR4,mITX) is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1B20-M0EAYC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Motherboard ASUS PRIME H610I-PLUS D4-CSM (Intel,1700,DDR4,mITX) always at the best possible price. We can give you a discount of 2% on Motherboard ASUS PRIME H610I-PLUS D4-CSM (Intel,1700,DDR4,mITX) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
