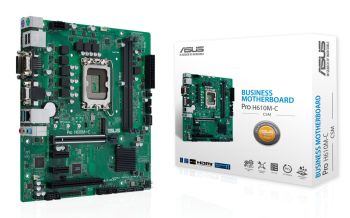

ASUS PRO H610M-C-CSM S1700/DDR5/DP-HDMI-DVI-VGA/PCI/24-7
|
100,69 EUR |
|
|
( 119,82 EUR incl. VAT ) ≈ £84.28 | ≈ $112.27 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1916475 |
| Mfg Part No: | 90MB1AT0-M0EAYC |
| UPC/EAN: | 4711081655152 |
| Weight: | 0.948 kg |
Product information for ASUS 90MB1AT0-M0EAYC:
Intel H610 Chipset
2x DDR5-4800, Unbuffered, Non-ECC, Dual-Channel, max. 64GB (2x 32GB)
1x M.2 (Key M) 2280/2260/2242, PCIe 3.0 x4 mode
4x SATA 6Gb/s ports, Audio HD
1x PCIe 5.0 x16 slot, 2x PCIe 3.0 x1 slot, 1x PCI slot
Intel 1Gb Ethernet (I219-V), WoL/ PXE
1x DisplayPort 1.4* (4K@60Hz), 1x HDMI 2.1** (4K@60Hz), 1x D-Sub (VGA), 1x DVI-D
Supports up to 3 Displays simultaneously
2x PS/2, 2x USB 3.2 Gen2 ports*, 2x USB 2.0 ports* (*Type-A),
1x RJ45 LAN, 3x Audio jacks, 1x COM port, option: 1x TPM module
| BIOS | |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Number of displays supported | 3 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| TPM connector | |
| 12V power connector | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| Wi-Fi | |
| Other features | |
| Weight | 382 g |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| COM ports quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 58 mm |
