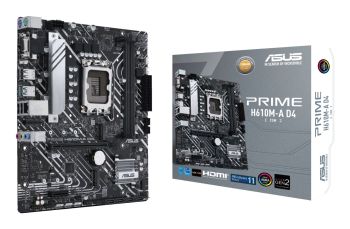

Motherboard ASUS PRIME H610M-A D4-CSM (Intel,1700,DDR4,mATX)
|
-19% 81,08 EUR 99,59 EUR |
|
|
( 96,49 EUR incl. VAT ) ≈ £67.86 | ≈ $90.40 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1915545 |
|---|---|
| Mfg Part No: | 90MB19P0-M0EAYC |
| UPC/EAN: | 4711081514442 |
| Weight: | 1 kg |
Product information for ASUS 90MB19P0-M0EAYC:
Intel H610 Chipset
2x DDR4 Unbuffered DIMM, non-ECC, max. 64GB (2x 32GB)
1x PCIe 4.0 x16 Slot, 1x PCIe 3.0 x1 Slot
2x M.2 Key M supports PCIe/NVMe 3.0 x4 mode, 4x SATA 6Gb/s ports
Realtek 7.1 Surround Sound High Definition Audio CODEC
2x USB 3.2 Gen2 ports Type-A, 4x USB 2.0 ports, 1x DisplayPort 1.4*, 1x HDMI 2.1,
1x D-Sub (VGA)*, 1x Intel 1Gb RJ-45, 3x Audio jacks, 2x PS/2, Option: 1x COM
*) Supports max. 4K@60Hz as specified in DisplayPort 1.4
) Supports max. 4K@60Hz as specified in HDMI 2.1
*) Supports max. 1920x1200@60Hz for D-Sub (VGA)
Supports up to 3 Displays simultaneously
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| S/PDIF out connector | |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM, LPDDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| Wi-Fi | |
| Other features | |
| Weight | 382 g |
| Packaging content | |
| Cables included | SATA |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 211 mm |
| Height | 221 mm |
