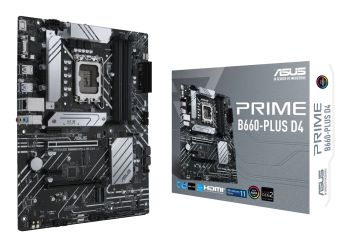

Motherboard ASUS PRIME B660-PLUS D4 (Intel,1700,DDR4,ATX)
|
130,67 EUR |
|
|
( 155,50 EUR incl. VAT ) ≈ £109.37 | ≈ $145.70 plus delivery charges: 55,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1915182 |
|---|---|
| Mfg Part No: | 90MB18X0-M1EAY0 |
| UPC/EAN: | 4711081523017 |
| Weight: | 1.176 kg |
Product information for ASUS 90MB18X0-M1EAY0:
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| Features | |
| Motherboard chipset | Intel B660 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| S/PDIF out connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| RGB LED pin header | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 891 g |
| Packaging content | |
| Cables included | SATA |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 3 |
| USB connector type | USB Type-A, USB Type-C |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 53 mm |
Questions & answers
What is the delivery time of Motherboard ASUS PRIME B660-PLUS D4 (Intel,1700,DDR4,ATX)?
The article Motherboard ASUS PRIME B660-PLUS D4 (Intel,1700,DDR4,ATX) is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB18X0-M1EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Motherboard ASUS PRIME B660-PLUS D4 (Intel,1700,DDR4,ATX) always at the best possible price. We can give you a discount of 2% on Motherboard ASUS PRIME B660-PLUS D4 (Intel,1700,DDR4,ATX) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
