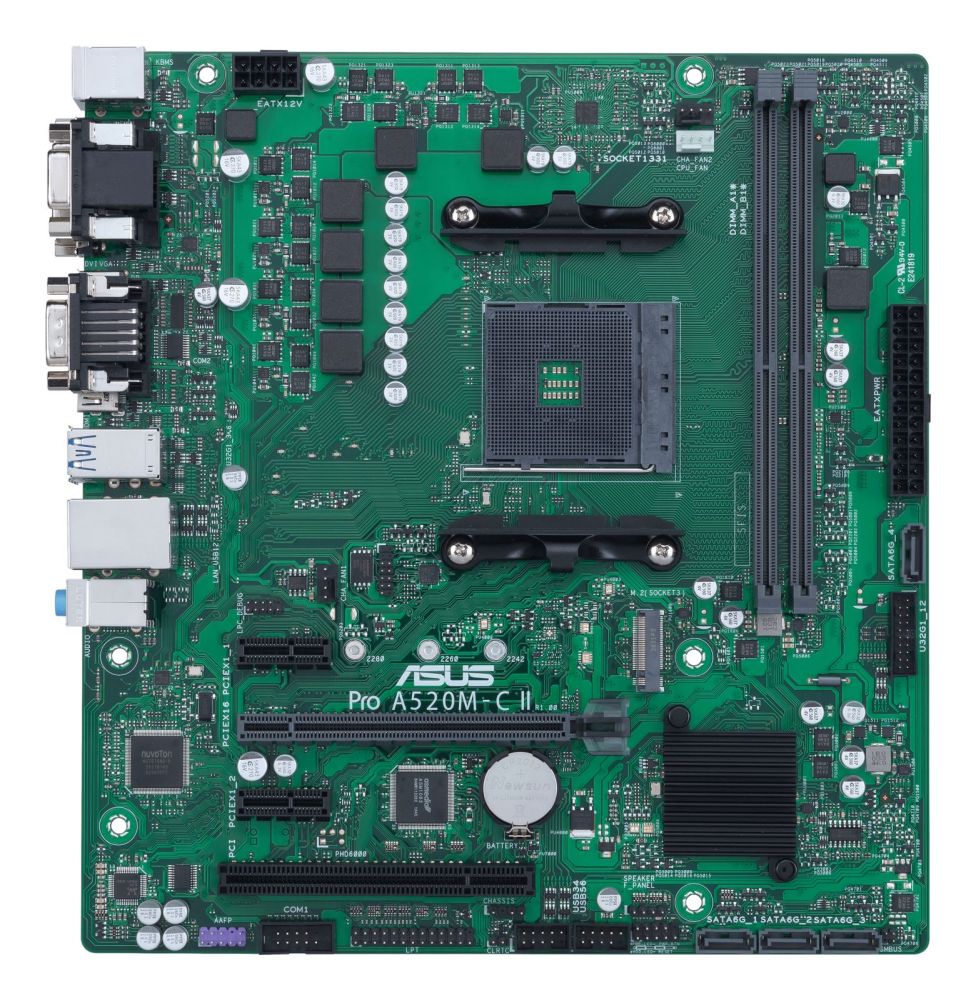

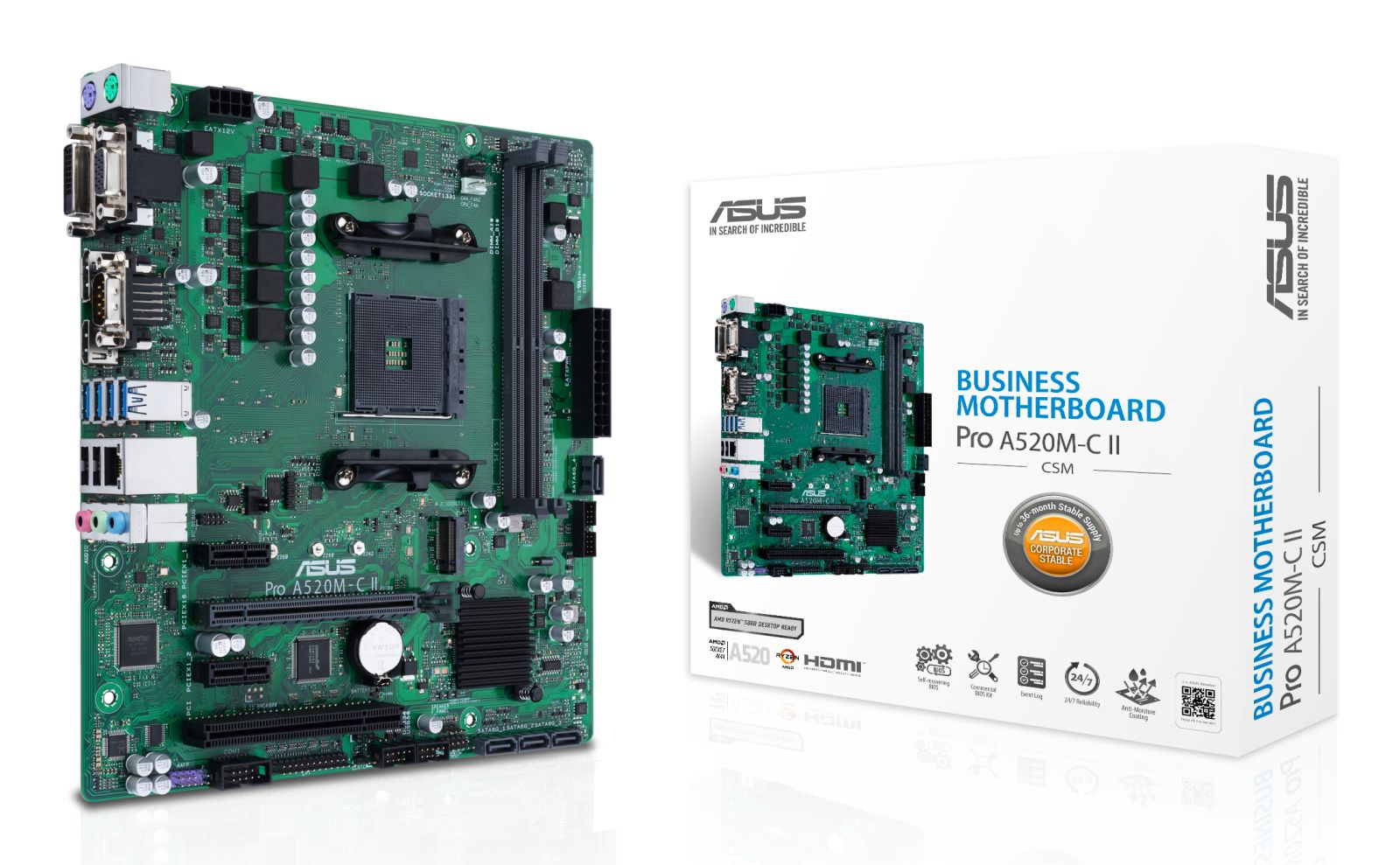

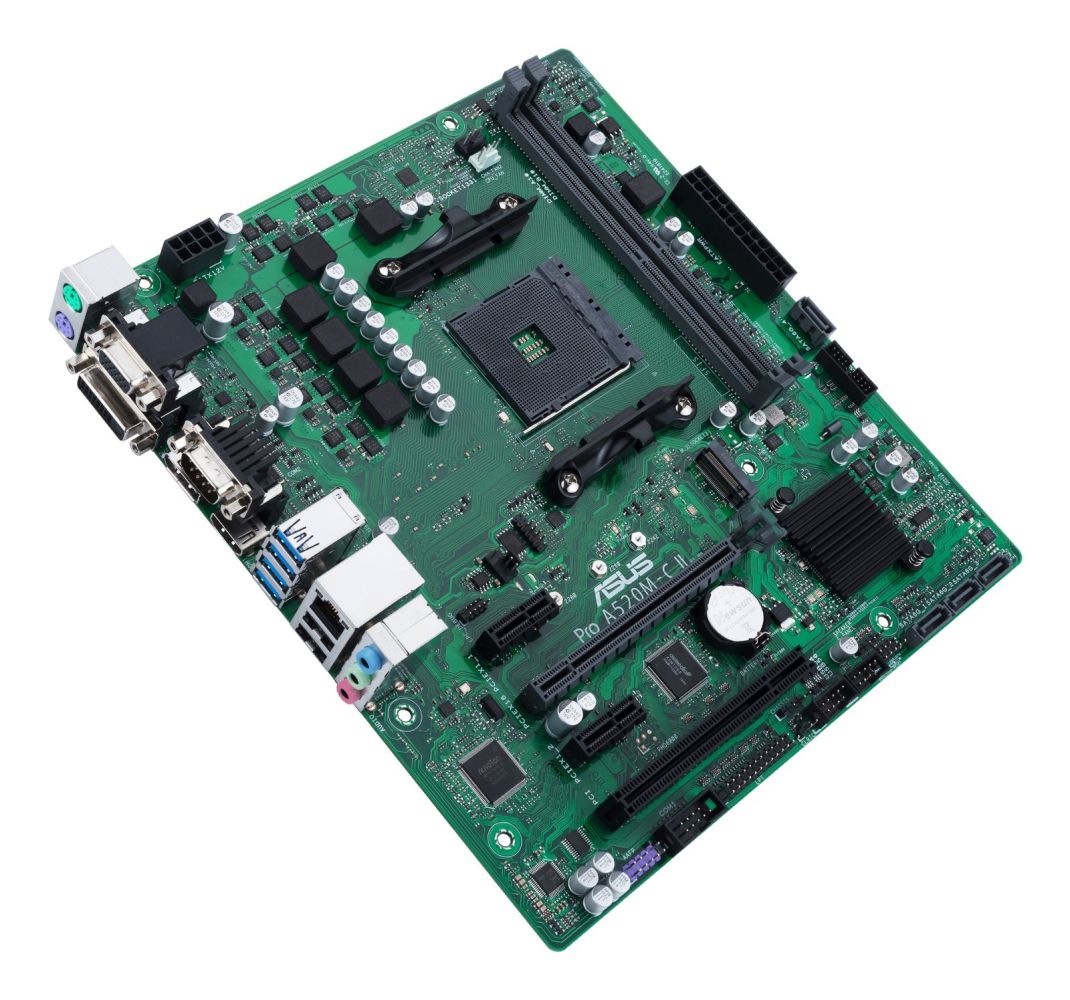

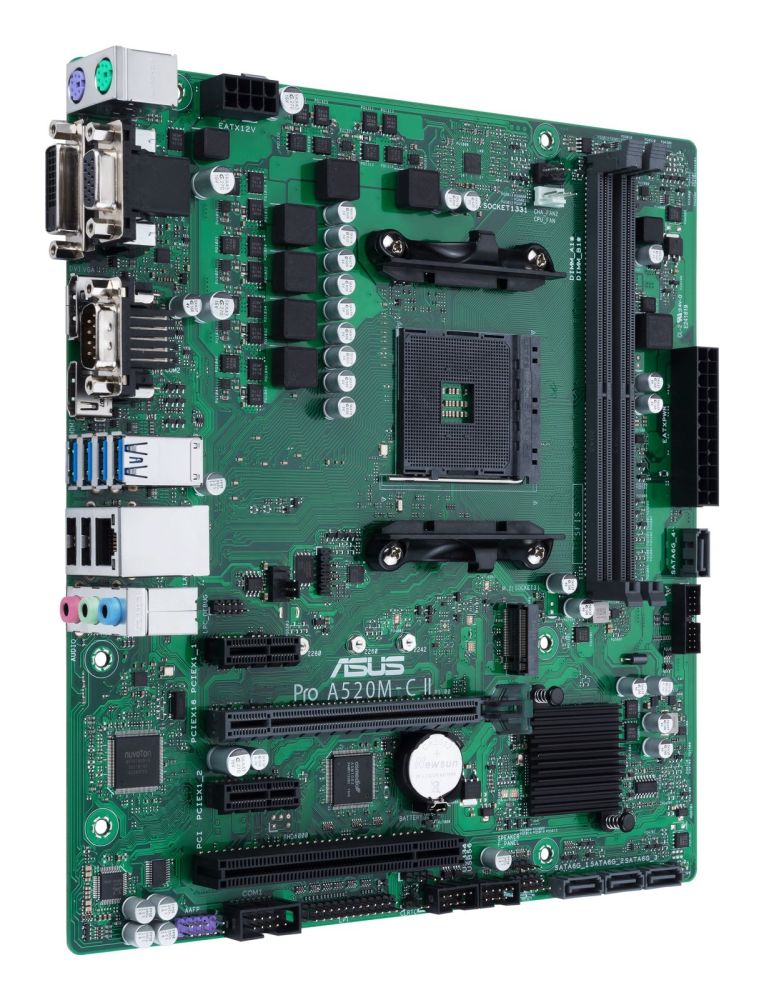

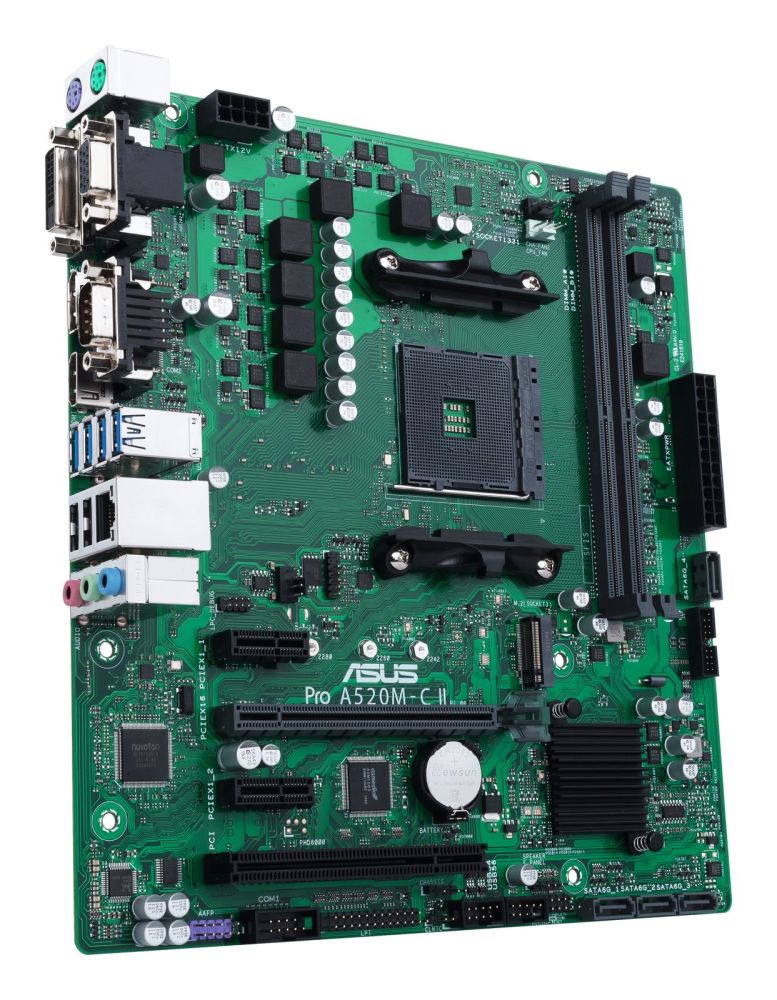

Motherboard ASUS PRO A520M-C II/CSM (AMD,AM4,DDR4,mATX)
|
78,44 EUR |
|
|
( 93,34 EUR incl. VAT ) ≈ £66.36 | ≈ $87.70 plus delivery charges: 53,00 € |
|
| On order · Expected to be available from 20.10.2026info_outline | |
| Lieske Part No.: | 161025 |
|---|---|
| Mfg Part No: | 90MB18F0-M0EAYC |
| UPC/EAN: | 4711081250098 |
| Weight: | 0.92 kg |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 2 |
| Serial port headers | 1 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| Parallel connector | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4400,4600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 910 g |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |

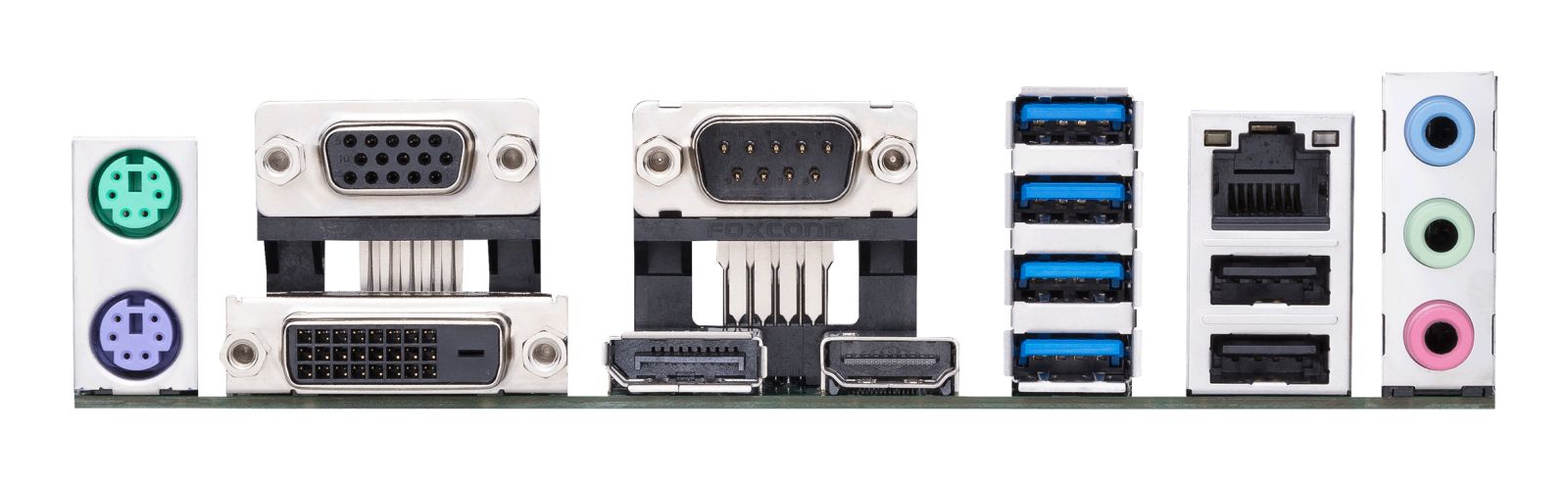

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| COM ports quantity | 1 |
| USB connector type | USB Type-A |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 229 mm |
Questions & answers
What is the delivery time of Motherboard ASUS PRO A520M-C II/CSM (AMD,AM4,DDR4,mATX)?
The article Motherboard ASUS PRO A520M-C II/CSM (AMD,AM4,DDR4,mATX) is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB18F0-M0EAYC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Motherboard ASUS PRO A520M-C II/CSM (AMD,AM4,DDR4,mATX) always at the best possible price. We can give you a discount of 2% on Motherboard ASUS PRO A520M-C II/CSM (AMD,AM4,DDR4,mATX) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
