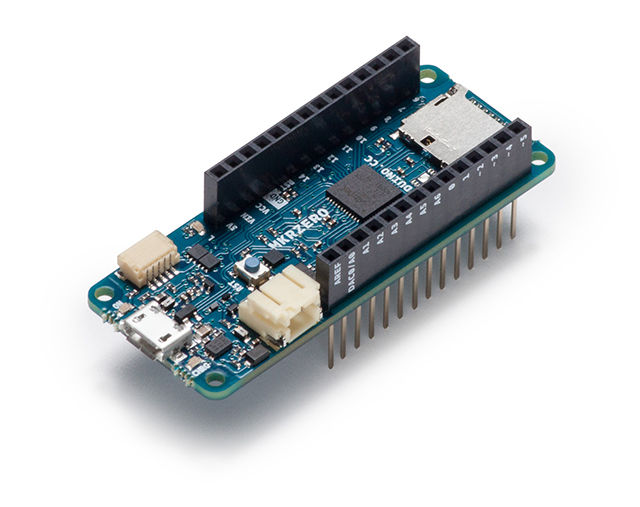

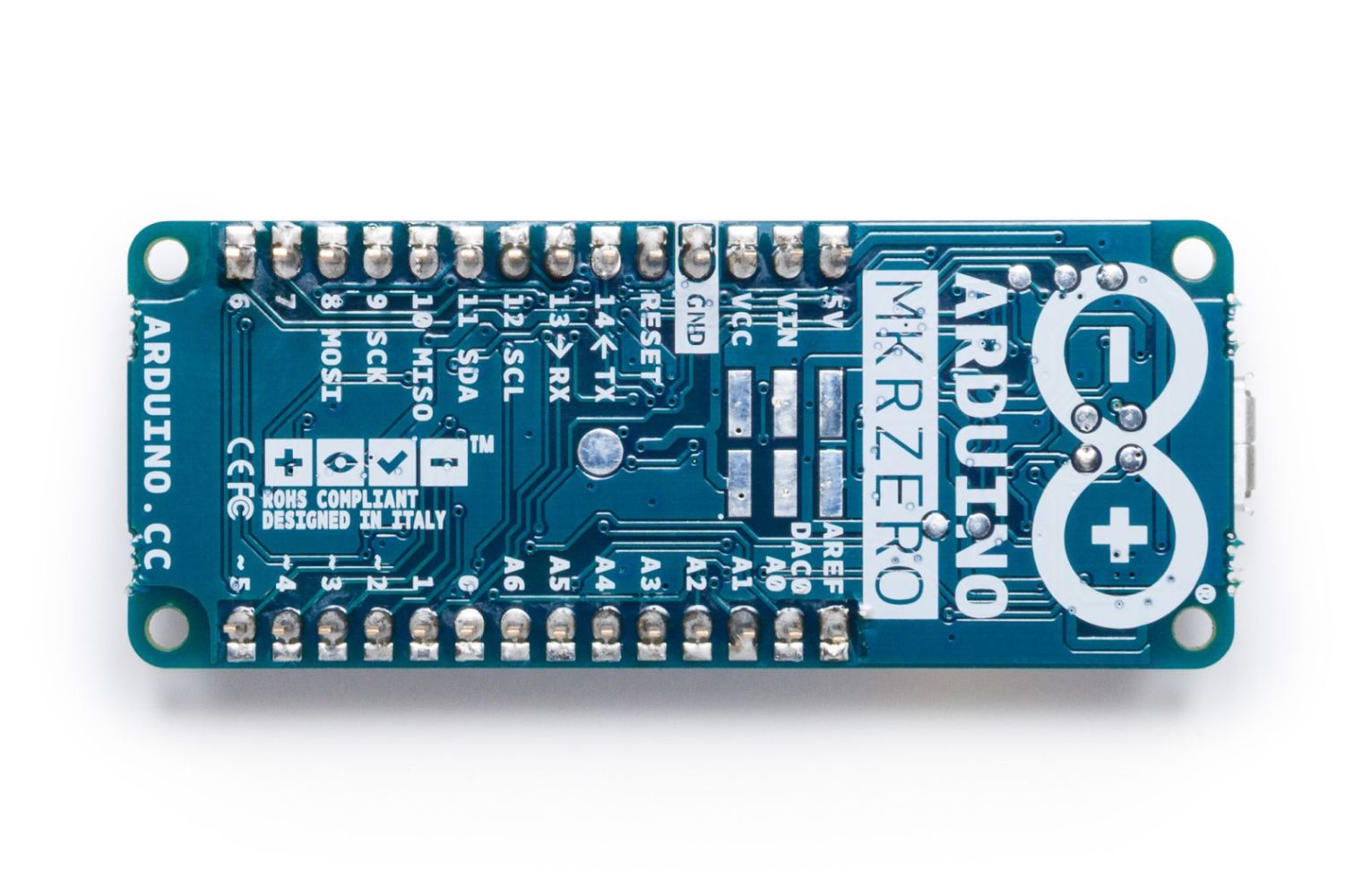

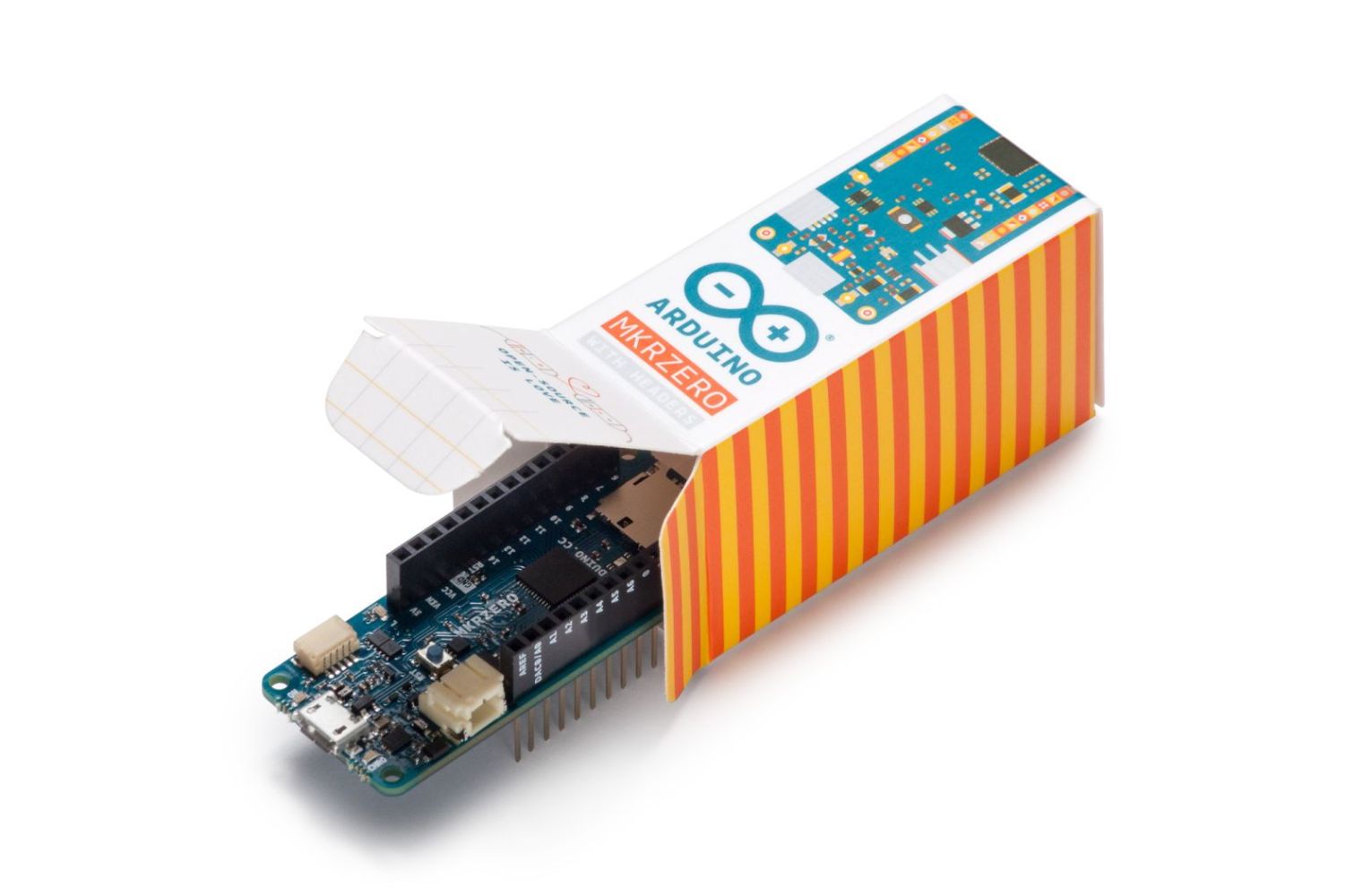

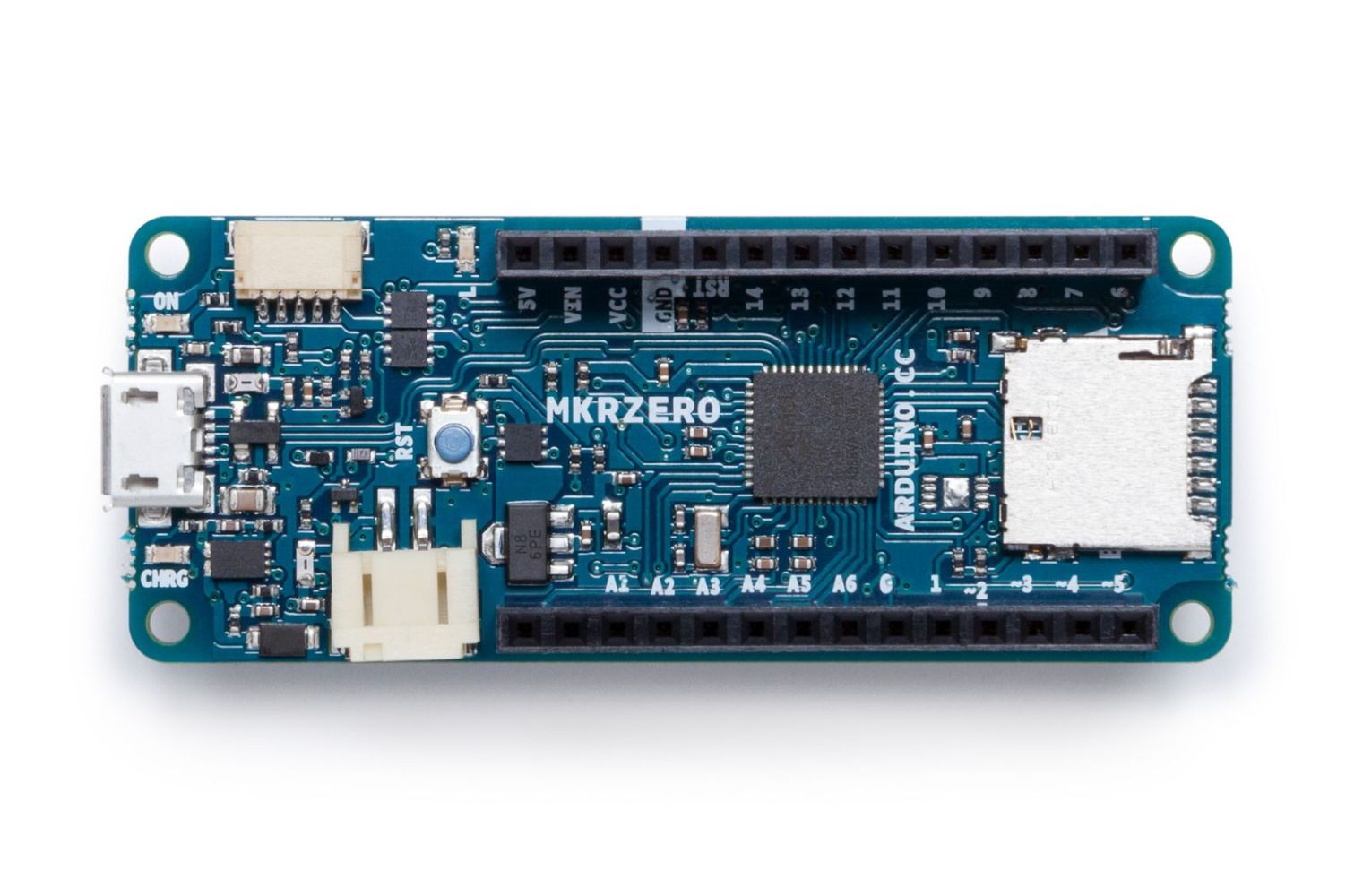

Arduino® Board MKR Zero (I2S Bus & SD for sound, music & digital audio data)
|
26,30 EUR |
|
|
( 31,30 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1044757 |
|---|---|
| Mfg Part No: | ABX00012 |
| UPC/EAN: | 8137470201902 |
| Weight: | 0.01 kg |
Product information for ARDUINO ABX00012:
MKR ZERO has a built-in SD port with dedicated SPI interfaces (SPI1) that allows you to play around with music files without additional hardware! For those who don't know, I2S (Inter-IC Sound) is an electrical serial bus interface standard for connecting digital audio devices.
Attention musicians: we have some news for you! We have shared two libraries for you:
- Arduino Sound Library - an easy way to play and analyze audio data with Arduino on SAM D21 based boards.
- I2S library - for using the I2S protocol on SAMD21 based boards. Arduino® MKR Zero
The MKR ZERO gives you the performance of an Arduino Zero in a smaller form factor defined by the MKR form factor. The MKR ZERO Board is a great teaching tool to learn more about developing 32-bit applications. It has a built-in SD port with special SPI interfaces (SPI1) that allows you to play with MUSIC files without additional hardware! The board is powered by Atmel's SAMD21 MCU with a 32-bit ARM Cortex® M0+ core.
Technical specificationsMicrocontroller SAMD21 Cortex-M0+ 32bit low power ARM MCU Board Power Supply (USB/VIN) 5V Supported Battery(*) Li-Po single cell, 3.7V, 700mAh minimum DC Current for 3.3V Pin 600mA DC Current for 5V Pin 600mA Circuit Operating Voltage 3.3V Digital I/O Pins 22 PWM Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19) UART 1 SPI 1 I2C 1 Analog Input Pins 7 (ADC 8/10/12 bit) Analog Output Pins 1 (DAC 10 bit) External Interrupts 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17) DC Current per I/O Pin 7 mA Flash Memory 256 KB Flash Memory for Bootloader 8 KB SRAM 32 KB EEPROM no Clock Speed 32,768 kHz (RTC), 48 MHz LED_BUILTIN 32 Full-Speed USB Device and embedded Host
Questions & answers
What is the delivery time of Arduino® Board MKR Zero (I2S Bus & SD for sound, music & digital audio data)?
The article Arduino® Board MKR Zero (I2S Bus & SD for sound, music & digital audio data) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ARDUINO ABX00012 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Arduino® Board MKR Zero (I2S Bus & SD for sound, music & digital audio data) always at the best possible price. We can give you a discount of 2% on Arduino® Board MKR Zero (I2S Bus & SD for sound, music & digital audio data) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
