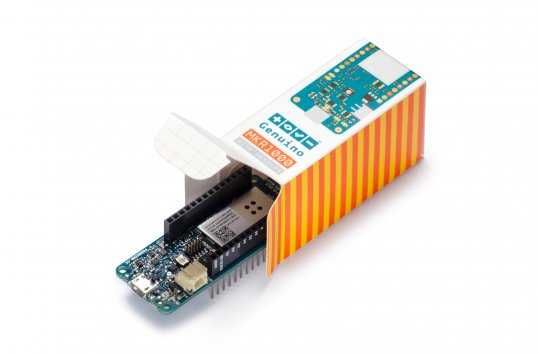

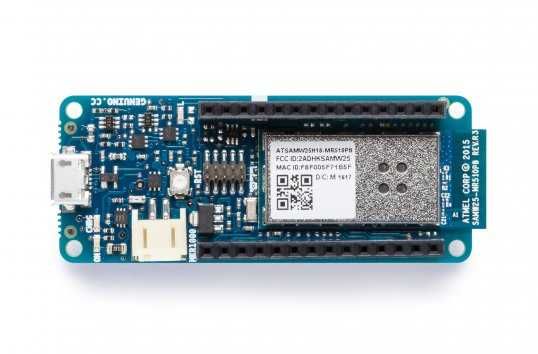

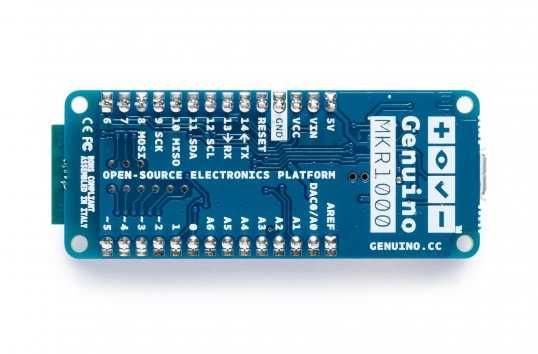

Arduino® Board MKR WIFI 1000 (WLAN) (with headers mounted)

MKR1000 combines the functionality of Zero and WiFi Shield. Perfect for IoT projects!
Overview
MKR1000 is designed to provide a practical and cost-effective solution for manufacturers who want to integrate WiFi connectivity into their projects and have minimal networking experience. The design includes a Li-Po charging circuit that allows the MKR1000 to work with batteries or external 5V and charge the Li-Po battery with external power. Switching from one source to another occurs automatically.
Technology
MKR1000 has good 32 bit computing power, similar to the Zero Board, the usual I/O interfaces, low power WiFi with a cryptochip for secure communication and the easy operation of the Genuino software (IDE) for code development and programming. All these features make this board the preferred choice for the emerging IoT battery powered projects in a compact form. The board comes with the connector header unmounted, so you can customize the board to your project by simply soldering it.
Important note
In contrast to most Genuino boards, the MKR1000 runs at 3.3V. The maximum voltage the I/O pins can tolerate is 3.3V. Applying voltages greater than 3.3V to any I/O pin may damage the card. While output to 5V digital devices is possible, bidirectional communication with 5V devices requires correct level shifting. Li-Po batteries are charged at 4.2V at a current that is typically half the rated capacity (C/2).
For Genuino MKR1000 we use a special chip that has a preset charging current of 350mAh. This means that the minimum capacity of the Li-Po battery should be 700 mAh. Smaller cells are damaged by this current and can overheat, develop internal gases and explode, setting the surrounding area on fire. We strongly recommend choosing a Li-Po battery with at least 700mAh capacity. A larger cell will take more time to charge but will not be damaged or overheated. The chip is programmed with 4 hours of charging time and then goes into automatic sleep mode. This limits the charging amount to a maximum of 1400 mAh per charging round.
Genuino MKR1000 and Arduino MKR1000 share the same components, features and manufacturing qualities. They are actually the same board under a different brand. Depending on where you live, you can buy an Arduino MKR1000 or a Genuino MKR1000. Learn more.

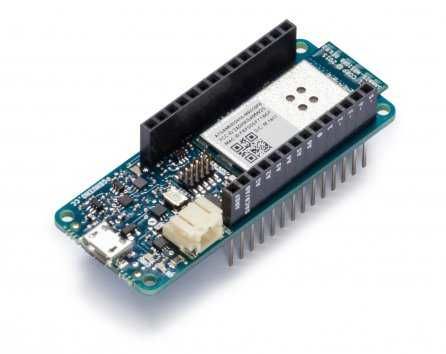

The board is delivered with the pin header plug installed.
Documentation
The Genuino MKR1000 is open source hardware! These are the relevant files:
Circuit diagrams - reference design
Further information on programming the MKR1000 or hardware connection can be found on the product page. MKR1000, like all other Genuino boards, is programmed with the software (IDE) that you can download for free using the board manager. To find inspiration for the MKR1000, please visit Genuino. cc Tutorials Page or join the lively discussions in the forum. Technical data Microcontroller SAMD21 Cortex-M0+ 32bit low power ARM MCU Board Power Supply (USB/VIN) 5V Supported Battery(*) Li-Po single cell, 3.7V, 700mAh minimum Circuit Operating Voltage 3.3V Digital I/O Pins 8 PWM Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19) UART 1 SPI 1 I2C 1 Analog Input Pins 7 (ADC 8/10/12 bit) Analog Output Pins 1 (DAC 10 bit) External Interrupts 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17) DC Current per I/O Pin 7 mA Flash Memory 256 KB SRAM 32 KB EEPROM no Clock Speed 32,768 kHz (RTC), 48 MHz LED_BUILTIN 6 Full-Speed USB Device and embedded Host LED_BUILTIN 6 Lenght 61.5 mm Width 25 mm Weight 32 gr.
