Arduino® PRIMO
|
35,26 EUR 35,86 EUR |
|
|
( 41,96 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 650743 |
|---|---|
| Mfg Part No: | A000135 |
| Weight: | 0.03 kg |
Product information for ARDUINO A000135:

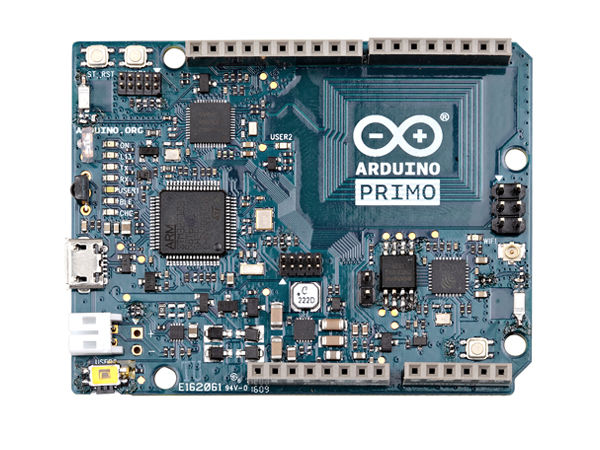

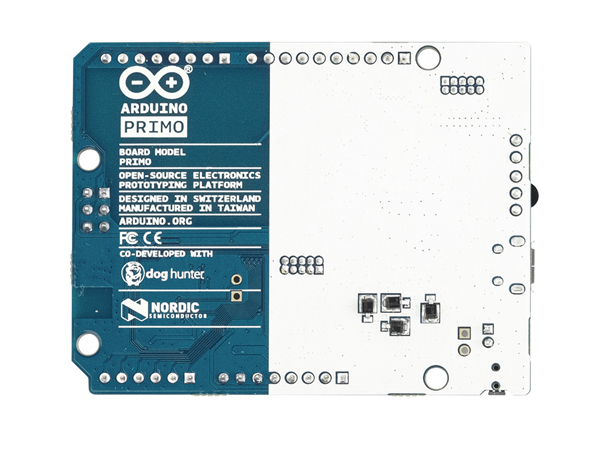

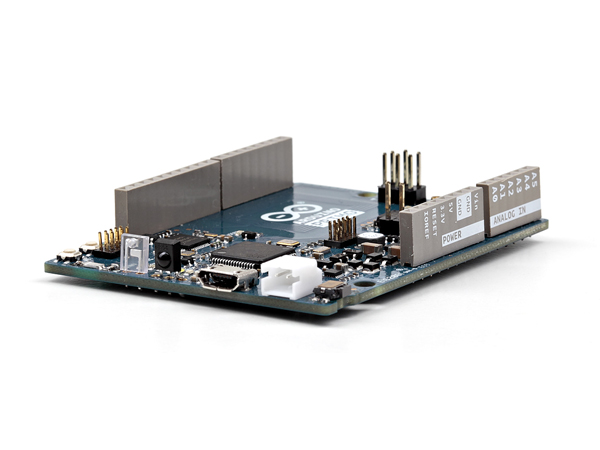

Arduino® PRIMO
The Primo is the first Arduino board with a Nordic nRF52 processor featuring WiFi.
The Arduino Primo combines the computing power of the Nordic nRF52 processor, an Espressif ESP8266 for WiFi, as well as several on-board sensors and a battery charger. The nRF52 includes NFC (Near Field Communication) and Bluetooth Smart. The sensors include an on-board button, LED and infrared receiver and transmitter.
The Arduino Primo Core was developed in collaboration with Nordic Semiconductor for the IoT sector and is ideal for wearables projects thanks to its low power consumption and Bluetooth capability. The microcontroller used is an nRF52832. This is also used on the Arduino Primo.
Specifications:10 digital input/output pins
10 PWM (all digital pins)
8 analog pins (from D0 to D7)
Accelerometer and gyroscope
Temperature and humidity sensor
RGB Led
SWD connector (for programming the board via an external programmer)
A coin cell battery holder
BLE interface
LED
NFC port (for using external NFC antenna)
Reset buttons (for resetting the microcontroller)
Power on/off switch
Documents:Instructions Arduino PRIMO CORE
Schematic
WIFI MICROCONTROLLER
Processor
ESP8266
Architecture
Tensilica Xtensa LX106
Operating Voltage
3.3 V
Flash Memory
4 MB
RAM
8 MB instruction, 12 MB data
Clock Speed
80 MHz
WiFi
802.11 b/g/n 2.4 GHz
Wake up time
< 2ms
ARDUINO MICROCONTROLLER
Microcontroller
Nordic nRF52832
Architecture
ARM Cortex-M4F
Operating Voltage
3.3 V
Flash memory
512 KB
SRAM
64 KB
Clock Speed
64 MHz
Analog I/O Pins
6 + 1 DAC
DC Current per I/O Pins
7 mA
Bluetooth Smart
Up to +4 dBm output power, -96 dBm sensitivity
Other features
PDM interface, AES HW enc, NFC tag
SERVICE MICROCONTROLLER
Processor
STM32F103R8T6
Architecture
ARM Cortex-M3
Operating Voltage
2.0 to 3.6 V
Flash Memory
64 KB
SRAM
20 KB
Clock Speed
up to 72 MHz
Main Features
USB/Uart converter, CMSIS-DAP, GPIO expander, Board power management, IrDA
GENERAL
Input Voltage
5 V
Digital I /O Pins
20
PWM Output
3
Power Consumption
87 mA
PCB Size
53 x 68.5 mm
Weight
34 g
Product Code
A000135
The Primo is the first Arduino board with a Nordic nRF52 processor featuring WiFi.
The Arduino Primo combines the computing power of the Nordic nRF52 processor, an Espressif ESP8266 for WiFi, as well as several on-board sensors and a battery charger. The nRF52 includes NFC (Near Field Communication) and Bluetooth Smart. The sensors include an on-board button, LED and infrared receiver and transmitter.
The Arduino Primo Core was developed in collaboration with Nordic Semiconductor for the IoT sector and is ideal for wearables projects thanks to its low power consumption and Bluetooth capability. The microcontroller used is an nRF52832. This is also used on the Arduino Primo.
Specifications:10 digital input/output pins
10 PWM (all digital pins)
8 analog pins (from D0 to D7)
Accelerometer and gyroscope
Temperature and humidity sensor
RGB Led
SWD connector (for programming the board via an external programmer)
A coin cell battery holder
BLE interface
LED
NFC port (for using external NFC antenna)
Reset buttons (for resetting the microcontroller)
Power on/off switch
Documents:Instructions Arduino PRIMO CORE
Schematic
WIFI MICROCONTROLLER
Processor
ESP8266
Architecture
Tensilica Xtensa LX106
Operating Voltage
3.3 V
Flash Memory
4 MB
RAM
8 MB instruction, 12 MB data
Clock Speed
80 MHz
WiFi
802.11 b/g/n 2.4 GHz
Wake up time
< 2ms
ARDUINO MICROCONTROLLER
Microcontroller
Nordic nRF52832
Architecture
ARM Cortex-M4F
Operating Voltage
3.3 V
Flash memory
512 KB
SRAM
64 KB
Clock Speed
64 MHz
Analog I/O Pins
6 + 1 DAC
DC Current per I/O Pins
7 mA
Bluetooth Smart
Up to +4 dBm output power, -96 dBm sensitivity
Other features
PDM interface, AES HW enc, NFC tag
SERVICE MICROCONTROLLER
Processor
STM32F103R8T6
Architecture
ARM Cortex-M3
Operating Voltage
2.0 to 3.6 V
Flash Memory
64 KB
SRAM
20 KB
Clock Speed
up to 72 MHz
Main Features
USB/Uart converter, CMSIS-DAP, GPIO expander, Board power management, IrDA
GENERAL
Input Voltage
5 V
Digital I /O Pins
20
PWM Output
3
Power Consumption
87 mA
PCB Size
53 x 68.5 mm
Weight
34 g
Product Code
A000135
Questions & answers
What is the delivery time of Arduino® PRIMO?
The article Arduino® PRIMO is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ARDUINO A000135 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Arduino® PRIMO always at the best possible price. We can give you a discount of 2% on Arduino® PRIMO if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
