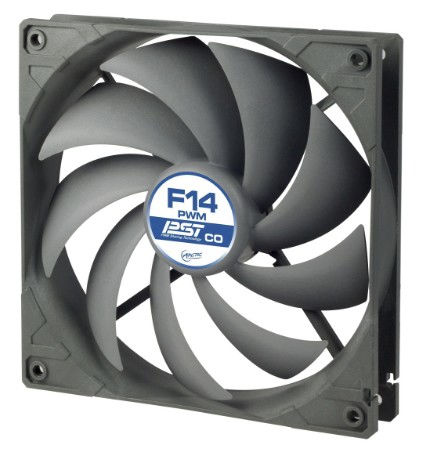

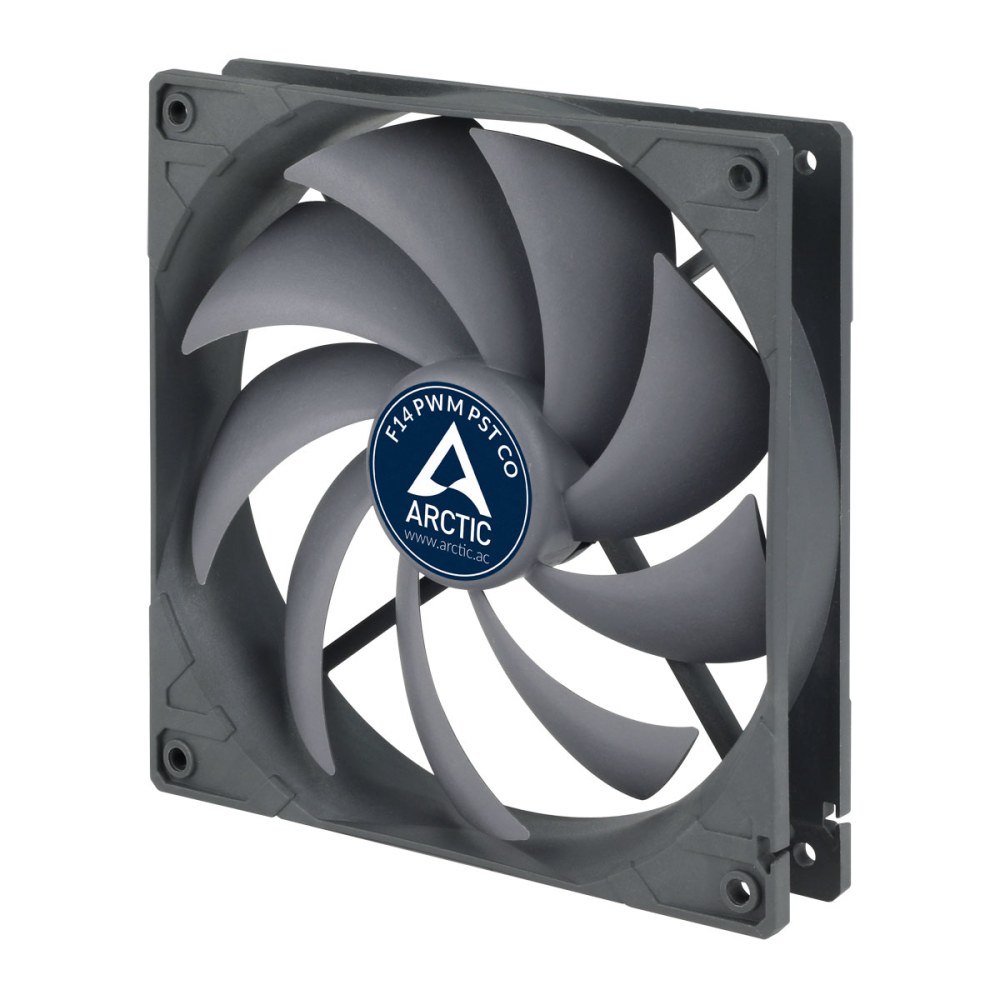

Fan ARCTIC 140×140×25 F14 PWM PST CO ACFAN00080A

Your rating:
Average rating
product review for Fan ARCTIC 140×140×25 F14 PWM PST CO ACFAN00080A
( 4.6 / 5 ) 38 ratings
Arctic ACFAN00080A
This image may differ from the desired article.
Arctic ACFAN00080AArctic ACFAN00080AArctic ACFAN00080AArctic ACFAN00080AArctic ACFAN00080AArctic ACFAN00080AArctic ACFAN00080AArctic ACFAN00080A
6,65 EUR 6,65 EUR
( 7,91 EUR incl. VAT )
≈ £5.56  |  ≈ $7.30
plus delivery charges: 55,00 €
in stockinfo_outline
1x Fan ARCTIC 140×140×25 F14 PWM PST CO ACFAN00080A
End-Of-Life: 11. Sep 2026
Datasheet:file_download Download
Lieske Part No.:310036
Mfg Part No: ACFAN00080A
Weight:0.219 kg

Product information for Arctic ACFAN00080A:

The ARCTIC F14 PWM PST CO is a housing fan with a diameter of 14 cm, specifically designed for use in computer housings. It provides efficient ventilation and cooling of PC components through controlled air exchange within the housing. The fan features a 4-pin connection cable and is designed for power supply via 12 V DC. It is controlled via pulse width modulation (PWM) through the motherboard, allowing the rotational speed to be adjusted according to actual cooling requirements. The maximum rotational speed is 1350 RPM, with the fan generating an airflow of 126 m³/h (74 cfm). The noise level is 0.3 Sone, corresponding to pleasant operation at high cooling performance.

Applications

The fan is intended for use in computer housings, particularly in systems requiring continuous operation, such as servers, media servers, or high-end PCs. It is suitable for both supplying cool air into the housing and expelling warm air outside, depending on the mounting position. The standard holes of 92 mm allow for universal mounting on most housing fronts, sides, or rear panels.

Functions and Features in Detail

The fan features patented PWM Sharing Technology (PST), enabling multiple PWM-controlled fans to be operated synchronously. The PWM signal, for example, is derived from the CPU cooler, ensuring all connected fans receive the same speed control. This results in uniform and efficient cooling performance, while optimizing noise levels. The PST technology is particularly advantageous when operating multiple fans in parallel, as it prevents individual fans from running uncoordinated.

Technology Explained Simply

The fan is equipped with a double ball bearing, ensuring longer service life and high stability. The bearing is of Japanese production and allows for continuous 24/7 operation without performance loss. Compared to conventional sleeve or ball bearings, the double ball bearing is more robust against contamination and high temperatures. The fan blade is designed to generate minimal noise while ensuring efficient airflow. The blade shape optimizes air pressure and throughput, resulting in improved cooling performance.

Compatibility and Accessories

The fan features a 4-pin connector, which can be connected to the corresponding sockets on motherboards. The cable length is 400 mm, allowing for flexible positioning within the housing. Compatibility is ensured if the motherboard supports PWM signaling. The fan blades are designed for standard 92 mm holes, enabling universal mounting in most housings.

t
Mounting and Installation

Mounting is done via the designated holes in the housing. The included screws allow for secure fastening. The cable length of 400 mm provides sufficient clearance for wiring. Installation typically requires no tools, with positioning (intake or exhaust) varying according to the system's cooling concept. PWM control is handled by the motherboard, automatically adjusting rotational speed.

Operational Advantages

The fan is characterized by high efficiency at low noise levels. The combination of double ball bearing and PST technology ensures long service life and optimized cooling performance. PWM control enables precise adjustment of rotational speed according to actual cooling needs, avoiding unnecessary noise. The maximum airflow of 126 m³/h ensures sufficient ventilation even in larger housings. The fan is designed for continuous load, making it suitable for demanding applications.

Product Color and Material

The fan is finished in black and made of plastic. Dimensions are 140 mm (width) × 140 mm (depth) × 27 mm (height). Weight is 183 g. The surface is smooth and robust, minimizing contamination and wear.

Energy Consumption

The fan consumes 0.3 A at nominal voltage of 12 V. The start voltage is 6.0 V DC at 100 % PWM. Power consumption is low compared to other fans, contributing to efficient energy use.

Design
Product colourBlack
MaterialPlastic
Number of fans1 fan(s)
Fan connector4-pin
Logistics data
Harmonized System (HS) code84733080
Other features
Country of originChina
Packaging content
Cables includedFan
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter14 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Rotational speed (max)1350 RPM
Noise level (high speed)24.5 dB
Noise level0.3 sone
Maximum airflow74 cfm
Airflow126 m³/h
Quantity per pack1 pc(s)
Pulse-width modulation (PWM) supportYes
Power
Voltage12 V
Rated current0.3 A
Weight & dimensions
Width140 mm
Depth140 mm
Height27 mm
Weight183 g
Cable length0.4 m
Package width143 mm
Package depth29 mm
Package height143 mm


Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Product data sheet
Datasheet for Arctic ACFAN00080A

Questions & answers

What is the delivery time of Fan ARCTIC 140×140×25 F14 PWM PST CO ACFAN00080A?

The article Fan ARCTIC 140×140×25 F14 PWM PST CO ACFAN00080A is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Arctic ACFAN00080A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fan ARCTIC 140×140×25 F14 PWM PST CO ACFAN00080A always at the best possible price. We can give you a discount of 2% on Fan ARCTIC 140×140×25 F14 PWM PST CO ACFAN00080A if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
