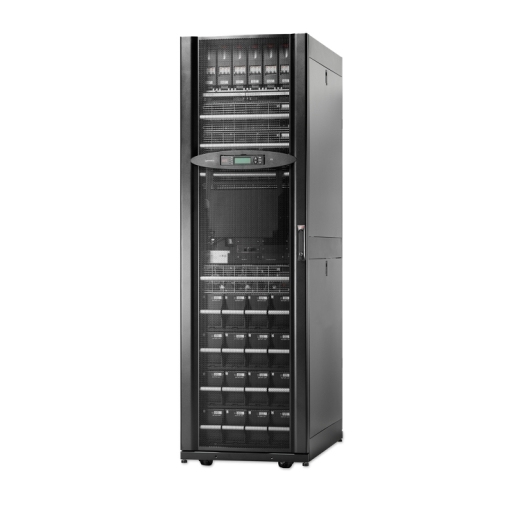

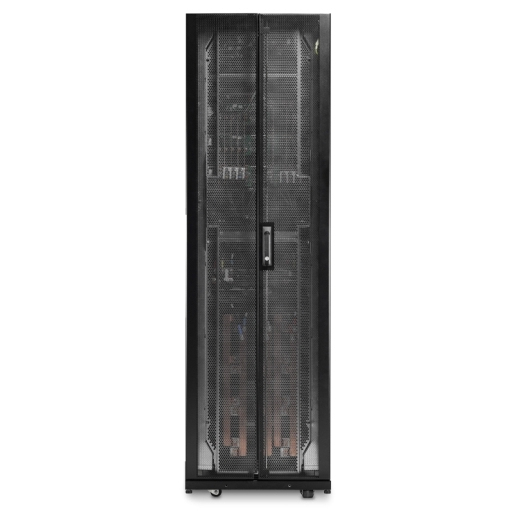

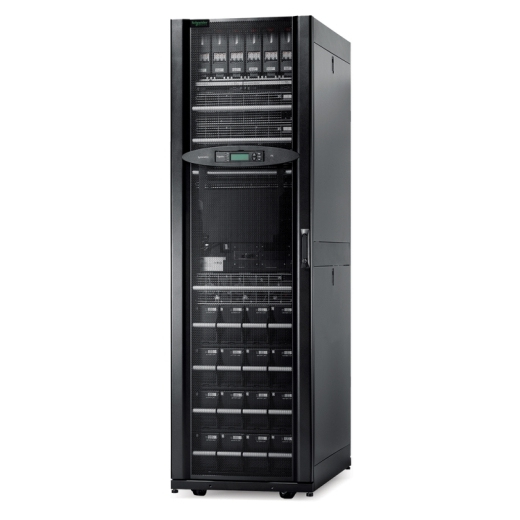

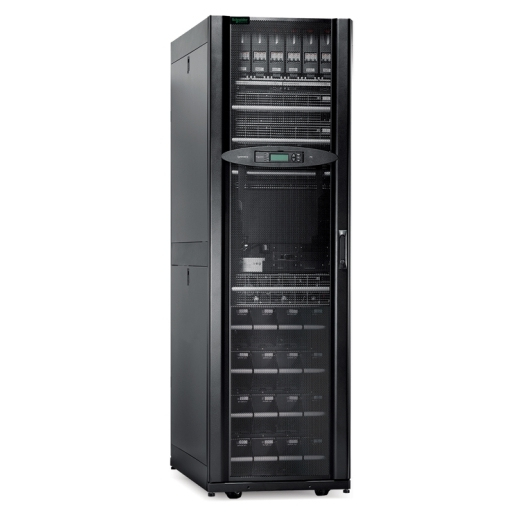

APC Symmetra PX Frame 160kW 400V
|
20.425,00 EUR |
|
|
( 24.305,75 EUR incl. VAT ) ≈ £17,197.85 | ≈ $22,937.28 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 943032 |
| Mfg Part No: | SYCF48KH |
| UPC/EAN: | 7612205026858 |
| Weight: | 331 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 13824 VAh |
| Number of batteries supported | 4 |
| Battery recharge time | 3 h |
| Hot-swap battery | |
| Certificates | |
| Certification | EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, Eurobat General Purpose, ISO 14001, ISO 9001, VFI-SS-111 |
| Design | |
| Form factor | Tower |
| Product colour | Black, Grey |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 48 kVA |
| Output power | 48000 W |
| Waveform | Sine |
| Input operation voltage (max) | 400 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 400 V |
| Output frequency | 50/60 Hz |
| Maximum current | 98 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Three-phase input voltage supported | 380,400,415 V |
| Three-phase output voltage supported | 380,400,415 V |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 61 dB |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1004.35 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Ports & interfaces | |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Serial interface | |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 1991 mm |
| Weight | 796 kg |
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of APC Symmetra PX Frame 160kW 400V?
The article APC Symmetra PX Frame 160kW 400V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SYCF48KH to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Symmetra PX Frame 160kW 400V always at the best possible price. We can give you a discount of 2% on APC Symmetra PX Frame 160kW 400V if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
