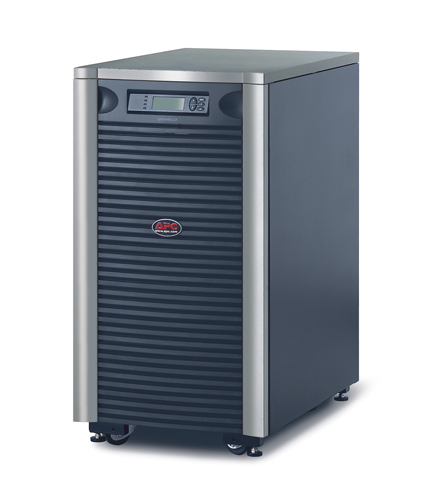

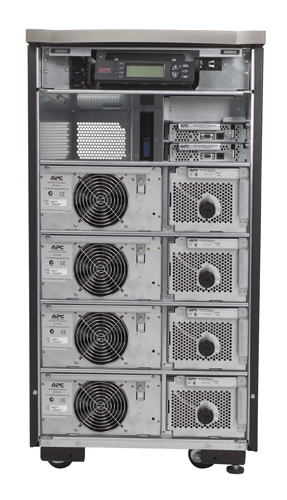

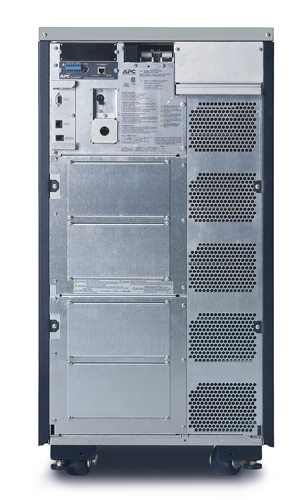

APC Symmetra LX 16kVA N+1 Tower Frame 220/230/240V or 380/400/415V
|
6.365,00 EUR |
|
|
( 7.574,35 EUR incl. VAT ) ≈ £5,359.33 | ≈ $7,147.90 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 775135 |
|---|---|
| Mfg Part No: | SYAF16KI |
| UPC/EAN: | 0731304218920 |
| Weight: | 147.73 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
| Form factor | Tower |
| Features | |
| Output power capacity | 16 kVA |
| Output power | 11200 W |
| Input operation voltage (min) | 155 V |
| Input operation voltage (max) | 480 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 90% |
| Crest factor | 5:1 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 62 dB |
| Emergency Power Off (EPO) | |
| Audible alarm(s) | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Other features | |
| Battery type | SYBT5 |
| Dimensions (WxDxH) | 483 x 726 x 937 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230-400 V |
| Package dimensions (WxDxH) | 599 x 997 x 1181 mm |
| Packaging data | |
| Package weight | 147.7 kg |
| Ports & interfaces | |
| AC outlets quantity | 1 AC outlet(s) |
| RS-232 ports | 1 |
| Safety regulation & standards | |
| Safety | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 726 mm |
| Height | 937 mm |
| Weight | 116.4 kg |
Questions & answers
What is the delivery time of APC Symmetra LX 16kVA N+1 Tower Frame 220/230/240V or 380/400/415V?
The article APC Symmetra LX 16kVA N+1 Tower Frame 220/230/240V or 380/400/415V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SYAF16KI to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Symmetra LX 16kVA N+1 Tower Frame 220/230/240V or 380/400/415V always at the best possible price. We can give you a discount of 2% on APC Symmetra LX 16kVA N+1 Tower Frame 220/230/240V or 380/400/415V if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
