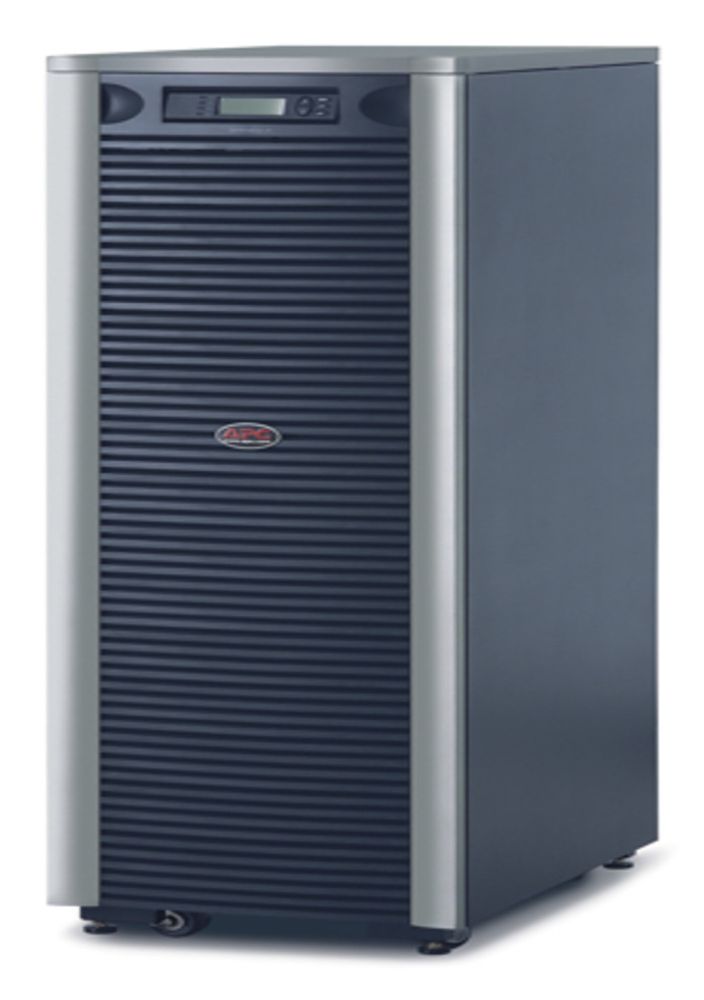

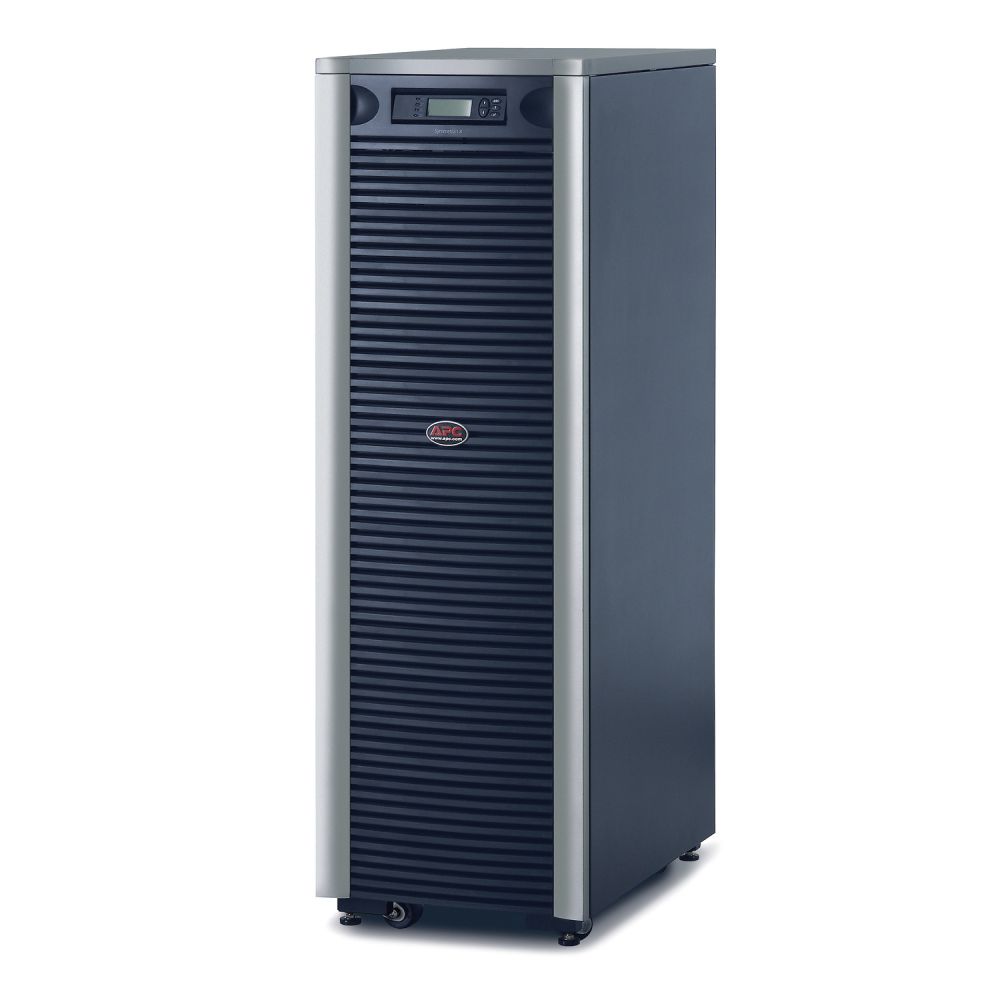

APC Symmetra SYA8K16IXR Dual Conversion Online UPS - 2.12 Hour Full Load - 4.43 Hour Half Load content_copy

Industries most space-optimized modular UPS solutions
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and runtime as demand increases or when higher levels of availability are required. With built-in network manageability and tower model available from 8-16 kVA N+1 redundant, the online Symmetra LX is the choice to protect high-performance IT and Telecom equipment in business-critical server and network rooms.A flexible rack/stack design offers unmatched runtime and power capacity in space constrained environments. Symmetra LX allows incredibly fast upgrades and maintenance with virtually all of its parts contained in field-swappable components. These include hot-swappable, user-replaceable power, battery, and intelligence modules, management cards, LCD display, fans, and external battery frames. Additionally the wiring tray, frame electronics, receptacles, and casters can be swapped in minutes if necessary. Symmetra LX achieves industry-leading footprint or U-space needed in an equipment rack, increased speed and ease of deployment, and reduced repair time.

Battery
Battery replacement accessibility	End-user
Typical backup time at full load	57.4 min
Typical backup time at half load	122.6 min
Battery recharge time	7.5 h
Replacement battery cartridge	SYBT5
Certificates
Compliance certificates	RoHS, REACH, WEEE
Certification	C-Tick; CE; GOST; VDE
Waste Electrical and Electronic Equipment (WEEE) compliance
Design
Product colour	Black, Silver
Features
Output power capacity	8 kVA
Output power	5600 W
Waveform	Sine
Number of input phases	1
Number of output phases	1
Single-phase input voltage supported	240,220 V
Three-phase input voltage supported	220,380,400,415 V
Emergency Power Off (EPO)
Logistics data
Customs product code (TARIC)	8504409590
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	34345.0451985118
Country of origin	Philippines
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Other features
I/O ports	Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Interface	DB-9 RS-232, Smart-Slot
Output connections	(1) Hard Wire 3-wire (H N + G)
Input connection type	Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Dimensions (WxDxH)	730 x 480 x 1520 mm
Nominal output voltage	230 V
Output voltage note	Configurable for 220: 230 or 240 nominal output voltage
Output connection type	hard wire 3-wire (H N + E) for 1 zone(s)
Output voltage	220 V
Mounting	front
Ports & interfaces
AC outlet types	Hard Wire 3-wire (1PH + N + G)
Power
Input current (max)	36 A
Technical details
Packaging recycled materials	Recycled cardboard
Preferred mounting position	no preference
Sustainable packaging
Take-back system
Packaging without single use plastic
Weight & dimensions
Width	483 mm
Depth	726 mm
Height	1516 mm
Weight	473.6 kg

---
