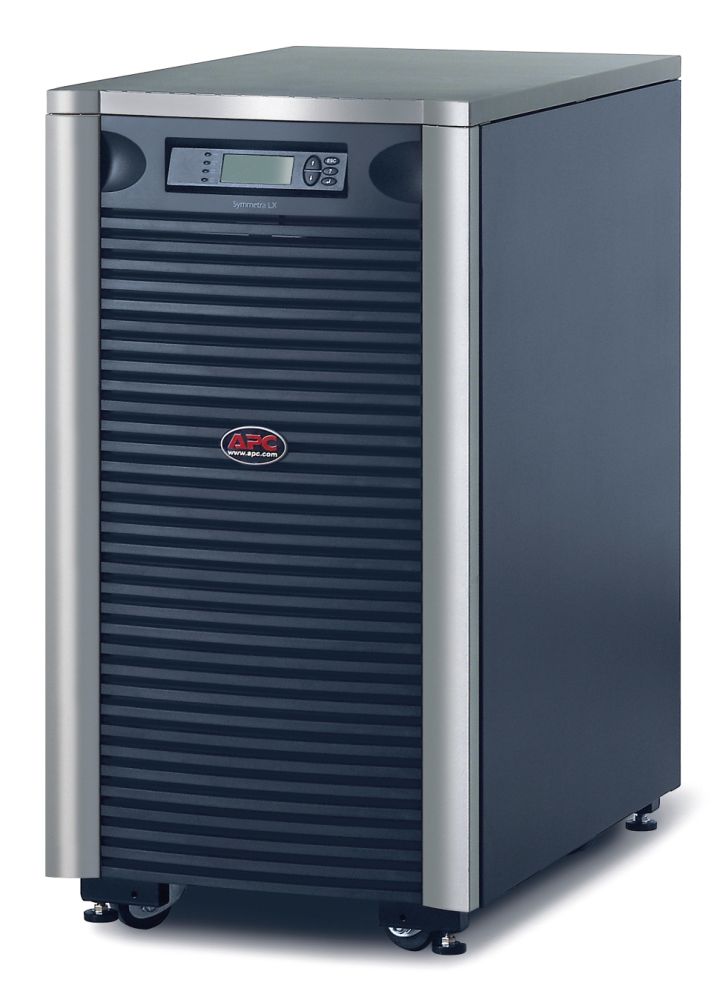

APC Symmetra LX 8kVA -16kVA N+1 USV 220/230/240V
|
13.205,00 EUR |
|
|
( 15.713,95 EUR incl. VAT ) ≈ £11,118.61 | ≈ $14,829.22 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Sales unit: 100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 749026 |
| Mfg Part No: | SYA8K16I |
| UPC/EAN: | 0731304221555 |
| Weight: | 236.82 kg |
The item price shown refers to 100 pieces APC SYA8K16I
| Battery | |
| Battery replacement accessibility | End-user |
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.2 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | SYBT5 |
| Certificates | |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | C-Tick; CE; GOST; VDE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | |
| Design | |
| Product colour | Black, Silver |
| Features | |
| Output power capacity | 8 kVA |
| Output power | 5600 W |
| Waveform | Sine |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 240,220 V |
| Three-phase input voltage supported | 220,380,400,415 V |
| Emergency Power Off (EPO) | |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 30634.4781887309 |
| Country of origin | Philippines |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Other features | |
| I/O ports | Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Interface | DB-9 RS-232, Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 480 x 730 x 940 mm |
| Nominal output voltage | 230 V |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s) |
| Output voltage | 220 V |
| Mounting | front |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| Power | |
| Input current (max) | 36 A |
| Technical details | |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 2d54512b-134b-4bf3-ab6e-849ecf1e3919 |
| Preferred mounting position | no preference |
| Sustainable packaging | |
| Take-back system | |
| Packaging without single use plastic | |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 726 mm |
| Height | 937 mm |
| Weight | 219.6 kg |
Questions & answers
What is the delivery time of APC Symmetra LX 8kVA -16kVA N+1 USV 220/230/240V?
The article APC Symmetra LX 8kVA -16kVA N+1 USV 220/230/240V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SYA8K16I to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Symmetra LX 8kVA -16kVA N+1 USV 220/230/240V always at the best possible price. We can give you a discount of 2% on APC Symmetra LX 8kVA -16kVA N+1 USV 220/230/240V if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
APC Symmetra LX 8kVA -16kVA N+1 USV 220/230/240V is offered by us in a sales unit of 100 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
