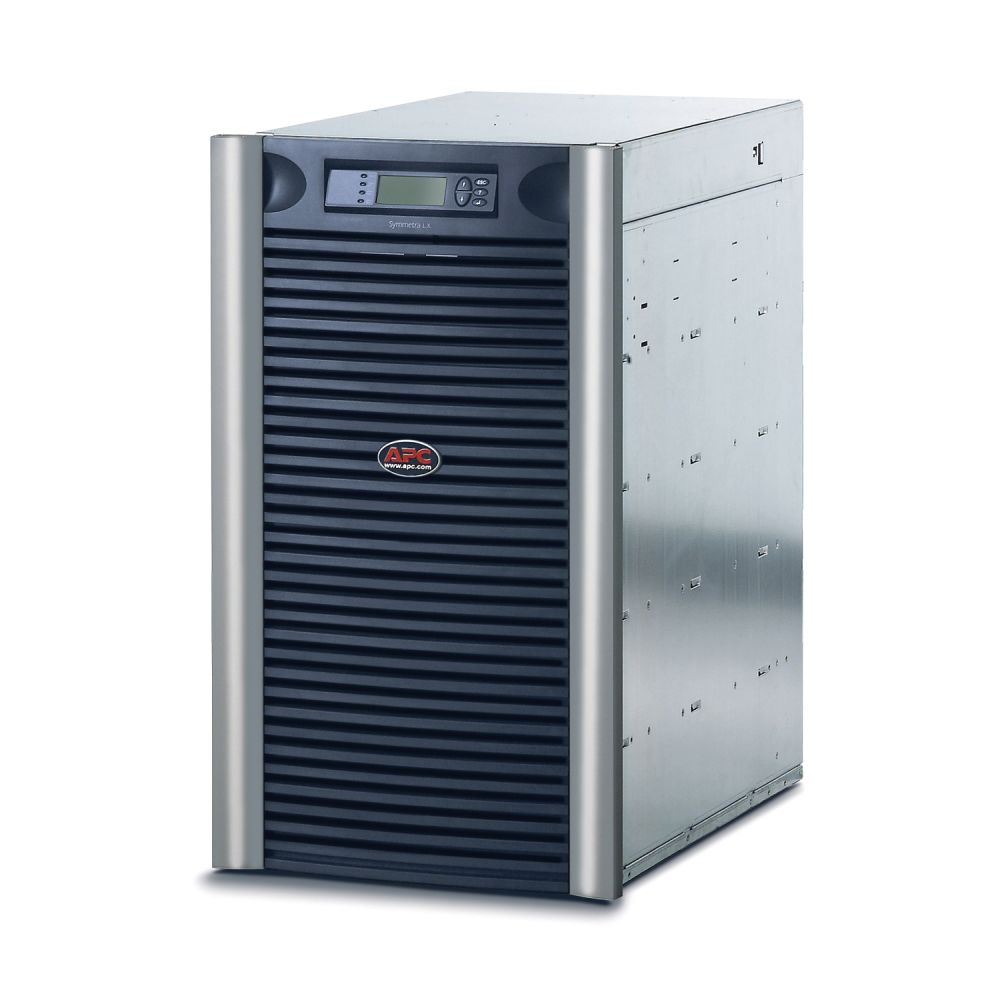

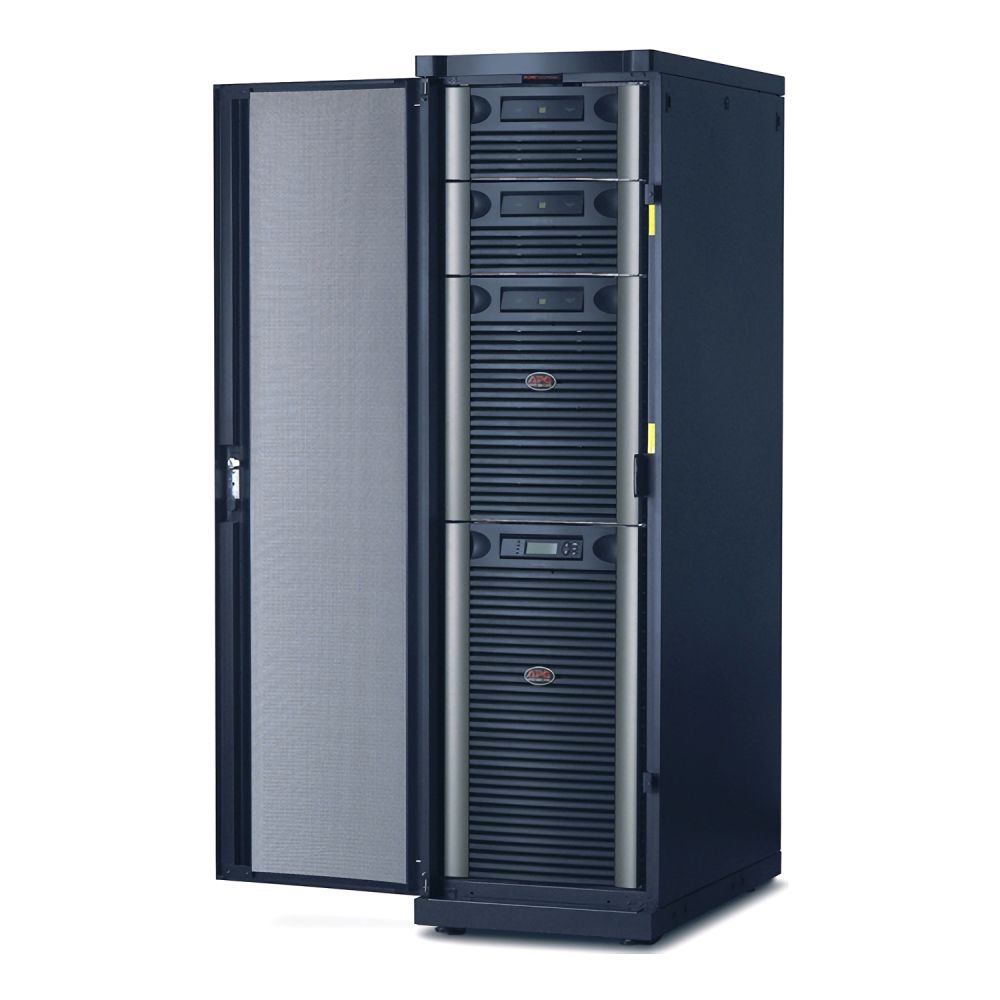

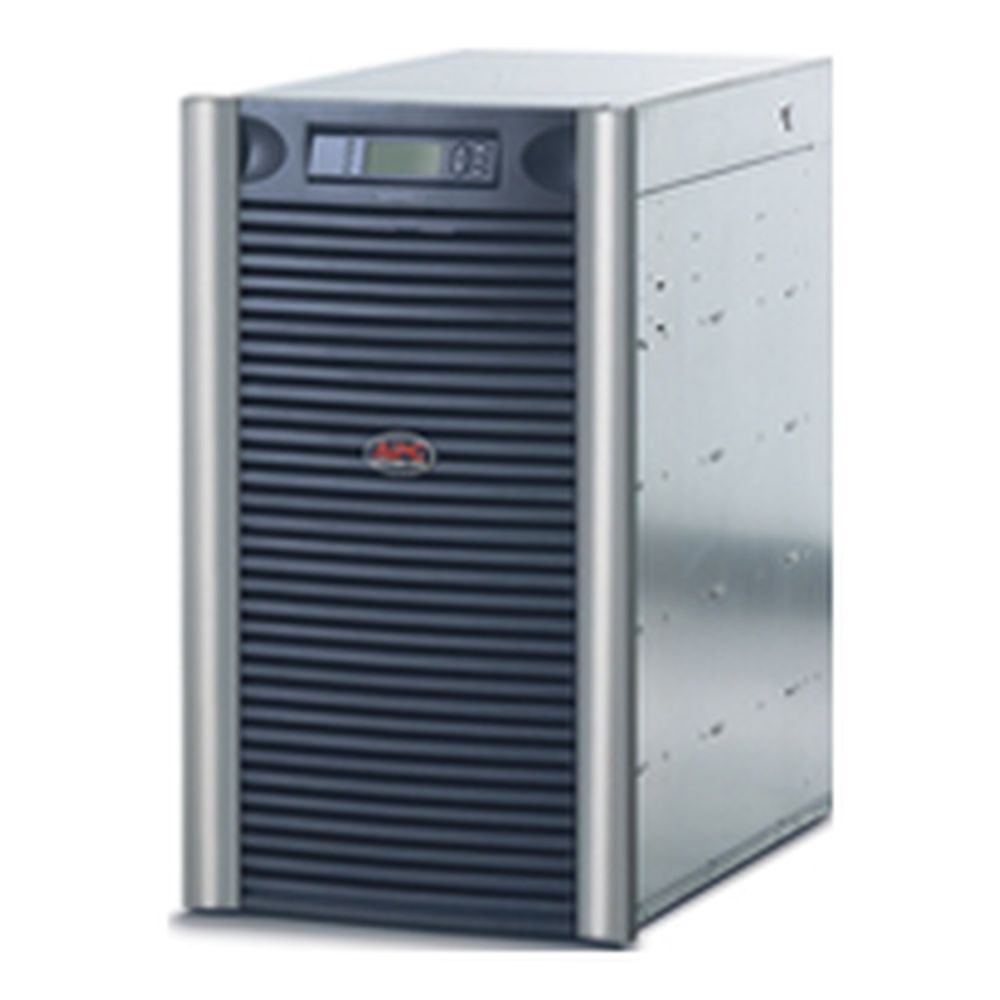

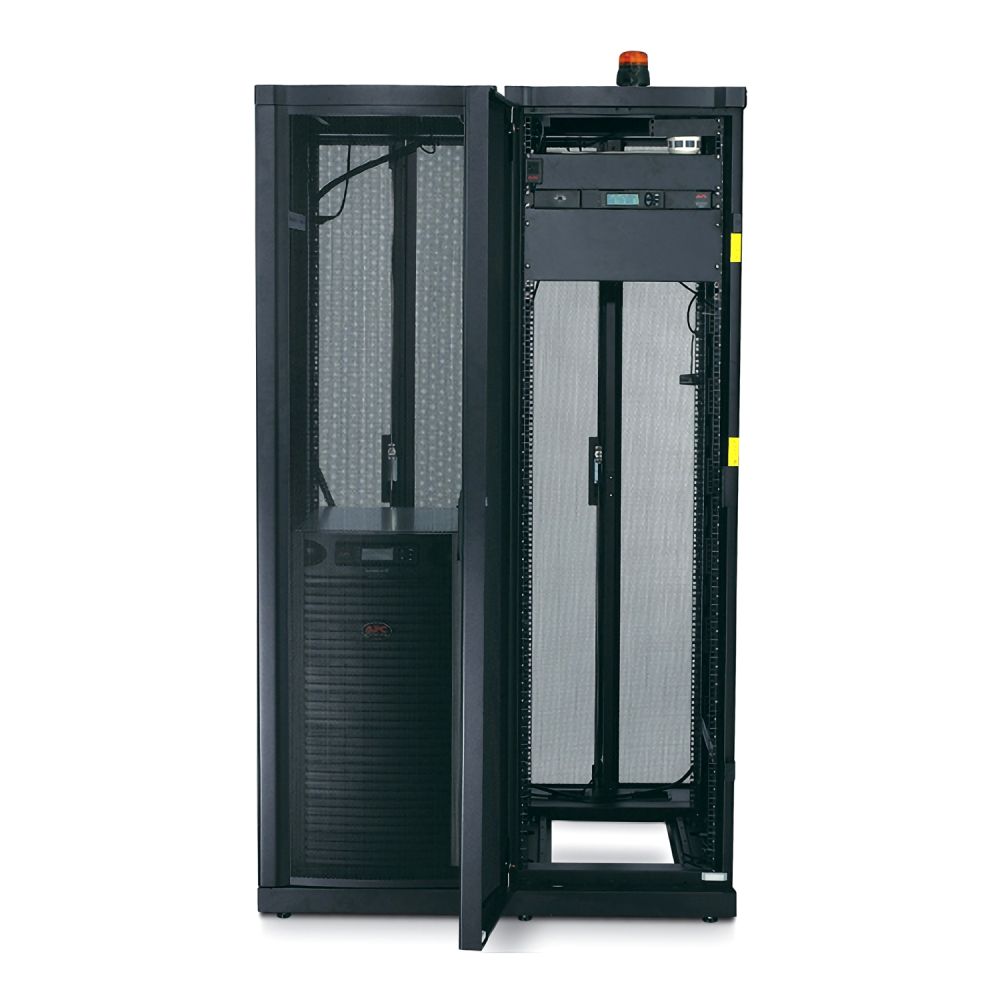

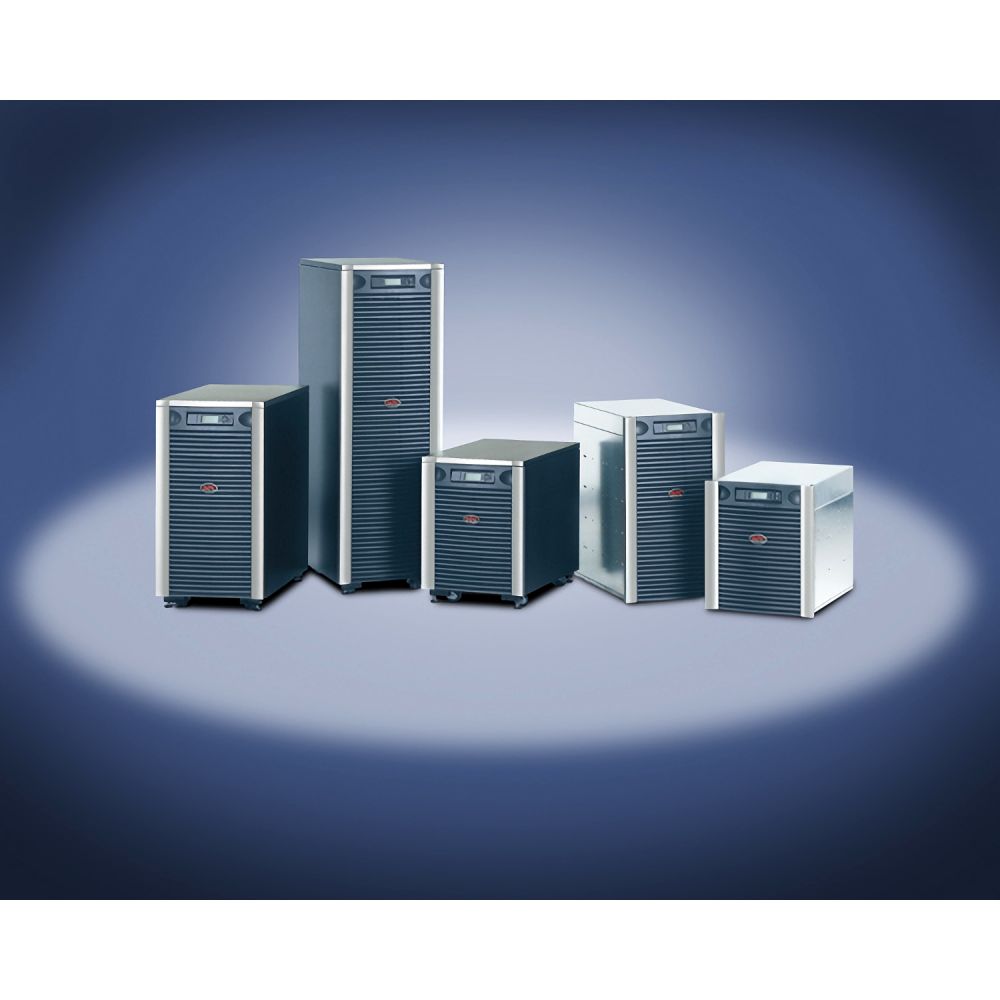

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rackmount 230V or 400V
|
21.185,00 EUR |
|
|
( 25.210,15 EUR incl. VAT ) ≈ £17,837.77 | ≈ $23,790.76 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 106763 |
| Mfg Part No: | SYA16K16RMI |
| Weight: | 340.45 kg |
| Battery | |
| Battery replacement accessibility | End-user |
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.3 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | SYBT5 |
| Certificates | |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | C-Tick; CE; GOST; VDE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | |
| Design | |
| Product colour | Black, Silver |
| Compatibility | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE |
| Features | |
| Output power capacity | 16 kVA |
| Output power | 11200 W |
| Waveform | Sine |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 240,220 V |
| Three-phase input voltage supported | 220,380,400,415 V |
| Emergency Power Off (EPO) | |
| Audible alarm(s) | |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 45918.3243238434 |
| Country of origin | Philippines |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Other features | |
| I/O ports | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
| Battery type | Lead-Acid |

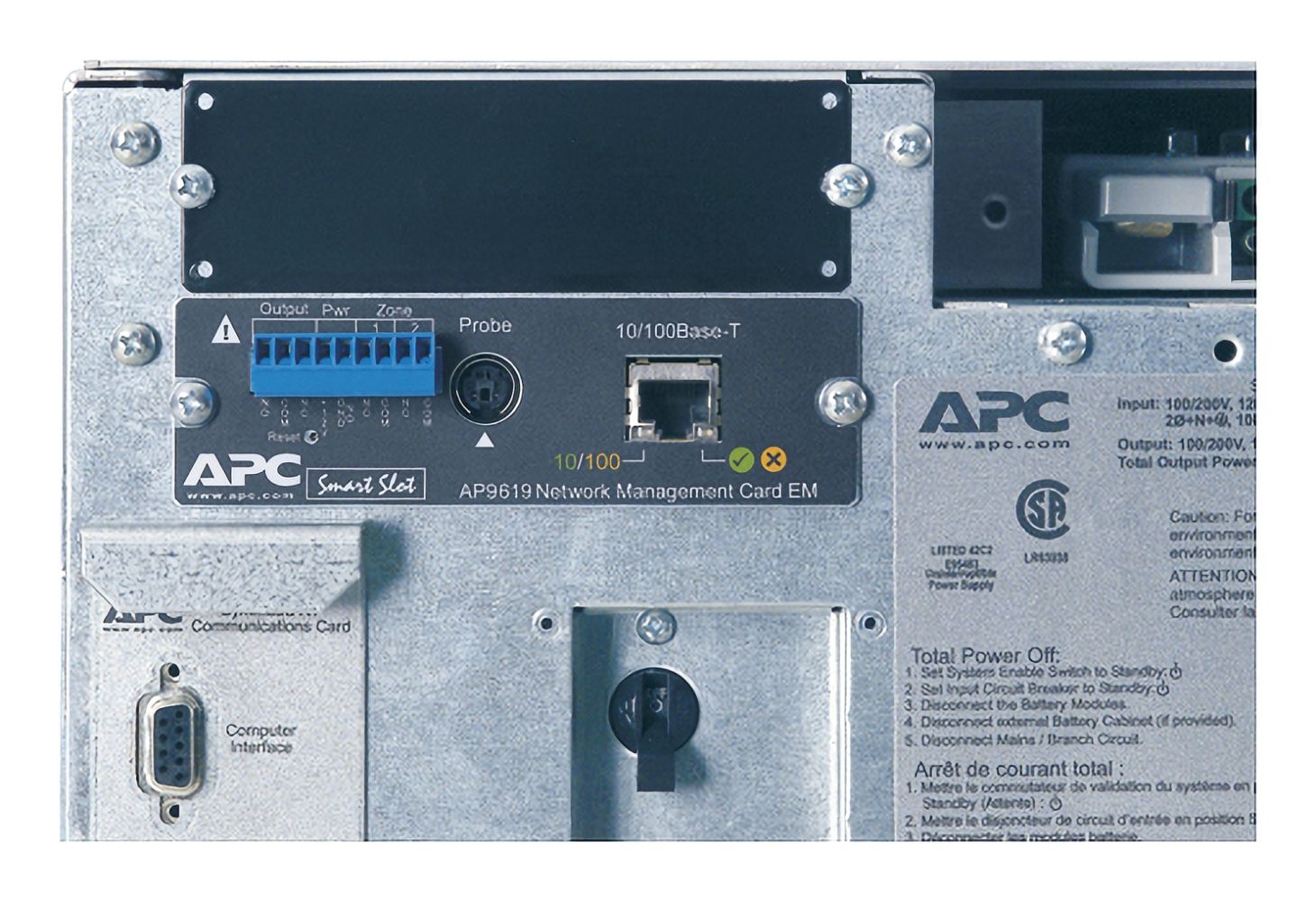

| Interface | DB-9 RS-232, Smart-Slot |

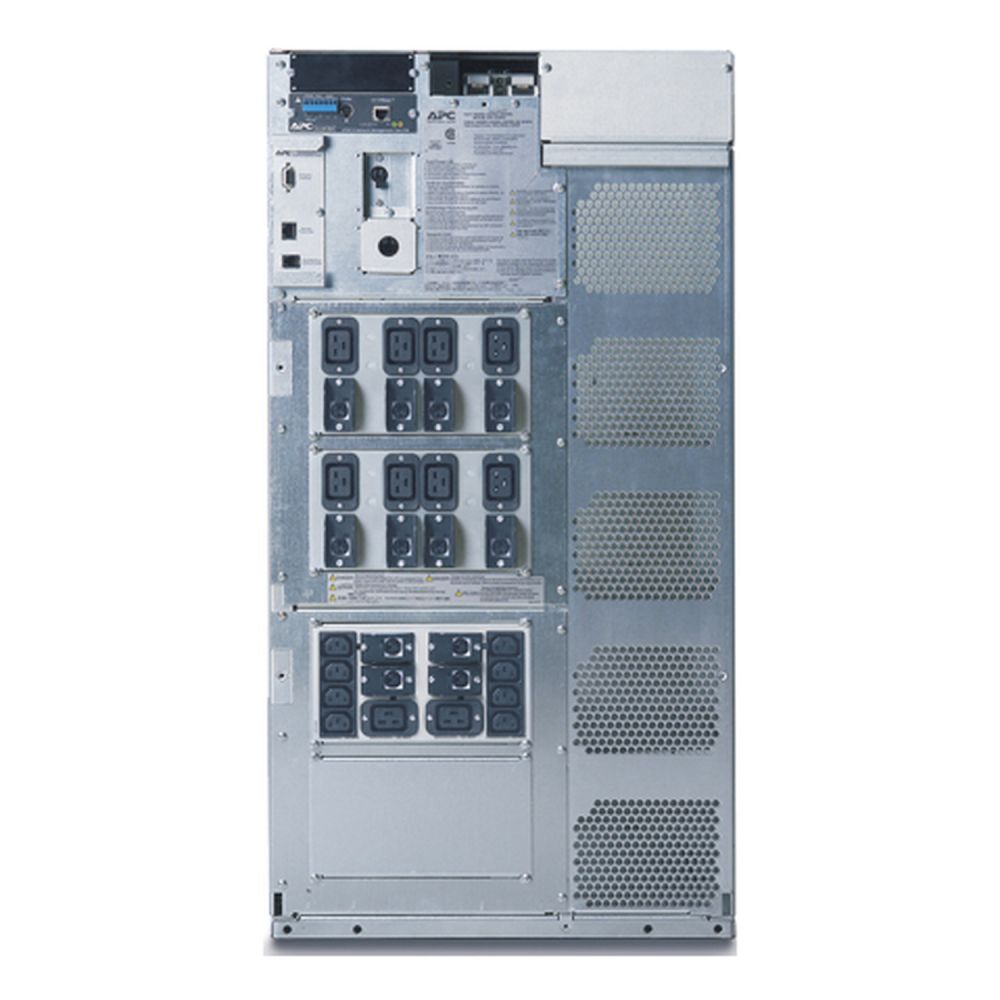

| Output connections | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 472 x 688 x 838 mm |
| Output voltage note | 220: 230, 240 |
| Nominal input voltage | 230 V |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s); 8 IEC 60320C13; 10 IEC 60320C19 |
| Output voltage | 220 V |
| Mounting | front |
| Package dimensions (WxDxH) | 599 x 997 x 1054 mm |
| Packaging data | |
| Package weight | 340.4 kg |
| Ports & interfaces | |
| AC outlet types | IEC 60320 |
| Power | |
| Input current (max) | 73 A |
| Technical details | |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 2d54512b-134b-4bf3-ab6e-849ecf1e3919 |
| Preferred mounting position | lower |
| Sustainable packaging | |
| Take-back system | |
| Packaging without single use plastic | |
| Weight & dimensions | |
| Width | 472 mm |
| Depth | 688 mm |
| Height | 838 mm |
| Weight | 286.8 kg |
Questions & answers
What is the delivery time of APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rackmount 230V or 400V?
The article APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rackmount 230V or 400V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SYA16K16RMI to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rackmount 230V or 400V always at the best possible price. We can give you a discount of 2% on APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rackmount 230V or 400V if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
